| Application | Salon, Home |
| Portable | Non Portable |
| Technology | Diode Laser (755nm+808nm+1064nm) + IPL + Q-Switched ND: YAG Laser |
| Power | Diode Laser: 2500W; IPL: 1400W; ND:YAG Laser: 500W |
| Wavelength | Diode (755/808/1064nm); IPL (480/530/640nm); ND:YAG (1064/532/1320nm) |
| Energy Density | Diode: 1-100j/cm2; IPL: 1-50j/cm2; ND:YAG: 2000mj |
| Frequency | 1-10Hz |
| Spot Size | Diode: 13mm*16mm; IPL: 15*50mm; ND:YAG: 1-10mm |
| Laser Bars | 10 Bars (USA Coherent) |
| Pulse Width | ND:YAG: <10ns; Diode: 10-300ms |

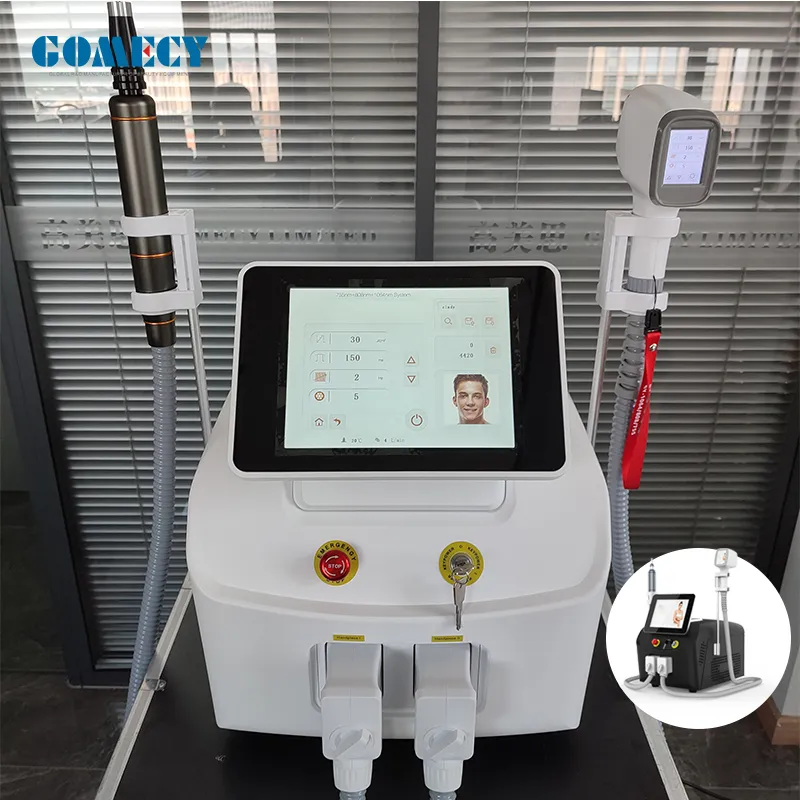

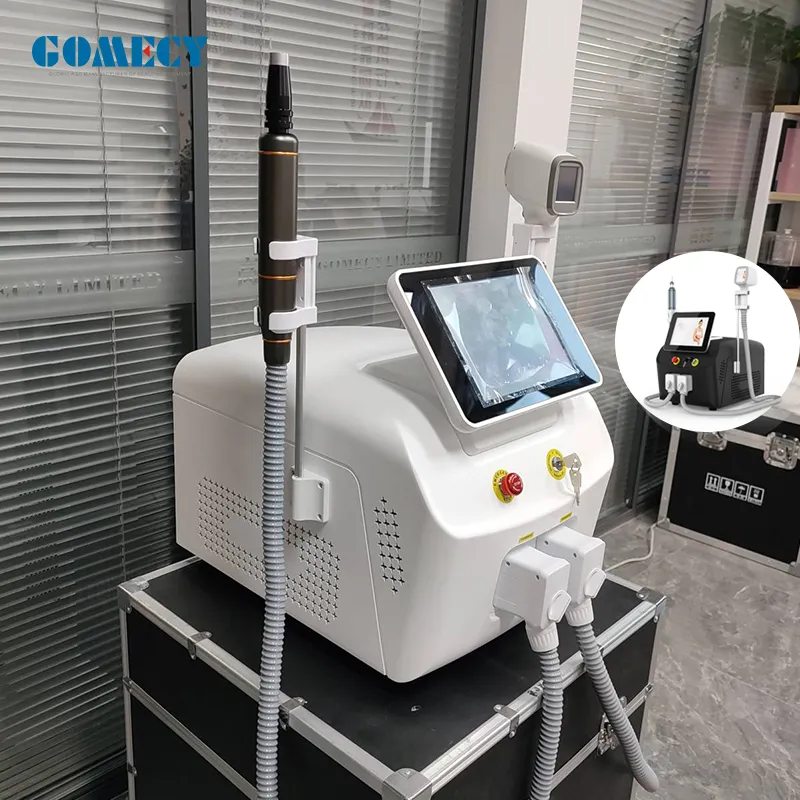

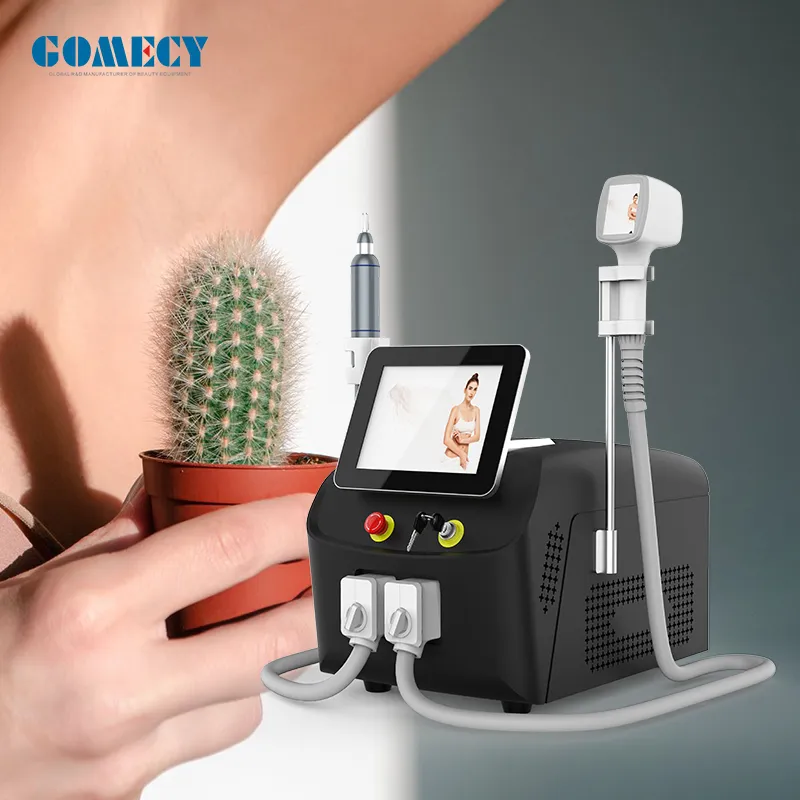

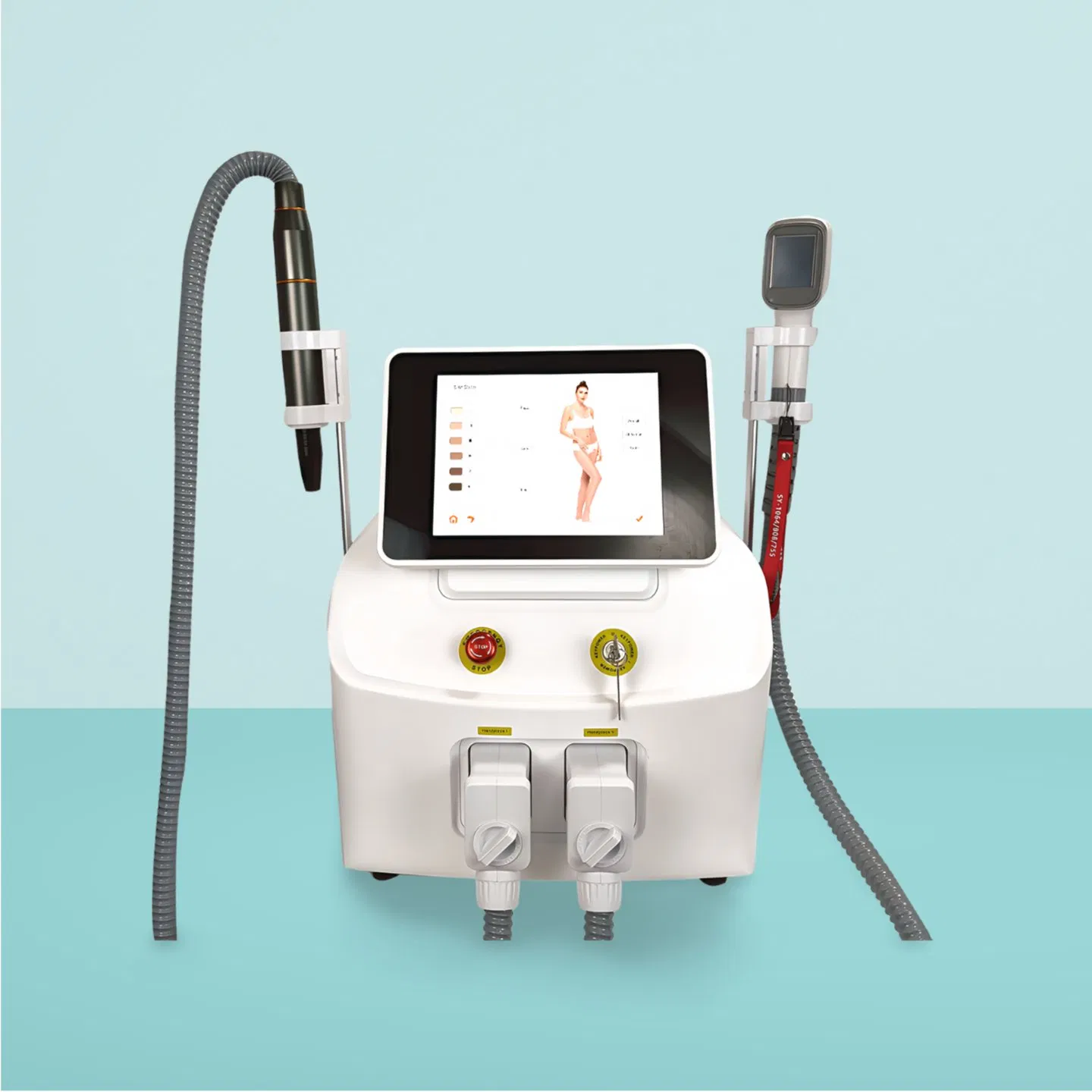

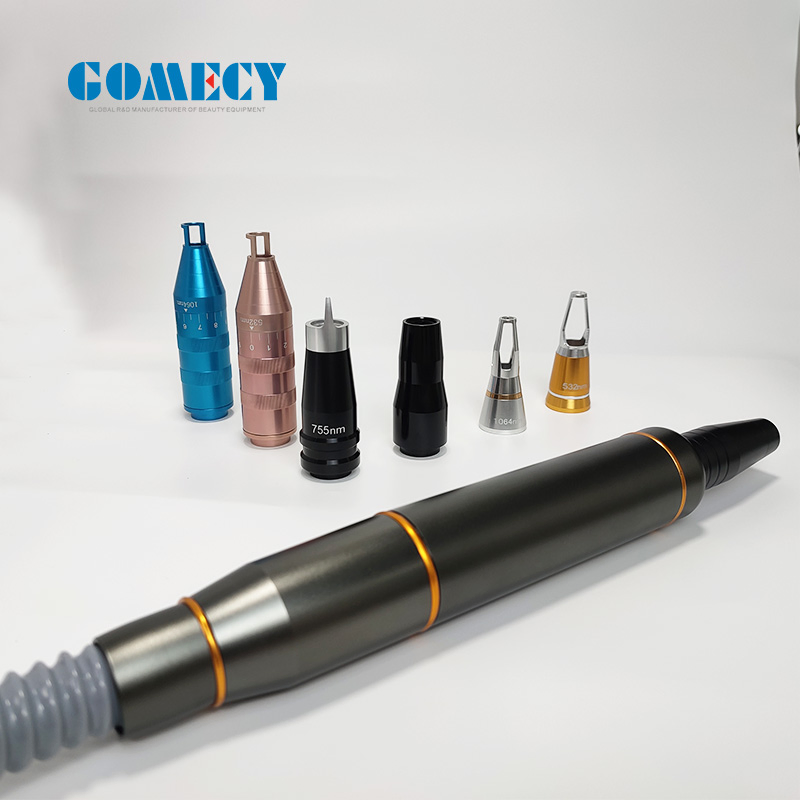

High Quality 3 in 1 System: A comprehensive platform combining IPL OPT Elight, RF, and ND YAG Laser technologies for skin rejuvenation, acne treatment, pigment removal, and permanent hair removal.

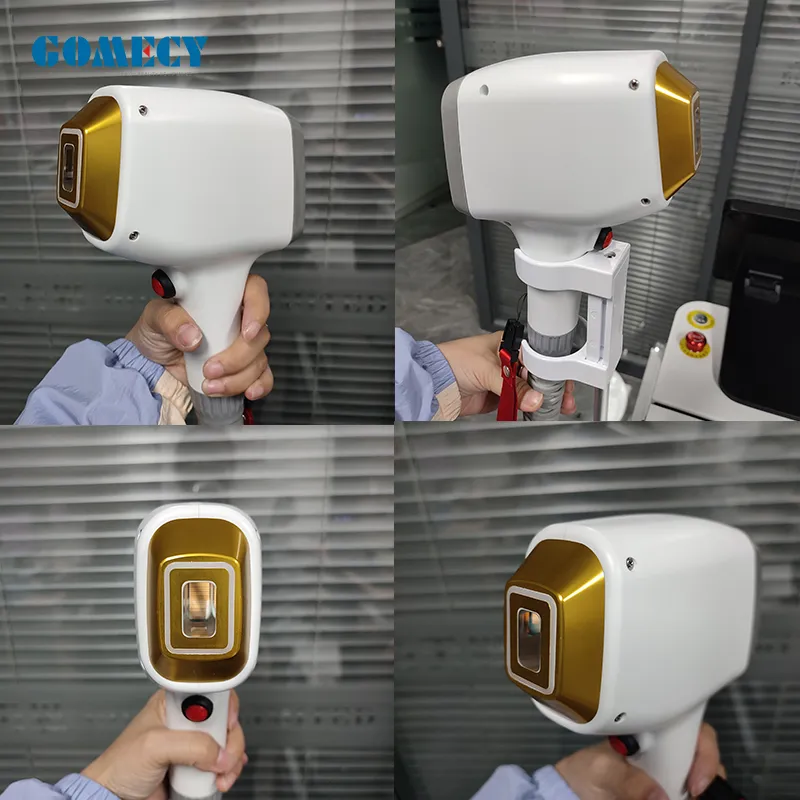

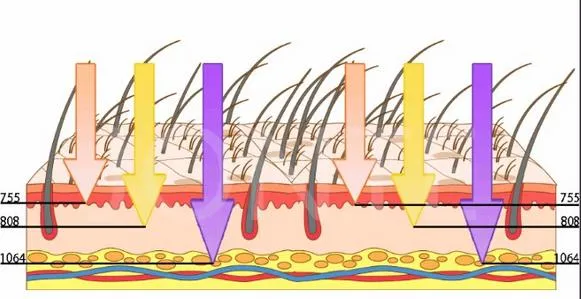

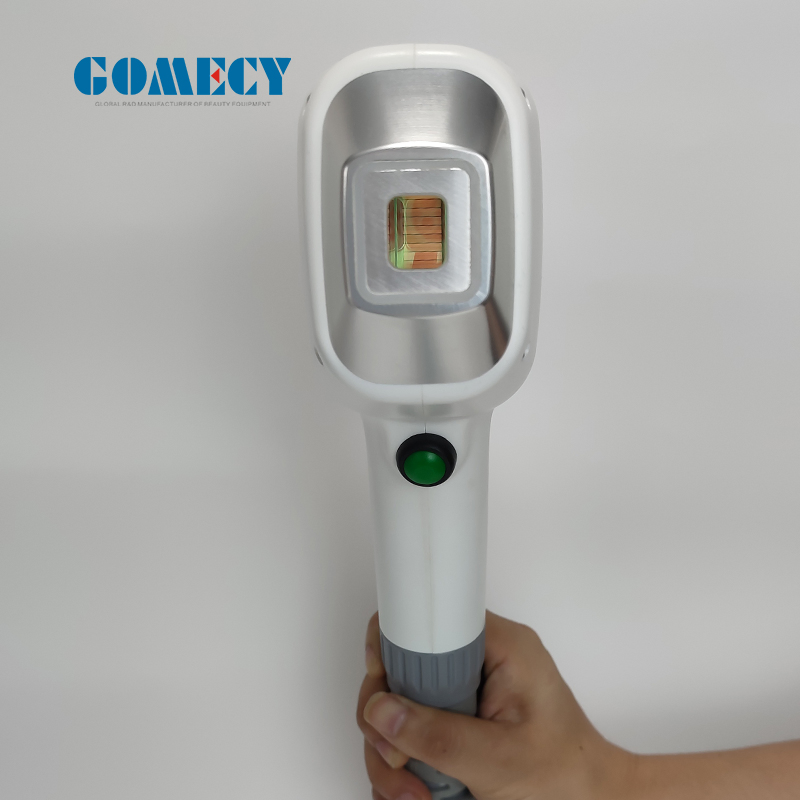

Utilizing gold-standard triple wavelength technology, energy penetrates deep into the dermis. With high average power and a rapid 10 pulse-per-second repetition rate, it heats hair follicles effectively while protecting surrounding tissue. The Sapphire Dual-Chill Tip ensures a safe and painless treatment experience.
Super Hair Removal (SHR) represents a breakthrough in permanent hair removal. By combining laser benefits with pulsating light methods, results are practically painless. The "In Motion" technology provides better skin protection and a more pleasant treatment compared to conventional systems.
Specialized for tattoo removal using the 'photoacoustic effect'. The laser energy shatters tattoo pigments into smaller fragments that the body's natural defenses then remove. Successive treatments continue this shattering effect until the ink disappears.
| Technology | Diode laser + IPL/S-H-R + Q-switched Nd: YAG Laser |
| Power Output | Diode: 2500W; IPL: 1400W; Nd:YAG: 500W |
| Diode Energy | 1-100J / cm2 |
| IPL Energy | 1-50J / cm2 |
| YAG Energy | ≥2000mj |
| Spot Size Diode | 13mm * 16mm |
| Spot Size IPL | 15 * 50mm |
| Cooling | Dual Cooling Hand-piece (low to -10ºC) |
A: It combines Diode Laser (for permanent hair removal), IPL (for skin rejuvenation and acne), and Nd:YAG Laser (for tattoo removal), providing a complete clinical solution in one machine.
A: No, the machine features Sapphire Dual-Chill technology that cools the skin to as low as -10ºC, ensuring a comfortable and virtually painless experience.

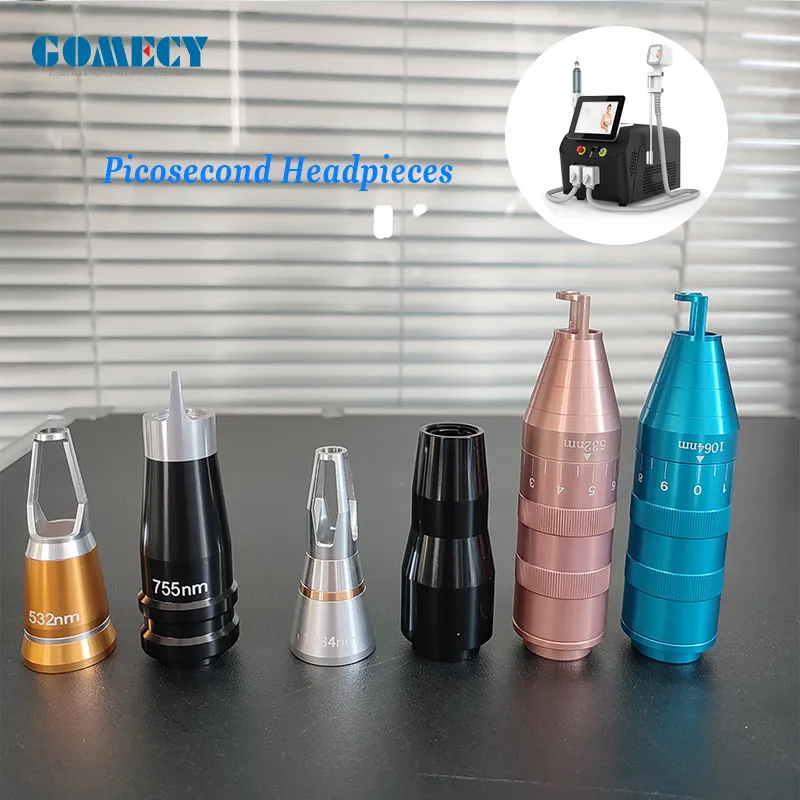

A: The 532nm wavelength targets red, green, and yellow tattoos, while the 1064nm wavelength is effective for black, blue, and cyan pigments.
A: Most patients see significant results in 3-6 sessions, depending on the hair type, color, and the specific area being treated.
A: Yes, the 1064nm Diode Laser wavelength is specifically designed for safe and effective treatment on darker skin tones and deeply embedded hair follicles.
A: It is a skin brightening and pore-shrinking procedure using the 1320nm wavelength combined with carbon powder to rejuvenate the skin and clear pores.
