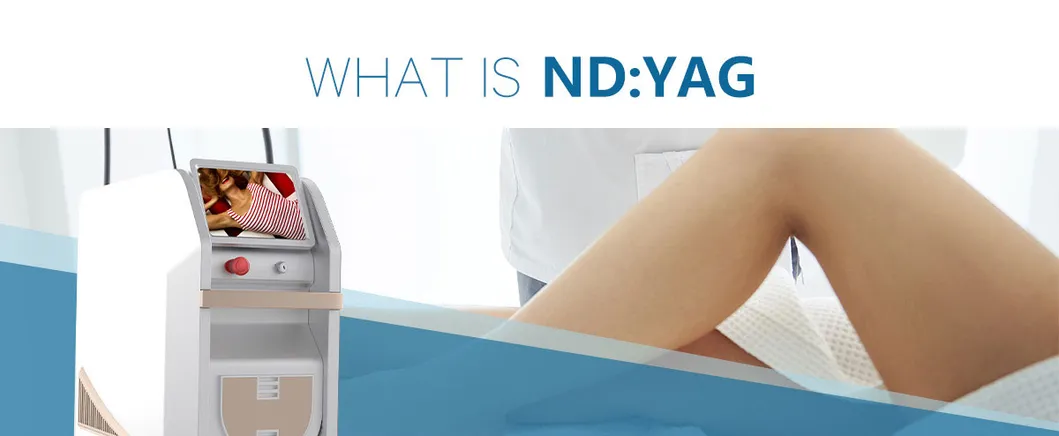

Advanced Q-Switched ND YAG and Alexandrite Laser System for Skin Treatments

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model:EL200b
Application:Salon
Portable:Non Portable
Screen:10.4 Inch Color Touch Screen
Technology:Long Pulsed Ndyag Alex Laser
Wavelength:1064nm & 755nm
Power Output:5000W
Frequency:0.5Hz-10Hz
Cooling:Air + Water + DCD Cooling
Origin:China

Advanced Laser Technology

Long Pulse Laser works by selectively targeting the hair follicle with intense pulses of light energy for thermal destruction, without damaging surrounding tissue. The epidermis is protected by a dynamic cooling device (DCD), which sprays the treatment area before each laser pulse with a liquid cryogen coolant, providing a cooling protection factor over 50% greater than contact or air cooling.
State-of-the-art Technology: Powerful laser technology with over 10 years of proven results.
👥
All Skin Types: Highly rated and trusted worldwide for safe use on various skin tones.
Efficient Procedure: Fast and convenient treatments designed to keep sessions as short as possible.

Product Specifications

Model EL200B
Type Long Pulsed Nd:yag Alex laser
Wavelength 1064nm / 755nm
Pulse Width 0.25ms - 100ms (adjustable)

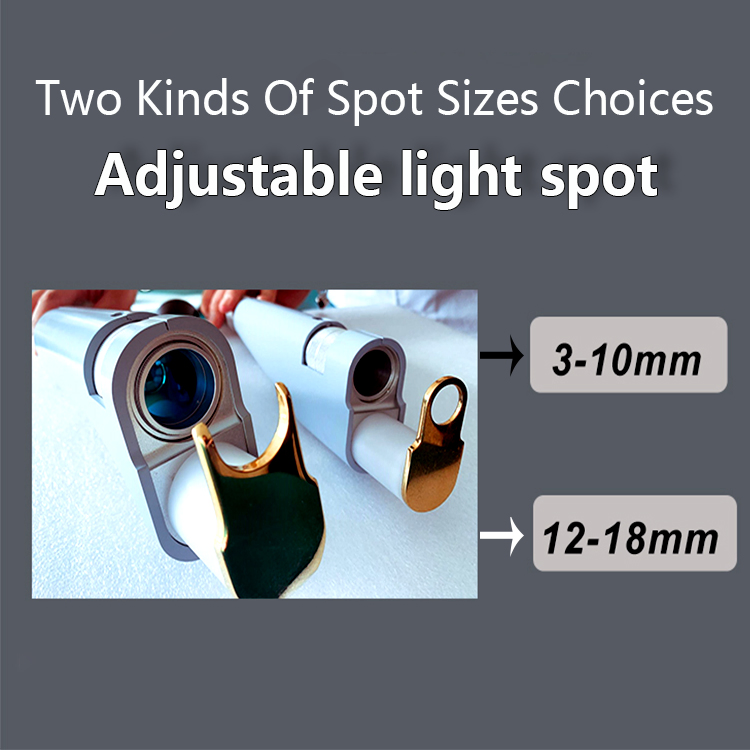

Spot Size Standard: 3/12/16/18mm; Optional: 6/10/24mm
Cooling System Air cooling (High-power fans) + Water cooling (10L Acrylic tank) + Semiconductor refrigeration
Capacitance 88000uf (4*22000uf)

Dual Wavelength Performance

This system is powered by a binary laser emission of Nd:YAG (1064nm) and Alexandrite (755nm) wavelengths. Proportions are synchronized and adjustable, allowing practitioners to choose the optimal wavelength for hair removal, pigmented lesions, vascular treatments, and wrinkle reduction.

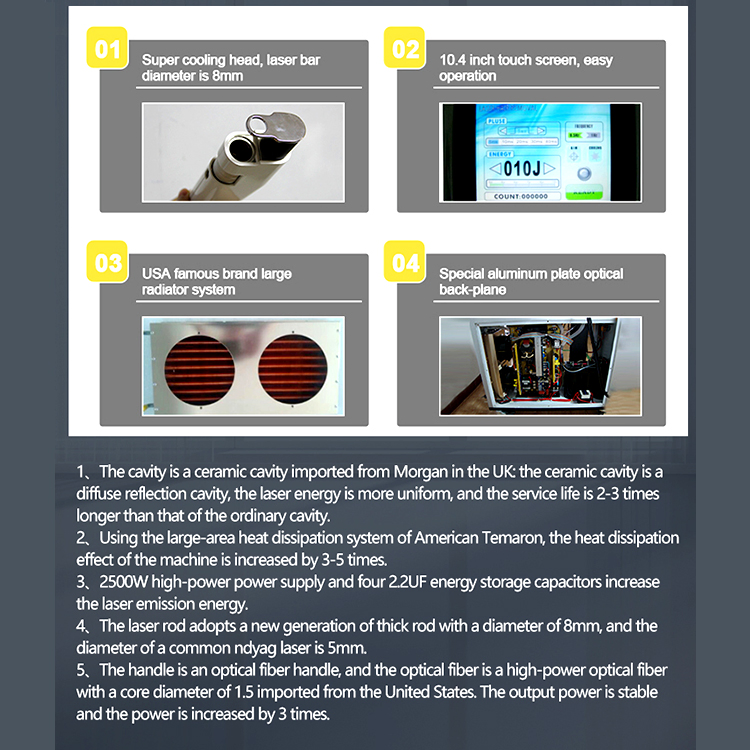

Core Premium Components

  • American imported optical fiber
  • American imported Class A laser rod
  • British imported xenon lamp
  • British imported ceramic laser cavity
  • Germany imported IGBT discharge module

Treatment Capabilities

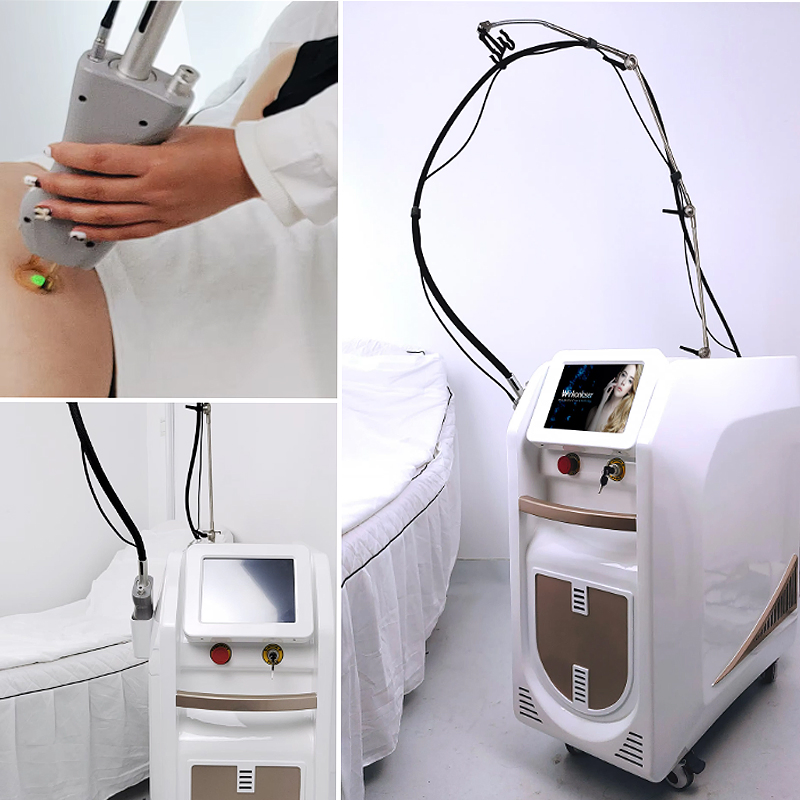

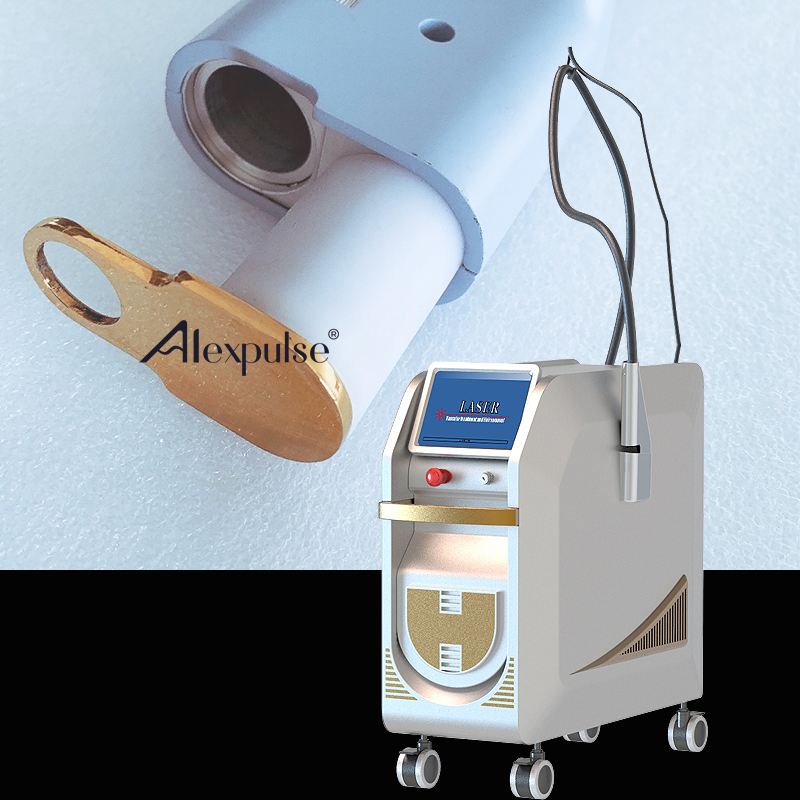

System Design

Frequently Asked Questions

1. What are the primary uses for the Long Pulse Laser system?
It is highly effective for permanent hair removal, treatment of pigmented and vascular lesions, and overall wrinkle reduction.
2. Is the laser treatment comfortable for patients?
Yes. The system utilizes a Dynamic Cooling Device (DCD) that sprays cryogen coolant before each pulse, making the procedure significantly more comfortable than traditional cooling methods.
3. Can this laser be used on dark skin types?
Absolutely. By combining 755nm and 1064nm wavelengths, practitioners can safely treat all skin types, including tanned and darker skin tones.
4. What is the advantage of the dual-wavelength technology?
The dual-wavelength approach allows for synchronized and adjustable proportions of light energy, maximizing efficacy for different treatment goals like fine hair vs. deep vascular issues.
5. How does the cooling system ensure patient safety?
The system combines air cooling, water cooling, and DCD cryogen cooling. This triple-action protection keeps the epidermis safe from thermal damage while allowing high energy to reach the target.
6. What determines the treatment speed?
Treatment speed is driven by the 5000W output power, large spot size options (up to 24mm), and high repetition rates, ensuring quick and efficient sessions.
