Advanced Professional Surgical Imaging System for Precise Diagnostics

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: Surgical Fluorescence Imaging System

Product Description

Basic Specifications

Model NO.FLl-10B
CertificationCE, FDA, ISO13485
GroupAll People
Monitor Size27 Inches / 32 Inches
Display Resolution1920*1080P
HS Code9018903010

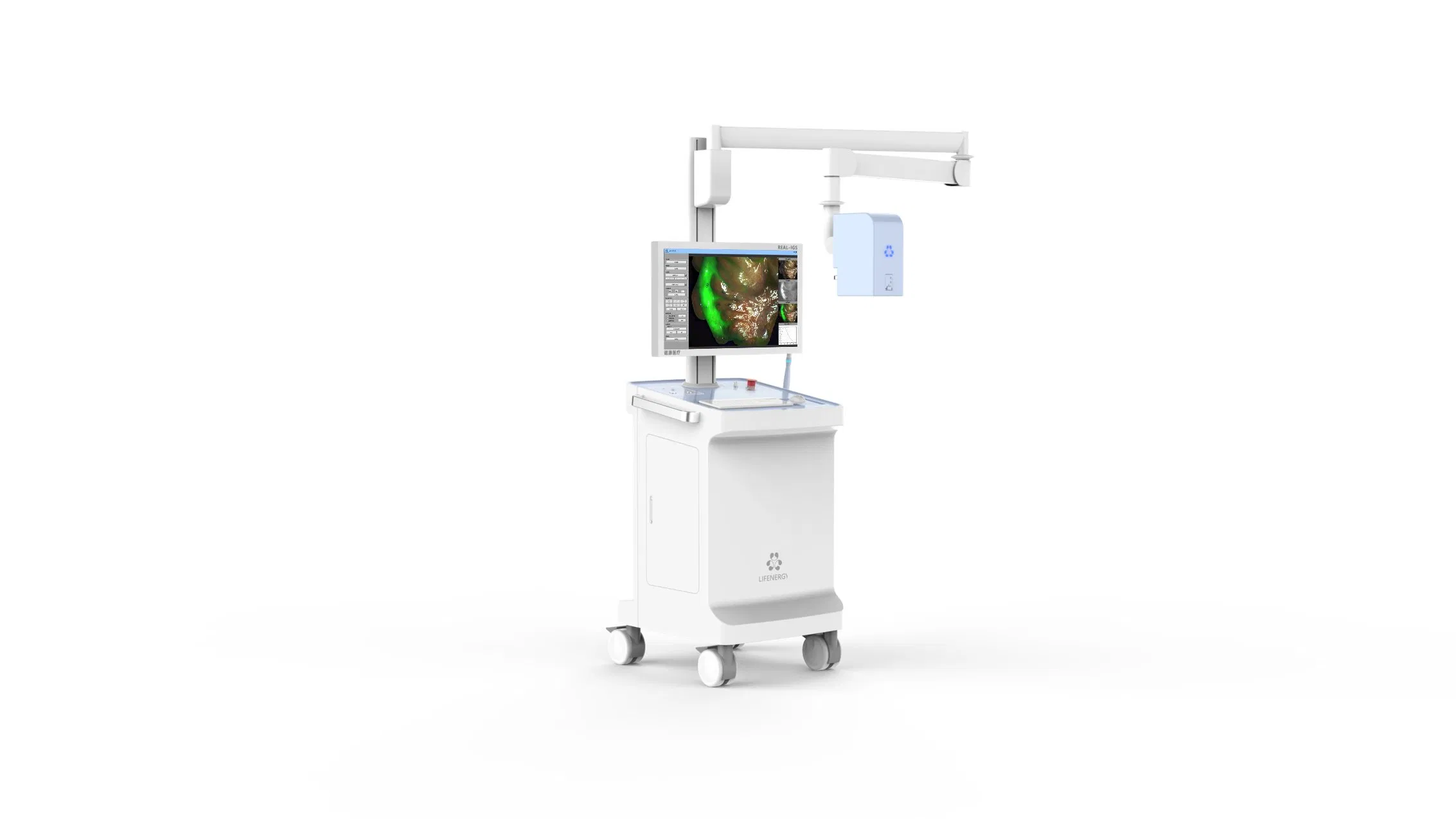

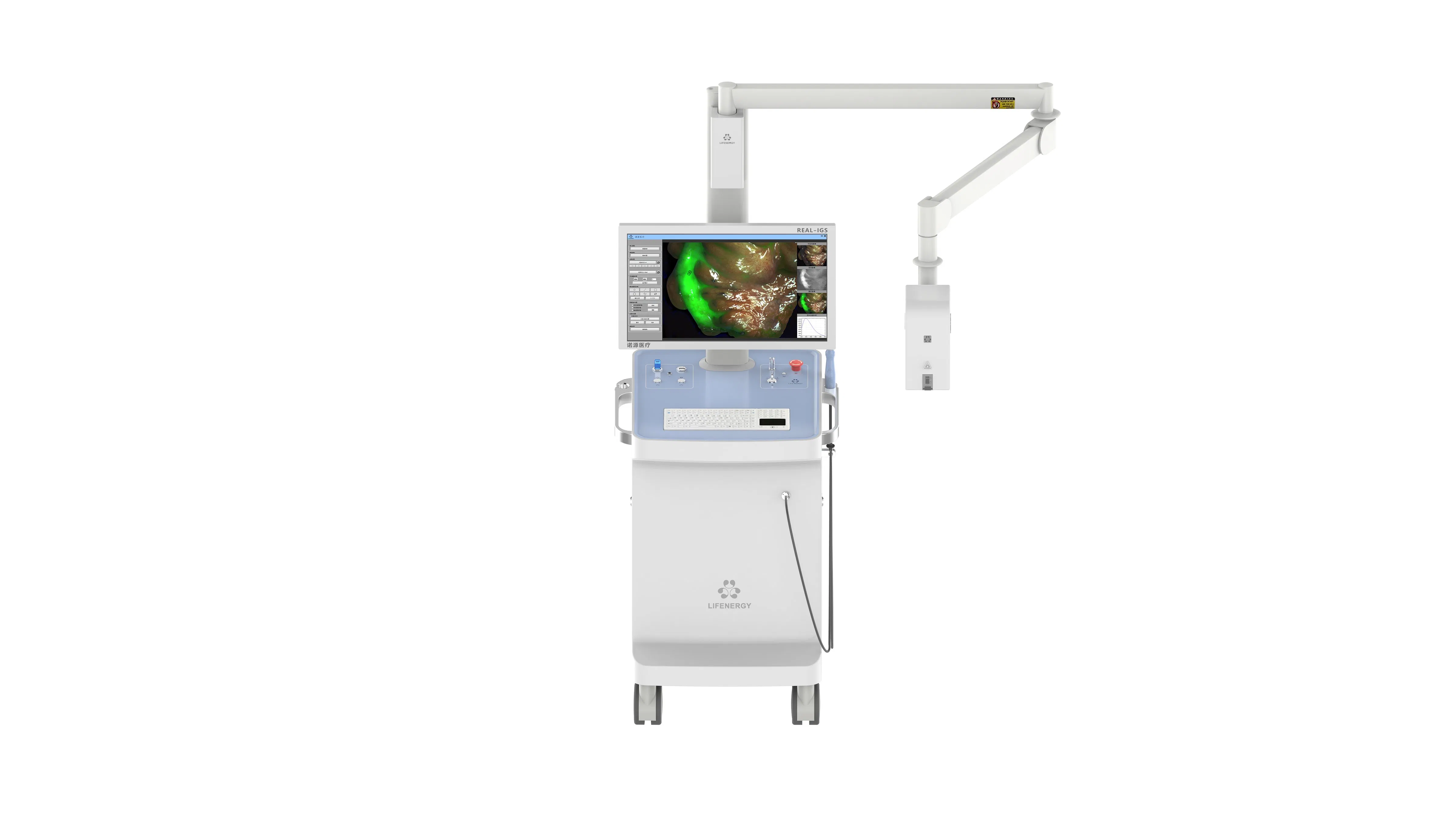

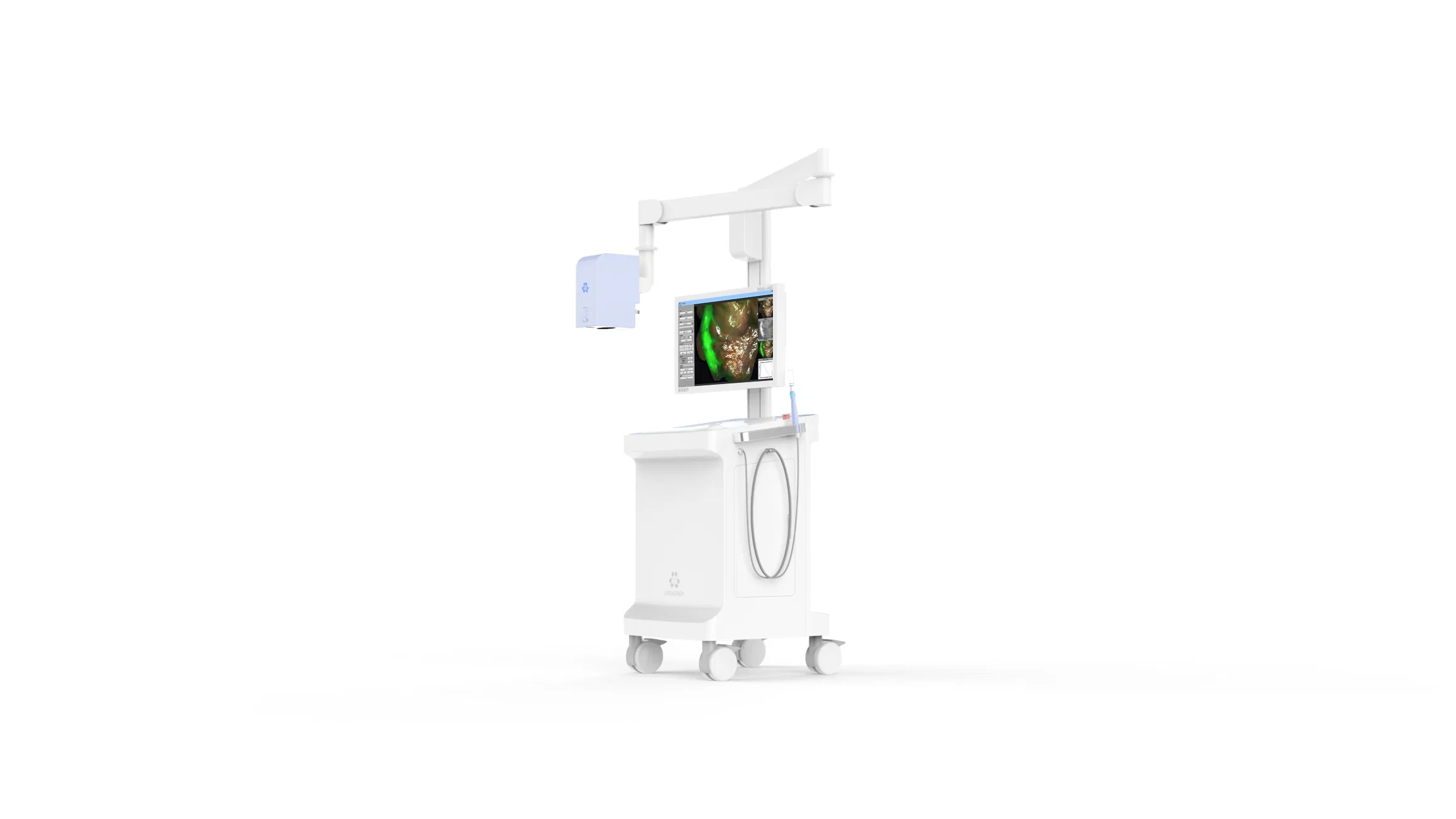

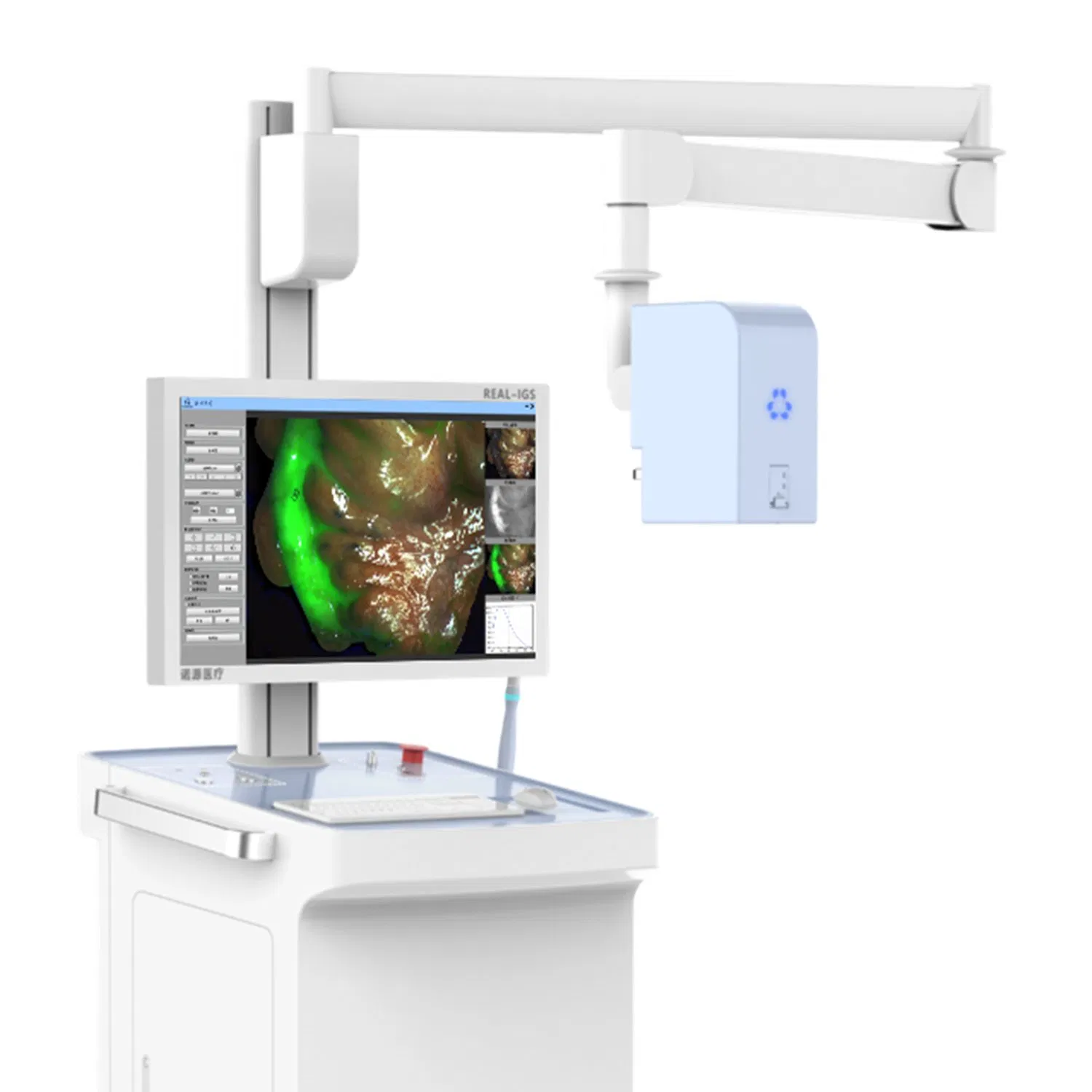

FLl-10B Surgical Fluorescence Imaging System

The FL1-10B surgical fluorescence imaging system is a surgical guidance system that uses a drug-device combination approach. It employs indocyanine green (ICG) as a fluorescence probe, relying on "ultra-high sensitivity" and combining the optical properties of ICG in submillimeter-size tumors to provide surgeons with high-definition visible light, fluorescence imaging, and quantitative data for diagnostic information during tumor surgery. It is suitable for real-time observation of tissues (such as tumor tissue, margin tissue), blood supply (free skin flap), lymph nodes (sentinel lymph nodes, regional lymph nodes), and anatomical structures (liver segments, gallbladder, lung segments).

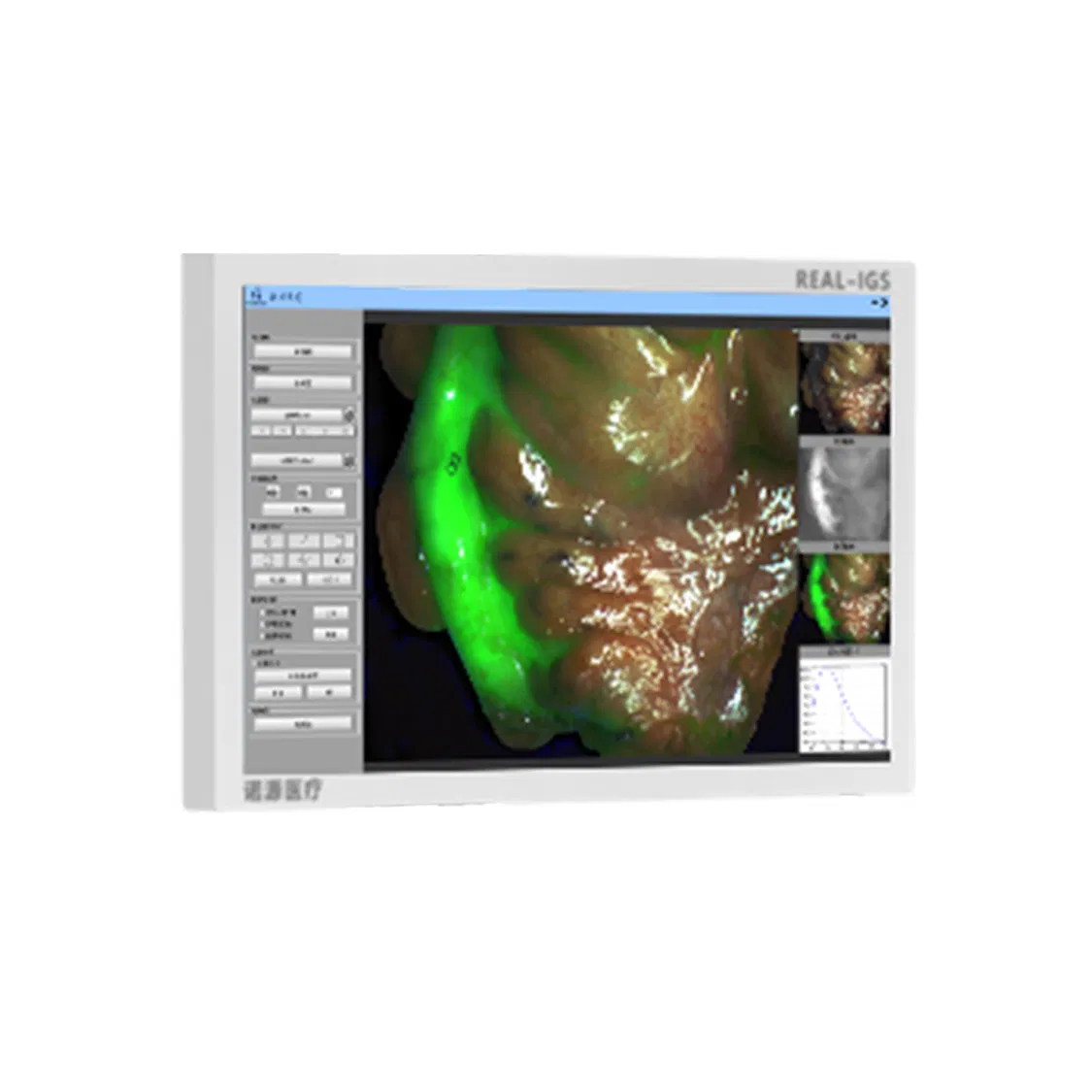

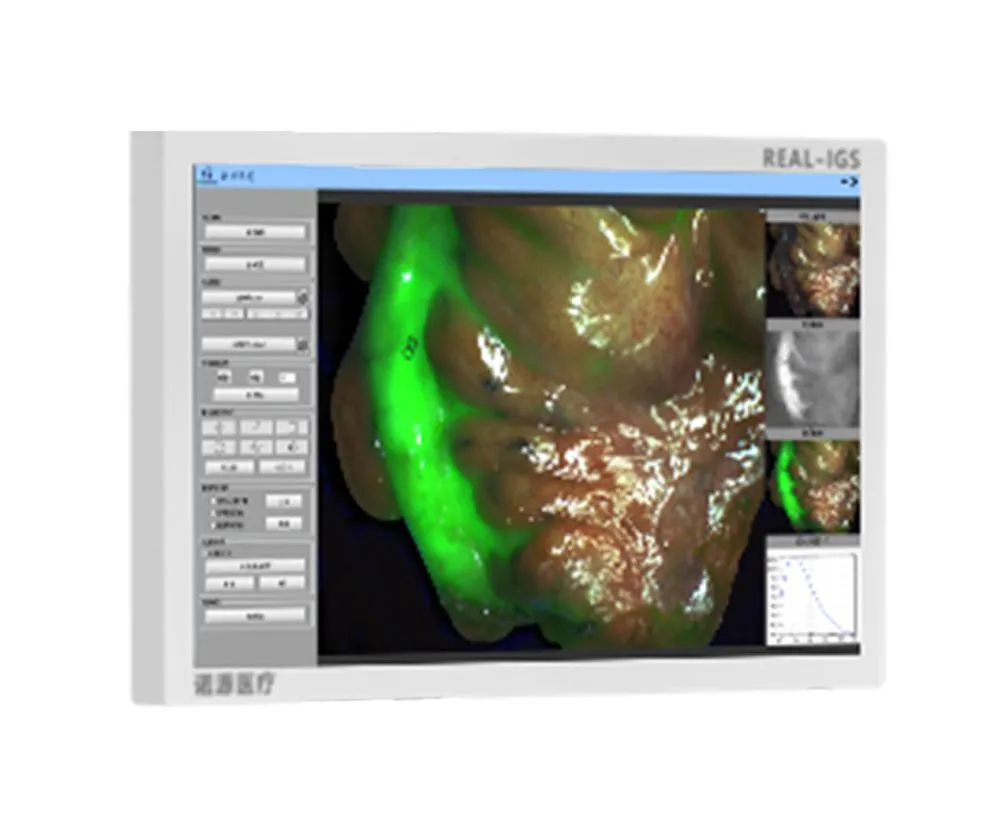

Software screenshot
Software screenshot on the monitor

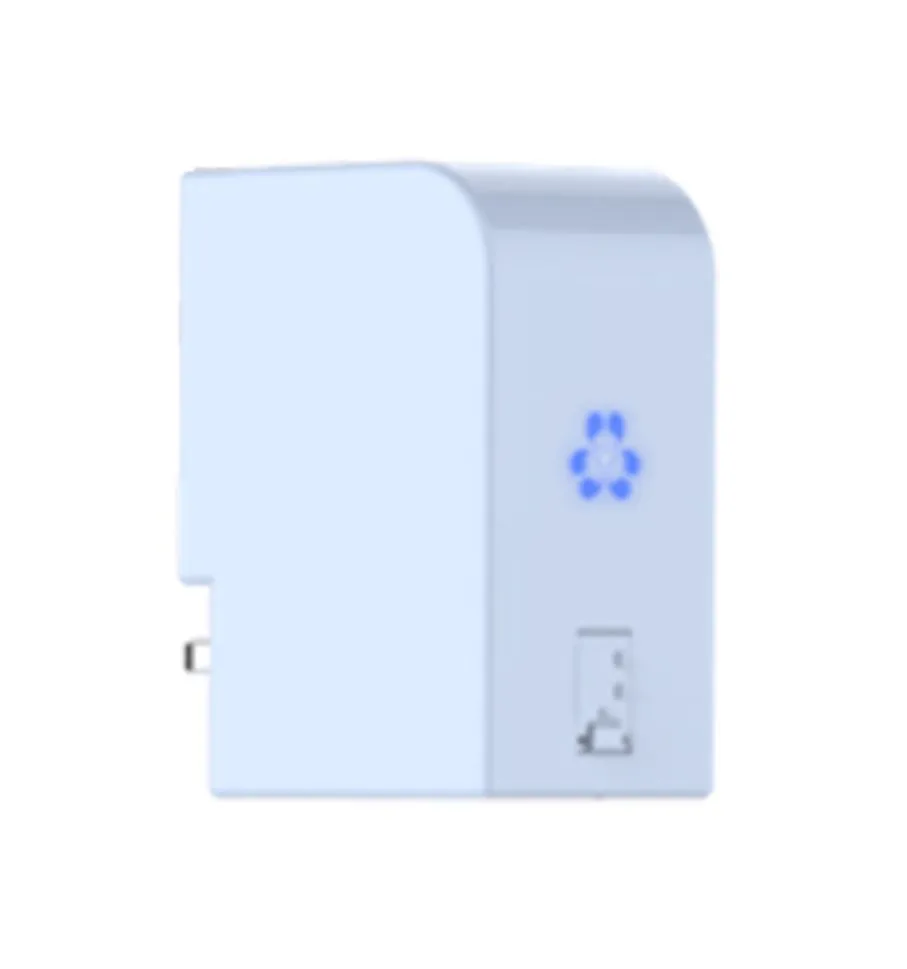

Surface light source
Surface light source

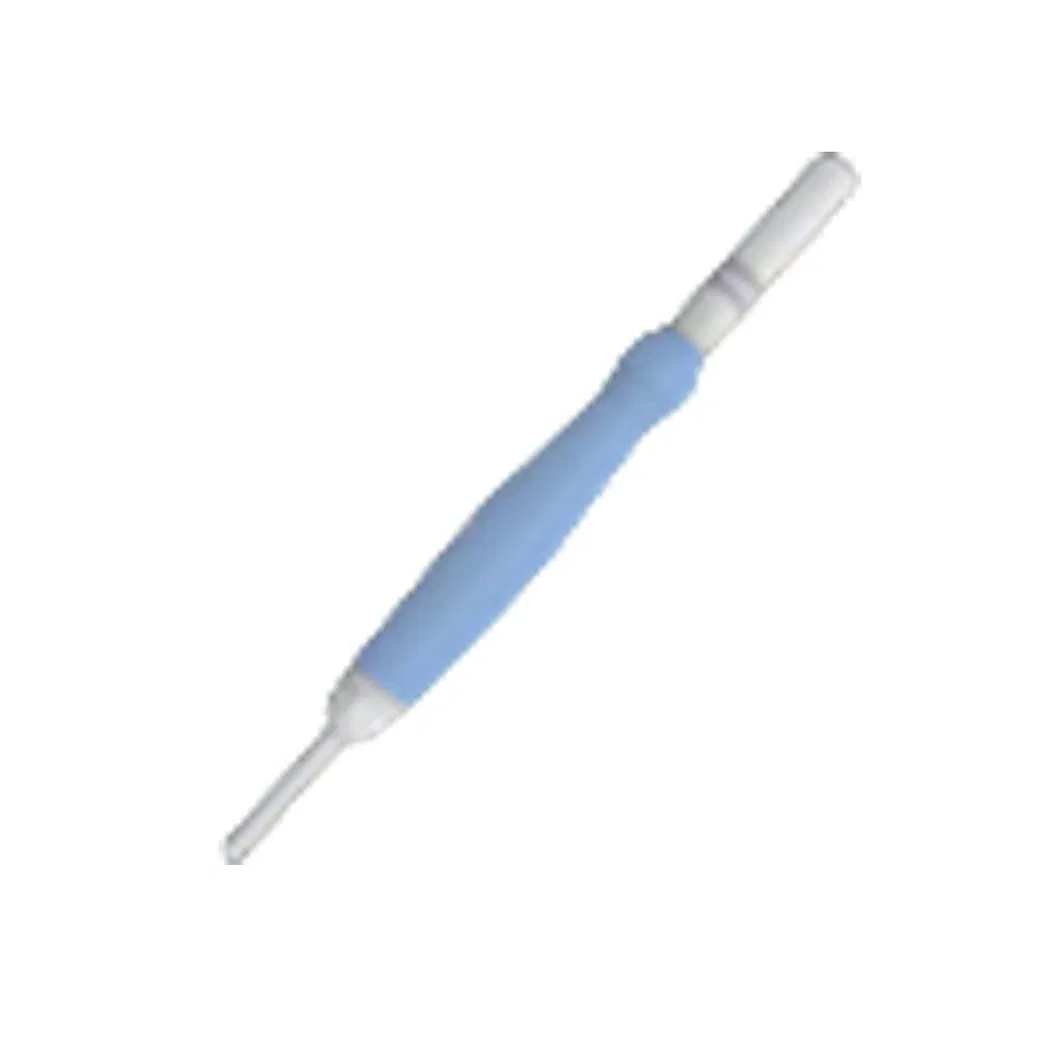

Handheld laser probe
Handheld laser probe

Product Parameters

Number of Camera Chips2CMOS
Convenient Handheld ProbeHandheld Spectral Quantitative Analysis Probe
Fluorescence DevelopmentAI Assisted Boundary Sharpening
Image Mode7 Types: White Light, Fluorescence, Fusion, Multimode, Color Grading, Quantification, Spectroscopy
Laser Wavelength785nm
Workstation AvailableYes
Workstation FunctionFluorescence Intensity & Spectral Quantitative Analysis
Detection Limit10-12M/L
Lens Zoom Factor4 Times
Working DistanceRecommended 10-25cm
Focus ModeElectric Focus
White BalanceManual
Laser Grade3R

Technical Advantages

  • Ultra-low fluorescence detection limit: Real-time diagnosis of millimeter-sized tumors, enabling detection of residual cancer.
  • Dual Quantitative Analysis: ROI Value and Independent Spectral Digitization for objective clinical judgment.
  • Pseudo-color grading: Presents concentration gradients of tracers in target tissue objectively.
  • Versatile Design: Suitable for open surgery with a large field of view and ultra-high sensitivity.

Clinical Applications

Precision Oral and Maxillofacial Surgery

Used for tumor localization, margin assessment, blood supply assessment to transplanted flaps, and sentinel lymph node localization.

Tumor localization
Tumor localization
Margin assessment
Margin assessment
Blood supply
Blood supply assessment

Precision Thyroid and Breast Surgery

Assists in lymphatic mapping, parathyroid gland identification, and tumor identification during resection.

Lymphatic mapping
Lymphatic mapping
Tumor identification
Tumor identification
Gland identification
Gland identification

Precision General Surgery

Real-time imaging for liver, gallbladder, and gastrointestinal tumor surgeries, including biliary tract staining.

Liver segment staining
Liver segment staining
Biliary tract staining
Biliary tract staining
Anastomotic evaluation
Anastomotic evaluation

Frequently Asked Questions

What is the primary function of the FL1-10B system?
It is a surgical guidance system that uses ICG fluorescence imaging to provide real-time observation of tumors, blood supply, and lymphatic systems during surgery.
What imaging modes are supported by this device?
The system offers 7 image modes: White Light, Fluorescence, Fusion, Multimode, Color Grading, Quantification, and Spectroscopy.
Which medical departments can use this system?
It is suitable for oral and maxillofacial surgery, plastic and reconstructive surgery, thyroid, breast, pediatric, and general surgery.
What is the fluorescence detection limit of the system?
The system features an ultra-low detection limit of 10-12 M/L, allowing for the identification of submillimeter-sized lesions.
Does the system provide quantitative analysis?
Yes, it features a dual quantitative analysis system including ROI Value and Independent Spectral Digitization Quantitative functions.
Is the system compatible with open surgery?
Yes, the FL1-10B is specifically designed to be suitable for open surgical procedures.
