| Model NO. | LSW-1500W LSW-2000W LSW-3000W |
| Application | Biomedicine, Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry |
| Technical Class | Continuous Wave Laser |
| Control | Manual |
| Power Density | Deep Fusion Welding |
| Laser Classification | Optical Fiber Laser |
| Type | Optical Fiber Transmission Laser Welding Machine |
| Production Capacity | 200 sets/Month |
| Model Number | LSW-1500W | LSW-2000W | LSW-3000W |
| Laser Power | 1500W | 2000W | 3000W |
| Laser Wavelength | 1080±5nm | ||
| Fiber Optic Armored Length | 10m | ||
| Scanning Width | 0-8mm | ||
| Cooling Method | Intelligent Water Cooling | ||
| Max Depth (Stainless Steel) | 4mm | 5.5mm | 7.5mm |
| Max Depth (Carbon Steel) | 3mm | 4mm | 5.5mm |
| Power Supply | 220V/50Hz | 220V/50Hz | 380V/50Hz |

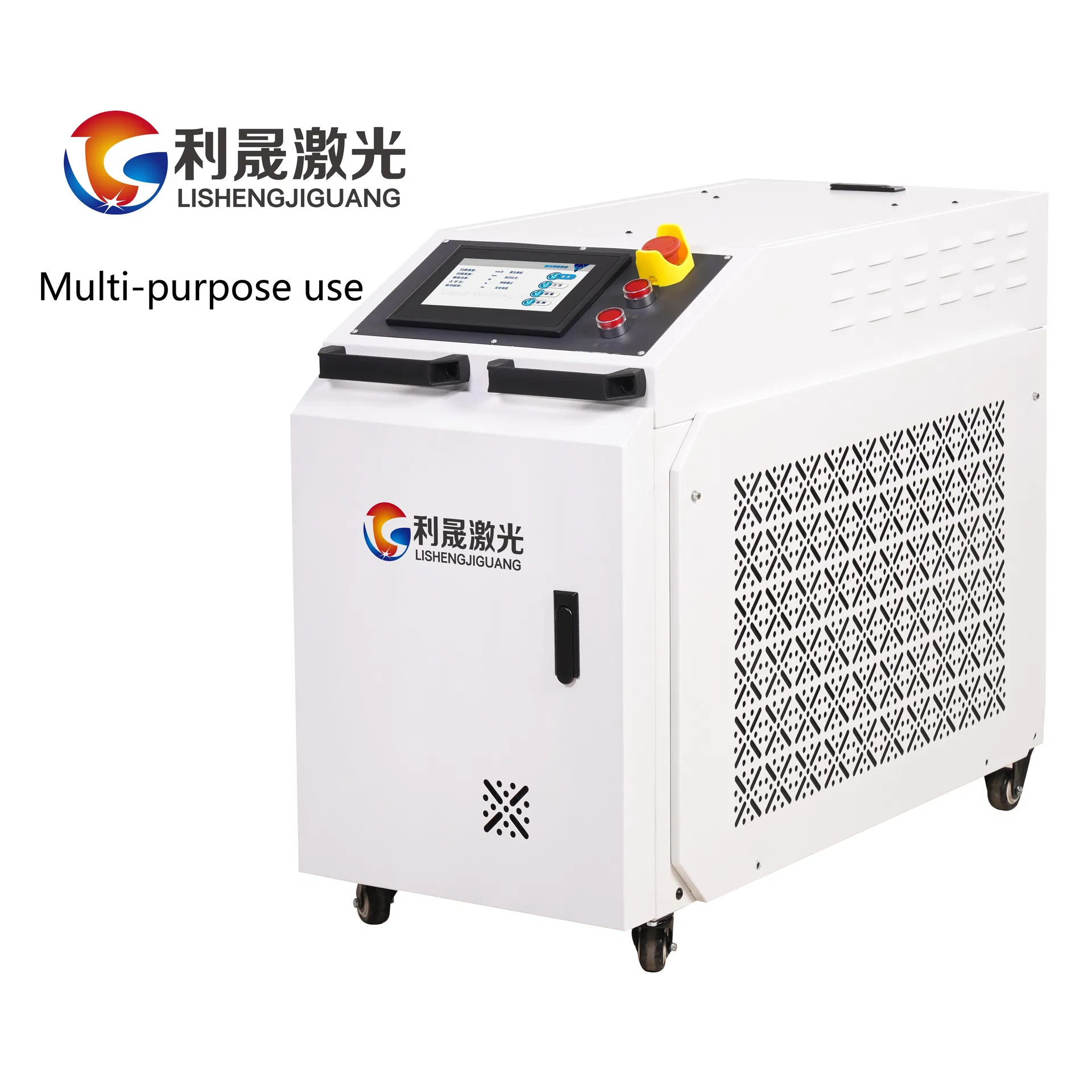

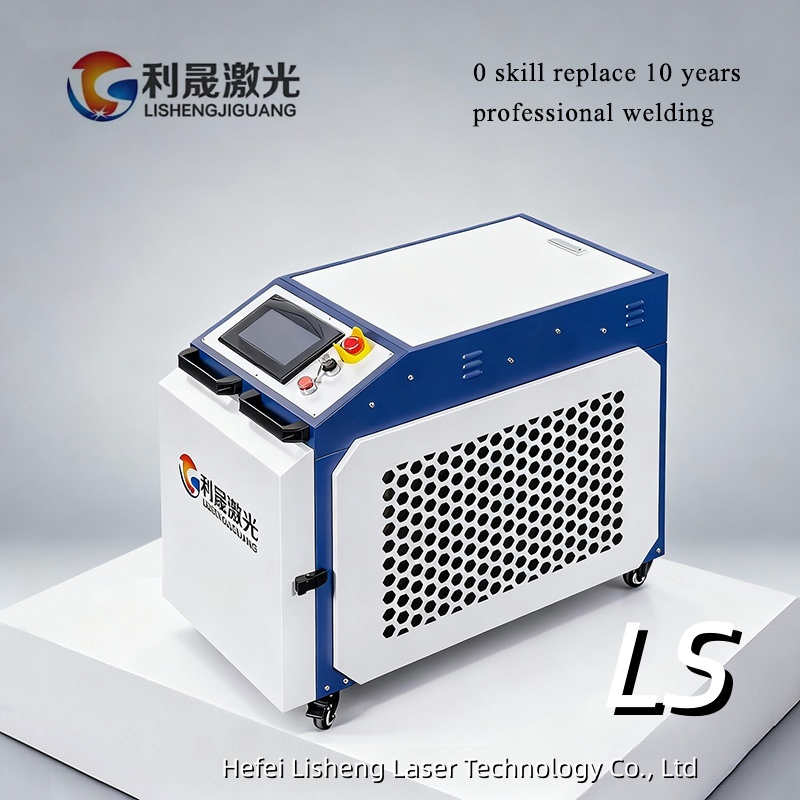

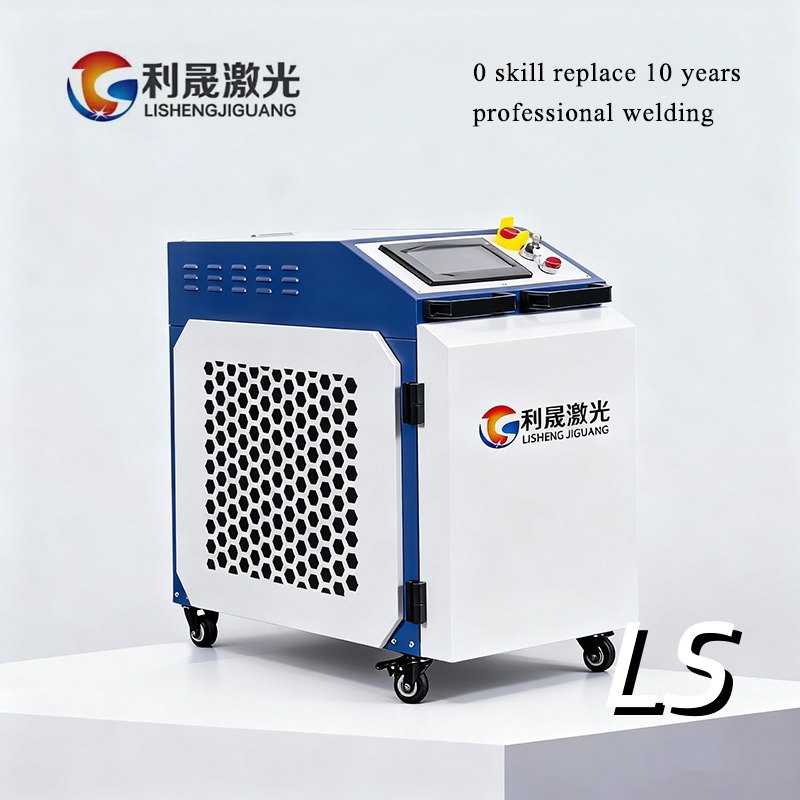

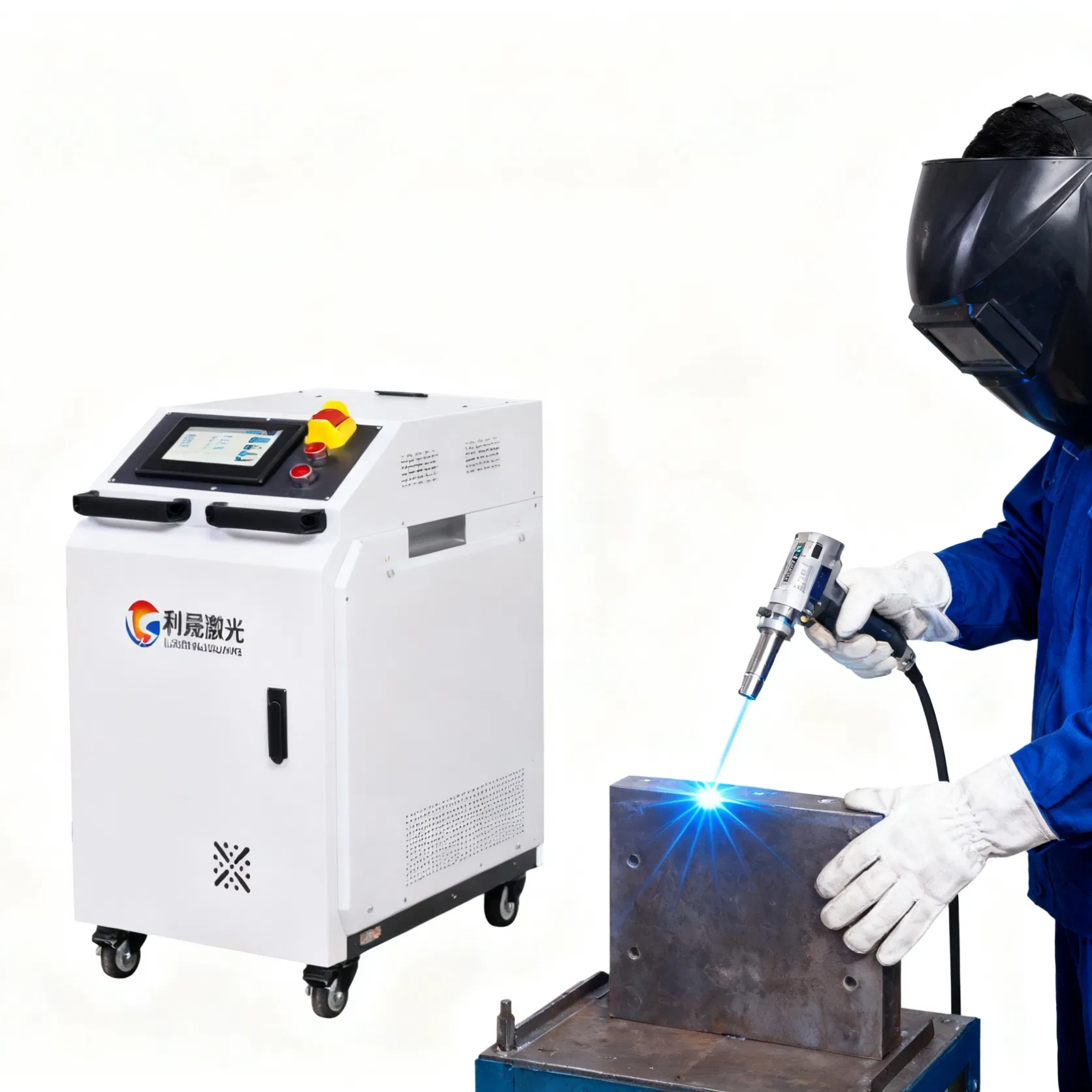

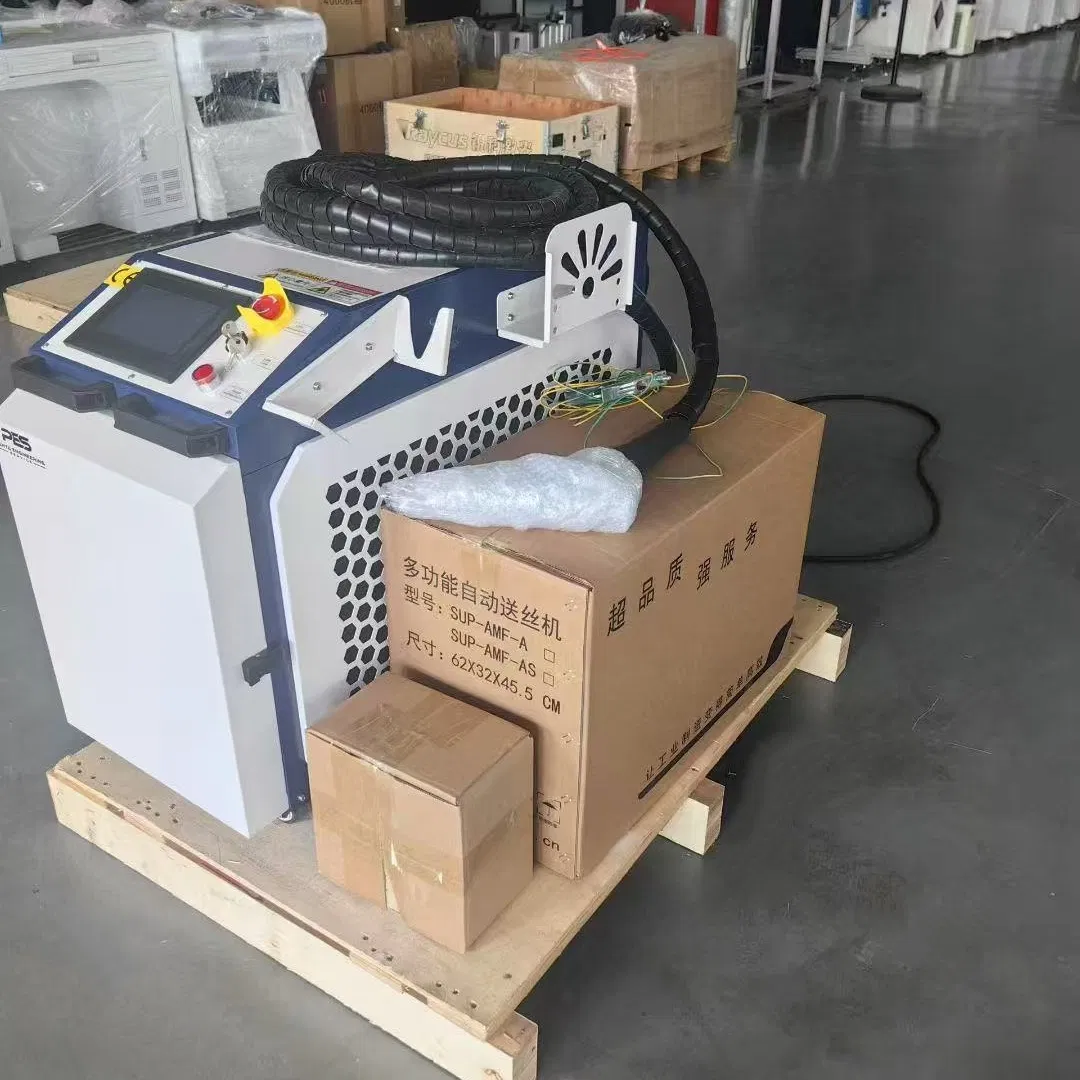

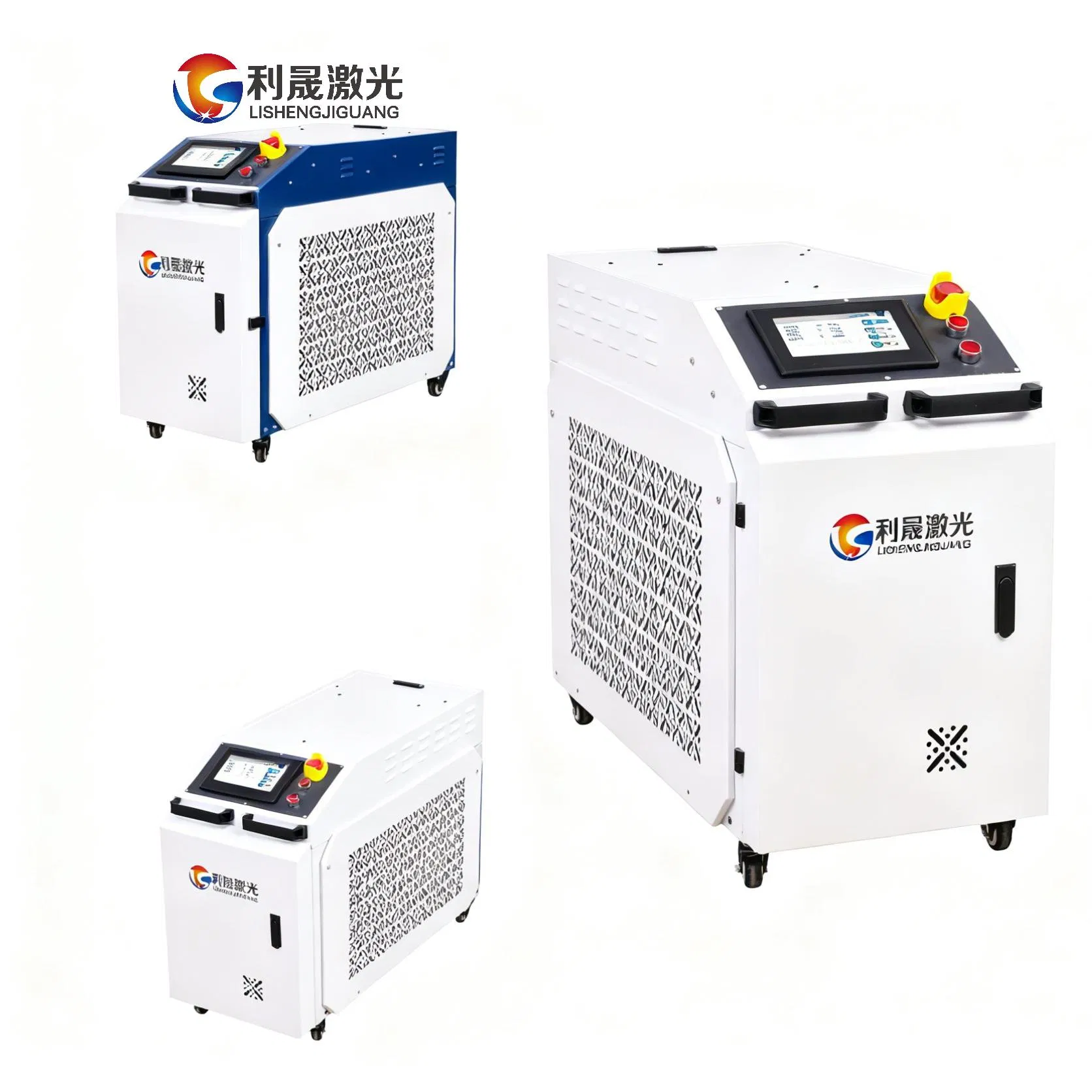

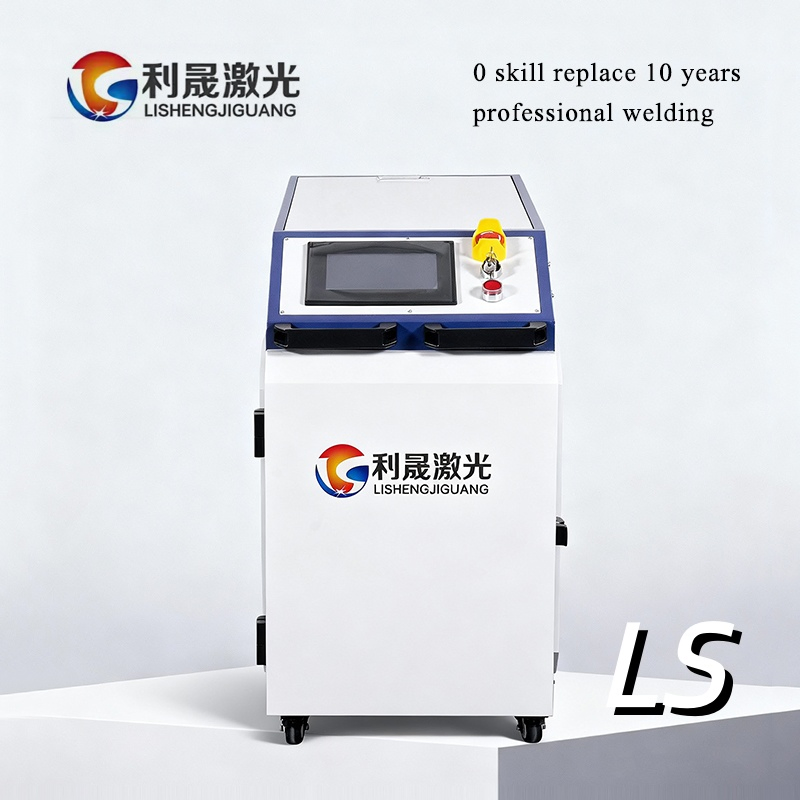

The Handheld Laser Welding Machine is developed to address traditional thin-plate welding issues, such as large heat-affected zones, easy deformation, and uneven seams. It replaces the fixed optical path with a flexible handheld welding gun, making it ideal for long-distance and large-scale sheet metal tasks. It offers a small heat-affected zone, large welding depth, and high efficiency without blackening or marks on the back.
Widely applied in complex welding processes: stainless steel products, door and window guardrails, sheet metal, water tanks, kitchen cabinets, bathroom fixtures, auto parts, and machinery manufacturing. It is also perfect for billboards and advertising letters.
