Customize Fully Automatic Conveyor Powder Coating Spray Paint System

Basic Information

Heating system

Diesel, electric, gas, LPG

Warranty

2 Years, Video and Oversea Service Agent

Type

Electrostatic Spraying Equipment

Coating

Powder

Certification

CE, ISO

Method Type

Automatic

Condition

New

After-Sales Service

Engineer Overseas

Production Capacity

20sets Per Month

HS Code

8424899990

Fully Automatic Powder Coating Paint Line

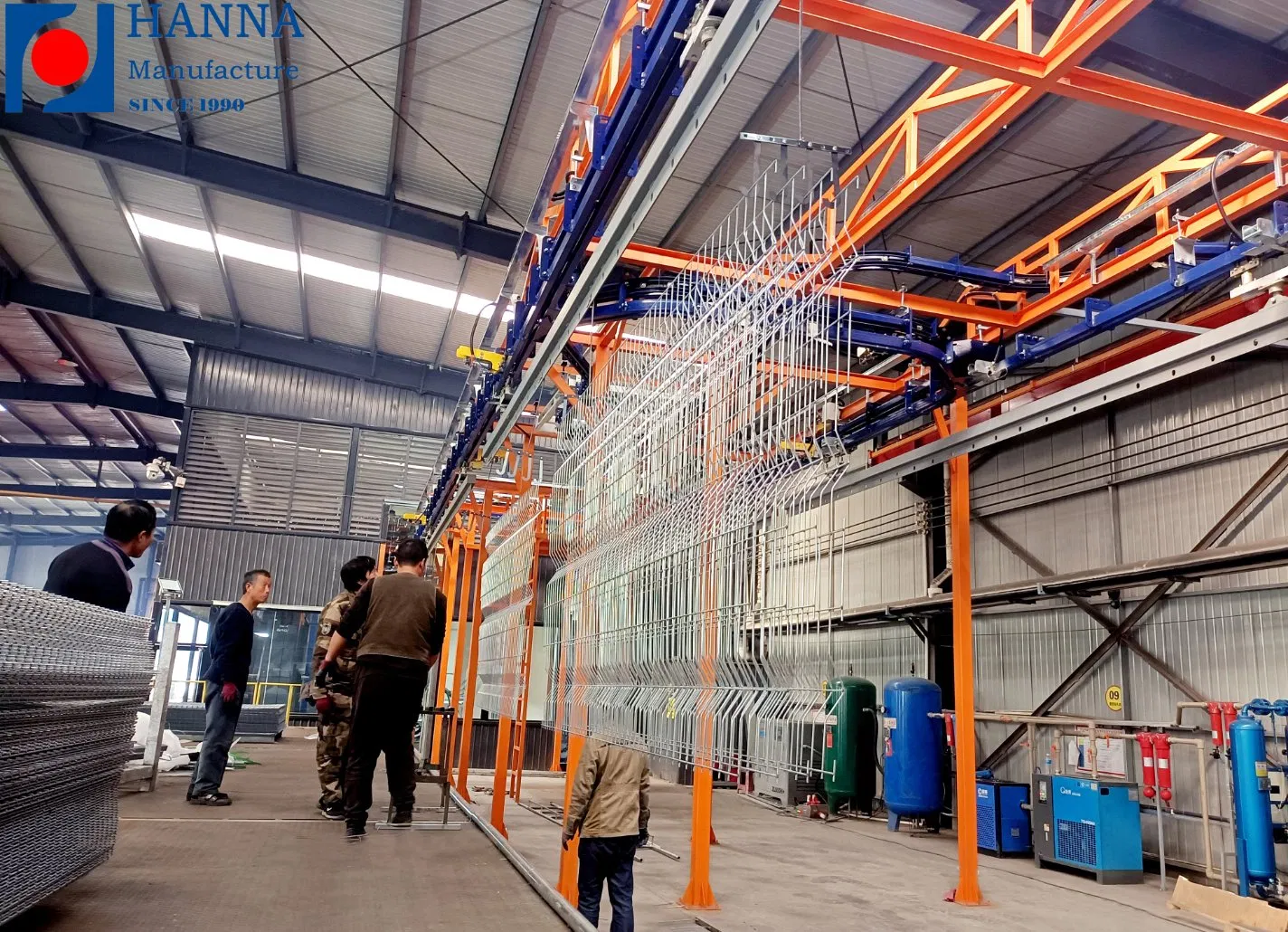

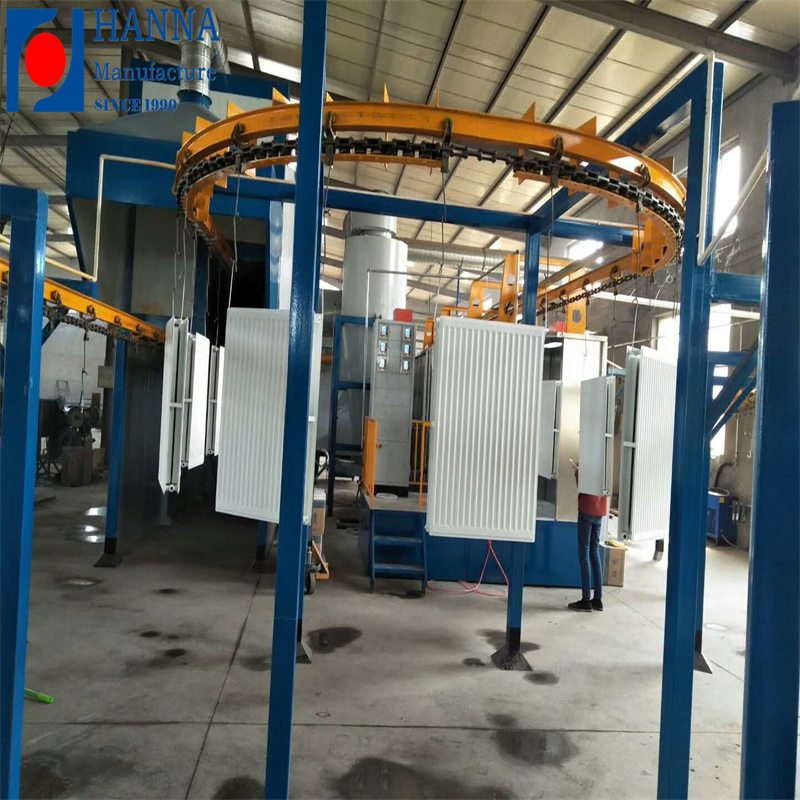

Automatic Conveyor Powder Coating System

System Characteristics & Advantages

Intelligent spray gun with unique circuit board design to solve powder groove dead angle issues.
Advanced wind system maintaining effective furnace temperature fluctuation within 3 ºC.
Big cyclone recovery system with efficiency as high as 95%, ensuring no dust spillover.
Fast color change powder center, allowing changes within 10 to 15 minutes.

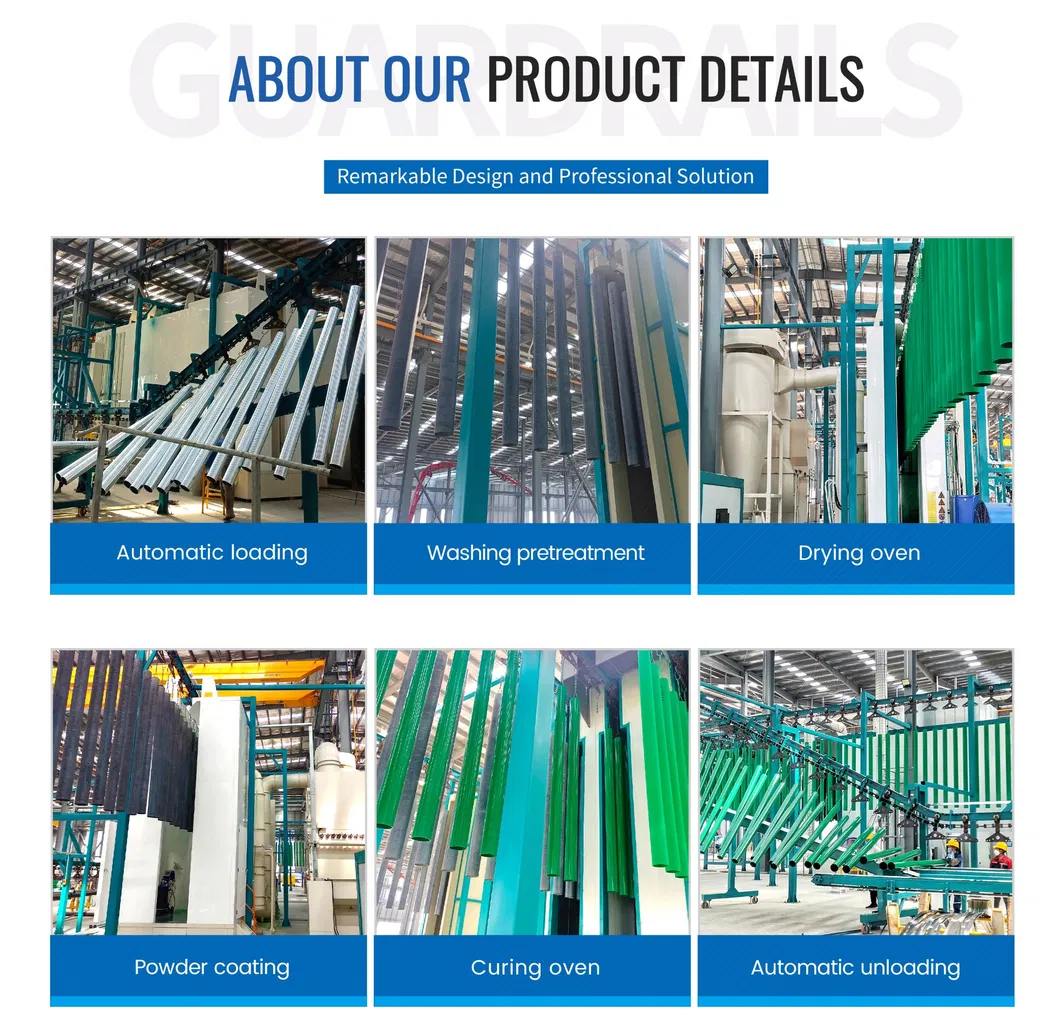

Production Process

Standard Sequence: Upper hanging → Spraying (Automatic/Manual) → Baking Curing (180-220ºC adjustable, 20min) → Cooling → Down hanging.

Process	Mode	Temperature (ºC)	Time	Type
Loading	Manual	RT	Adjustable	-
Pre-treatment	Automatic	50-60	10 mins	Dip/Spray/Blasting
Drying	Automatic	180-220	10 mins	-

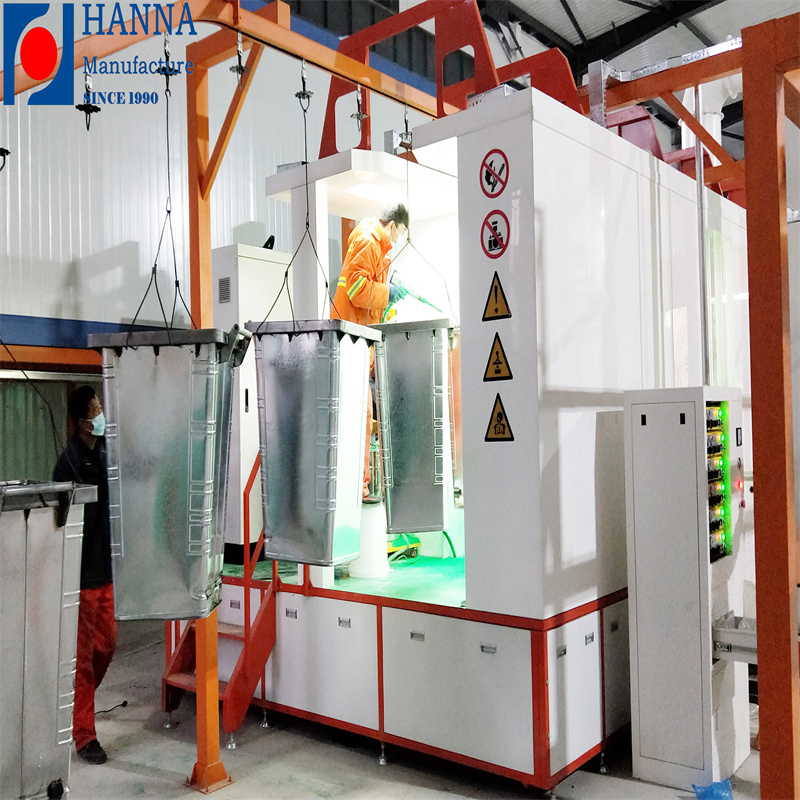

Powder Coating	Automatic	RT	3-5 mins	Auto/Manual/Robot
Curing	Automatic	180-220	20 mins	Tunnel/Bridge/Box Oven
Cooling	Automatic	RT	10-15 mins	-

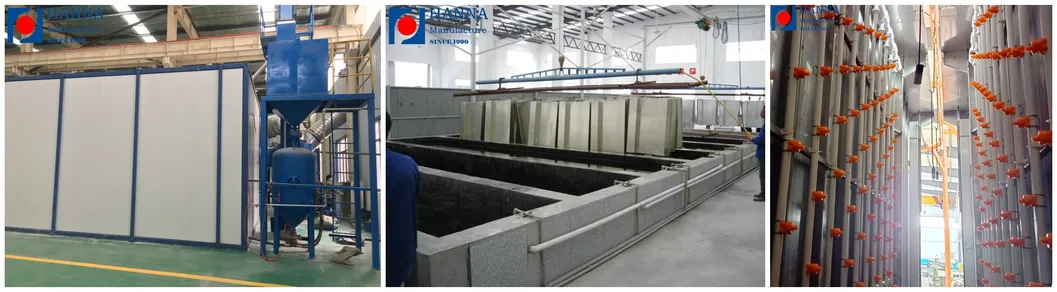

Pre-treatment & Powder Systems

Surface treatment is vital to prevent oxidation, rust, and dirt from affecting coating bonding and corrosion resistance.

Recovery Options

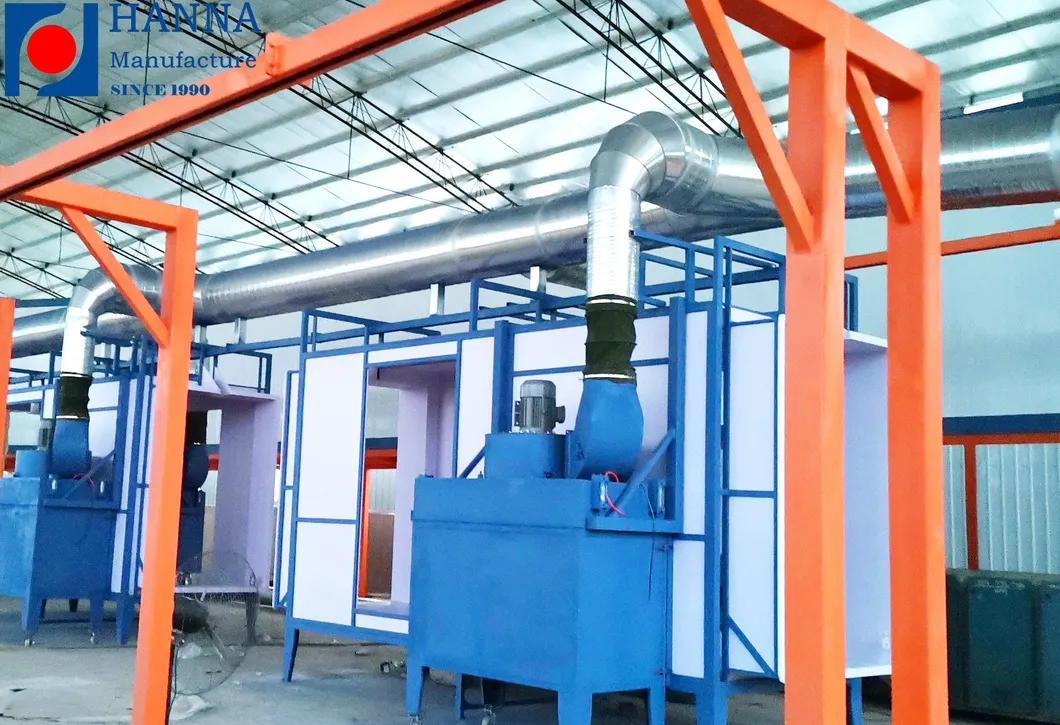

Simple Filter Recovery:
Color change: 15 mins
Application: Within 3 colors
Recovery rate: 92%

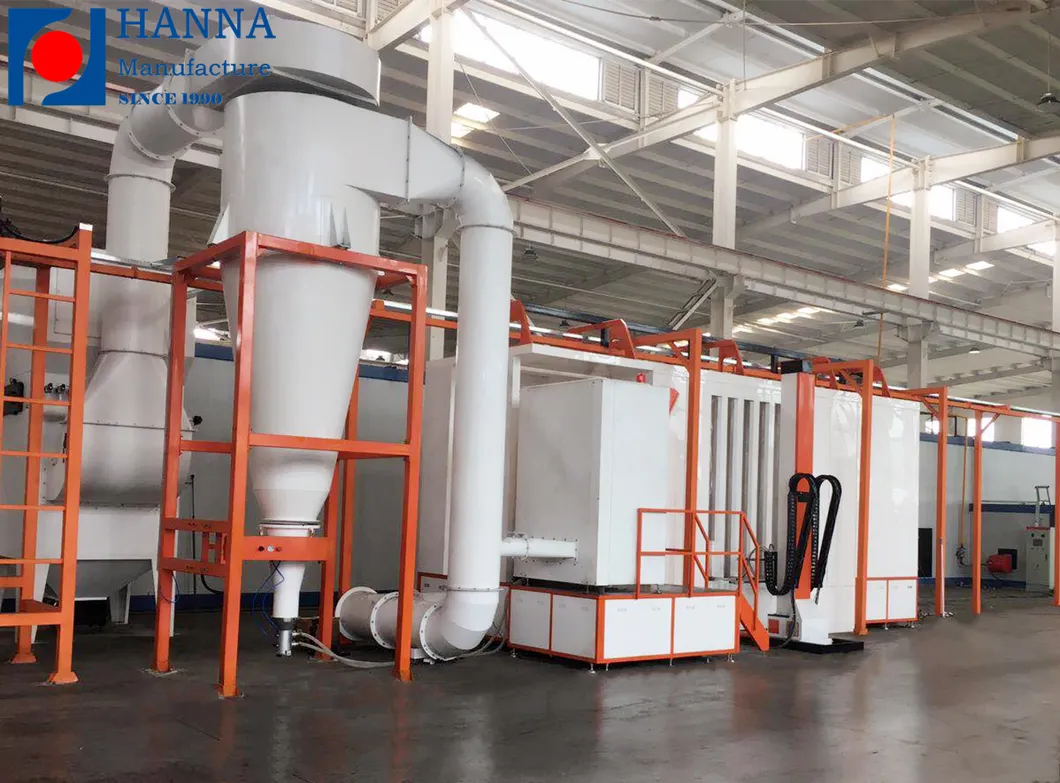

Big Cyclone Recovery:
Color change: 10-15 mins auto
Recovery rate: 95%
Feature: No dust spillover

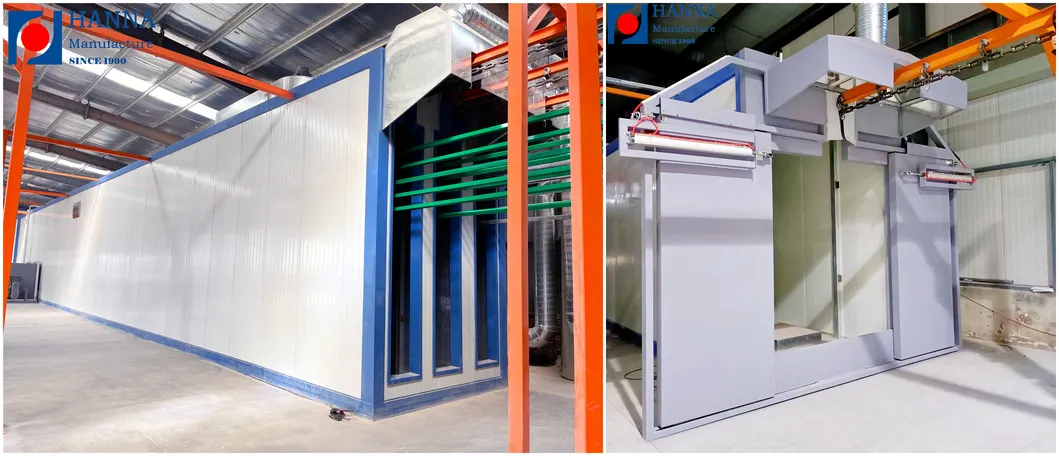

Drying & Curing Technology

Featuring an air curtain system to prevent heat dissipation and high-density silicate rock wool board for insulation.

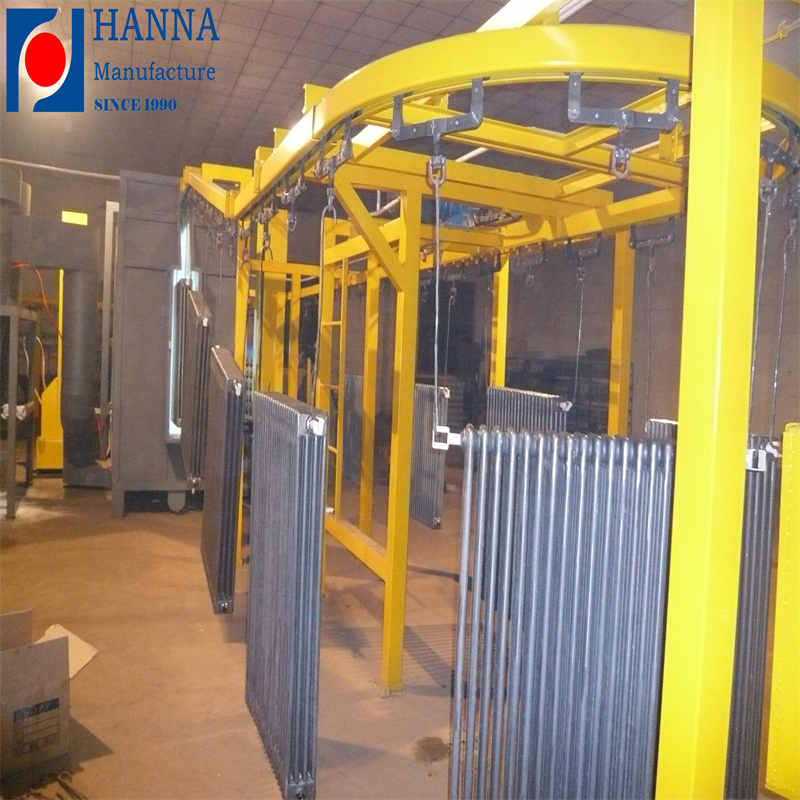

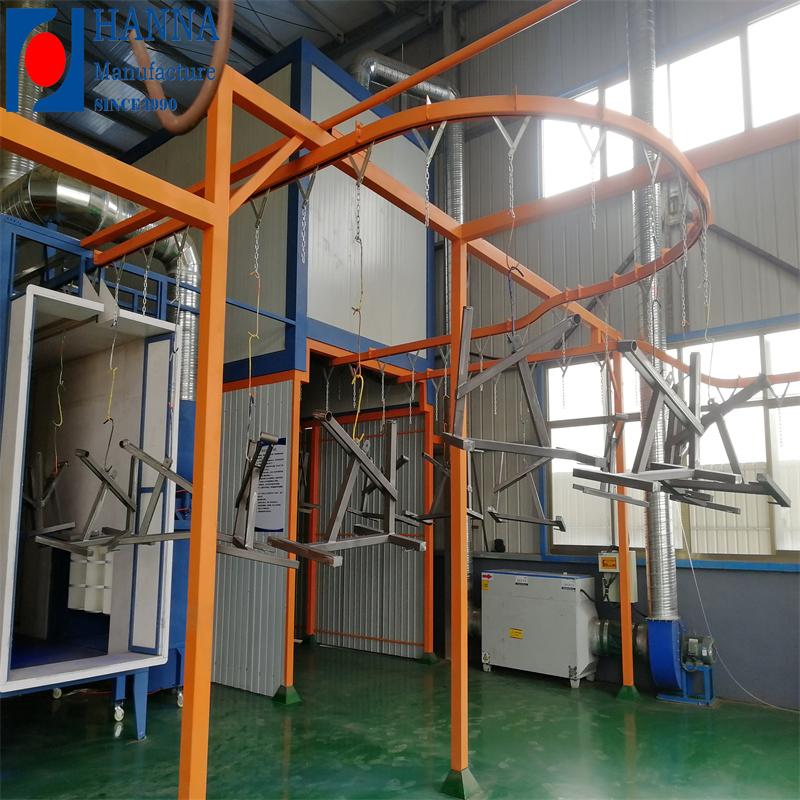

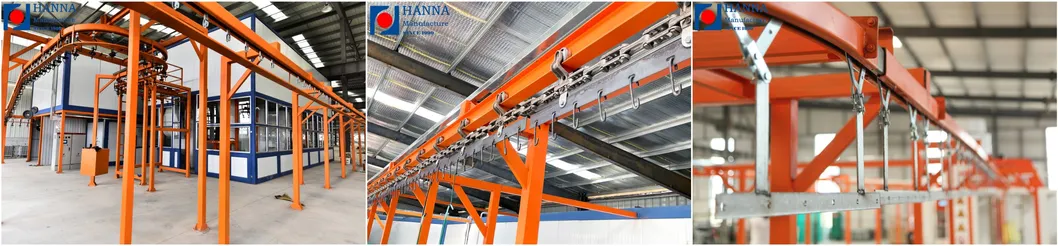

Conveyor Transport System

Forged track material for durability.
Laser offline cut sheet metal ensuring error < 0.1mm.
Smooth internal welding and burr-free edges.
Options for Light Chain (QXG series) and Heavy Chain (XT series) up to 800KG.

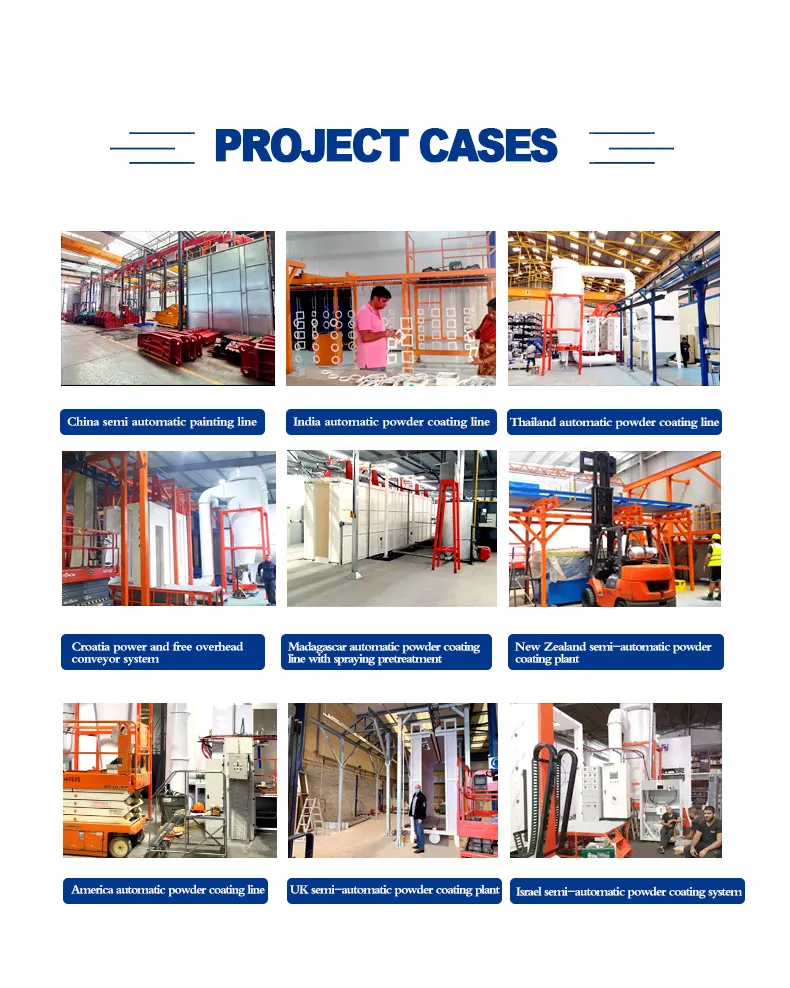

Products Application

Our equipment is widely applied in various fields: Transportation, Hardware, Home Appliances, Mechanical Engineering, Security Doors, Fire Extinguishers, Radiators, and more.

Service & Quality Assurance

Complete technical documentation: Drawings, circuits, and manuals.
60-day professional tracking service after delivery.
Remote troubleshooting and 12-hour solution guarantee.
2-year warranty with free spare parts for non-human factor issues.

Frequently Asked Questions

Are you a trader or a factory?

We are a manufacturer and exporter. Our factory was founded in 1990, and our export office was established in 2014.

What information should I provide for a powder coating equipment quote?

Please provide the material/size/weight of your workpieces, your daily output requirements, preferred heating power (electric, gas, diesel), and your factory dimensions.

How do you ensure equipment quality?

We hold hundreds of patents and ISO9001:2015 certification. We employ specialized quality inspectors to strictly control every stage of design and production.

How is the installation handled?

We provide installation videos and documentation. Our engineers are available to guide the installation, commission the equipment, and provide staff training.

What is your after-sales service policy?

We offer a 2-year warranty, remote troubleshooting, and a guarantee to provide solutions within 12 hours of any reported issue.

What heating sources are available?

You can choose from Gas, Diesel, Electricity, Coal, or Bio-particles depending on your local availability and costs.
