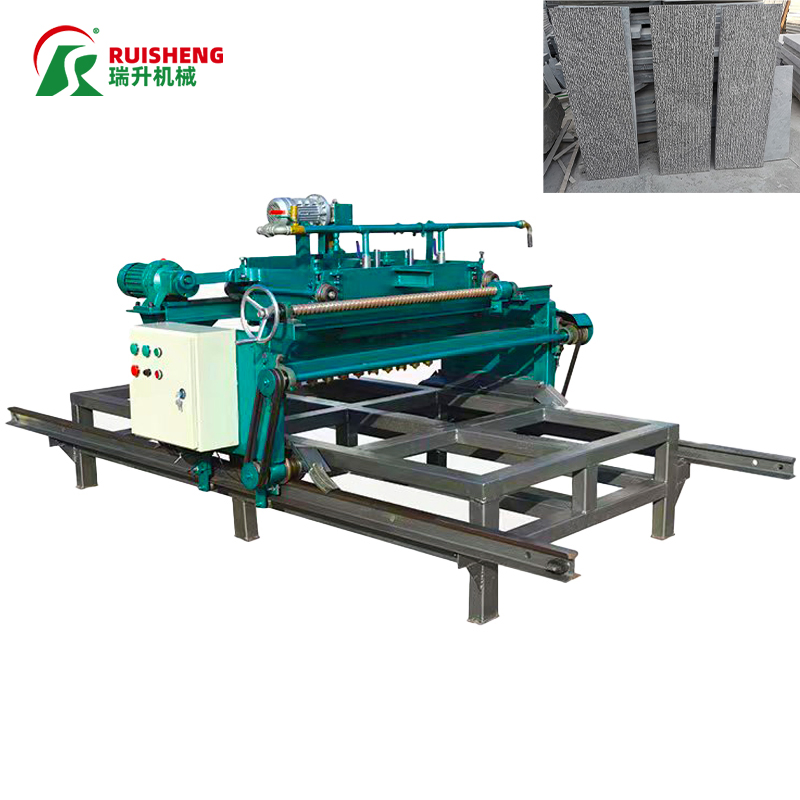

Fully Automatic Pneumatic Axe Cutter Pineapple Surface Litchi Surface Stone Processing Machinery
Fully Automatic Pneumatic Axe Cutter Pineapple Surface Litchi Surface Stone Processing Machinery
Fully Automatic Pneumatic Axe Cutter Pineapple Surface Litchi Surface Stone Processing Machinery
Fully Automatic Pneumatic Axe Cutter Pineapple Surface Litchi Surface Stone Processing Machinery
Fully Automatic Pneumatic Axe Cutter Pineapple Surface Litchi Surface Stone Processing Machinery
1 / 5
Fully Automatic Pneumatic Axe Cutter Pineapple Surface Litchi Surface Stone Processing Machinery
Fully Automatic Pneumatic Axe Cutter Pineapple Surface Litchi Surface Stone Processing Machinery
Fully Automatic Pneumatic Axe Cutter Pineapple Surface Litchi Surface Stone Processing Machinery
Fully Automatic Pneumatic Axe Cutter Pineapple Surface Litchi Surface Stone Processing Machinery
Fully Automatic Pneumatic Axe Cutter Pineapple Surface Litchi Surface Stone Processing Machinery

Fully Automatic Pneumatic Axe Cutter Pineapple Surface Litchi Surface Stone Processing Machinery

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊

Basic Information

Model NO.
RSFZ-30
Type
CNC Cutting Machine
Usage
Red Brick, Concrete, Granite, Marble
Application
Stone Industry
Source Voltage
220V
Automation
Semi-automatic
Cutting Ability
High Speed
Control
CNC
Certification
ISO, CE
Main Motor Power
2.2kw
Processing Speed
20-30 M²/H
Weight
900kg
Origin
Fujian, China
Production Capacity
50pieces/Month
🛠️

Product Description

Fully Automatic Pneumatic Axe Cutter, Bush Hammered Surface, and Pineapple Surface Integrated Machine

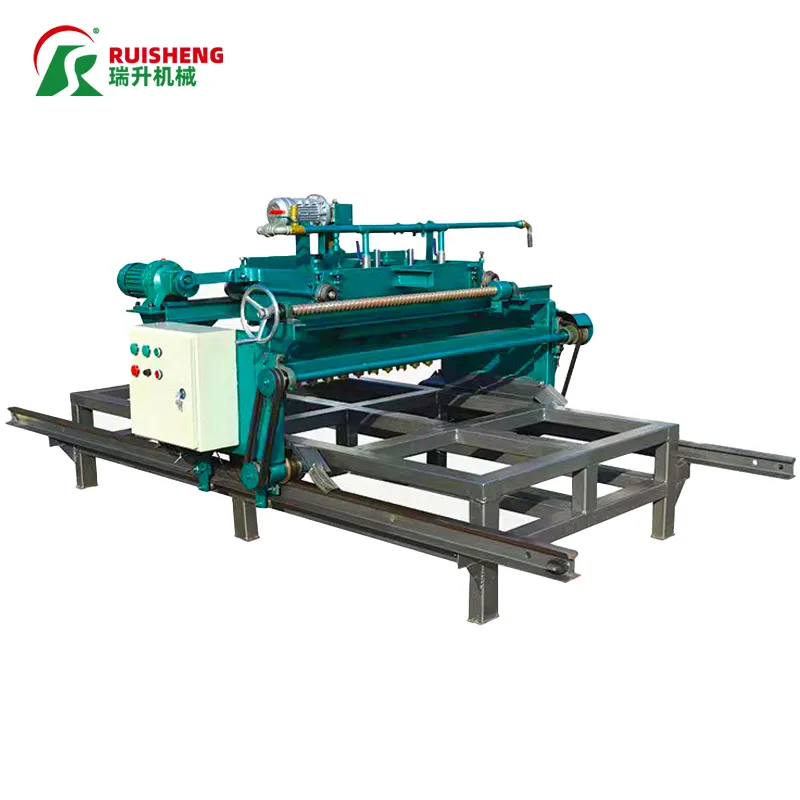

Fully Automatic Pneumatic Axe Cutter

Product Highlights

✅ All-in-One Capability: One machine for multiple stone texturing processes, streamlining your production workflow.
✅ Mechanical Air Hammers: Utilizes advanced pneumatic technology for low energy consumption and powerful performance.
✅ High Efficiency: Achieves an impressive output rate for axe-cut surfaces (20-30 m²/h) and pineapple surfaces (2-12 m²/h).
✅ Power Source: Pneumatic, ensuring low operational costs and environmental friendliness.
✅ Adjustability: Easily switch between texturing modes to suit various project requirements.

Applications & Benefits

Applications: Stone Texturing for a wide range of materials, Architectural Facades, and Interior Design customization.

Benefits: Cost-Effective operation, Precision Texturing for high quality standards, and Operational Flexibility for different stone sizes.

📋

Technical Specifications

Feature Surface Type Specification
Model No. - RSFZ-30
Main Motor Power - 2.2kw
Max Processing Size Axe-cut surfaces 2500*1200*300mm
Litchi surface 2500*870*300mm
Pineapple Surface 2500*870*300mm
Min Thickness Axe-cut surfaces 35mm
Litchi surface 30mm
Pineapple Surface 40mm
Processing Speed Axe-cut surfaces 20-30 m²/h
Litchi surface 2-12 m²/h
Pineapple Surface 2-12 m²/h
Overall Size - 3650*2100*1600mm
Weight - 900kg
🖼️

Product Gallery

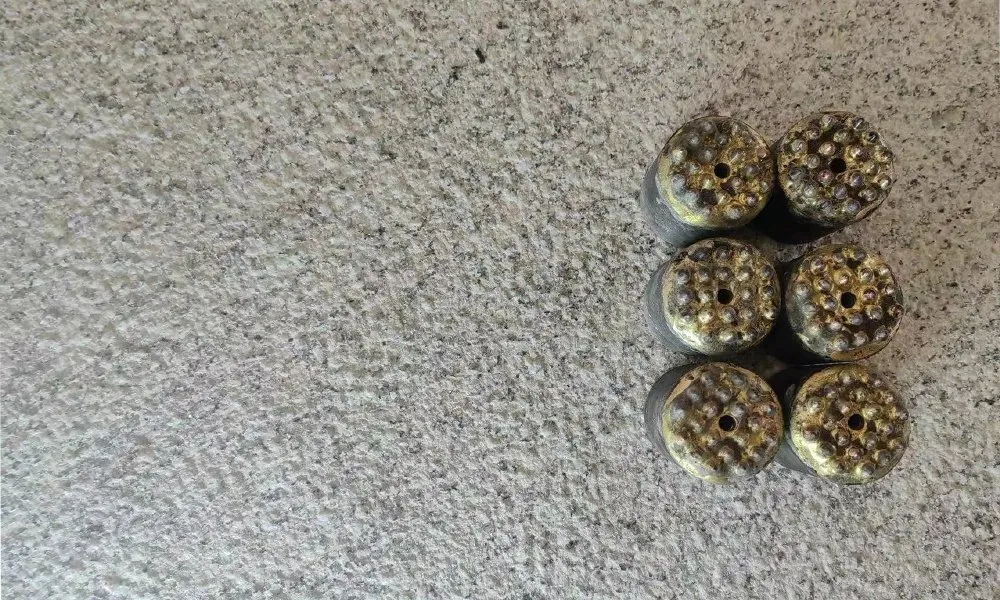

Stone Processing View 1

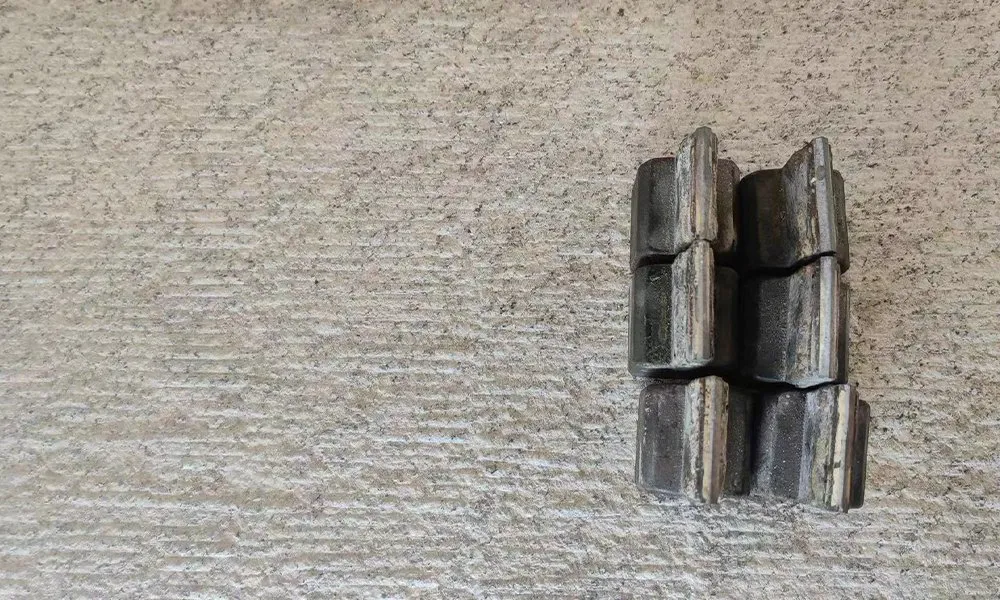

Stone Processing View 2

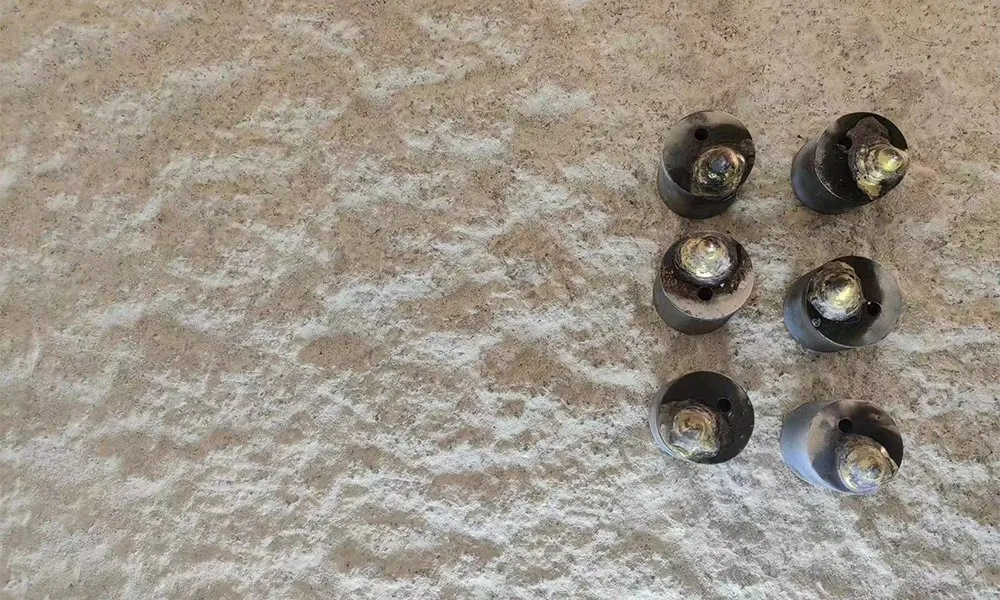

Stone Processing View 3

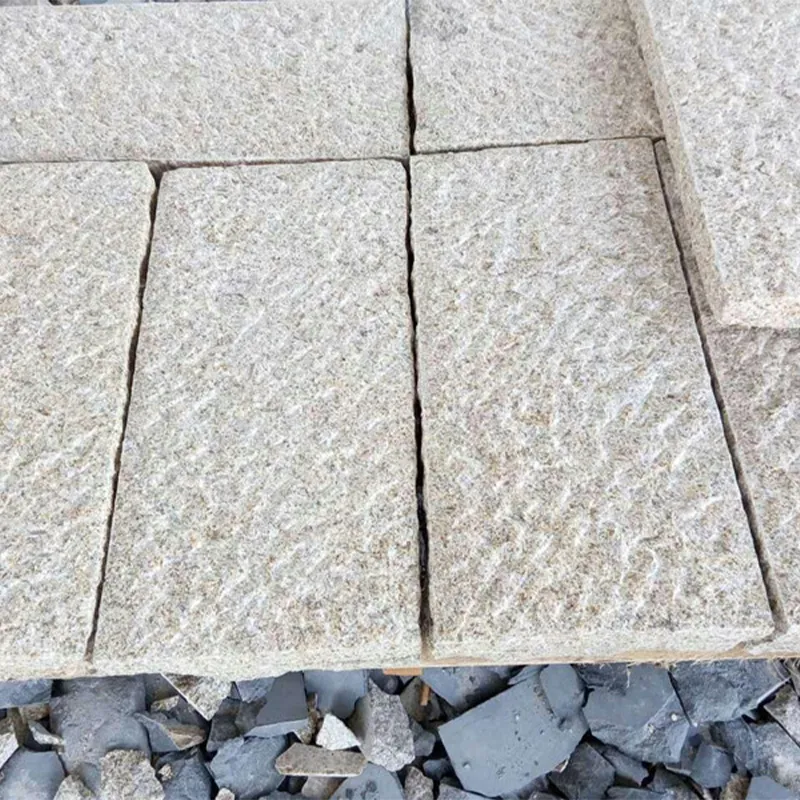

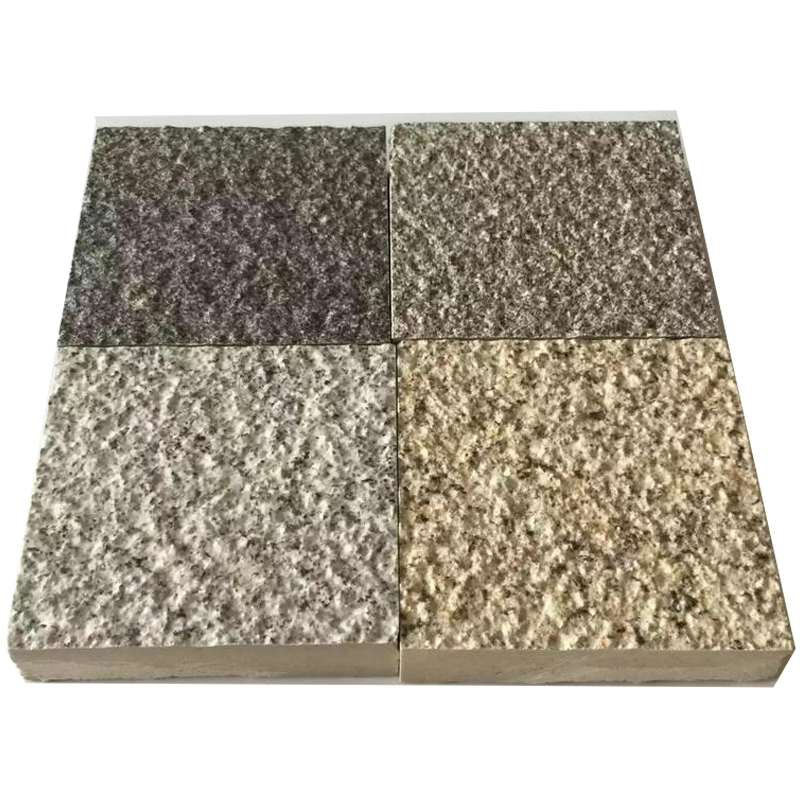

Surface Finish Detail 1

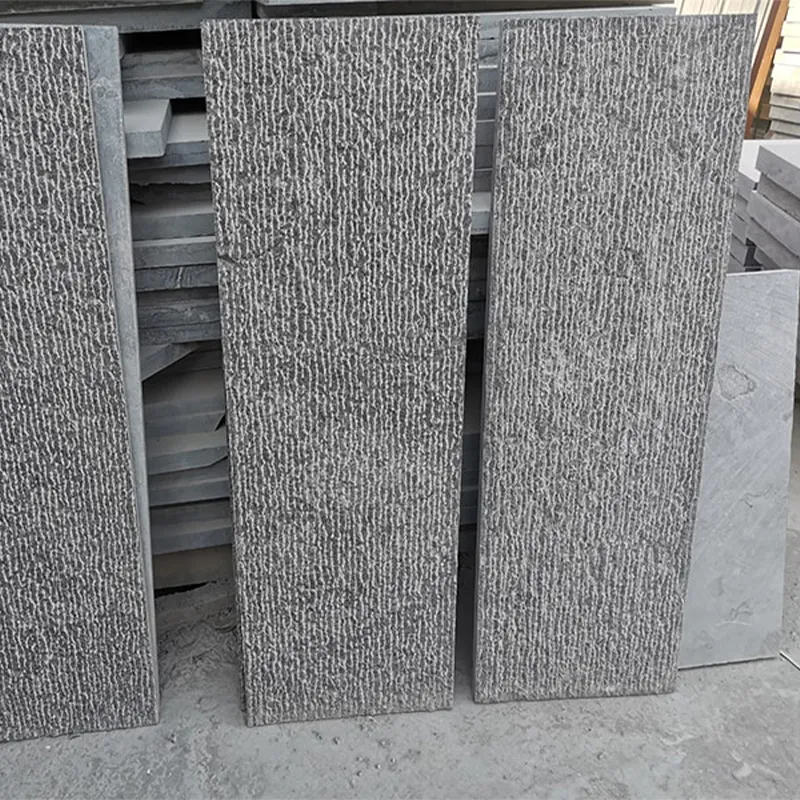

Surface Finish Detail 2
❓

Frequently Asked Questions

Q1: What types of stone surfaces can this machine process? A: The RSFZ-30 is an integrated machine capable of producing axe-cut surfaces, bush hammered (litchi) surfaces, and pineapple surfaces.
Q2: What is the maximum processing size of the machine? A: It can handle axe-cut surfaces up to 2500*1200*300mm and litchi/pineapple surfaces up to 2500*870*300mm.
Q3: How efficient is the processing speed? A: The machine is highly efficient, reaching speeds of 20-30 m²/h for axe-cut finishes and 2-12 m²/h for litchi and pineapple finishes.
Q4: What are the power requirements for the RSFZ-30? A: The machine operates on a 220V source voltage and utilizes a pneumatic power source with a 2.2kw main motor.
Q5: Is the machine suitable for thin stone plates? A: The minimum thickness for processing is 30mm for litchi surfaces, 35mm for axe-cut, and 40mm for pineapple surfaces.
Q6: What certifications does the equipment carry? A: Our machinery is compliant with ISO and CE international standards for safety and quality.
