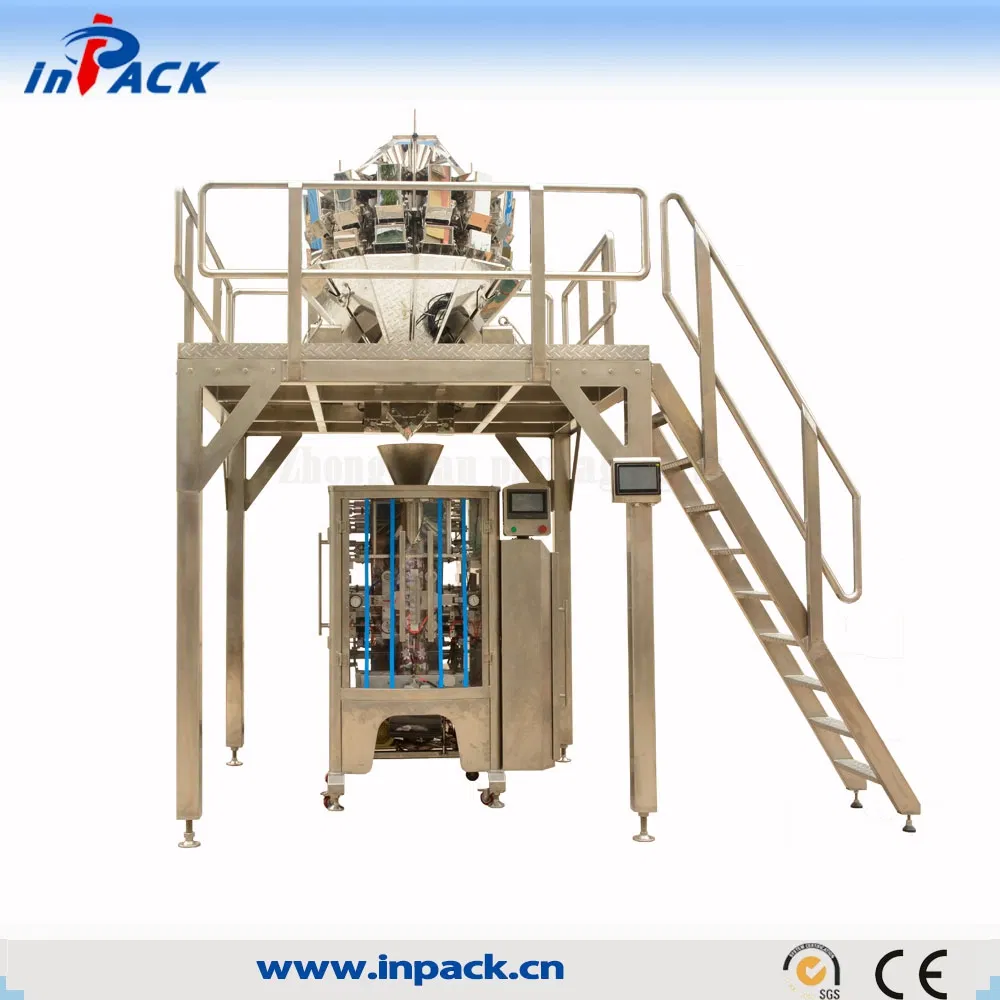

China Manufacturers Automatic Multifunction Food Packaging Machinery System
China Manufacturers Automatic Multifunction Food Packaging Machinery System
China Manufacturers Automatic Multifunction Food Packaging Machinery System
China Manufacturers Automatic Multifunction Food Packaging Machinery System
China Manufacturers Automatic Multifunction Food Packaging Machinery System
1 / 5
China Manufacturers Automatic Multifunction Food Packaging Machinery System
China Manufacturers Automatic Multifunction Food Packaging Machinery System
China Manufacturers Automatic Multifunction Food Packaging Machinery System
China Manufacturers Automatic Multifunction Food Packaging Machinery System
China Manufacturers Automatic Multifunction Food Packaging Machinery System

China Manufacturers Automatic Multifunction Food Packaging Machinery System

Customization: Available
Automatic Grade: Automatic
Application: Cosmetics, Drinks, Skin Care Products, Dairy Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
Send Inquiry

Product Description

📊

Basic Information

Model NO.
IP-SL500
Type
Forming Filling Sealing Machine
Forming Species
Bag Moulding
Forming Function
Forming, Filling, Seal
Driven Type
Mechanical
Material Type
Solid
Packaging
Barrel
Packaging Material
Film
Certificate
CE
Filling Range
50-2000ml
Packing Speed
20-50bpm
Packaging Film
BOPP, OPP, PE, Tyvk, Paper, Aluminium Foil
Bag Width
50-210mm
Bag Length
80-280mm
Air Consumption
0.6MPa
HS Code
84223030
📦

Product Description

Advanced Packaging System

This is an intermittent complete packaging line suitable for various products including snacks, cereal, coffee, tea, rice, nuts, candy, and more. It supports multiple bag formats such as pillow bags, gusseted bags, and quad bags.

Type IP-SL350 IP-SL500 IP-SL620 IP-SL-720
Bag length50-210mm(L)50-300mm(L)100-480mm(L)80-400mm(L)
Bag width50-165mm(W)50-210mm(W)180-300mm(W)60-330mm(W)
Max width of roll film350mm500mm620mm720mm
Packing speed30-50bags/min30-50bags/min20-50bags/min10-40bags/min
Measuring range100-500ml150-1200ml6000ml(Max)3000ml(Max)
Power1.5KW2.2KW5KW4KW
Net Weight500Kg600Kg900Kg800Kg

⚙️ Main Features

  • 304SS / Carbon steel structure options available
  • Coding options: Hot stamp ribbon or thermal transfer
  • Equipped with static eliminator and gas flushing devices
  • Hole punching device (euro-hole / round-hole)
  • Chain bags device with dot cut or fix number bags cutting
  • Servo motor controlled bag pulling device for high precision
  • PLC control system with intuitive touch screen for easy parameter setting
  • High sensitive fiber optic photo sensor for precise eye mark tracking
📷

Product Showcase

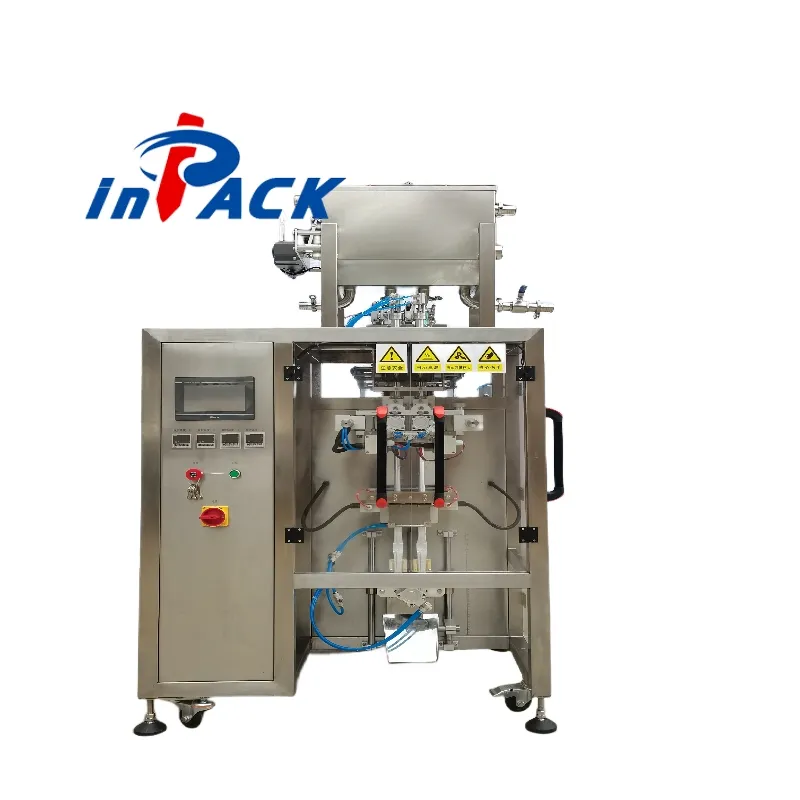

Packaging Machinery System 1

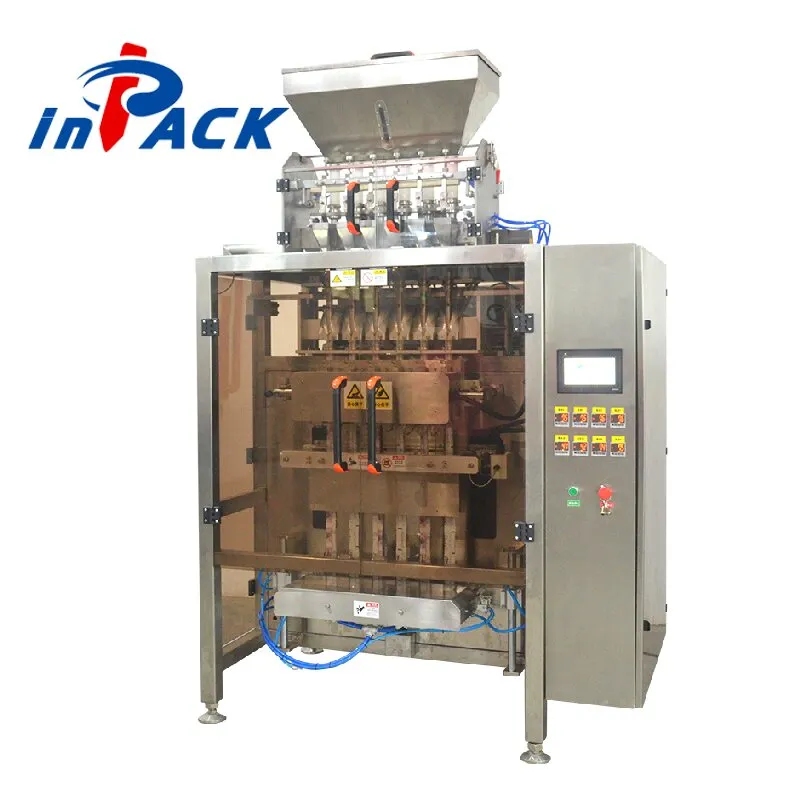

Packaging Machinery System 2

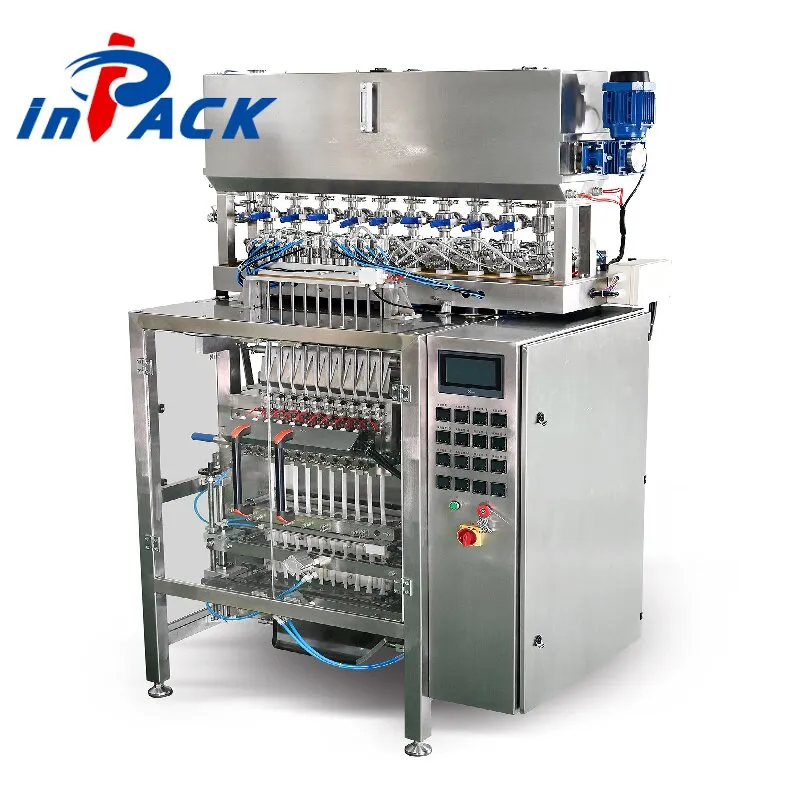

Packaging Machinery System 3

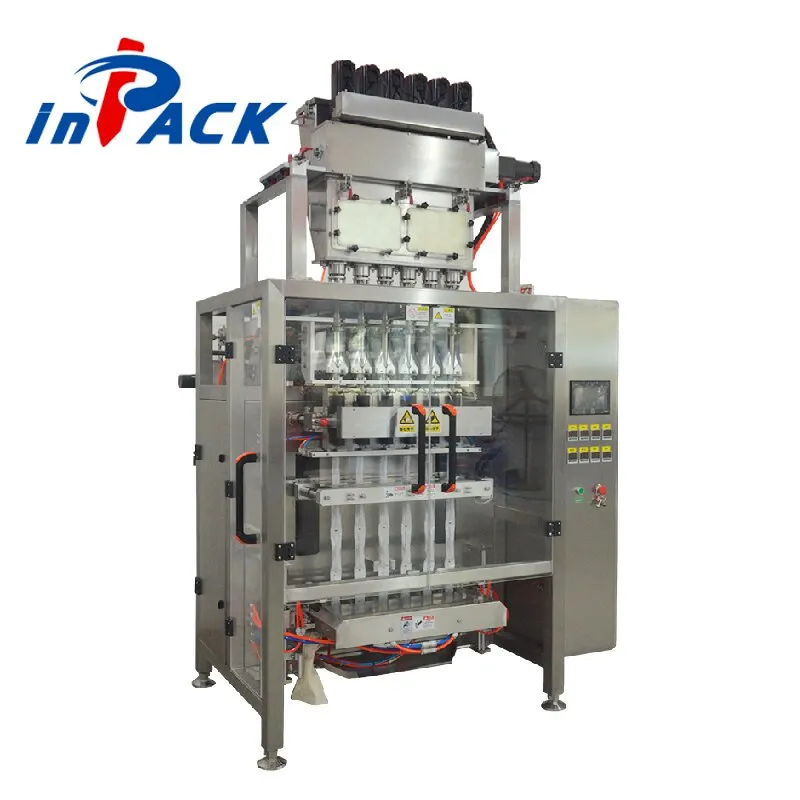

Packaging Machinery System 4
Packaging Machinery System 5
Packaging Machinery System 6
Packaging Machinery System 7
Packaging Machinery System 8
Packaging Machinery System 9
Packaging Machinery System 10
🛠️

Our Services & Warranty

Pre-sale Service: We confirm requirements clearly before providing suggestions to ensure the solution matches your specific needs perfectly.

In-sale Service: Real-time production tracking with photo updates to keep you informed of the manufacturing status.

After-sale Service:

  • 12-month full machine warranty (excluding fragile parts).
  • Technical training for your technicians with free accommodation options.
  • Comprehensive training materials, including self-diagnostic guides.
  • Quick reaction and technical solutions for any machine issues.
  • Local service agent support for installation and commissioning where available.
  • 24-hour technical support via various communication channels.

❓

Frequently Asked Questions

1. What types of food products can this machine pack?
The machine is ideal for a wide range of solid products including snacks, cereals, coffee, tea, rice, nuts, and candy.
2. What bag styles are supported by the IP-SL series?
It supports standard pillow bags, gusseted bags, and quad bags for versatile retail presentation.
3. What is the standard warranty period?
We offer a 12-month warranty starting from the date of dispatch plus one month. Both mechanical and electronic parts can be replaced free of charge during this period if defects occur under proper use.
4. Does the machine support customized voltages?
Yes, we can adjust the machine to meet special voltage requirements based on your local power standards.
5. How is the packaging speed controlled?
The packing speed is managed through a PLC control system combined with a servo-motor pulling device, allowing for speeds ranging from 20 to 50 bags per minute depending on the model and material.
6. Is technical training provided for operators?
Yes, we provide training for your technicians, including self-diagnosed videos and training CDs. On-site training and commissioning are also available through our professional service team or local agents.
