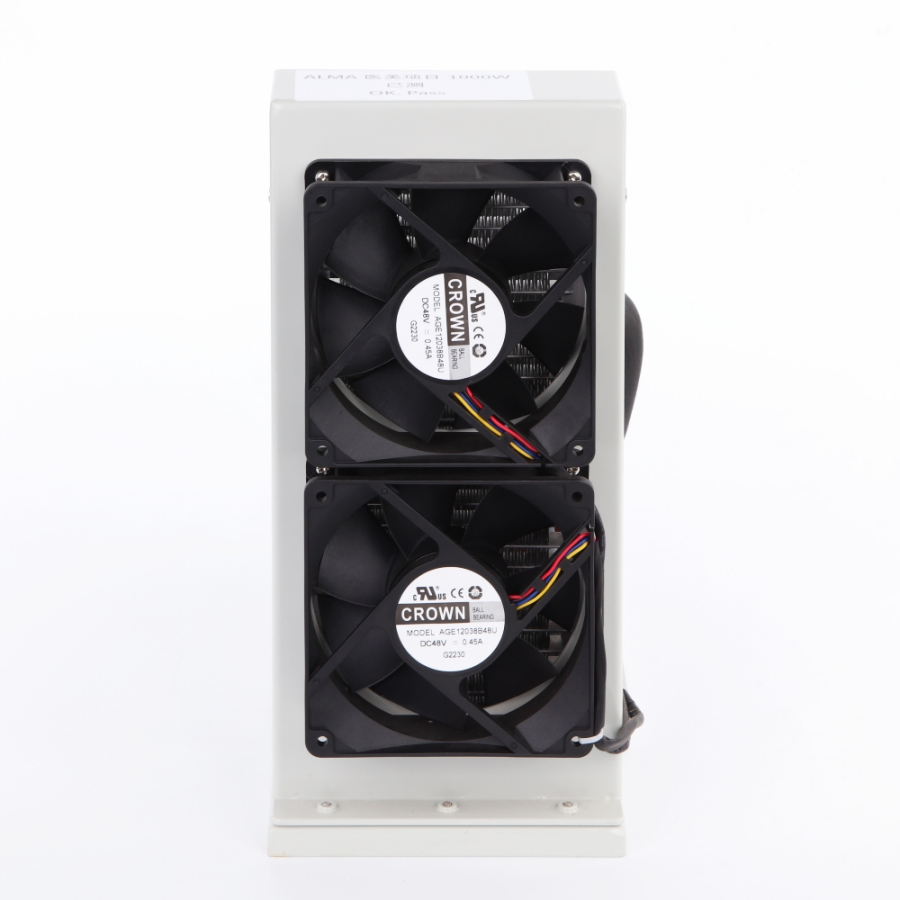

Fs Compact Liquid Cooling Chiller System for Skin Hair Removal Machine Laser Treatment

Still deciding? Get samples of $ !
Order Sample

Product Description

Technical Specifications

Type:Air-Cooled
Cooling Method:Air-cooled
Unit Structure:Integral
Selected Voltage:DC 24V / 48V
Compressor:DC Inverter Rotary Mini
Noise Level:Low
Application:Laser & Electronic Machines
Cooling Capacity:800~1500 Watt
Refrigerant:R134A
Net Weight:11 Kg
Dimension:320 X 200 X 270 mm
Certification:ISO, CVC, CE

Product Overview

Compact liquid cooling chiller system designed for skin hair removal machines and laser treatments. This smallest tiny refrigeration liquid chiller module unit features a miniature compressor for micro liquid cooling systems. It integrates a Miniature Compressor, Compressor Driver, Mini Condenser, mini plate heat exchanger, mini flow fan, and Capillary.

With advantages of small size and light weight, it supports DC 12V 24V 48V power supply, offering high COP with lower power consumption and excellent cooling performance in confined spaces and hot ambient conditions.
Product NameMini refrigeration liquid chiller module unit
ModelCH078Z48B
Core ComponentsMini rotary compressor & driver, mini condenser, axial flow fan, plate evaporator, capillary
VoltageDC 48V
Cooling Capacity600~1500W
Operating Weight11 kg
Dimensions320x200x270mm

Product Display

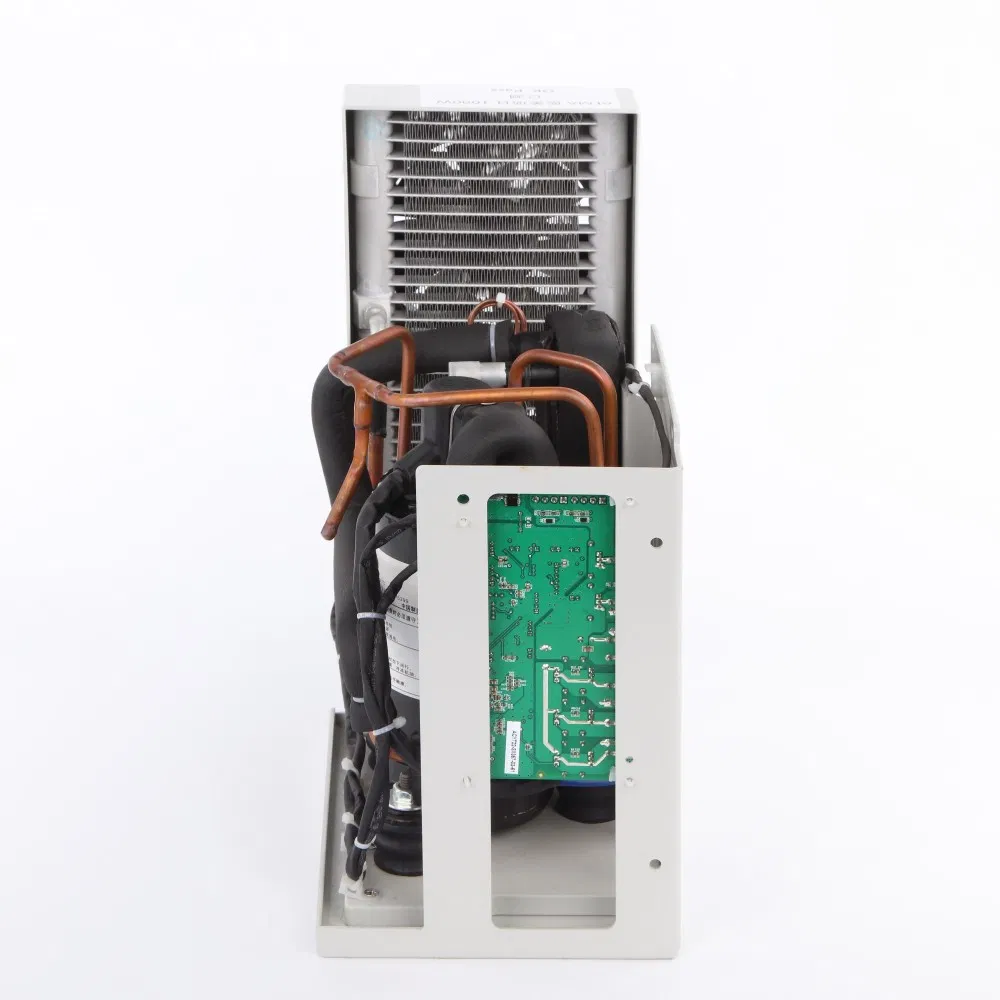

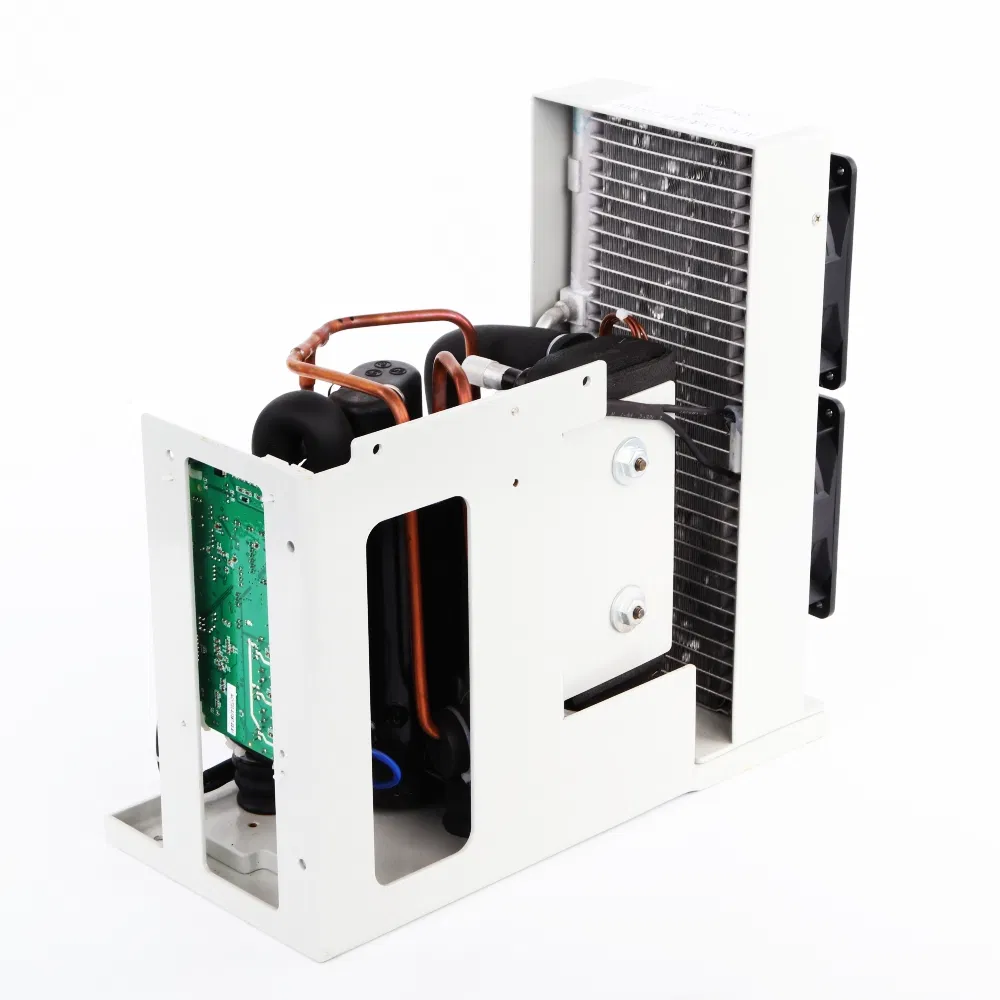

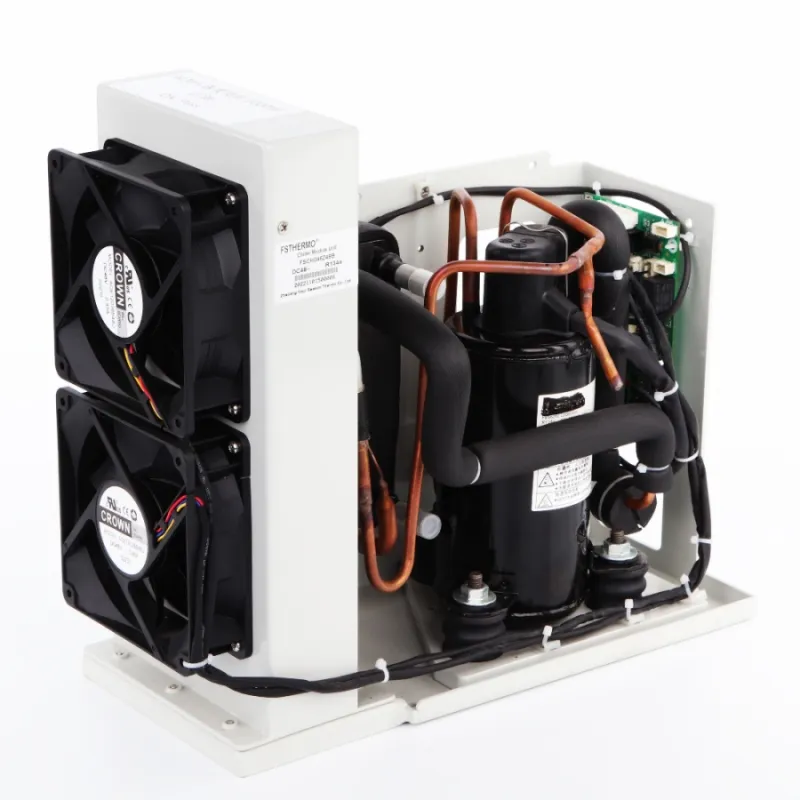

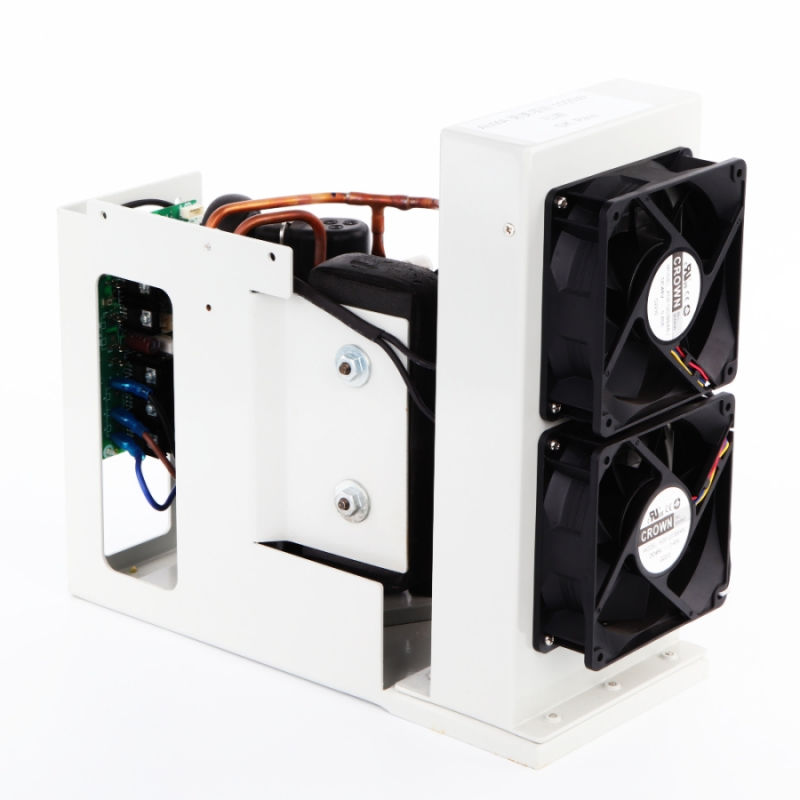

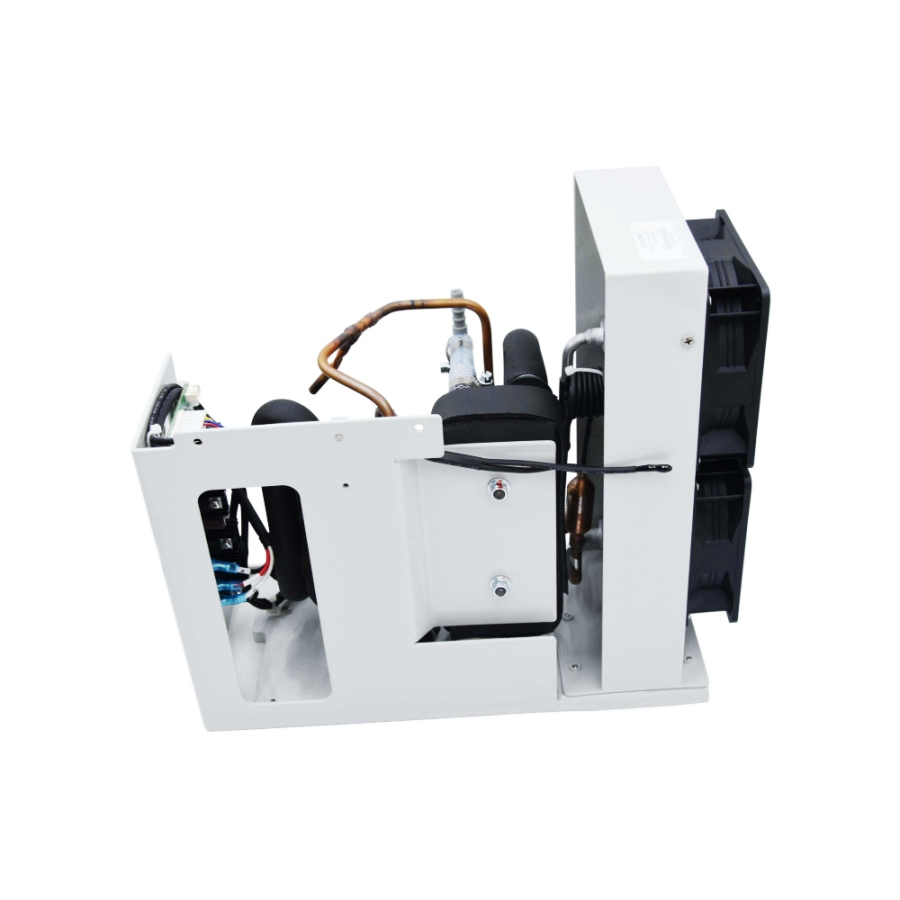

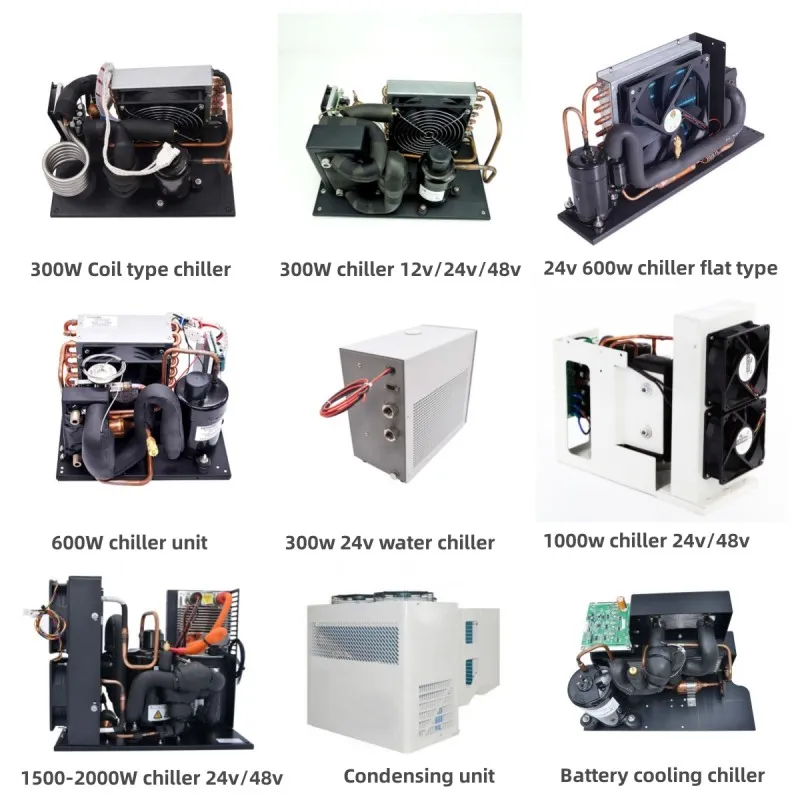

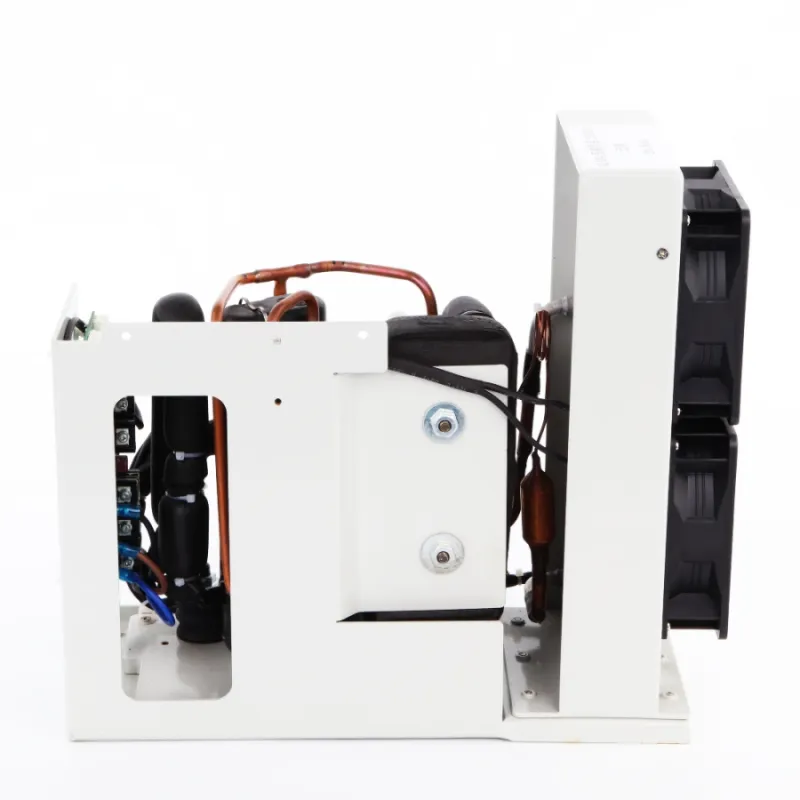

Chiller System Unit Liquid Cooling Module Compact Chiller Detail Compressor Driver System

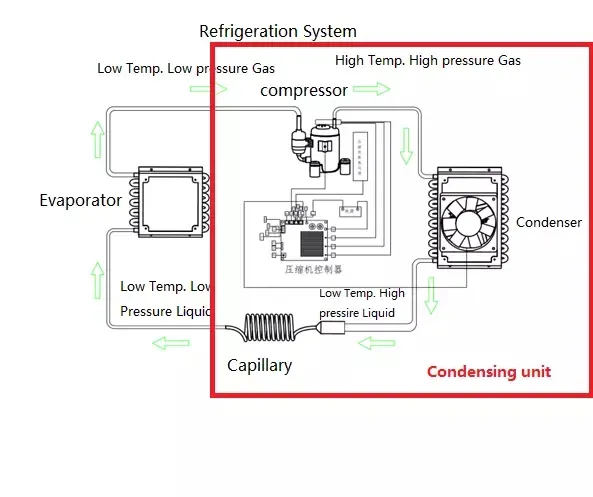

Series Layout

Key Characteristics

1
Smallest & Most Compact Size
2
Ultra-Low Height & Light Weight
3
High COP & Low Energy Consumption
4
Eco-friendly R134a Refrigerant
5
Low Noise and Vibration Levels
6
Precision Control & High Reliability
7
High Efficiency Tiny Rotary Compressor
8
Hybrid Power: DC, Battery, Solar

Wide Applications

Ideal for micro and portable liquid recirculating cooling systems such as:
  • Laboratory device cooling
  • Laser machine cooling
  • PC and chip cooling
  • Beauty machine cooling
  • Personal body cooling vests
  • Bio-technology cooling
  • Mini wine or beer coolers
  • Automotive climate control
  • Electronic component cooling
  • Portable spot coolers
Application Chart

Manufacturing & Packaging

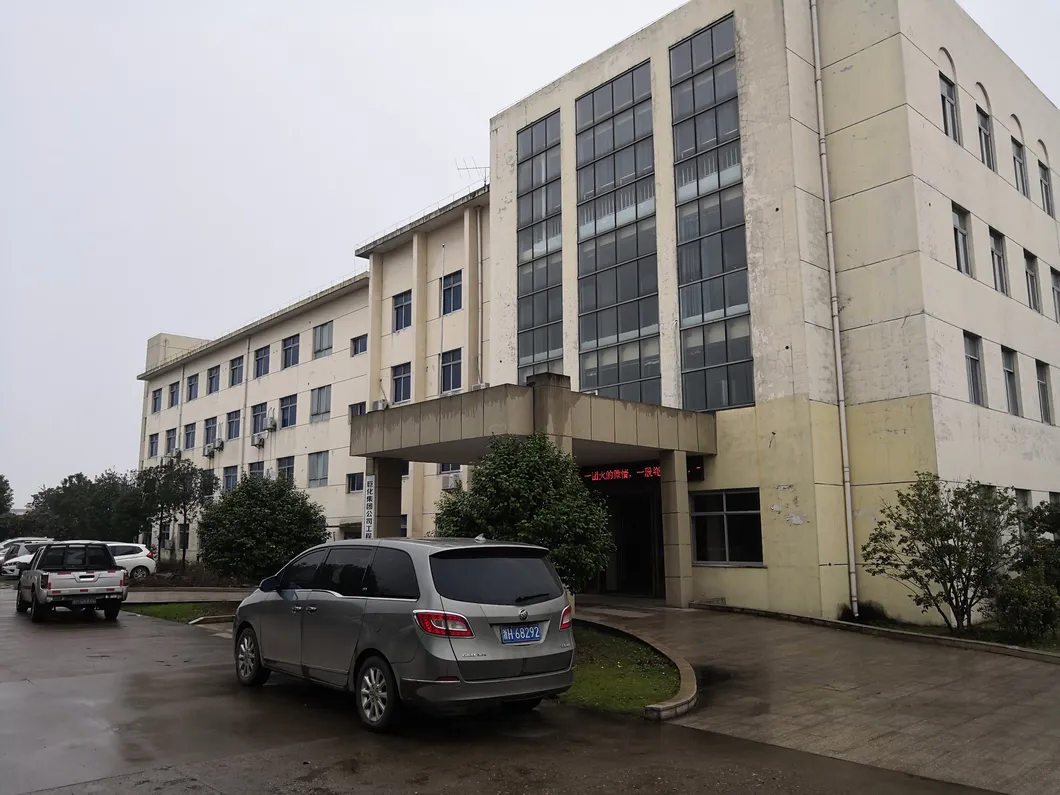

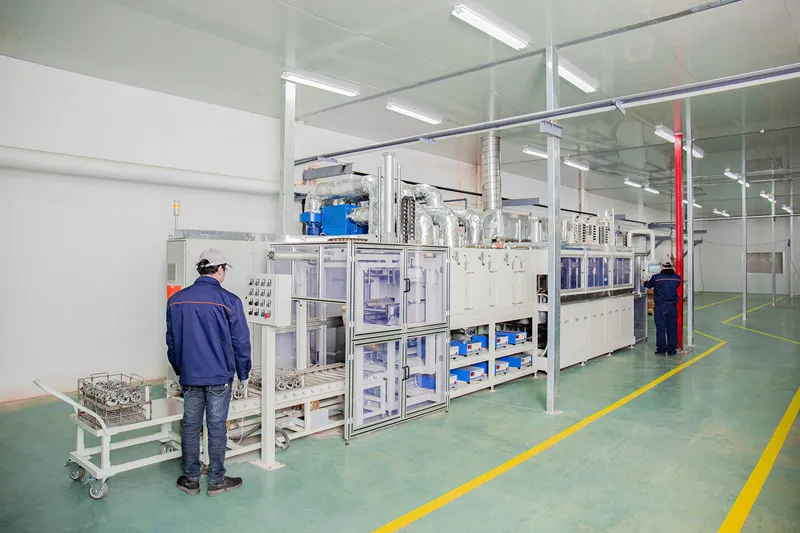

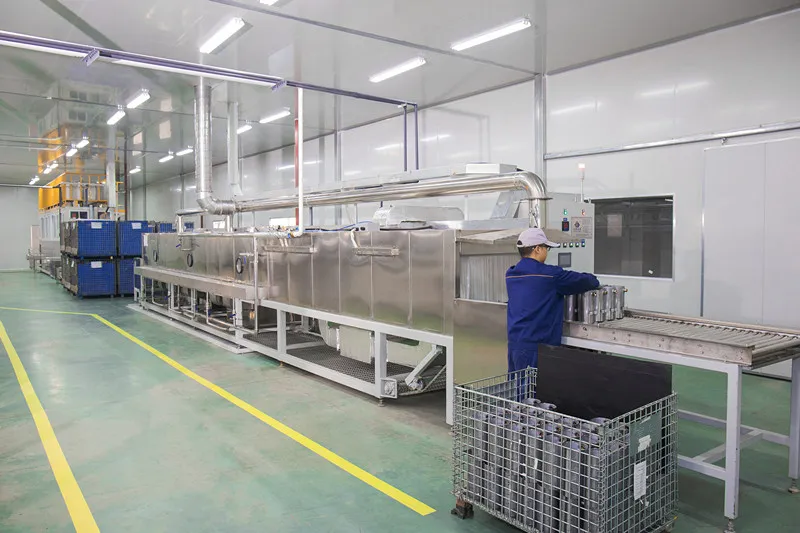

Manufacturing Facility Testing Area Assembly Line
Packaging Box Ready for Shipping

Frequently Asked Questions

1. What is the Minimum Order Quantity (MOQ)? The MOQ for our mini liquid chiller module is 1 piece, making it ideal for both testing and full-scale integration.
2. What is the typical delivery time? Sample orders are generally processed within 10 days after payment, while bulk orders typically take around 25 days.
3. What power sources are compatible with this chiller? The system is designed for hybrid power flexibility, including DC electrical power (12V/24V/48V), batteries, solar power, and car power systems.
4. What are the primary cooling capacities available? The module offers a versatile cooling range between 800W and 1500W depending on the specific model and configuration.
5. What are the main applications for this mini chiller? It is widely used for laser cooling, medical beauty equipment, laboratory devices, high-end PC/chip cooling, and personal cooling systems like body vests.
6. What payment methods are accepted? We accept various payment methods including T/T (30% deposit, 70% balance before shipment for bulk), Western Union, Paypal, and L/C.
