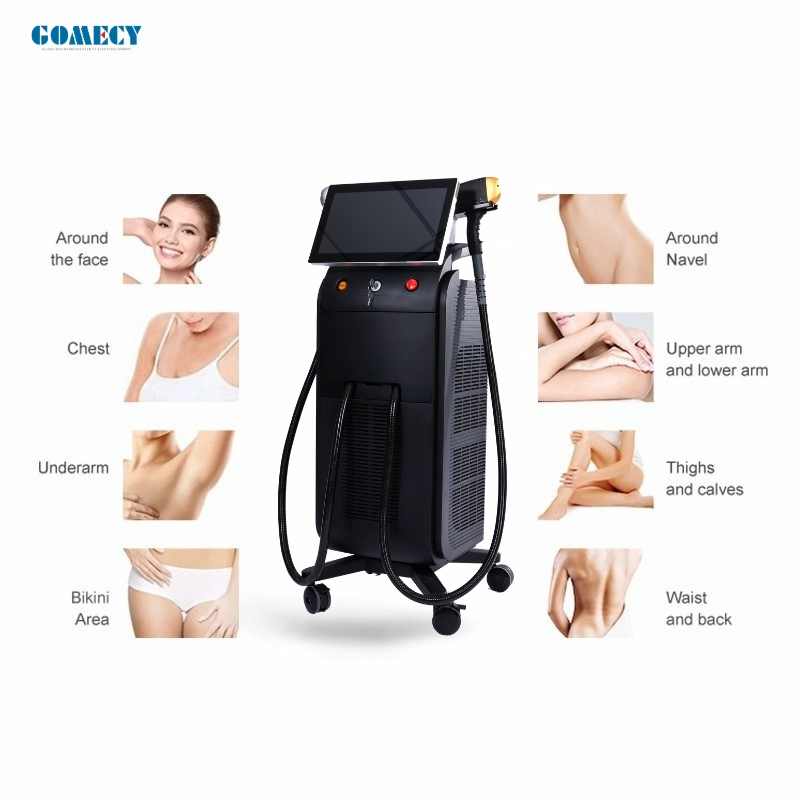

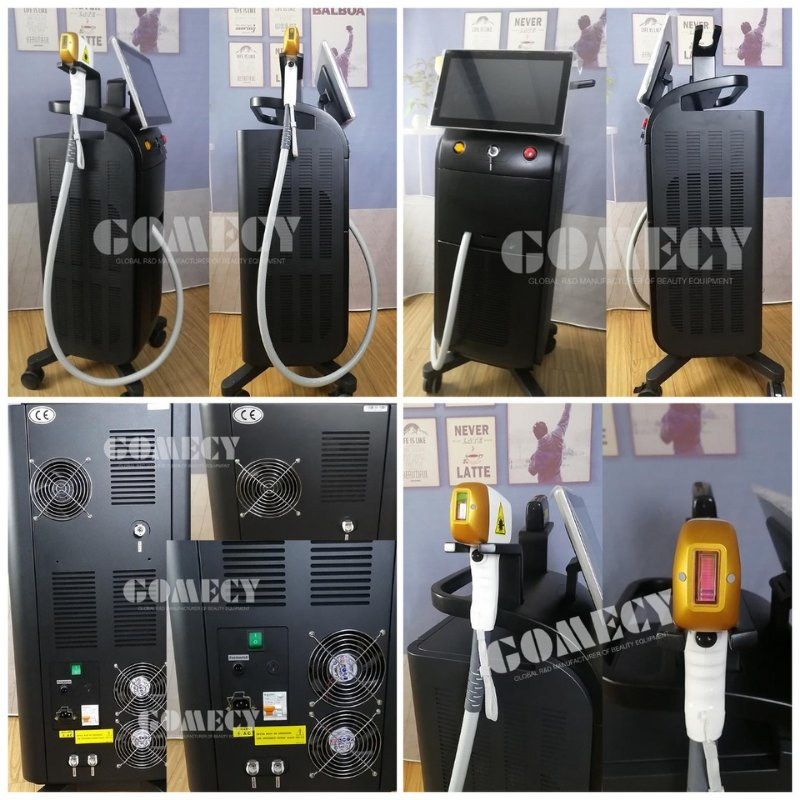

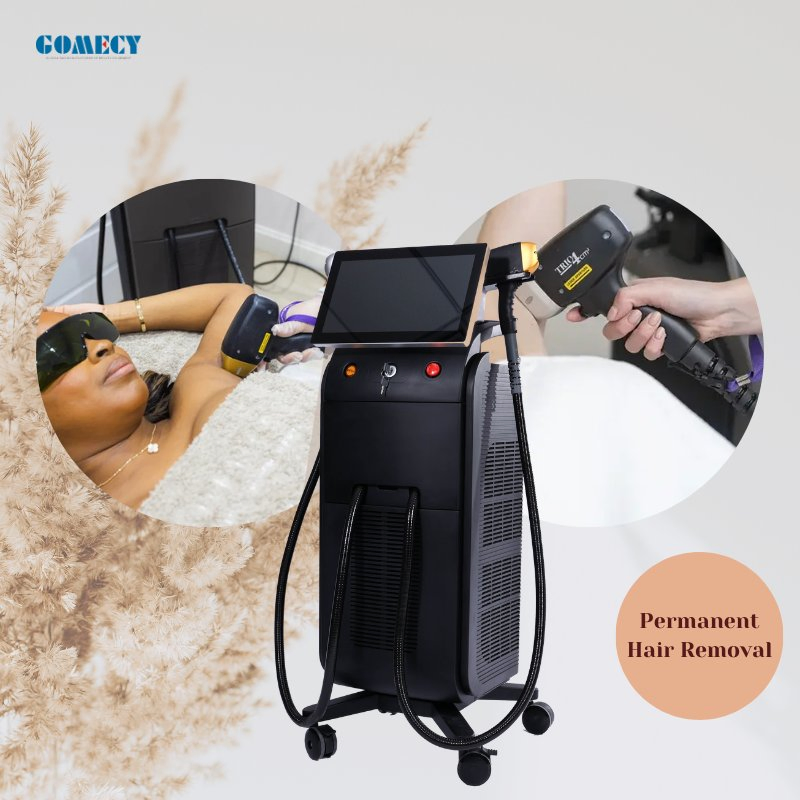

Diode laser is a professional light-based technology widely used for long-term hair reduction. It works by emitting a specific wavelength of laser energy that can selectively target melanin in the hair shaft and follicle. The absorbed light energy is converted into heat, which damages the hair follicle's growth structure while protecting the surrounding skin tissue.
Working Principle: This system is based on the principle of selective photothermolysis. By delivering laser energy at specific wavelengths, the system targets melanin within the hair shaft and hair follicle while minimizing damage to surrounding skin tissue. The optional triple-wavelength combination (755nm + 808nm + 1064nm) enables deeper penetration and broader absorption.
| Item | Specification |
|---|---|
| Input Power | 3000W |
| Laser Type | Diode Laser |
| Wavelength Options | 808nm / 810nm / 755nm + 808nm + 1064nm |
| Laser Output Power | 1000W / 1600W |
| Pulse Width | 5-400 ms |
| Energy Density | 1-120 J/cm² / up to 180 J/cm² |
| Spot Size | 12×18 mm / 12×28 mm |
| Repetition Frequency | 1-10 Hz |
| Display | 15.6-inch 4K Touch Screen |

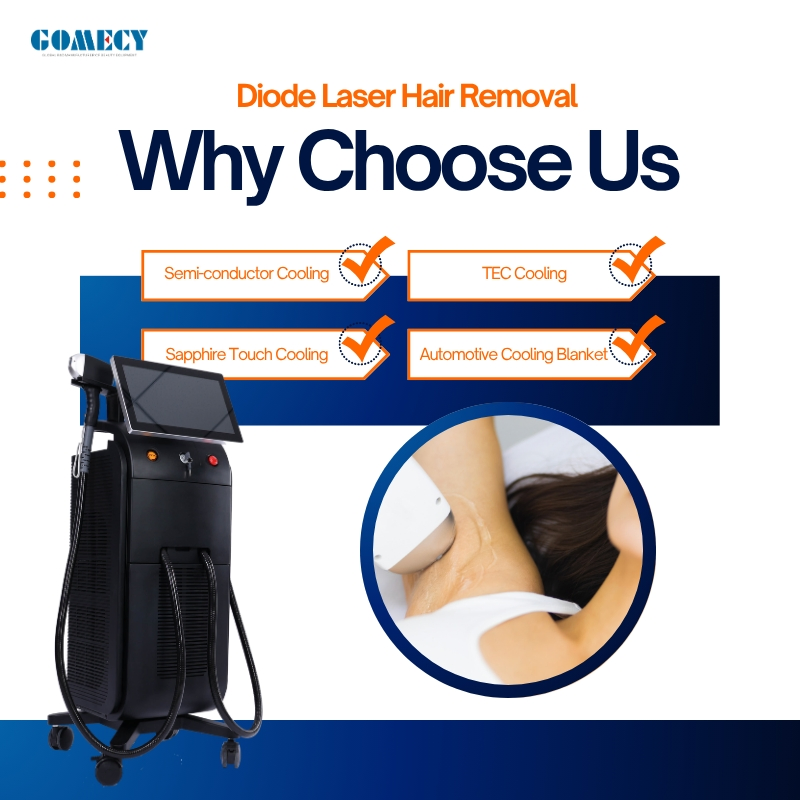

| Sapphire Cooling | -5°C to 5°C |
Not suitable for: Pregnancy, active skin infections, photosensitive skin conditions, patients with pacemakers, or recent aggressive chemical peels.
