Quasi-Long Pulse (pulse width 300us @ 1064nm) is a combination of toning and lifting which enables pigmented cells to absorb the laser selectively. It stimulates collagen by the destruction of pigmented cells, and it is useful to general skin for regenerating after peeling, improving loose skin, and minimizing large pores.
DUAL-Q Mode:DUAL-Q mode delivers 2 pulses of constant energy of laser power in a very short period of time. Compared to previous laser toning procedures, its energy is much higher. In order to reduce side effects of high energy laser such as hypopigmentation, pigmentation or melasma recurrence, the high energy is divided into two, to increase the effect while reducing side effects. Q-DUAL-Q mode can be done at both 1064nm and 532nm wavelengths.
Auto-Calibration System:Reliable treatment can be done in spite of long hours of use since its auto-calibration system provides consistent and stable energy output.
| Laser Wavelength | 1064nm / 532nm |
| Aiming Light | 650nm (Red Color) |
| Output Energy (Single Pulse) | 1064nm: 100mJ-1000mJ; 532nm: 50mJ-650mJ |
| Output Energy (Double Pulse) | 1064nm: 200mJ-2600mJ; 532nm: 100mJ-1300mJ |
| Laser Mode | Single / Double Pulse |
| Pulse Repetition Rate | 1 Hz - 10 Hz |
| Pulse Width | 5-8ns (Q-Switched); 300us (Quasi-Long) |
| Spot Diameter | 2mm - 10mm adjustable |
| Power Supply | 1500W / 10A |
| Cooling System | 8L Water Tank |

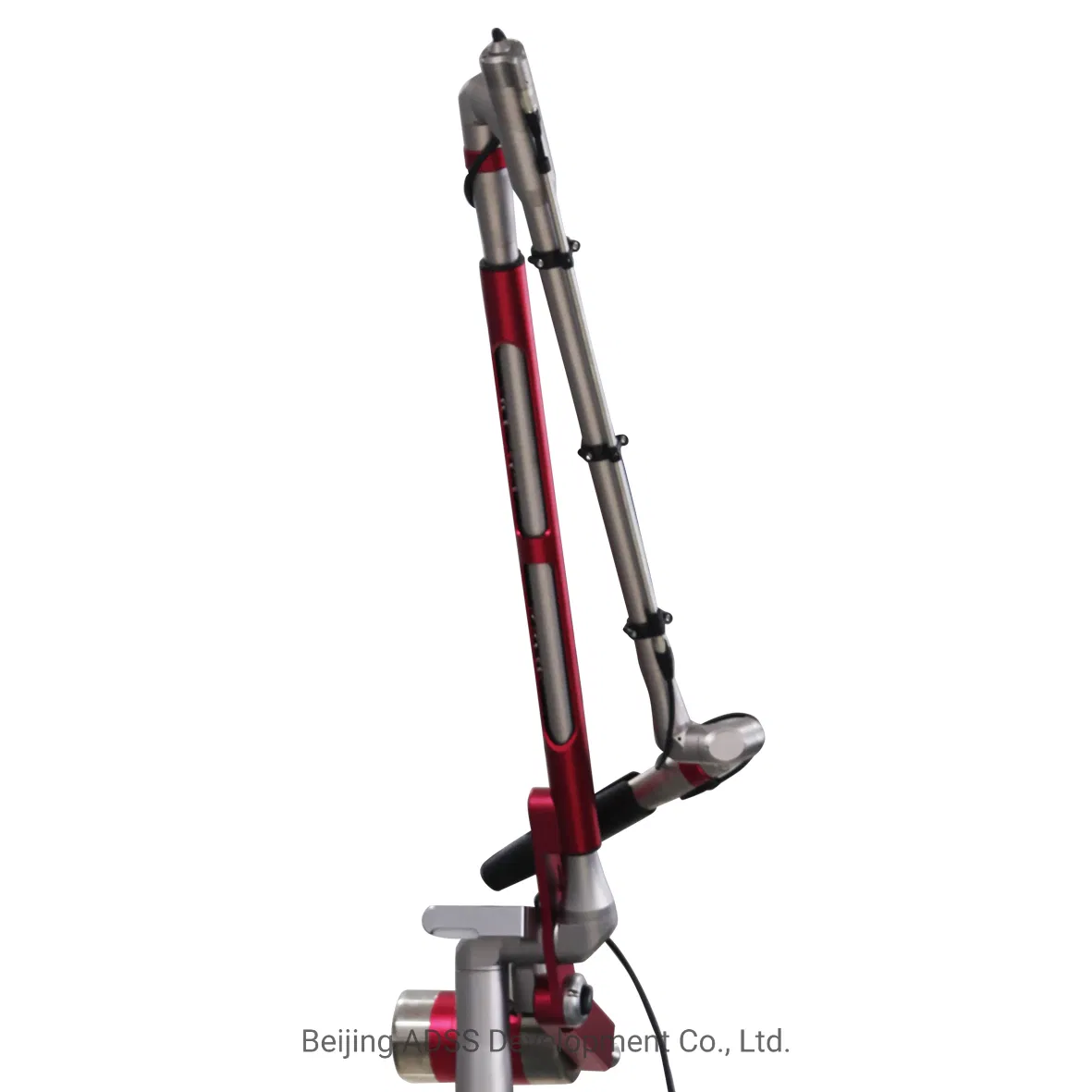

| Articular Arm | 7-Articular Optical Arm |
| Machine Dimensions | 83 * 33 * 92 cm |
| Net Weight | 98 kg |
