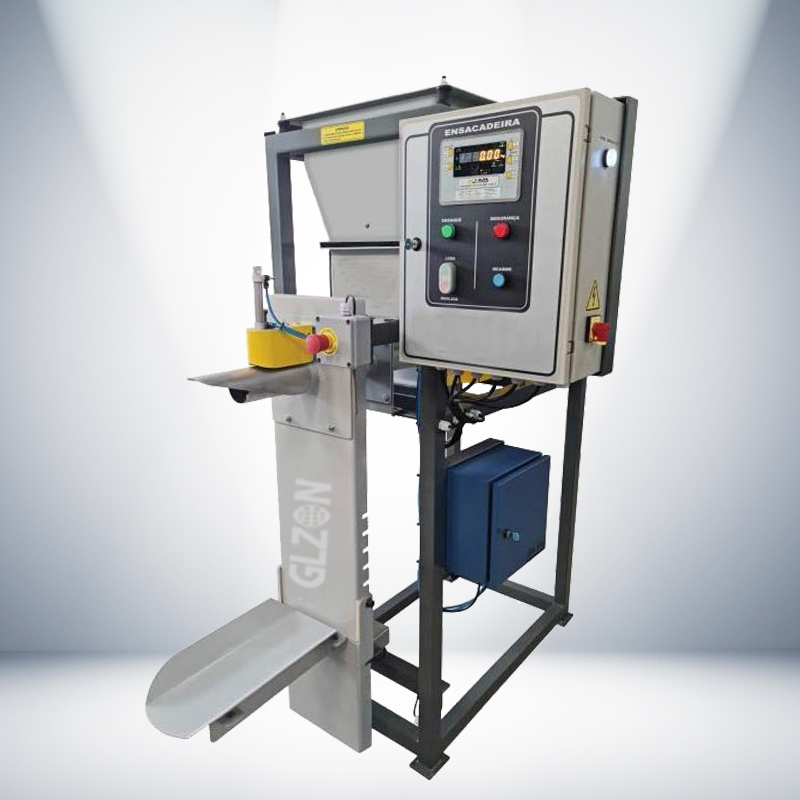

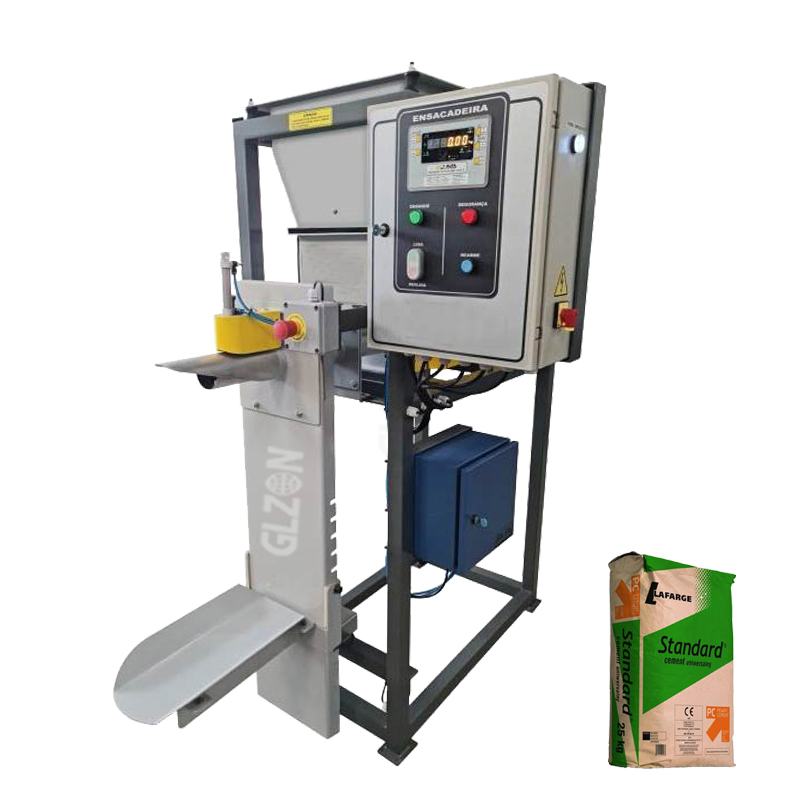

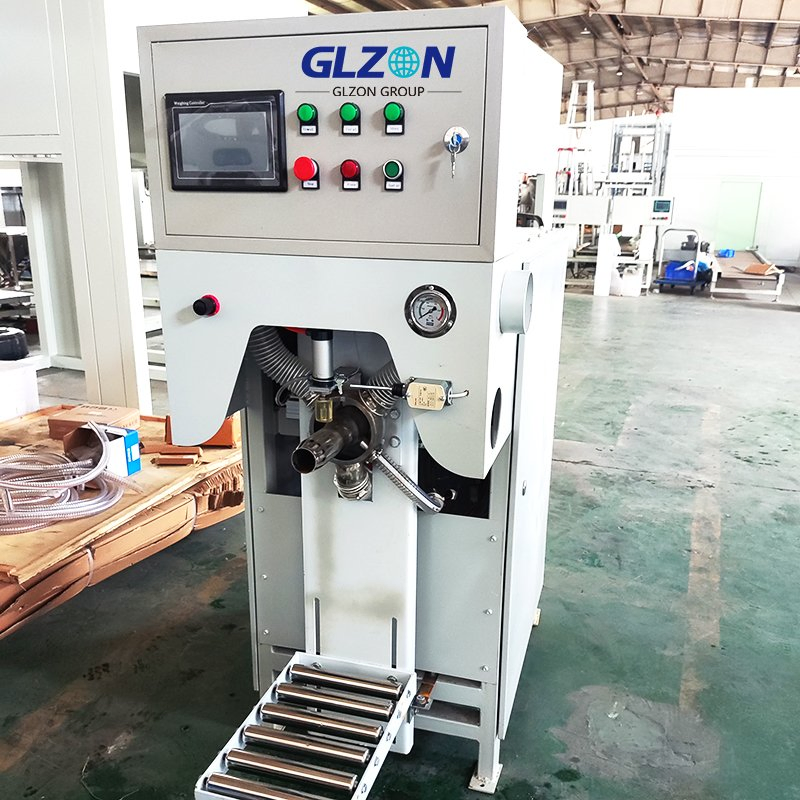

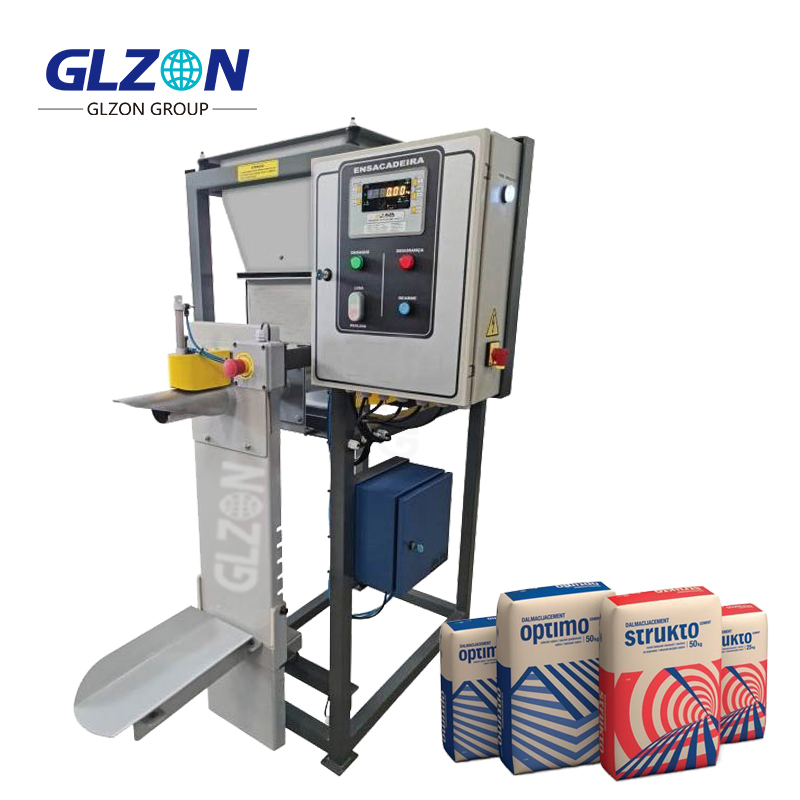

High-Efficiency Valve Bag Filling System for Cement and Sand
High-Efficiency Valve Bag Filling System for Cement and Sand
High-Efficiency Valve Bag Filling System for Cement and Sand
High-Efficiency Valve Bag Filling System for Cement and Sand
High-Efficiency Valve Bag Filling System for Cement and Sand
1 / 5
High-Efficiency Valve Bag Filling System for Cement and Sand
High-Efficiency Valve Bag Filling System for Cement and Sand
High-Efficiency Valve Bag Filling System for Cement and Sand
High-Efficiency Valve Bag Filling System for Cement and Sand
High-Efficiency Valve Bag Filling System for Cement and Sand

High-Efficiency Valve Bag Filling System for Cement and Sand

Customization: Available
After-sales Service: 1year
Warranty: 1year
Send Inquiry

Product Description

Basic Information
Model NO.
GZM_50kg
Automatic Grade
Semi-Automatic
Application
Cleaning, Detergent, Cosmetics, Skin Care, Oil, Tea, Rice, Flour
Type
Filling and Sealing Machine
Material Type
Powder / Granule
Packaging
Bag
Voltage
220V 380V 50/60Hz
Quantitative Error
±0.2%
Product Description

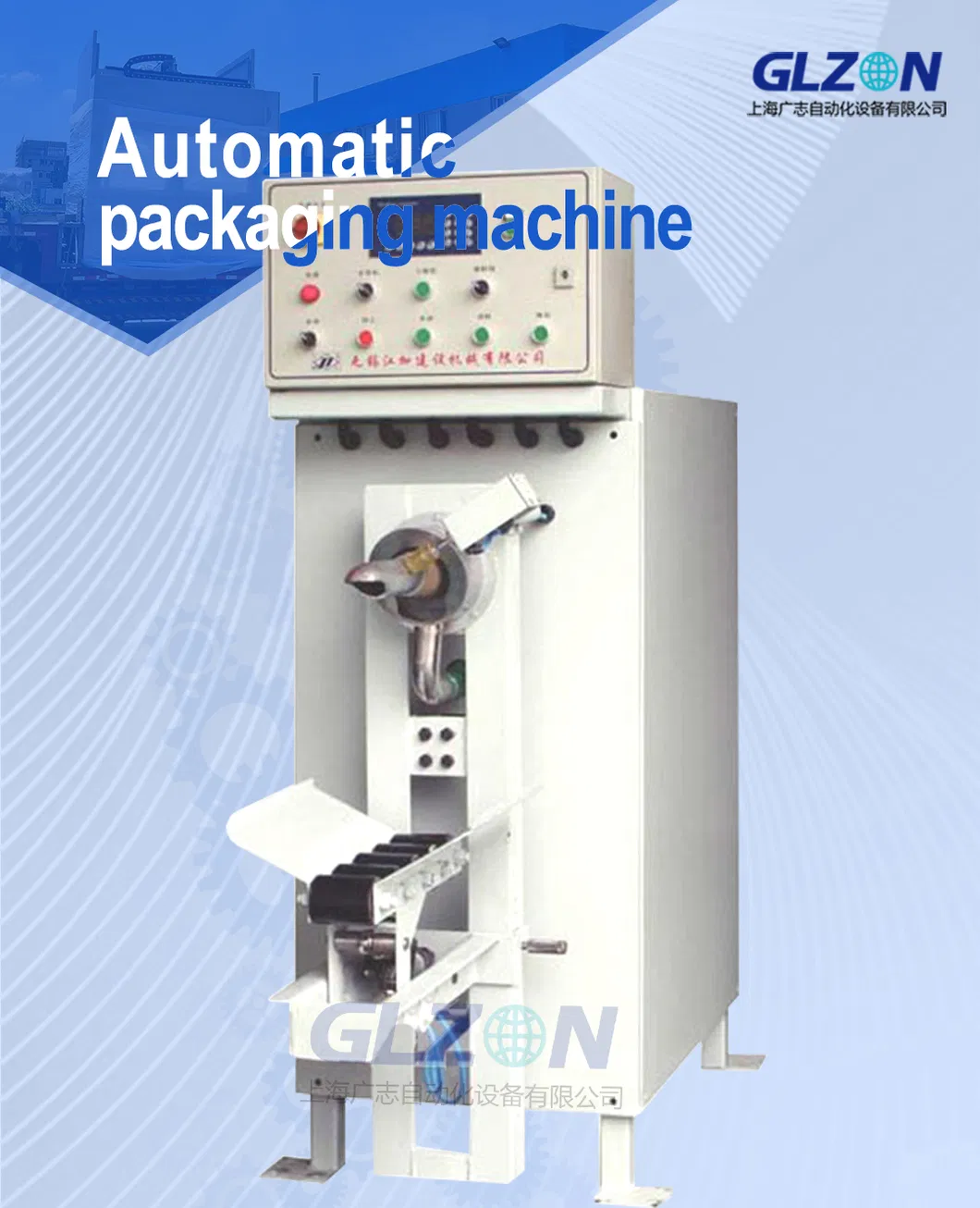

High-Efficiency Valve Bag Filling System
Applicable Materials

This system is versatile and suitable for a wide range of products including rice, flour, buckwheat, cat litter, peanuts, dog food, stoneboog, chemical fertilizer, grains, tea, cereal, and candy.

Rice Flour Buckwheat
Peanut Dog Food Fertilizer
Tea Cereal Candy
Product Parameters
Applicable materialsfood pellets, corn, seed, Sesame, beans, fertilizer granules, Rubber particles, feed pellets, coal...
Package weight range15-50kg/ bag
Power supplyAC220V 380V 50/60Hz
Air pressure (Mpa)0.6-0.8MPA
Filling accuracy (%)±0.2%
Packaging speed200-300 packs/hour
Material Constructionsus304 / sus316 / carbon steel / PTFE
Product Features
  • Single-station independent weighing system with servo motor arc gate control.
  • High-resolution three-point suspension sensor for stable weighing.

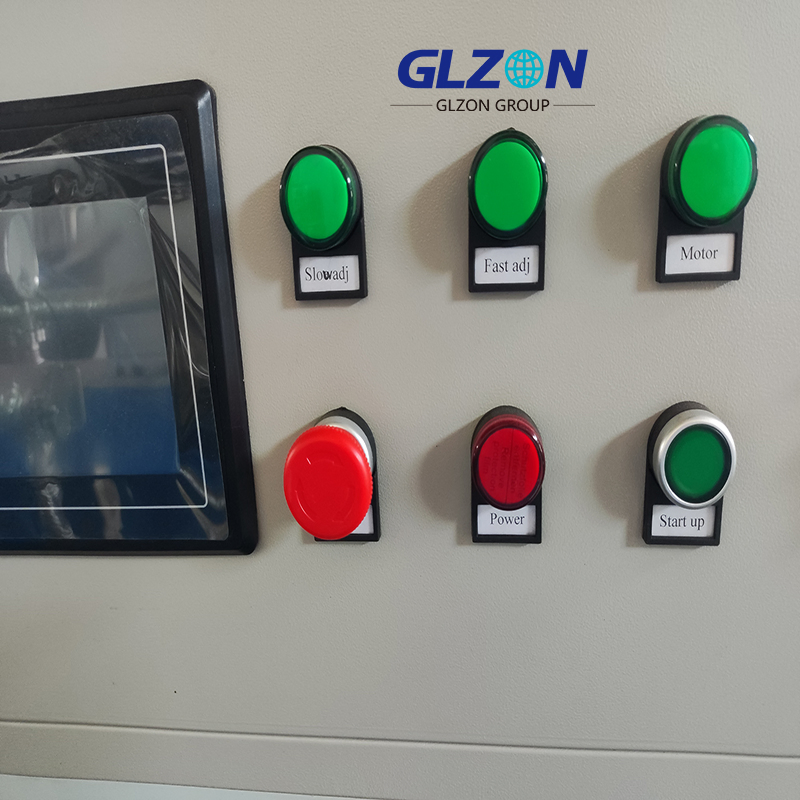

  • Chinese and English touch screen interface for clear parameter settings.
  • Equipped with linkage interface for integration with other packaging equipment.
  • Integrated system: bag warehouse, robot loading, vacuum, and control systems.

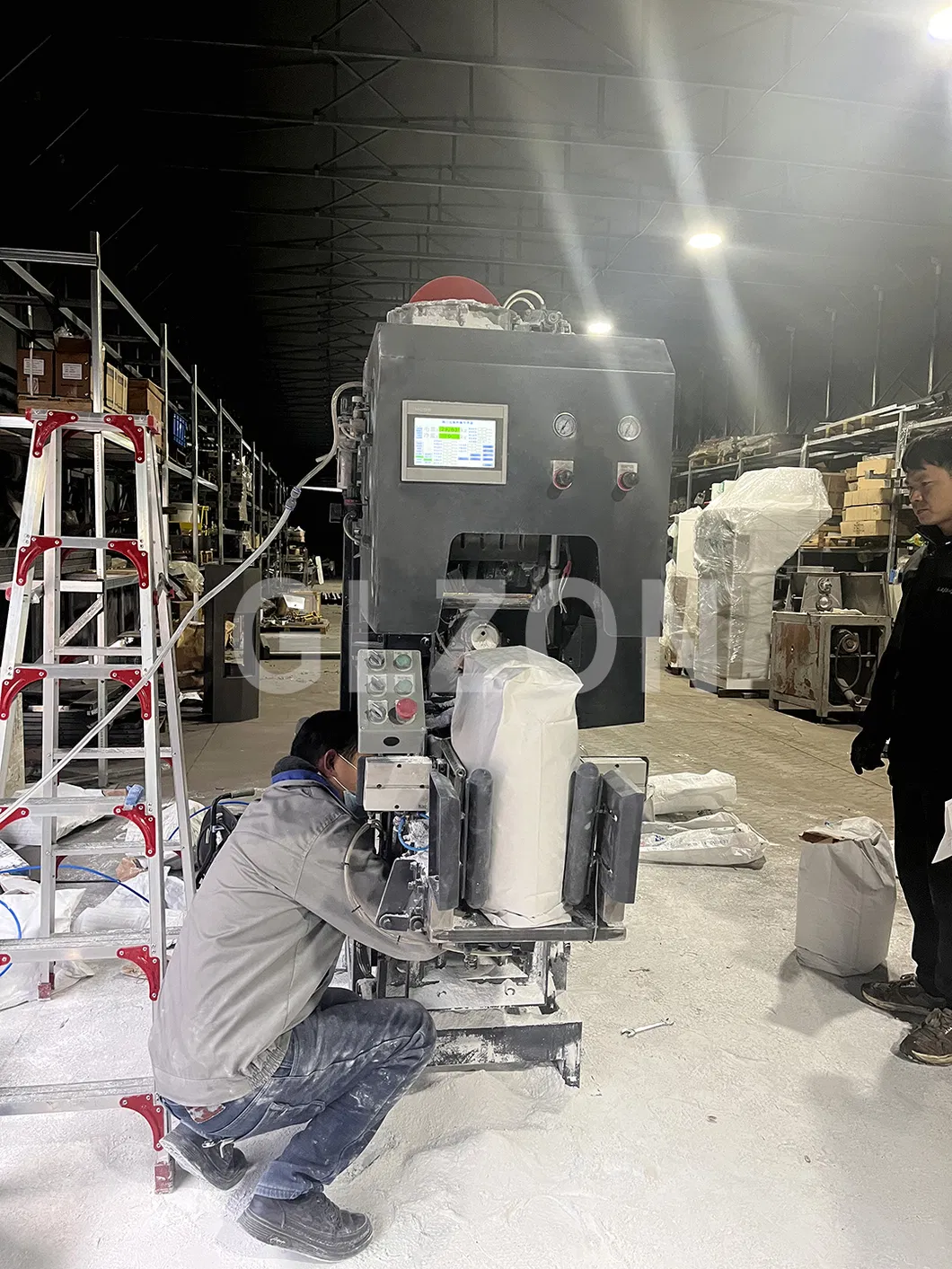

Valve Bag Filling Machine Features
Detailed Photos & Technical Insights

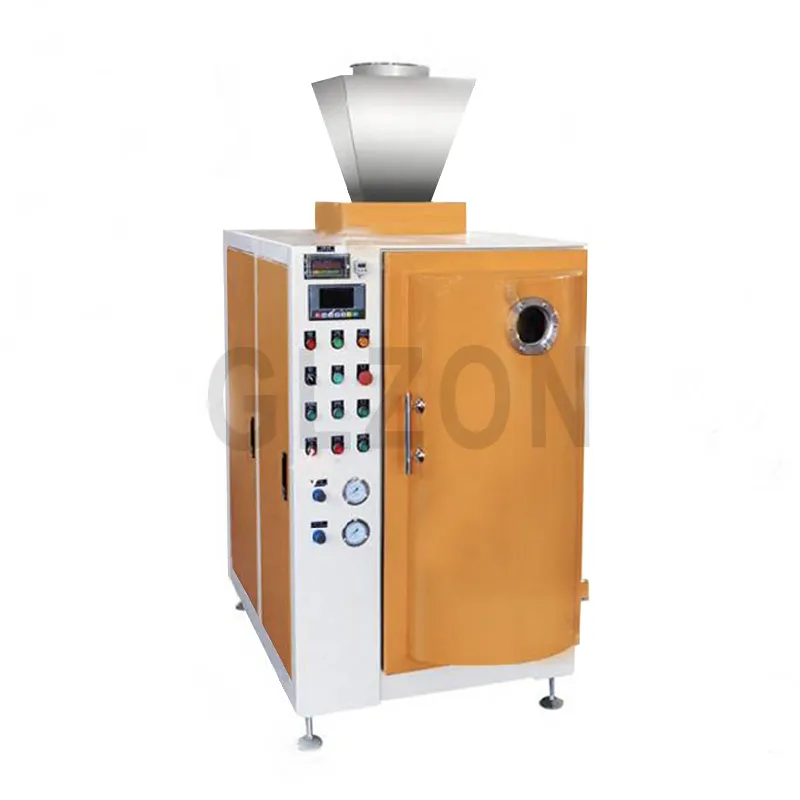

Filling Detail
Environmental Protection
Low pollution design adopts low air pressure instantaneous flow control (0.01-0.05Mpa). This prevents bulging and leakage, reducing dust pollution by 70%-90% compared to traditional machines.
Operational Logic
Utilizes a 3-stage feeding process (Fast, Medium, Slow). Once the target weight is reached, the gate closes, the bag is released onto the conveyor, and the cycle repeats automatically.
Operation Logic

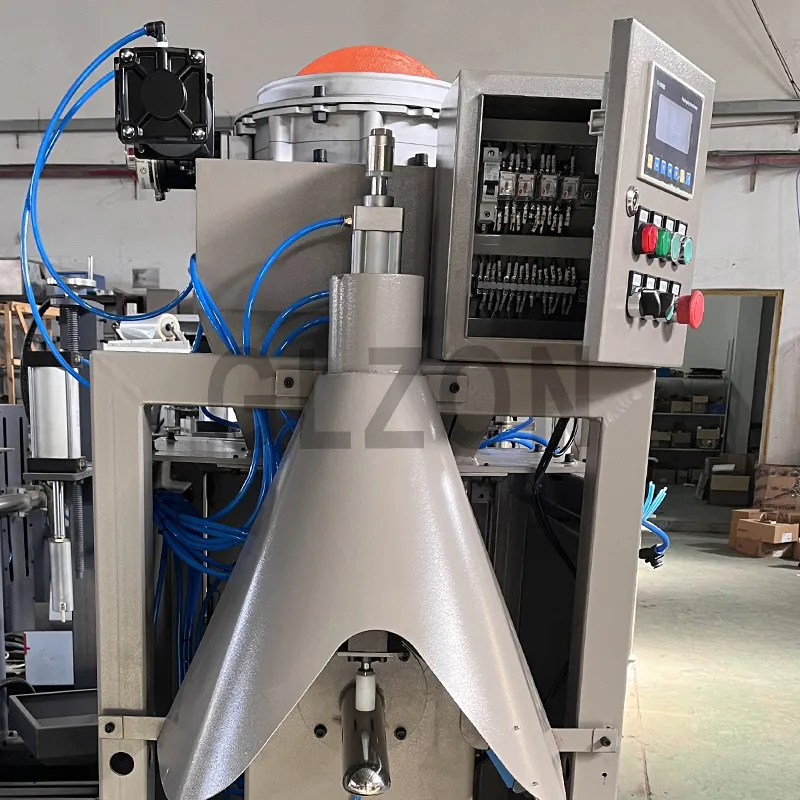

PLC Control
PLC Control System
Features a C3 level load cell and a dual 6-bit high-precision controller with sampling speeds up to 128 times/second to ensure absolute filling accuracy.
Manufacturing & Logistics

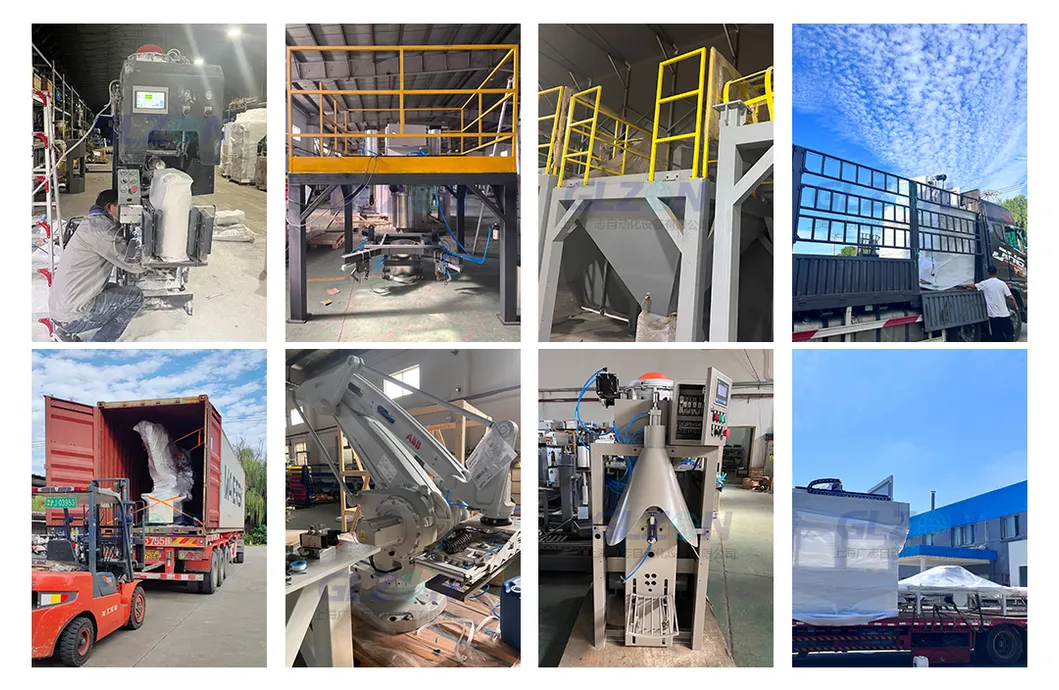

Factory Floor
Shipping Scenario 1
Shipping Scenario 2
Global Standard Components
Component Brands

Note: We reserve the right to update product designs and specifications at any time. The information on this page is for reference and does not constitute a formal contract term.

Frequently Asked Questions (FAQ)
What materials can this valve bag filling system handle?
The system is designed for both powders and granules, including cement, dry mortar, flour, rice, fertilizers, and small pellets.
What is the weighing range of the GZM_50kg model?
It supports a wide packaging range from 15kg up to 50kg per bag, with an accuracy of ±0.2%.
Is the machine easy to operate for non-technical staff?
Yes, the machine features a user-friendly touch screen interface available in both English and Chinese, making parameter setting and operation straightforward.
How does the machine prevent dust pollution?
It uses low air pressure instantaneous flow control which minimizes air usage during transport, reducing dust leakage by up to 90%.
Can this machine be integrated into an existing production line?
Absolutely. It includes a linkage interface specifically designed to synchronize with other packaging and conveyor equipment.
What power supply is required?
The system is compatible with AC 220V or 380V at 50/60Hz, covering standard industrial power requirements worldwide.
