Integrated Laser Welding and Cutting Machine

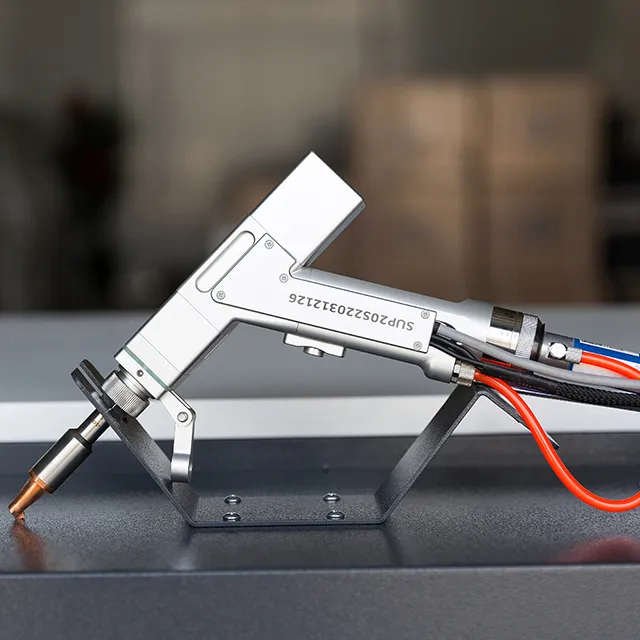

The handheld laser welding machine HW-A is an All-In-One handheld fiber laser welder that includes CW/pulse output mode. It is ideal for stainless sheet, iron sheet, galvanized sheet, and aluminum sheet welding. Featuring wobble welding technology and adjustable focal length, it operates with high process consistency to ensure high-quality results in the laser industry.
Laser beam welding is a technique used to join metal pieces through a concentrated heat source, allowing for narrow, deep welds and high welding rates. Compared with traditional TIG welders, this handheld laser welder enables up to 4 times faster speed. It is designed with safety features to maximize operator protection, is easier to operate, and provides consistent results across various materials with a minimized heat-affected zone for an aesthetic finish.
| Machine Type | Handheld Fiber Laser Welding Machine |
| Product Type | JWDLN-001 |
| Laser Power | 1500W / 2000W |
| Laser Wavelength | 1080nm ± 5 |
| Modulation Frequency | 5000Hz |
| Fiber Length | 10M |
| Fiber Swing Mode | Straight line / Point shape |
| Swing Frequency | 0-46Hz |
| Maximum Welding Speed | 10m/min |
| Cooling Method | Built-in water cooler |
| Input Voltage | 380V(2000W) / 220V 50Hz ± 10% |
| Current | 28A / 32A |
| Machine Power | 5KW / 6KW |
| Working Temperature | 10ºC - 35ºC |

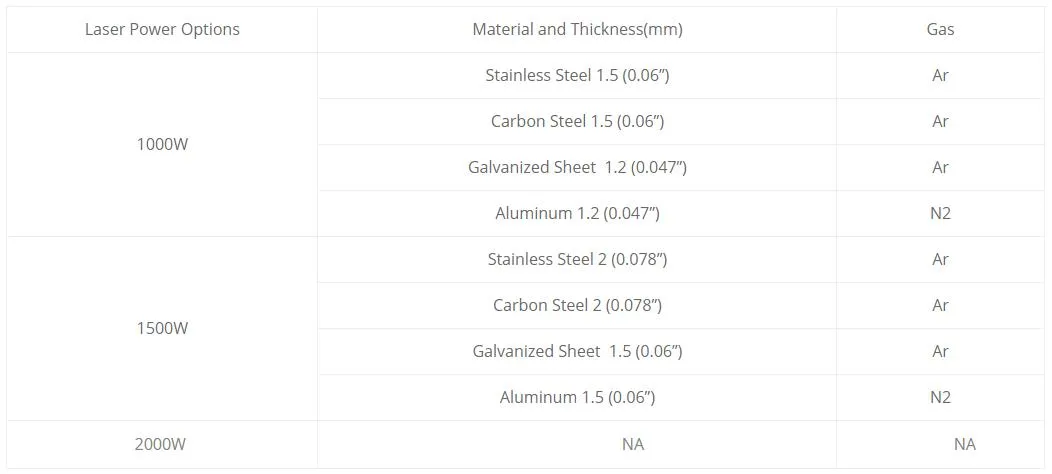

Welding Capabilities & Material Depth:

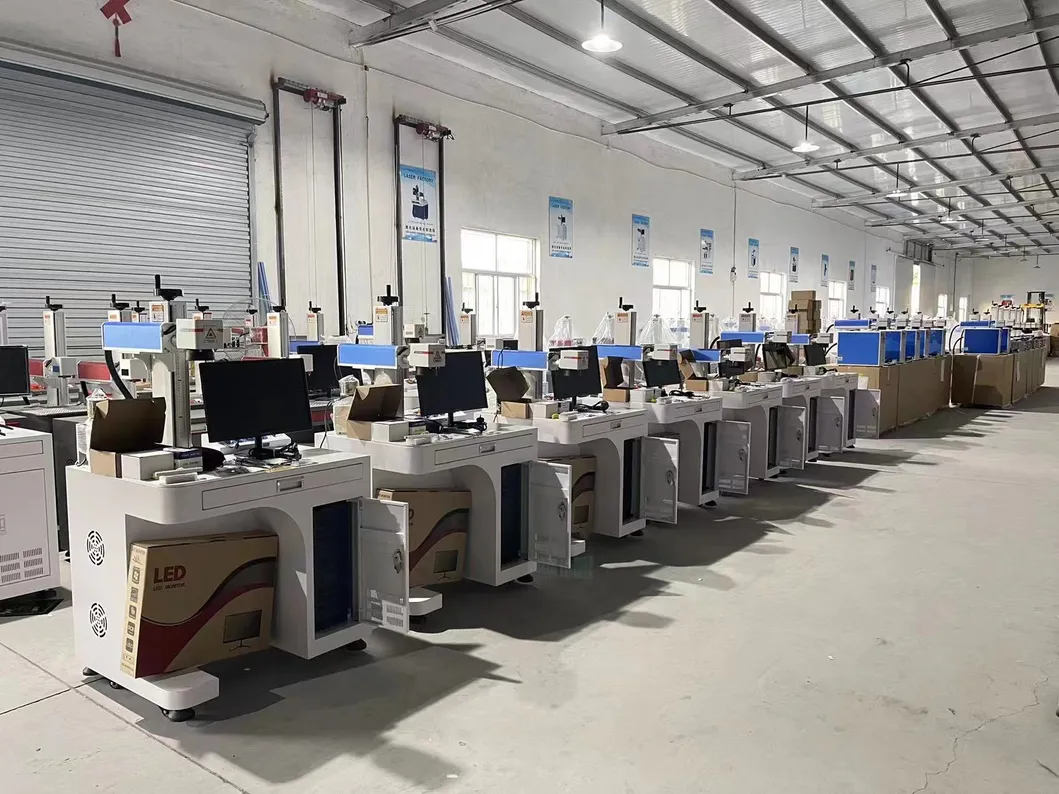

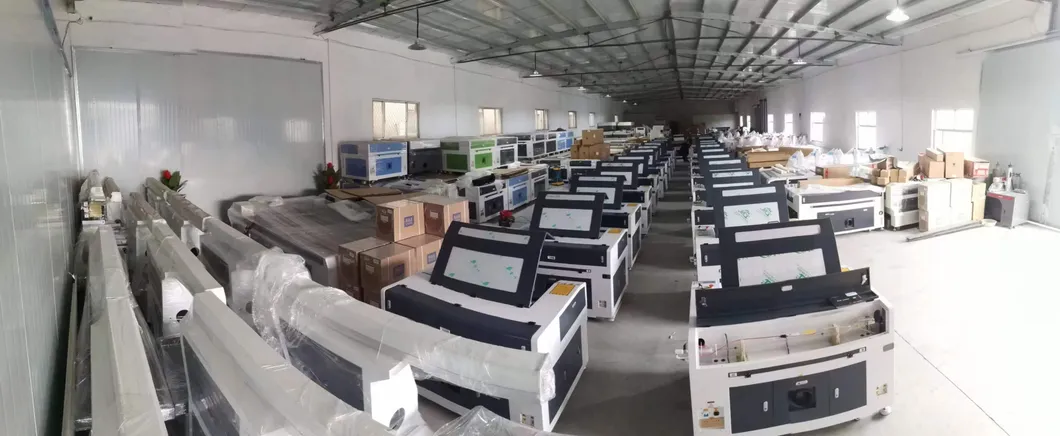

Factory & Manufacturing:
Our Strength:

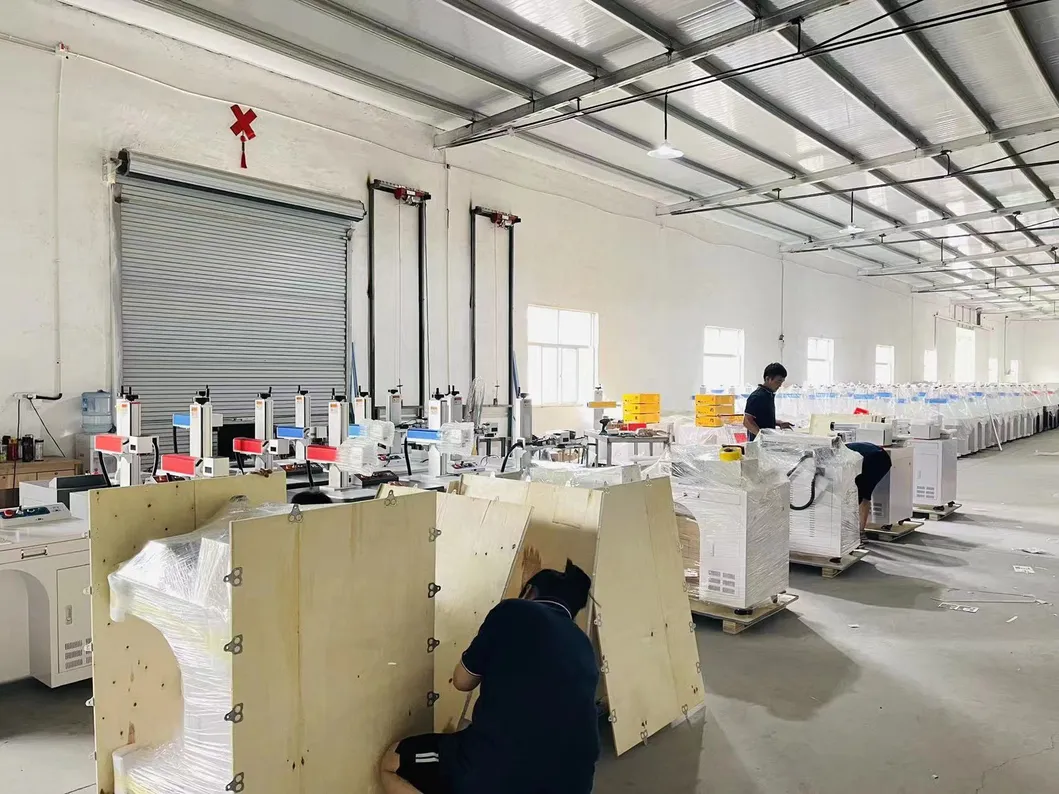

Packaging & Delivery:
