| Model NO. | HS-818A |
|---|---|
| Application | for Commercial |
| Portable | Non Portable |
| Certificate | CE0197, ISO13485, FDA 510K200118 |
| Keyword | Diode Laser Hair Removal |
| Wavelength | 810nm / 755+810nm / Triplewave |
| Laser Output | 1600W |
| Spot Size | 12*14mm |
| Energy Density | 1~72j/Cm2 |
| Pulse Width | 1~200ms |
| Repetition Rate | 1~15Hz |
| Cooling System | Air Compressor Cooling System |

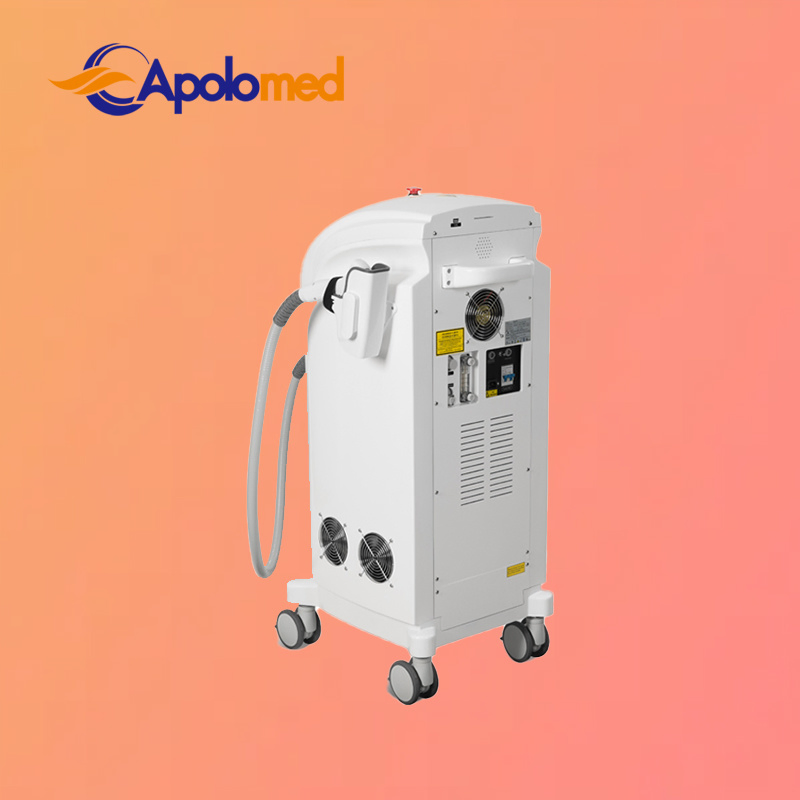

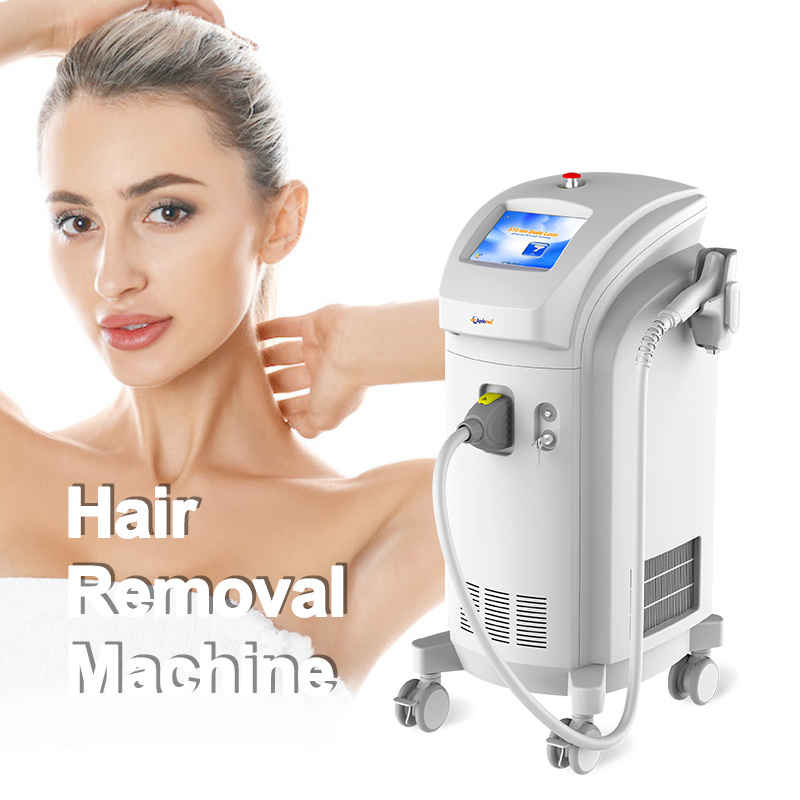

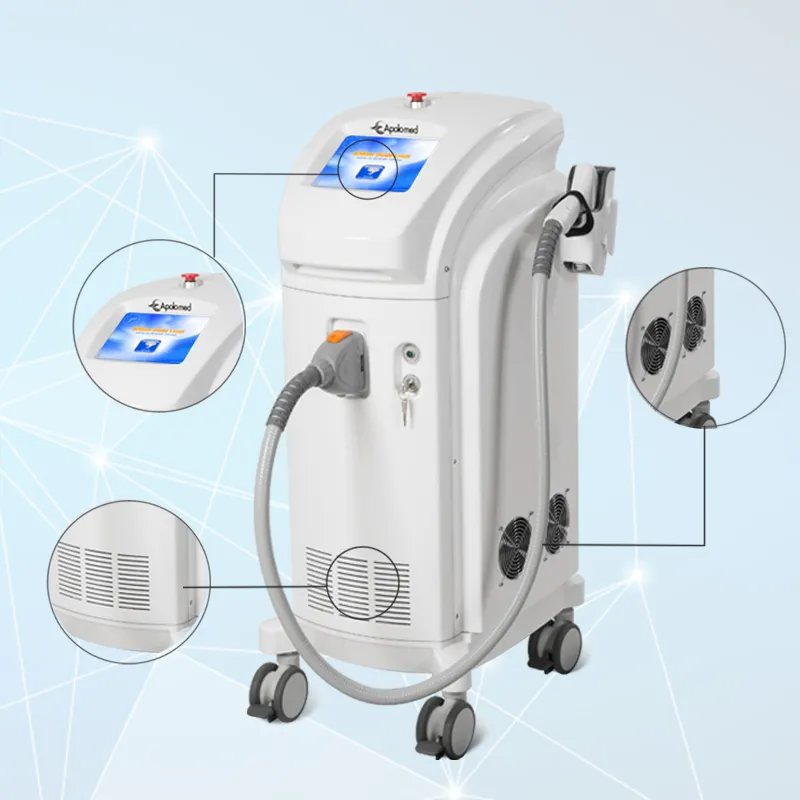

Medical 3 Wavelengths Diode Laser Hair Removal Medical Device

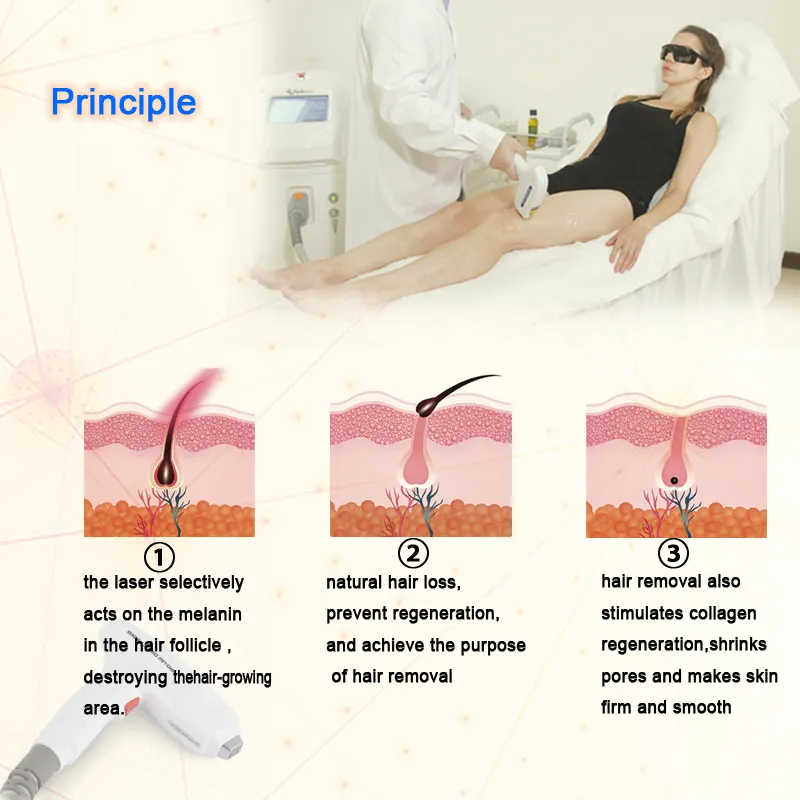

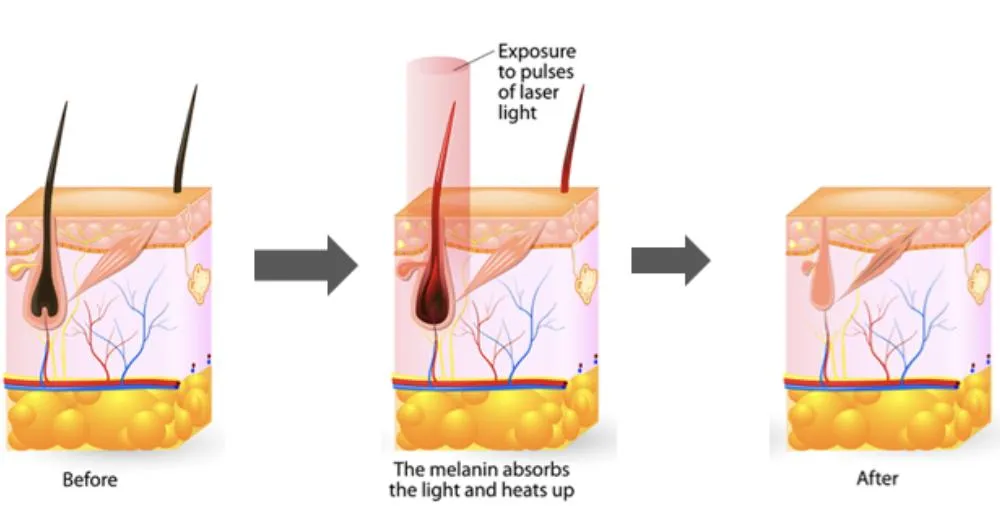

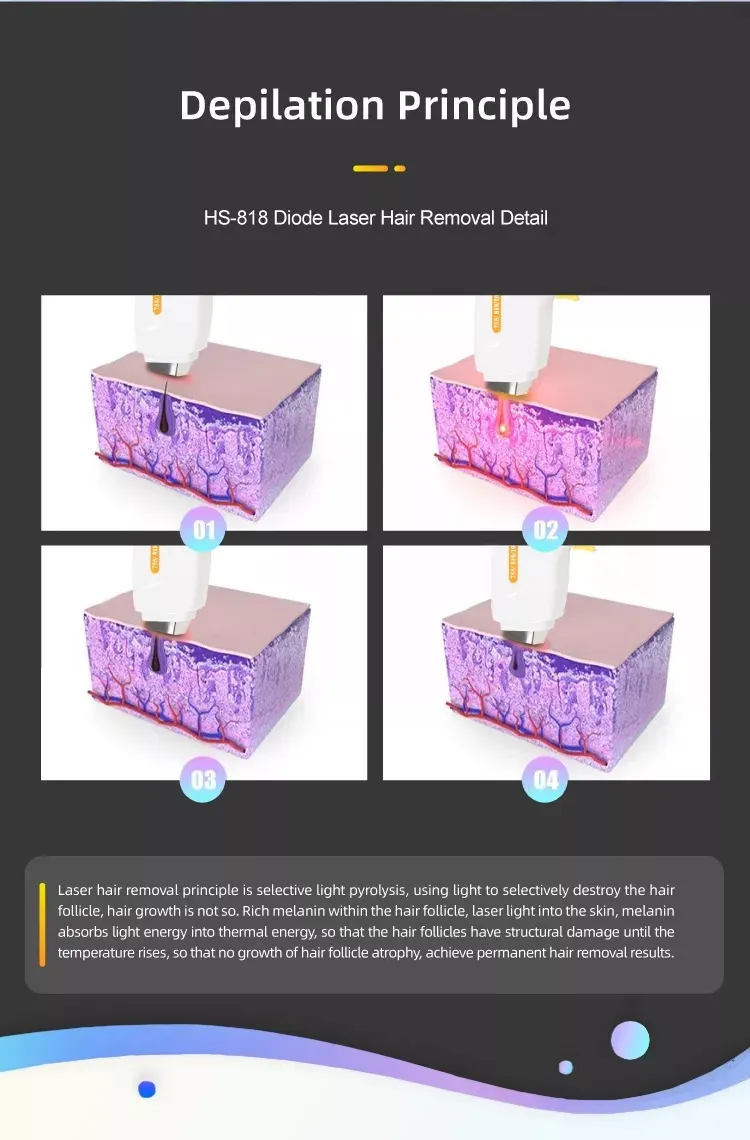

The 808nm diode laser hair removal system utilizes gold-standard technology. The energy penetrates deep into the dermis where the hair follicle is located, delivering high average power. Assisted by a Sapphire contact cooling system, the handpiece provides safe and effective reduction of pigmented hair for all skin types.

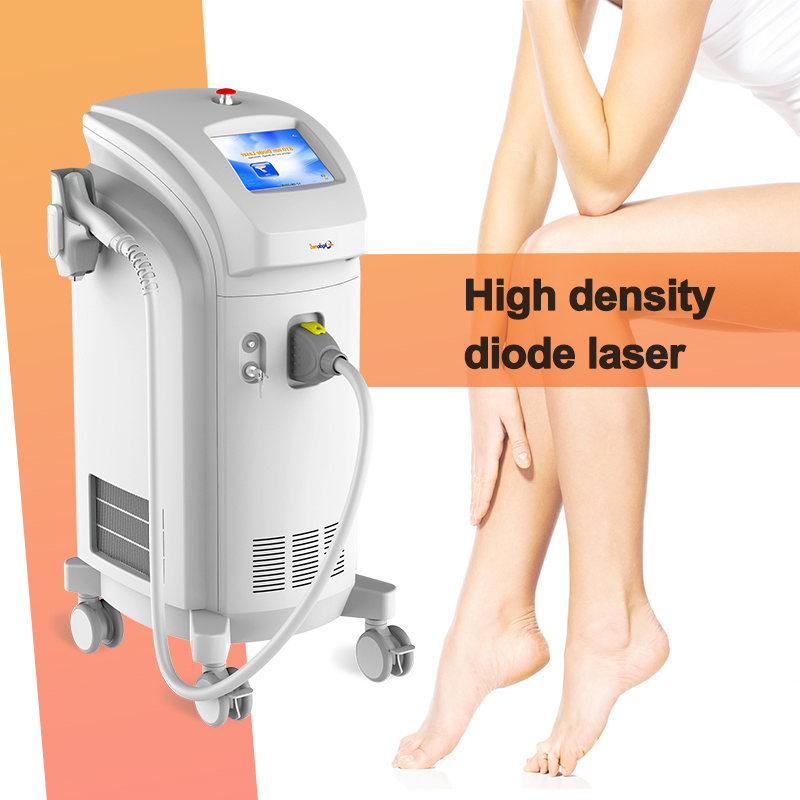

1600W High Density Version: This newest generation offers higher energy density (up to 30J/cm2 at 30ms) and shorter pulse durations, making treatment more painless and effective.

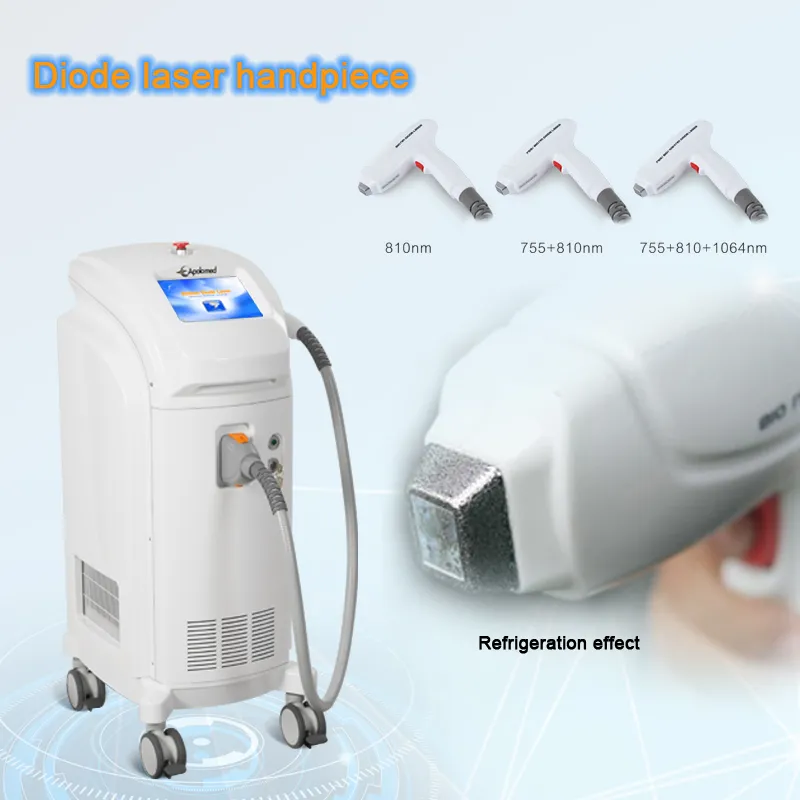

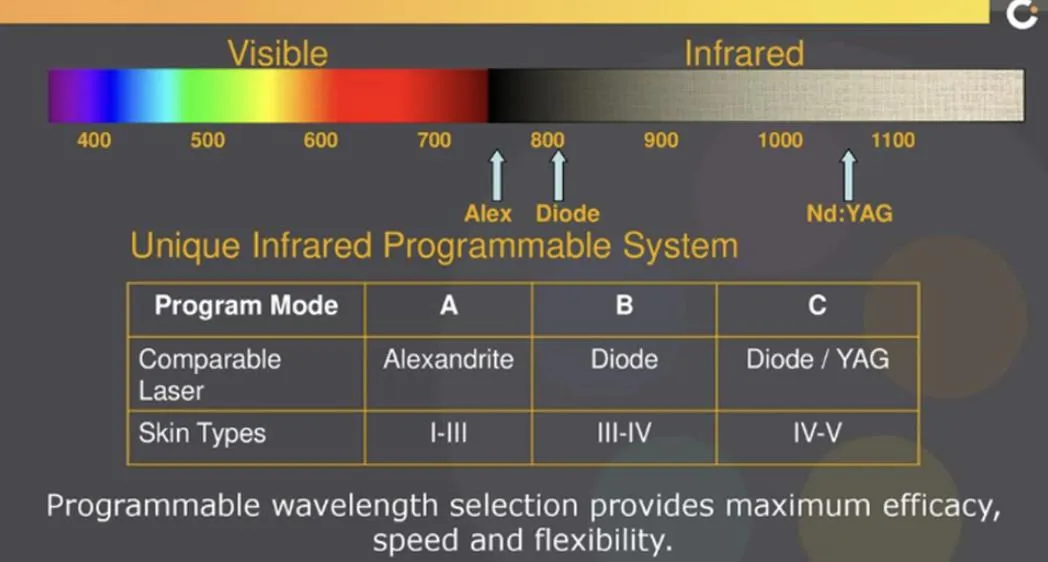

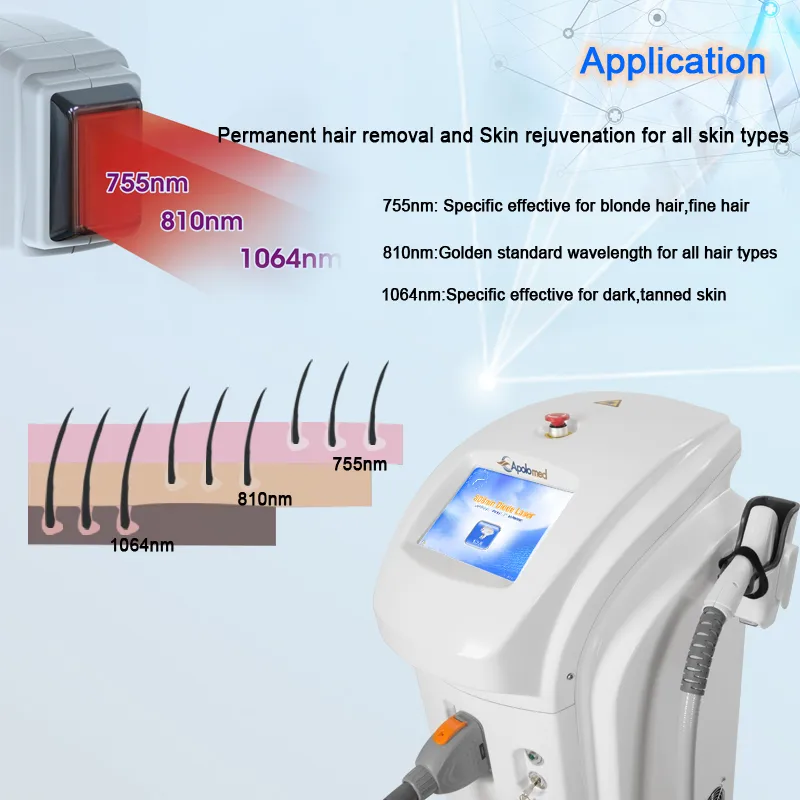

Combines 3 wavelengths (755+810+1064nm) into a single handpiece. This allows simultaneous targeting of different hair follicle depths for comprehensive and safe hair removal.
1. Speed & Efficiency: Features a 10 Hz repetition rate with patented large spot sizes (up to 23x40mm). The "IN-Motion" intelligent mode allows for 10 shots per second, ideal for large body areas.
2. Stable Performance: Equipped with Japanese capacitors for stability and US-made laser modules ensuring 10 million high-energy shots.

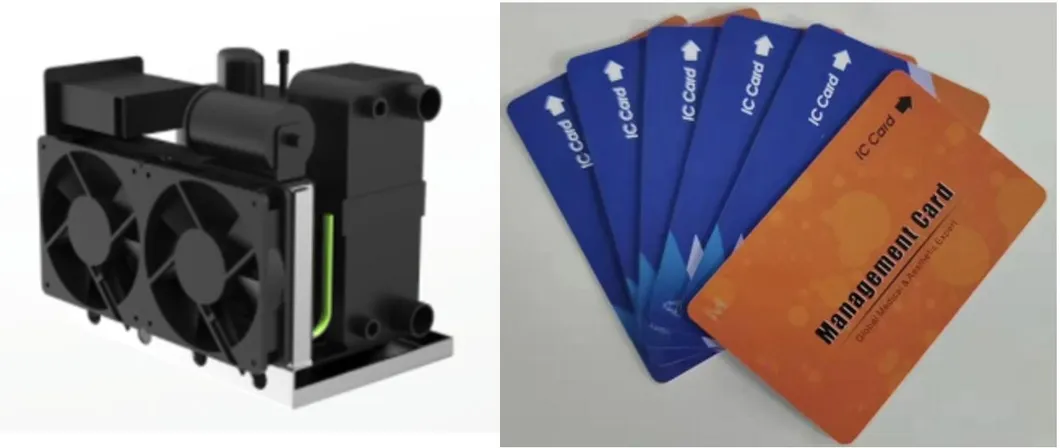

3. Advanced Cooling: Utilizes an Italian high-speed DC pump and a comprehensive water/sapphire cooling system for 24-hour continuous operation.

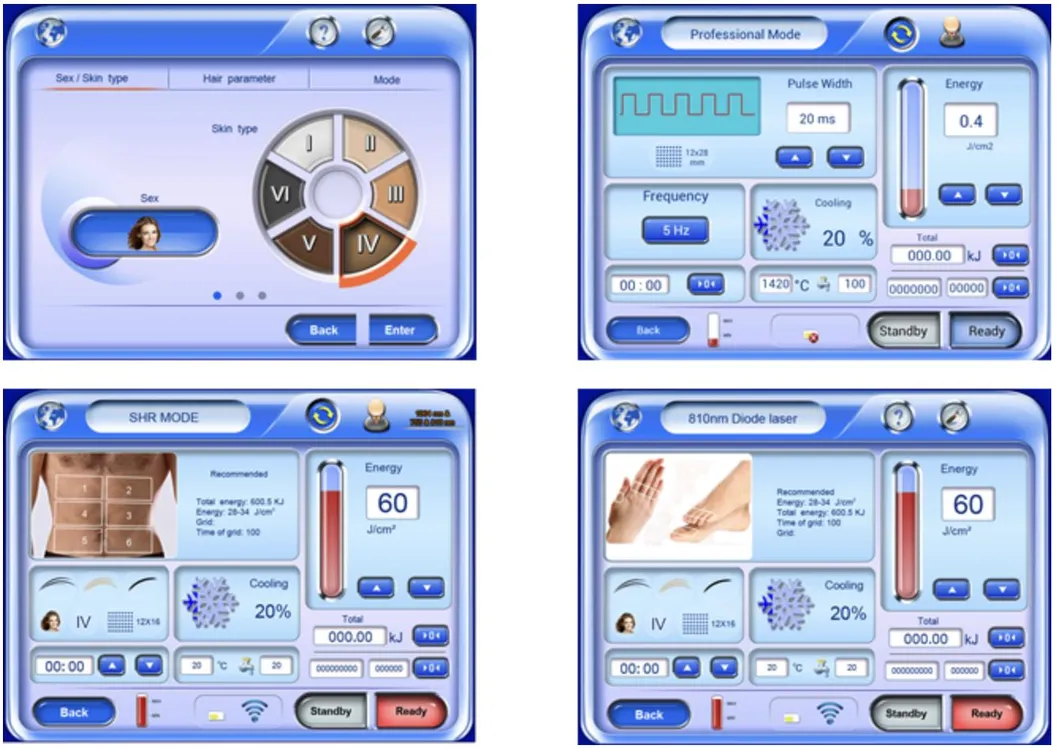

4. Intelligent Interface: 9.7" True color touch screen with auto-intelligent presets for safety and clinical efficiency.
| Wavelength | 810nm / 755+810nm / Triple-wave |
|---|---|
| Spot Size | 12*14mm |
| Repetition Rate | 1-15Hz |
| Pulse Width | 1-200ms |
| Laser Output | 1600W |
| Energy Density | 60J/cm², 72J/cm² |
| Cooling Temperature | -4 ~ 4 ºC |
| Weight | 55kg |
| Dimension | 61*44*111cm |

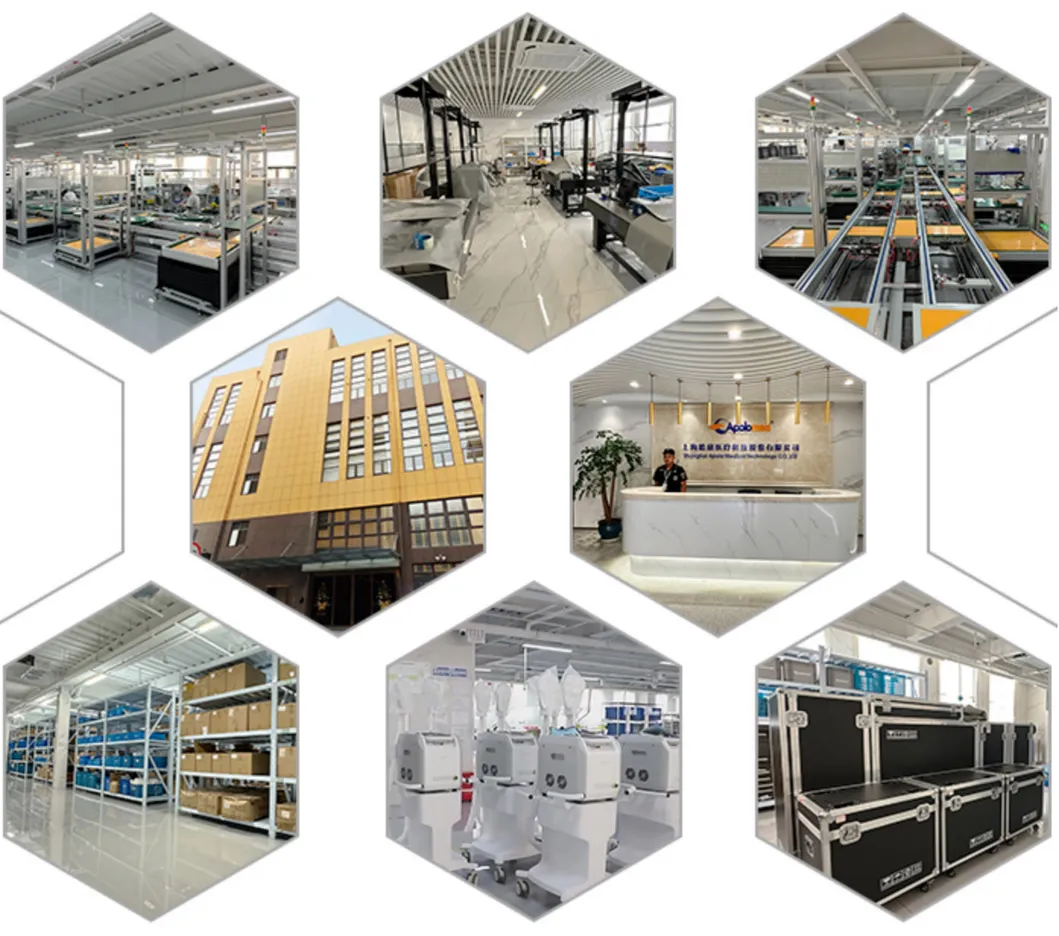

Our equipment is manufactured strictly in accordance with ISO 13485. All products comply with Medical CE certificates under Council Directive 93/42/EEC (MDD) and regulations (EU) 2017/745 (MDR). High-end models have obtained US FDA 510K, Australia TGA, and Brazil Anvisa certificates.
