Modular Labeling Systems for Customizable Pet PP Bottles

After-sales Service:	Field Installation, Commissioning and Training
Warranty:	1 Year
Automatic Grade:	Field Installation, Commissioning and Training

Send Inquiry

Product Description

Basic Information

ApplicationCosmetics, Drinks, Cleaning, Pharmaceutical

TypeAutomatic Labeling Machine

Driven TypeElectric

ControlPLC + Touch Screen

Key Selling PointsEnergy Saving, High-Accuracy

Machinery Capacity20-450 PCS/Min

Bottle TypeRound / Flat / Square Bottle

Material304 & 316 Stainless Steel

Product Description

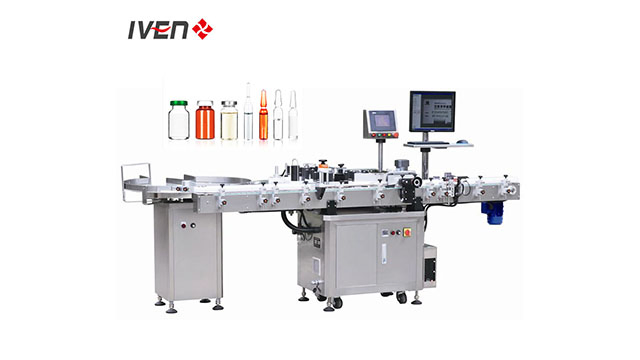

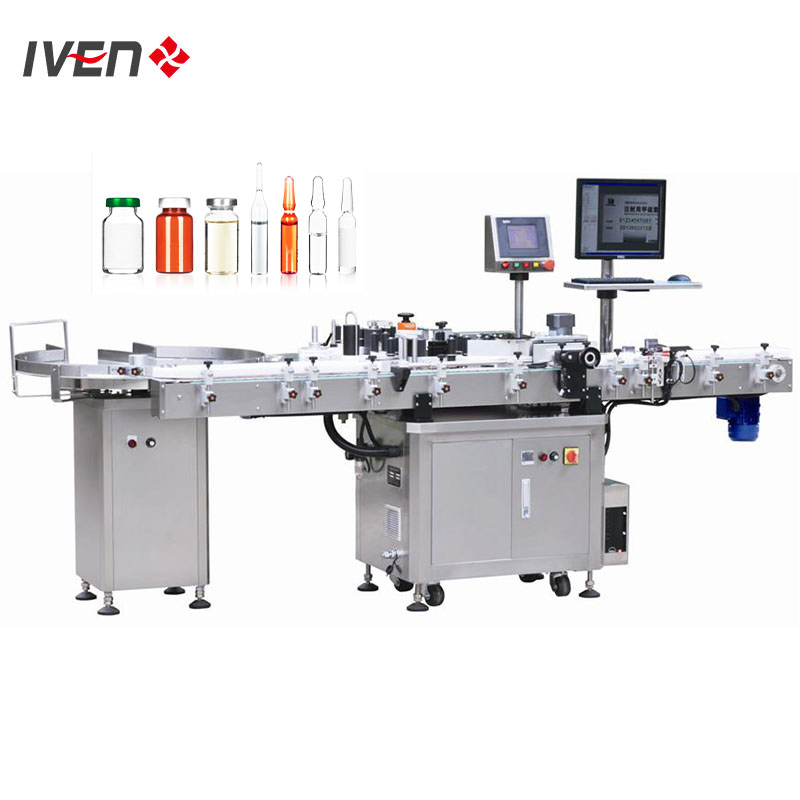

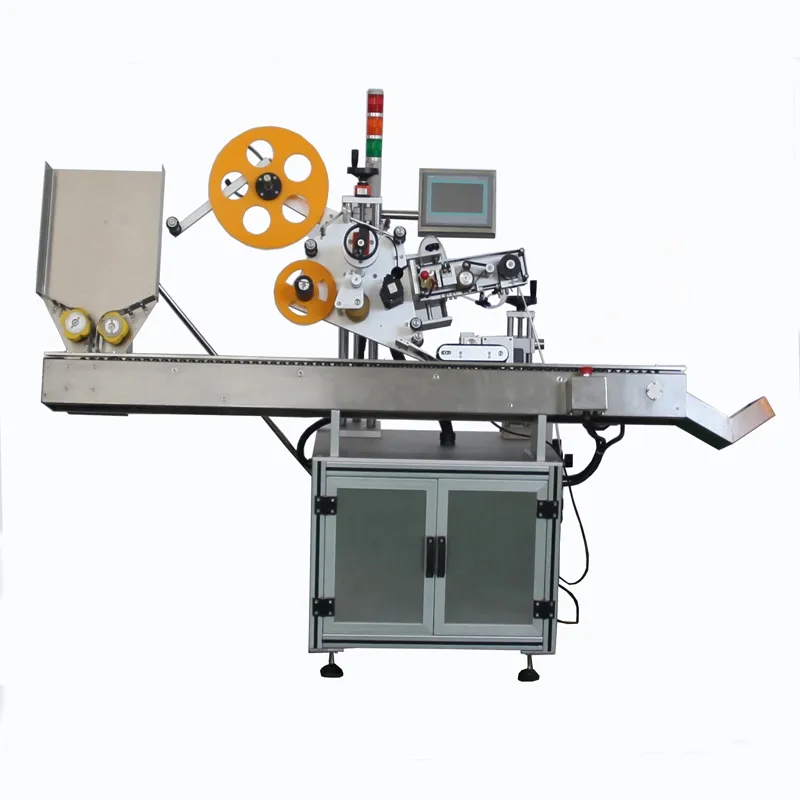

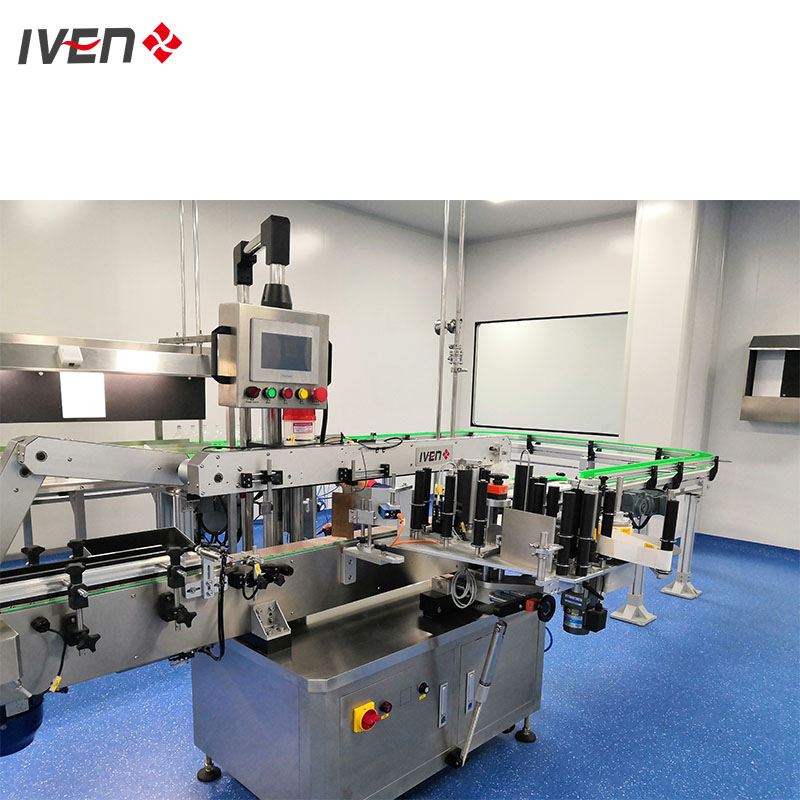

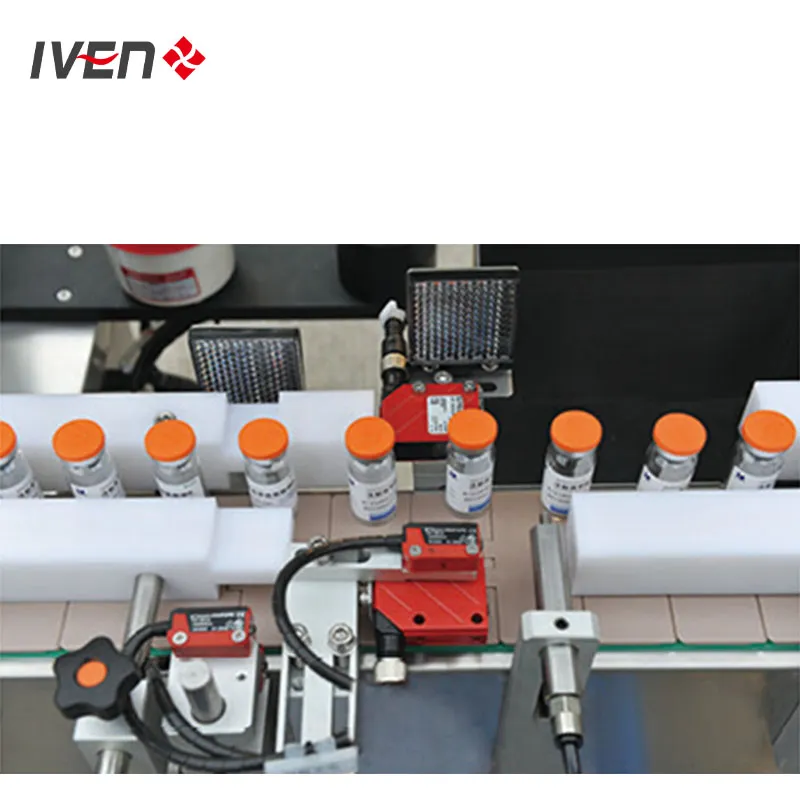

Automatic labeling machine is used for cylindrical bottle body labeling in pharmaceutical, food, light industry, and chemical industries. This equipment is versatile, supporting round bottles, flat bottles, and square bottles. It features a high degree of automation with CCD detection and waste kicking configurations available to meet specific user needs.

Core Advantages

Three-stage labeling system (feeding, pulling, and backing paper recovery) controlled by separate motors for precision.

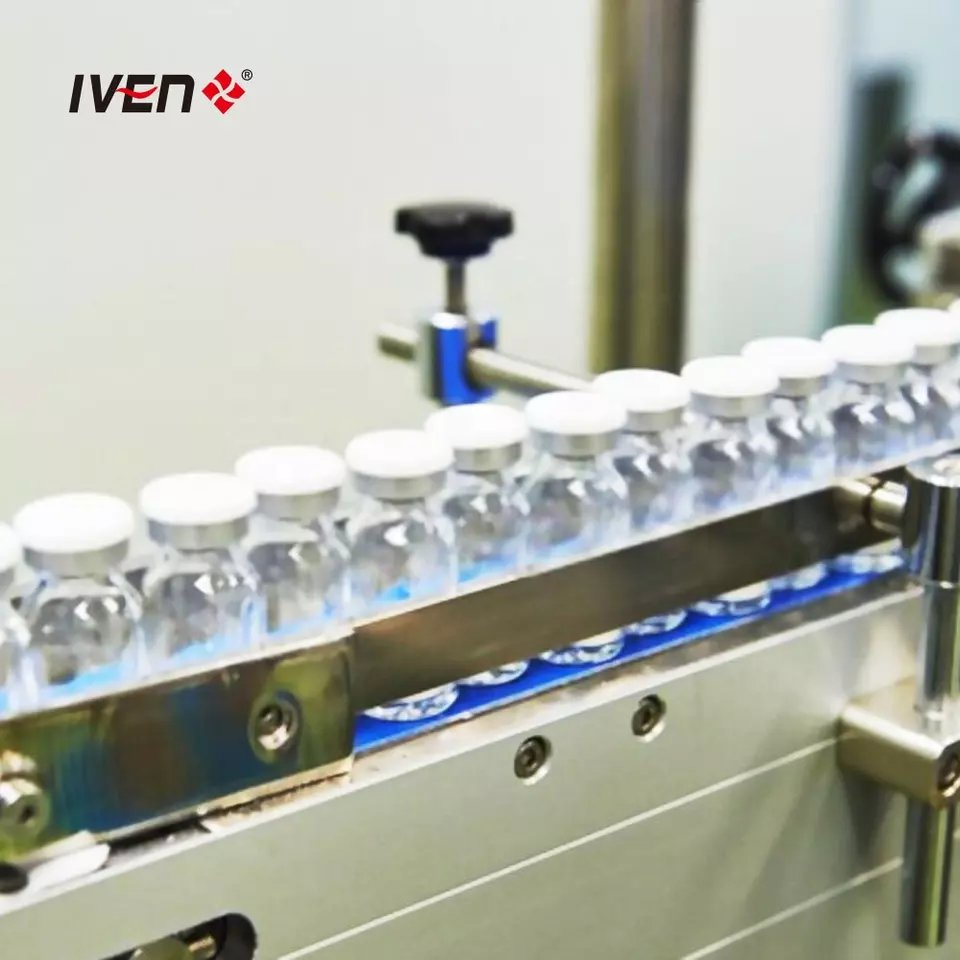

Screw feeding mechanism ensures accurate and stable bottle separation without breakage.
Flexible feeding options: bottles can be fed vertically or horizontally.
Automatic speed adjustment based on the quantity of bottles on the conveyor.
User-friendly Touch Screen HMI with memory functions for different product specifications.
Safety priority with multiple strategically placed emergency stop buttons.
Servo motor controlled label peeling with automatic length calculation via PLC.
Equipped with top-tier components such as Siemens PLC/HMI, Omron electrical parts, and YASKAWA motors.

Product Parameters

Type	TZ200	TZ300	TZ450
Specification (Max)	140×120(W×H) mm
Production Capacity	60-200 bottles/min	100-300 bottles/min	200-450 bottles/min
Label Feeding Heads	1	2	3
Electric Capacity	2.0Kw	2.0Kw	3.0Kw
Overall Size (mm³)	2800×950×1100	2800×950×1100	3000×1110×1000
Net Weight	800kg	800kg	1000kg

Integrated Solutions

We provide integrated engineering solutions for pharmaceutical and medical factories worldwide, including clean rooms, auto-control systems, water treatment, filling, and packing systems.

Turnkey Project Capabilities:

• Project Design
• Solution Preparation
• Sterilization
• Clean Room & HVAC
• Laboratory Instruments
• Installation & Training

Frequently Asked Questions

What types of bottles can this machine label?

The modular labeling system is designed to handle various shapes, including round, flat, and square bottles made of PET, PP, or glass.

Which industries typically use this labeling equipment?

It is widely used in the pharmaceutical, food and beverage, light industry, cosmetics, and chemical industries for efficient product identification.

How does the machine ensure labeling precision?

It utilizes a three-stage system with separate motors for feeding and pulling, integrated with Siemens PLC and high-accuracy servo motors to maintain consistent label positioning.

Is it easy to switch between different product sizes?

Yes, the HMI touch screen includes multiple memory functions that store parameters like bottle diameter and label length, allowing for quick direct calls when changing products.

What is the maximum production capacity?

Depending on the model (TZ200, TZ300, or TZ450), the capacity ranges from 60 bottles per minute up to 450 bottles per minute.

What happens if the bottle supply runs low on the conveyor?

The machine features an automatic sensing system that reduces the labeling speed when the bottle count on the feeding belt falls below a specific threshold.
