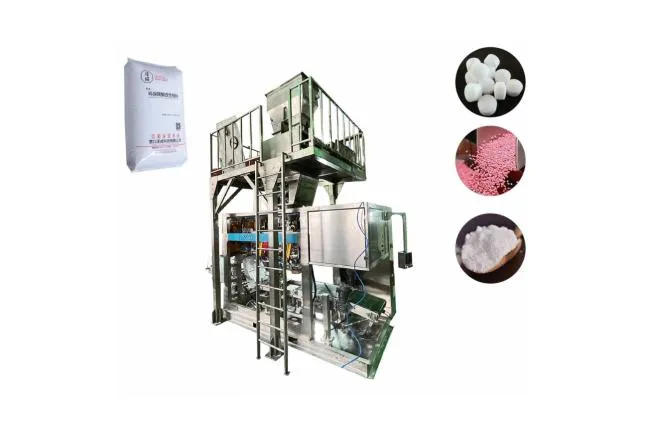

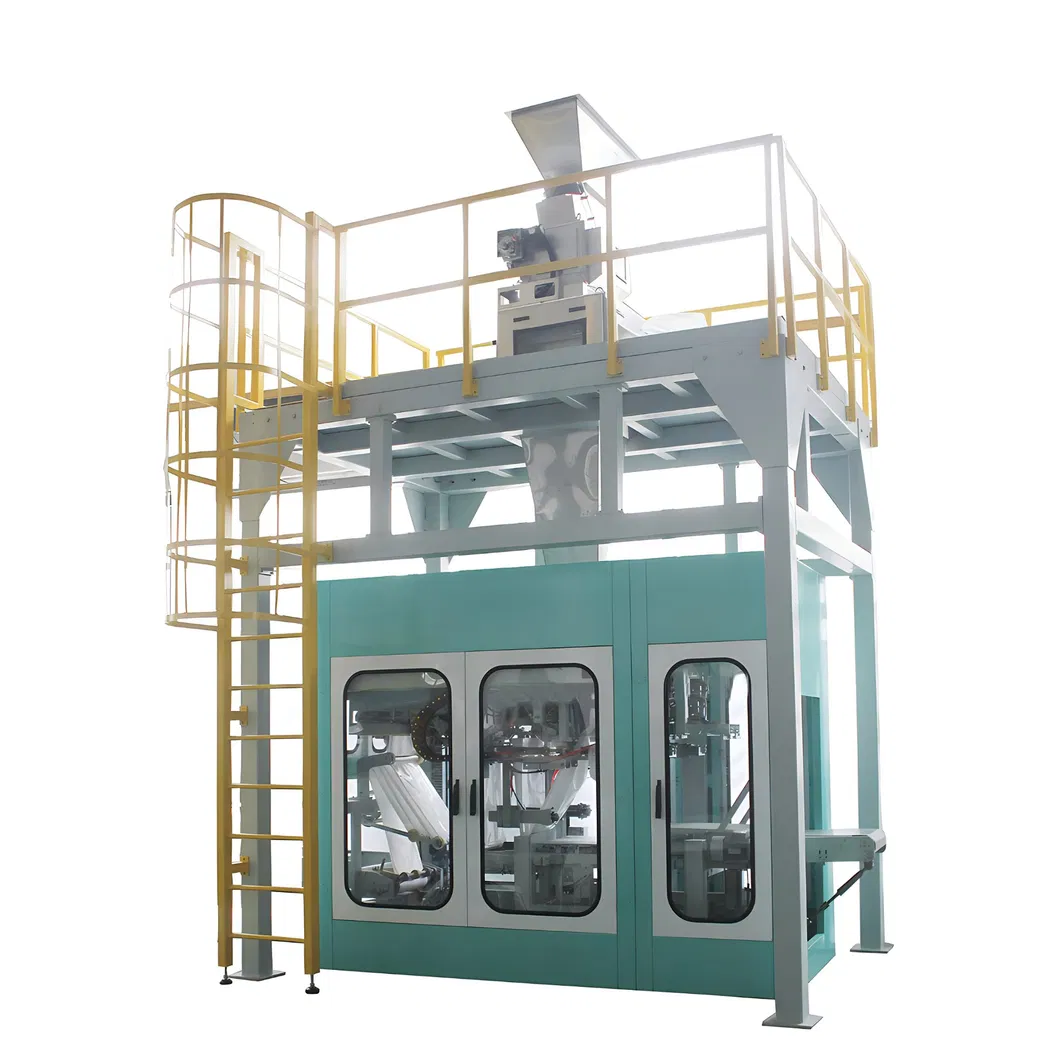

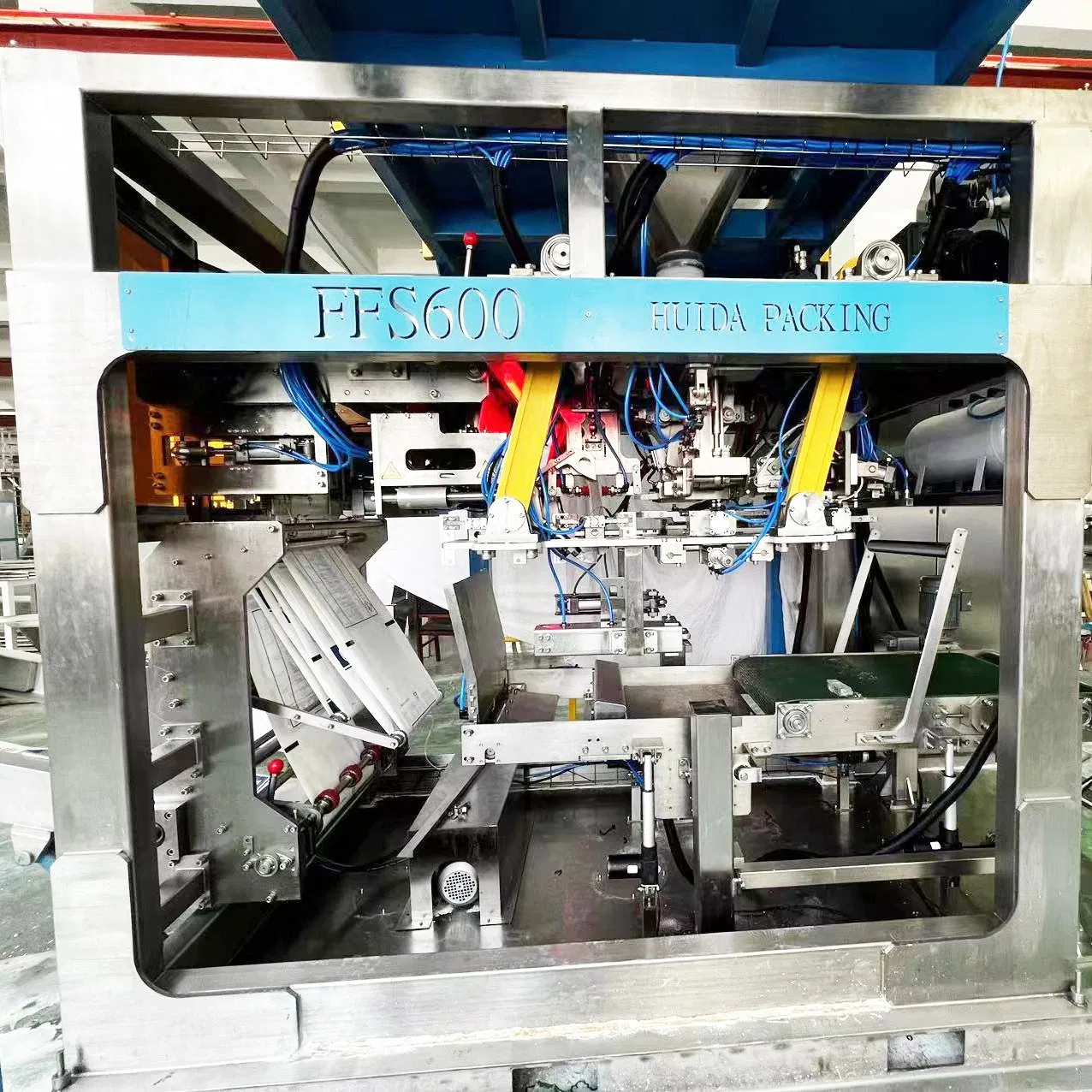

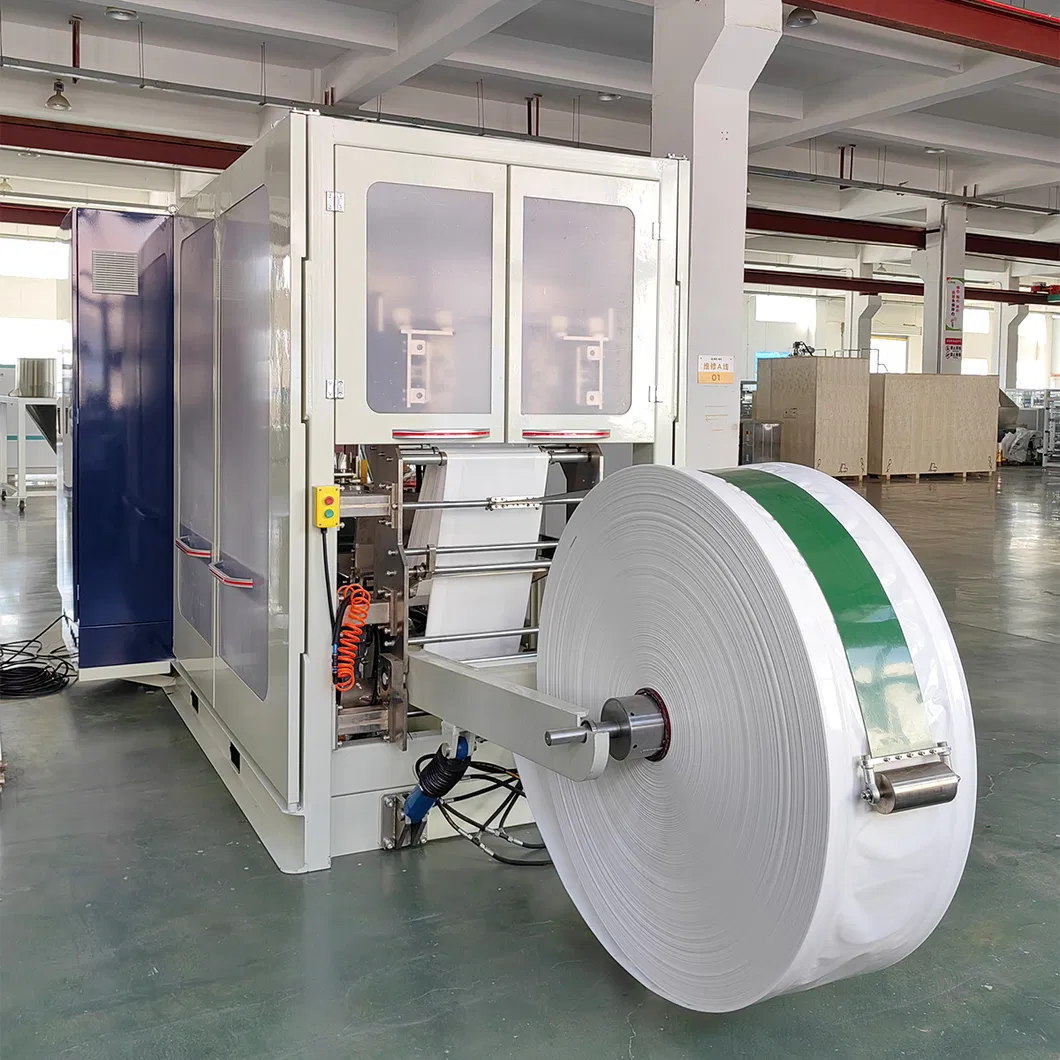

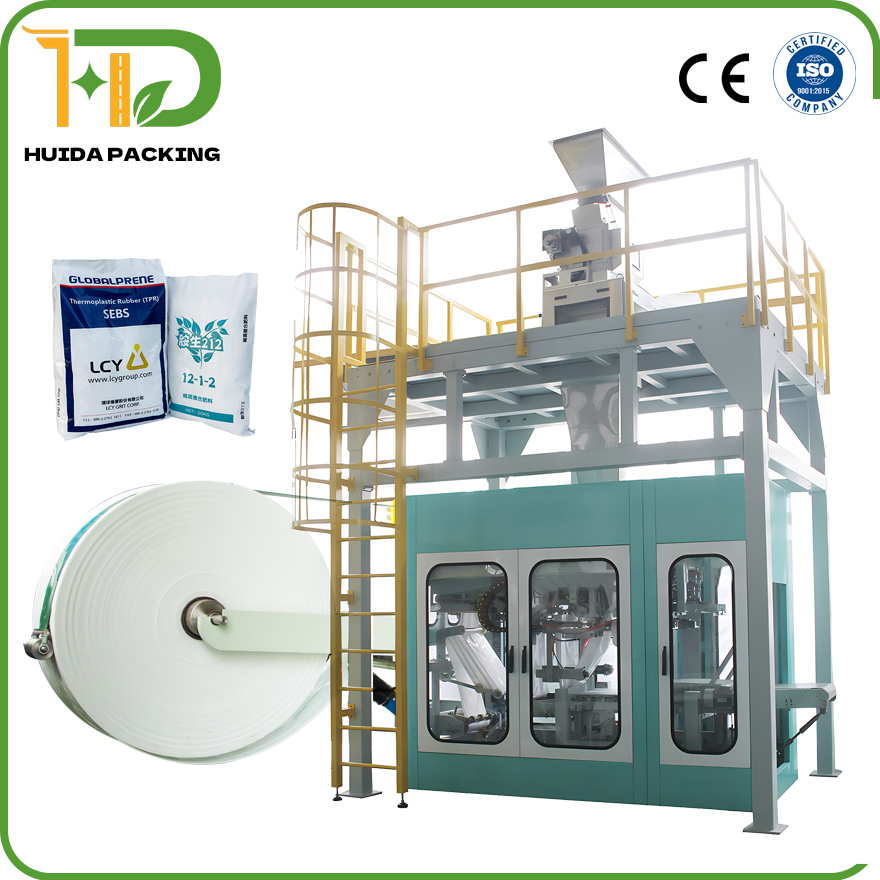

Tubular form fill and seal bagging machine
The FFS series bagging machine is an affordable packaging system that can handle tubular form, fill, and seal applications for various production capacities and free-flowing materials. The machine can easily adjust to different bag lengths and widths, and it's simple to install and maintain with full access for control, adjustment, and maintenance.
The FFS technology is your guarantee for high-quality packaging. This fully automatic bagging machine is designed for forming, filling, and sealing gusseted type bags with a capacity up to 1200 bags/h. It is widely used in Plastics, Chemicals, Animal feed, Fertilizer, and Cement industries.
| Filling speed | 16 -20 bags/min |
| Filling weight | 25kg/bag, PP granule 80mm±3mm |
| Film material | M type PE tube film |
| Film thickness | 140-200um±4% |
| Gusset depth | 80mm±3mm |

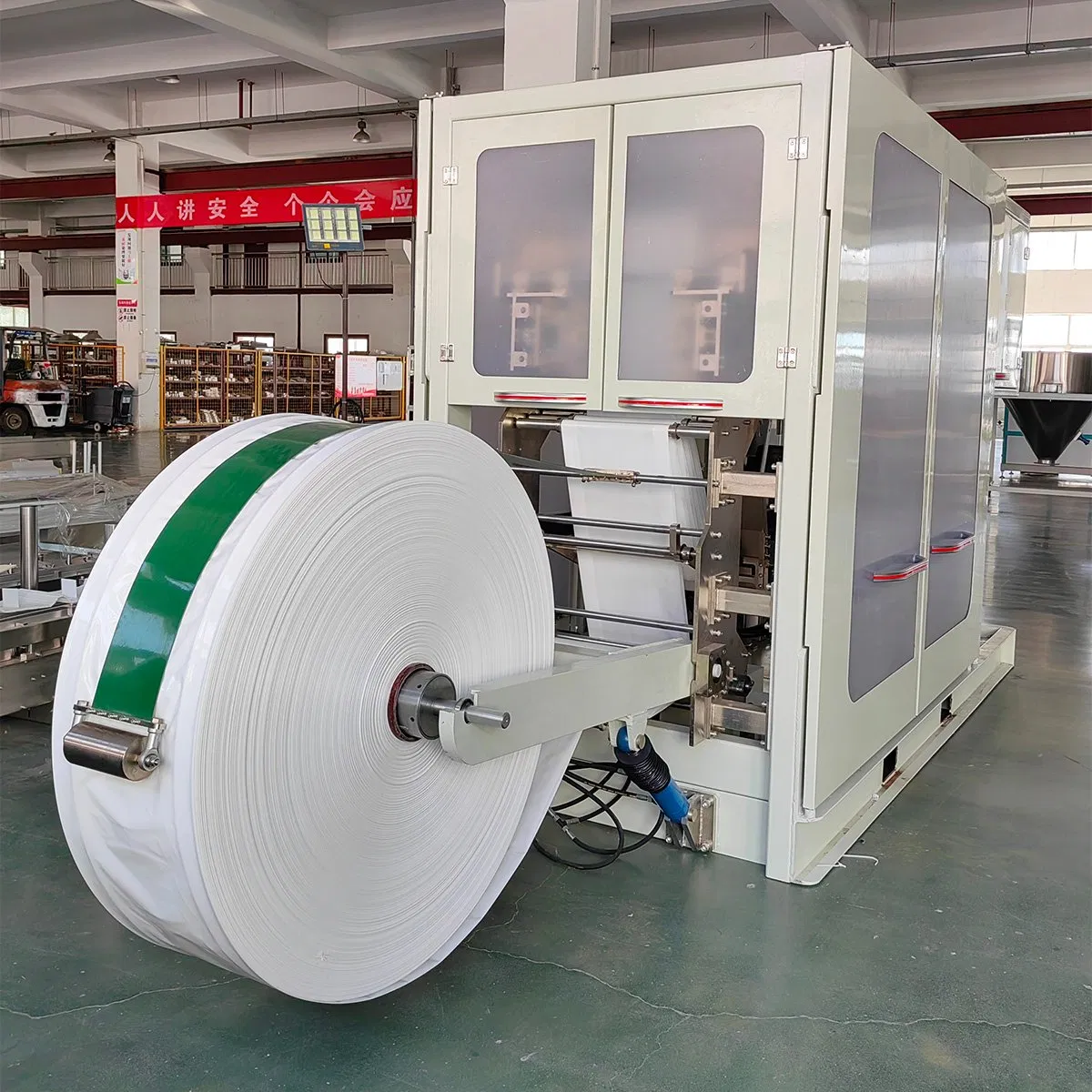

| Roller film diameter | 1500mm |
| Voltage | 380V 50Hz |
| Power | 10KW |
| Compressed air consumption | 3m³/min: 6kgf |
| Noise | <80dB |
Professional Experience: Over 20 years of industry experience with a dedicated R&D team.
Safety & Certification: Products pass strict safety tests and comply with international standards.
High Standards: Strict management of raw materials and production processes with over 50 patents.
Direct Sales: Own production base ensures competitive pricing and direct technical support.
