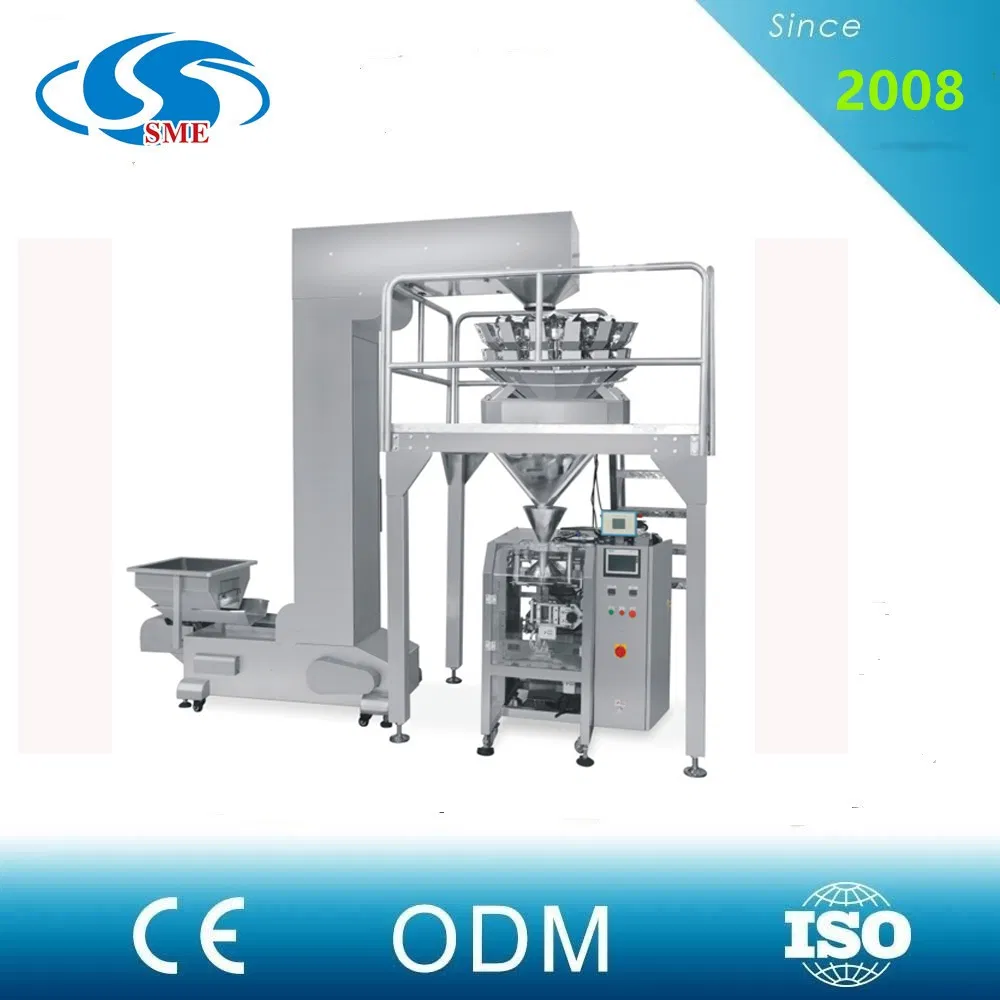

Multi-Function Rotary Vacuum Packaging and Weighing System for Candy Melon Seeds Jelly

Customization: Available
After-sales Service: Two Years
Warranty: Two Years

Product Description

📊

Basic Information

Model NO.
MD-K420
Automatic Grade
Automatic
Type
Filling and Sealing Machine
Forming Species
Bag Moulding
Forming Function
Forming, Filling, Seal
Driven Type
Pneumatic
Material Type
Grain
Packaging
Barrel
Packaging Material
Film
Packing Speed
50~120times/Nim
Filling Capacity
2~70ml
Total Power
5.5 Kw
⚙️

Product Description

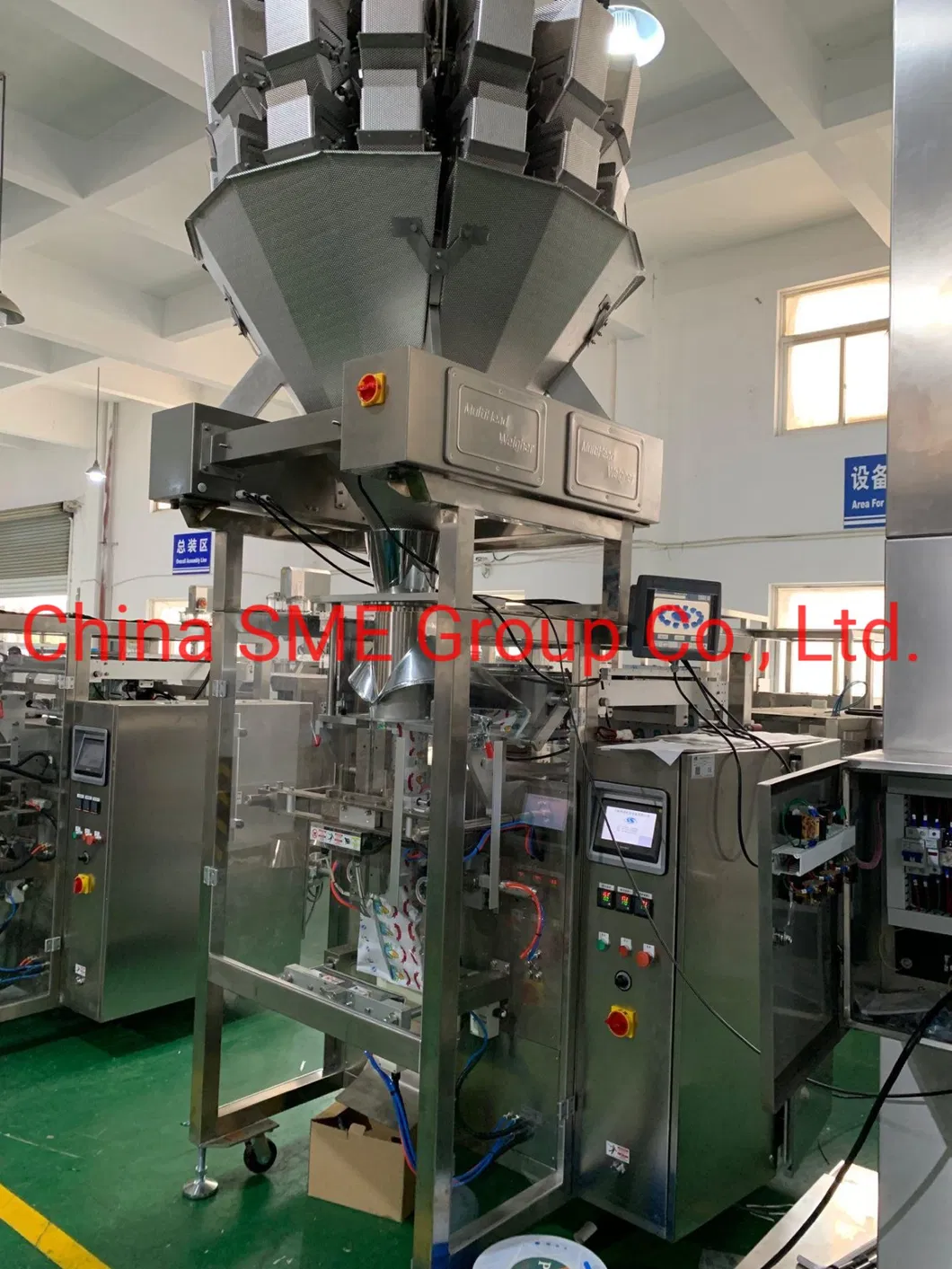

Automatic VFFS Vertical Packing Packaging Machine

Designed for Peanut, Coffee Beans, Rice, Tea, Candy, Potato Chips, Snacks, and various Food products.

Key Features:

  • The system automates the entire process: feeding, dosing, filling, sealing, date printing, and product conveying.
  • High accurate weighting and high efficiency without breakage.
  • Automatic film rectifying deviation function.

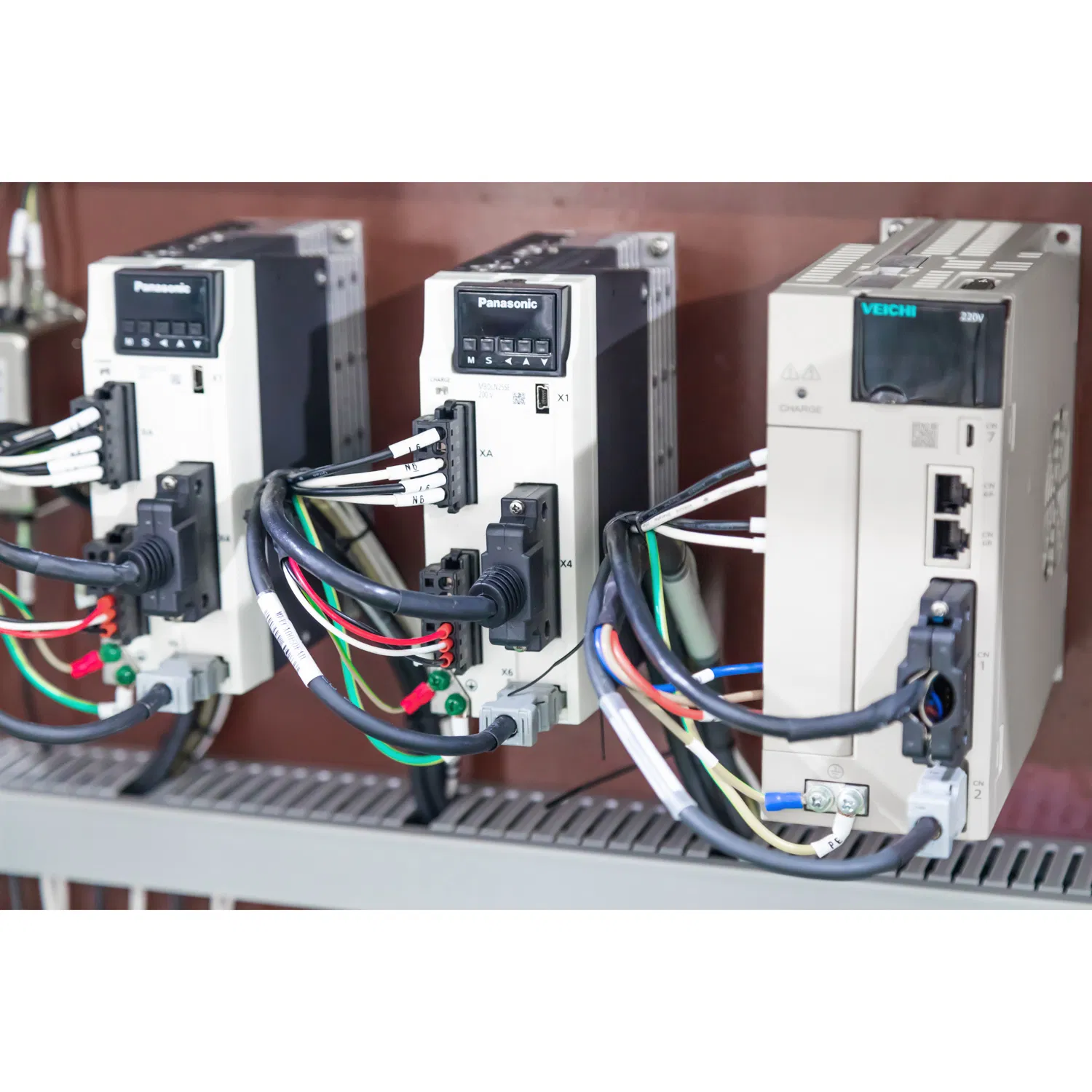

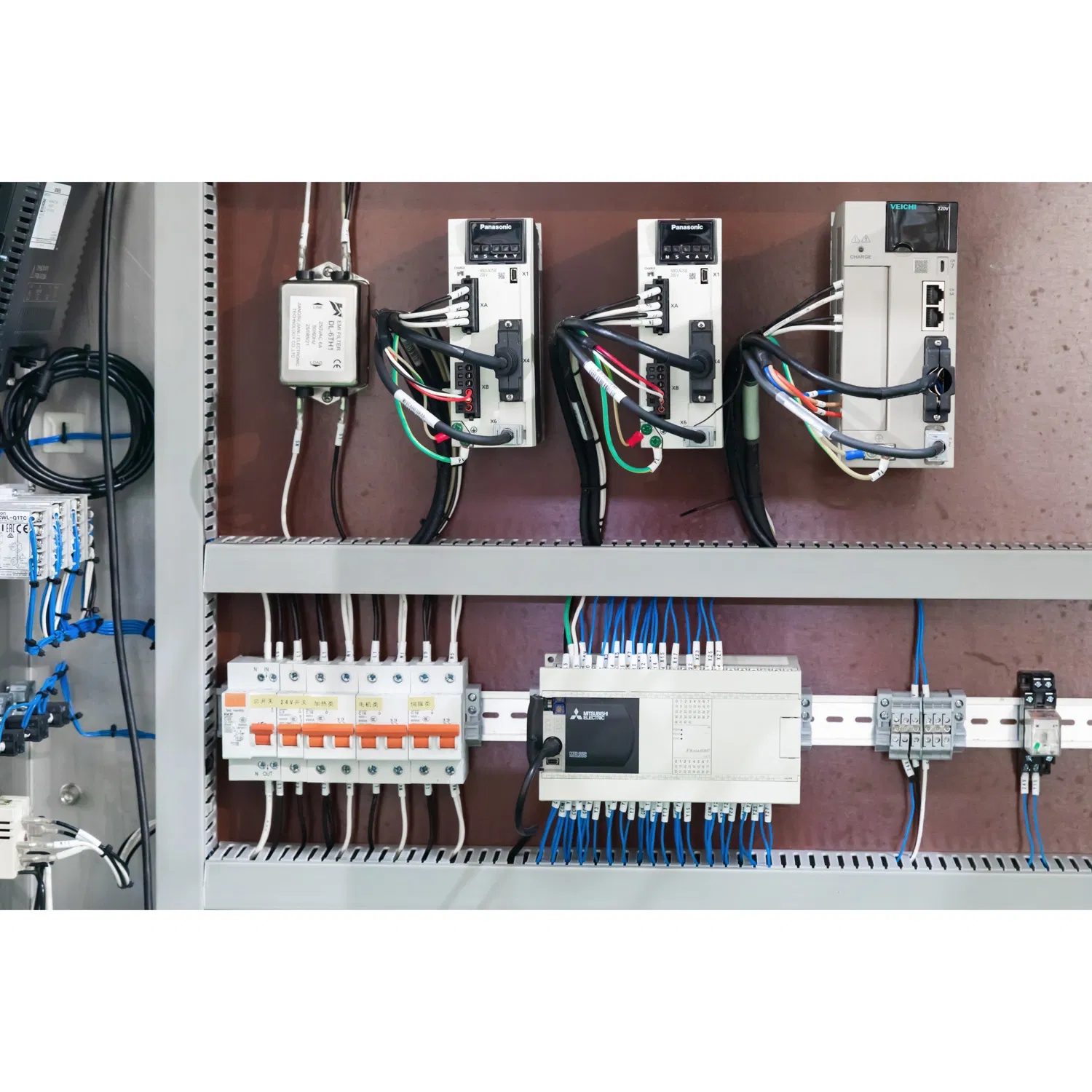

  • Equipped with premium electronic elements (Yaskawa, SMC, Schneider, Carlo Gavazzi).
  • PLC Pneumatic system for vertical and horizontal sealing.
  • Constructed with SUS304 stainless steel for long-life durability.
📋

Technical Parameters

Type MD-K420 MD-K520 MD-K720 MD-K820
Bag length50-300mm80-400mm120-500mm100-500mm
Bag width50-200mm80-250mm120-350mm250-400mm
Max Film width420mm520mm720mm820mm
Packing speed5-70bags/min5-70bags/min5-50bags/min5-60bags/min
Measuring range100-1200ml3000ml(Max)5000ml(Max)15L (Max)
Power2.2KW4.0Kw5Kw5Kw
Machine weight540Kg600KG700KG900KG
💡

Application & Samples

Suitable for packing candy, grain, solid nuts, peanuts, potato chips, coffee beans, snacks, rice, vegetable, salad, meat, sea food, metal accessories, and more.

🔍

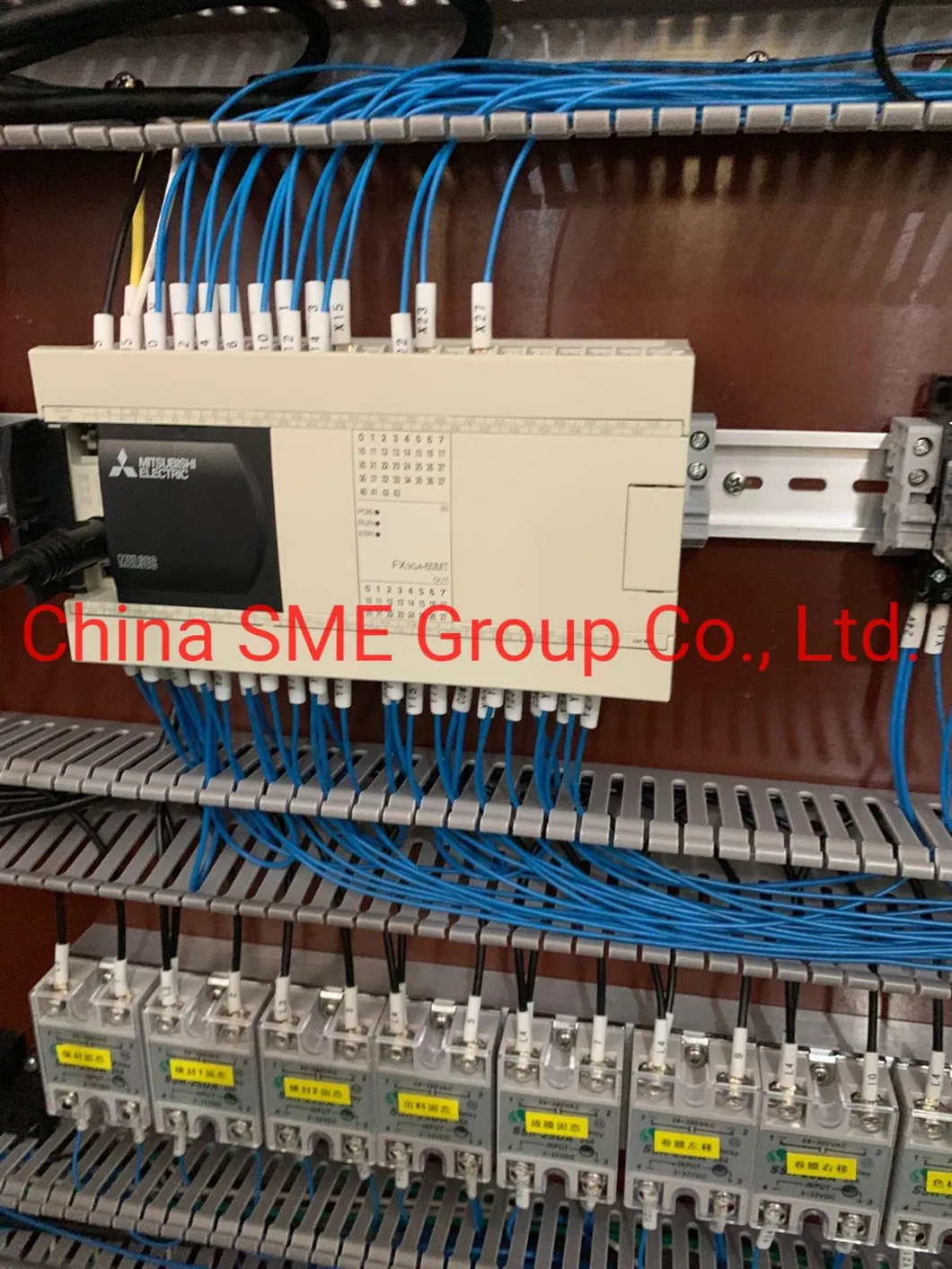

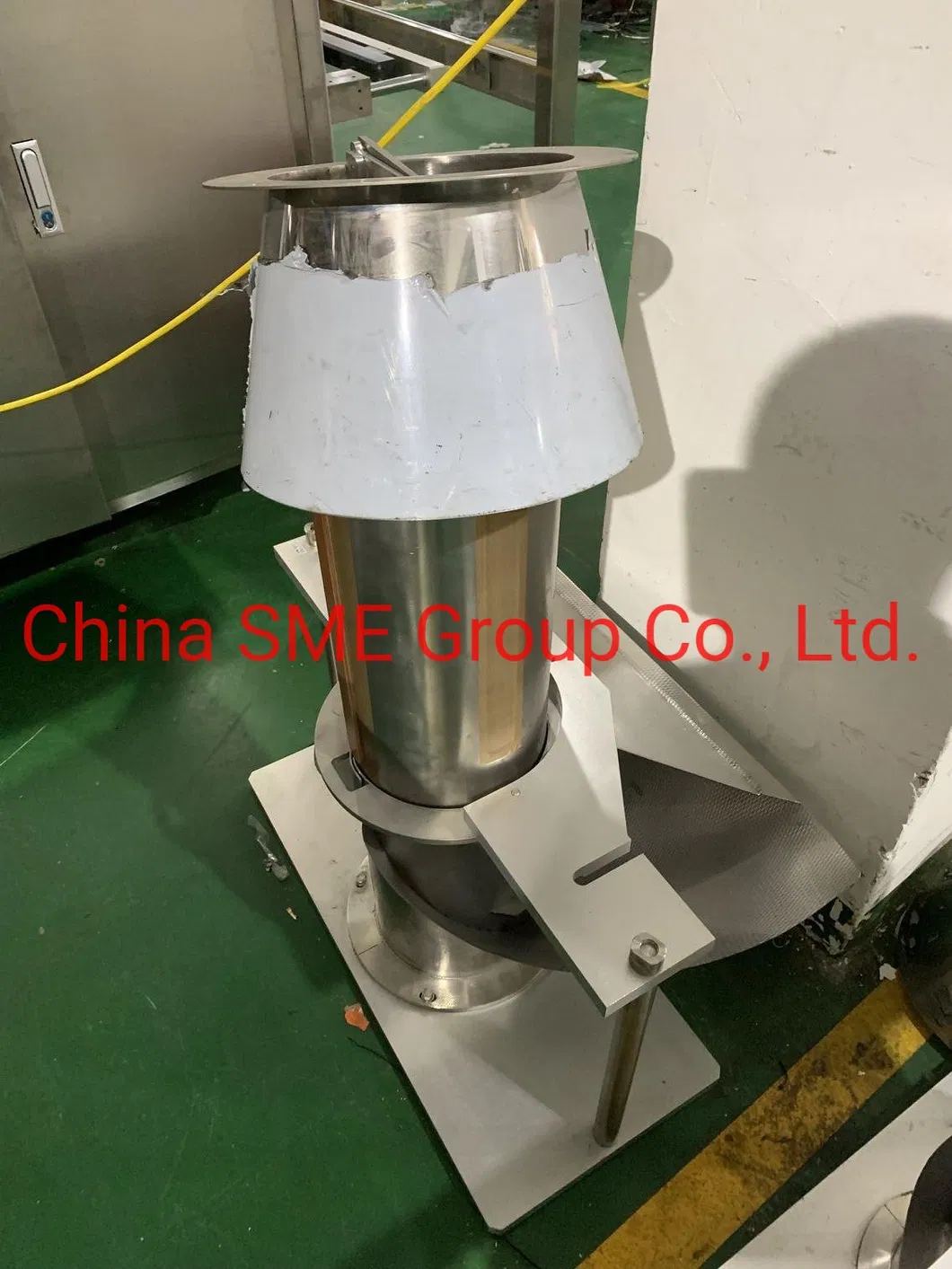

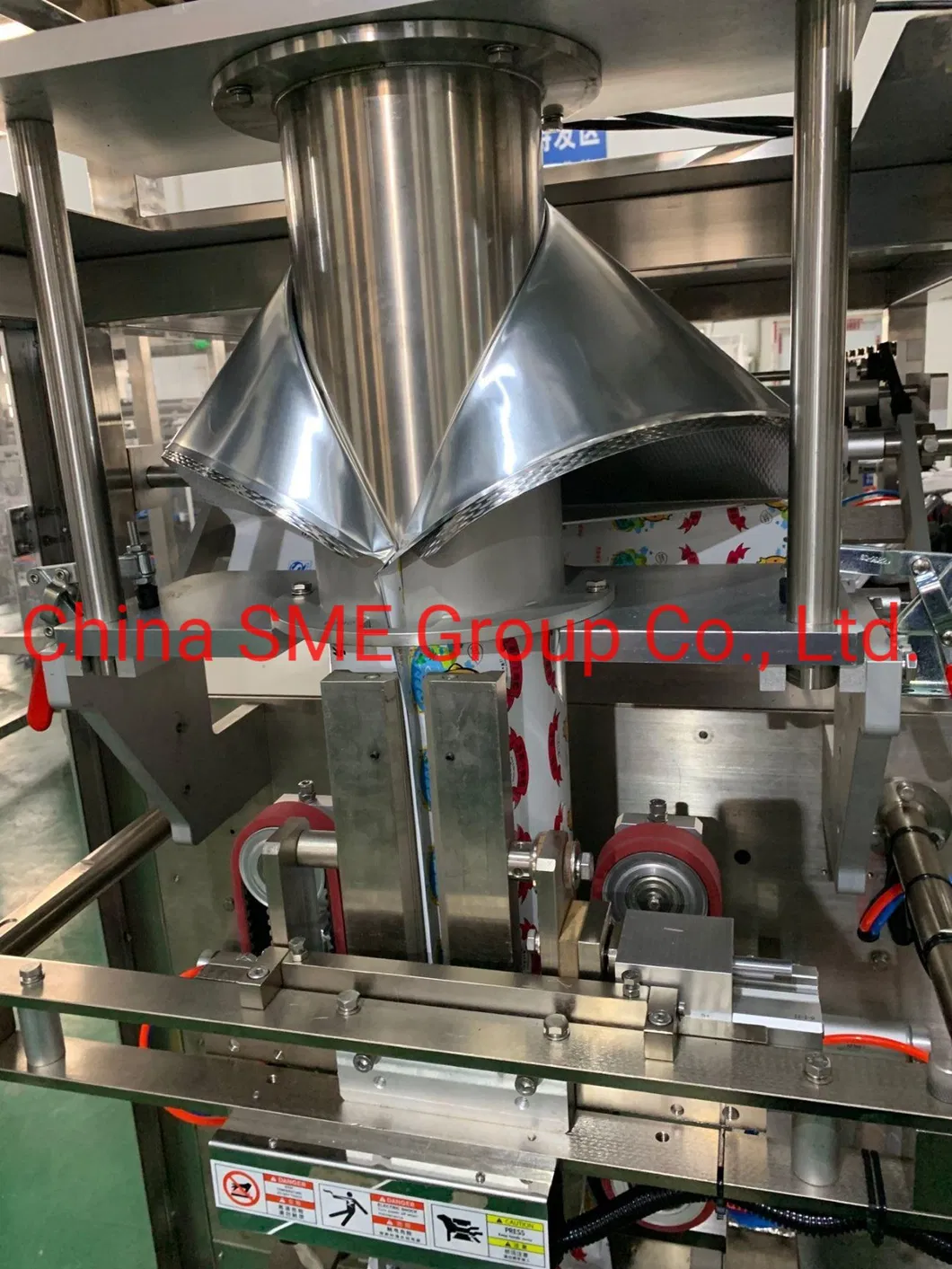

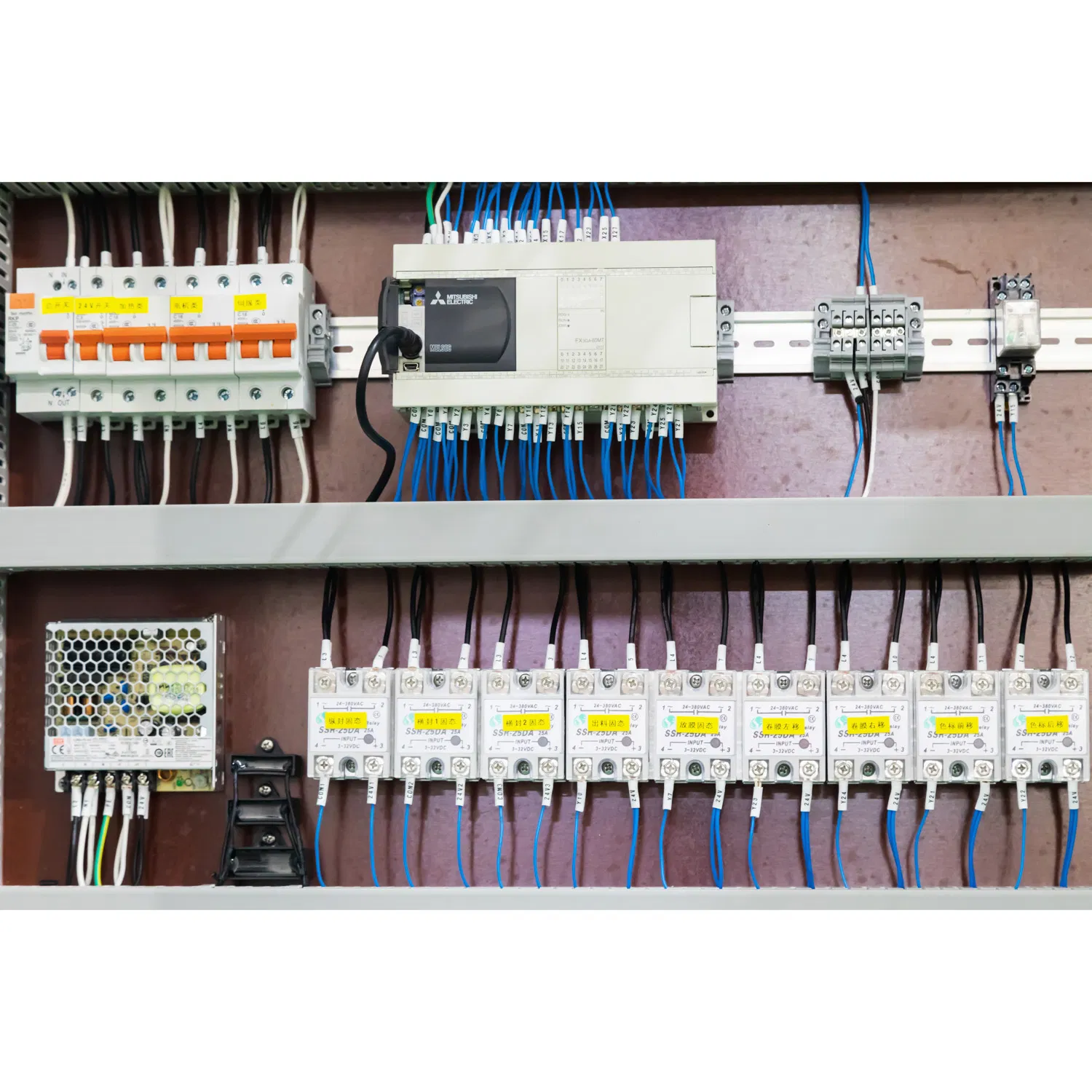

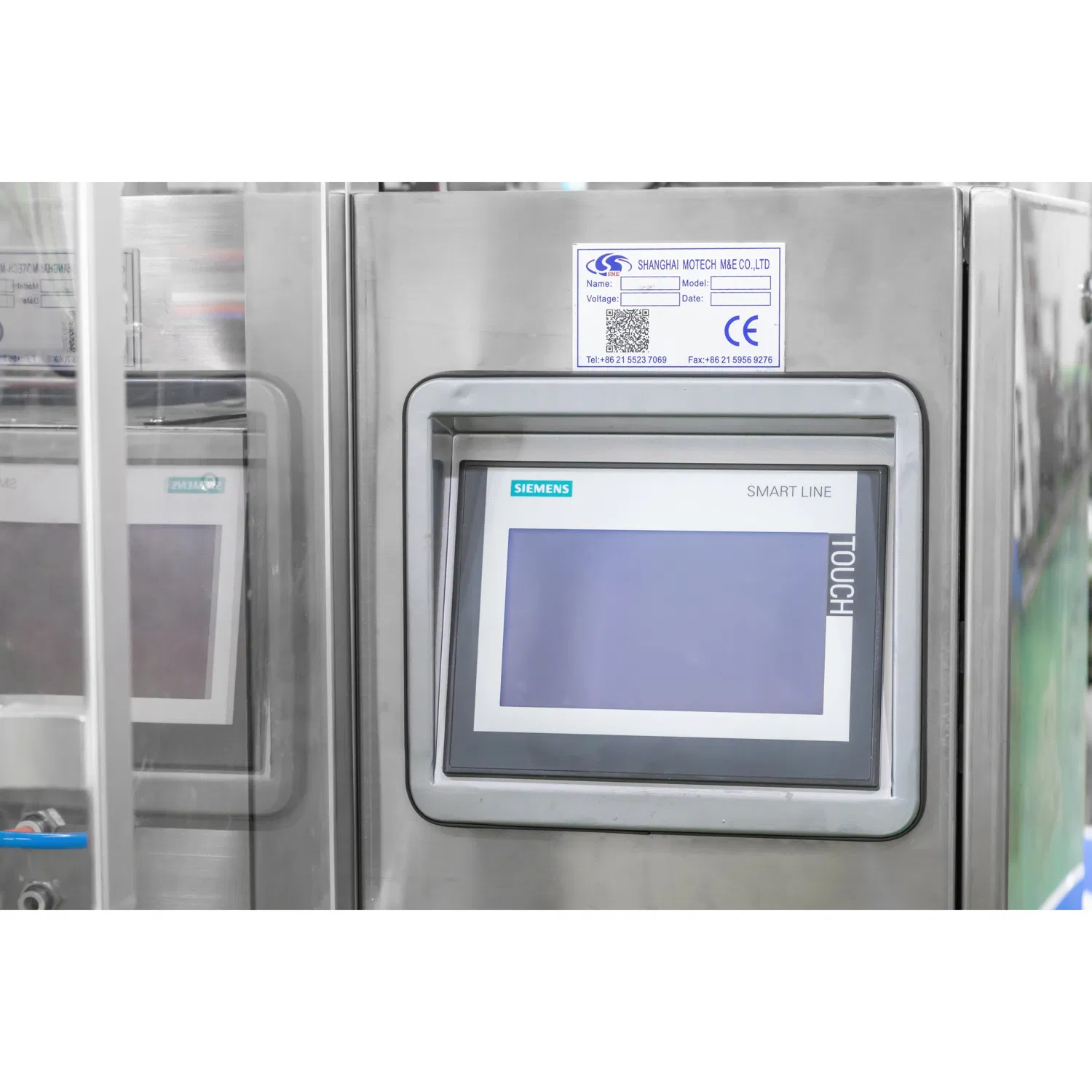

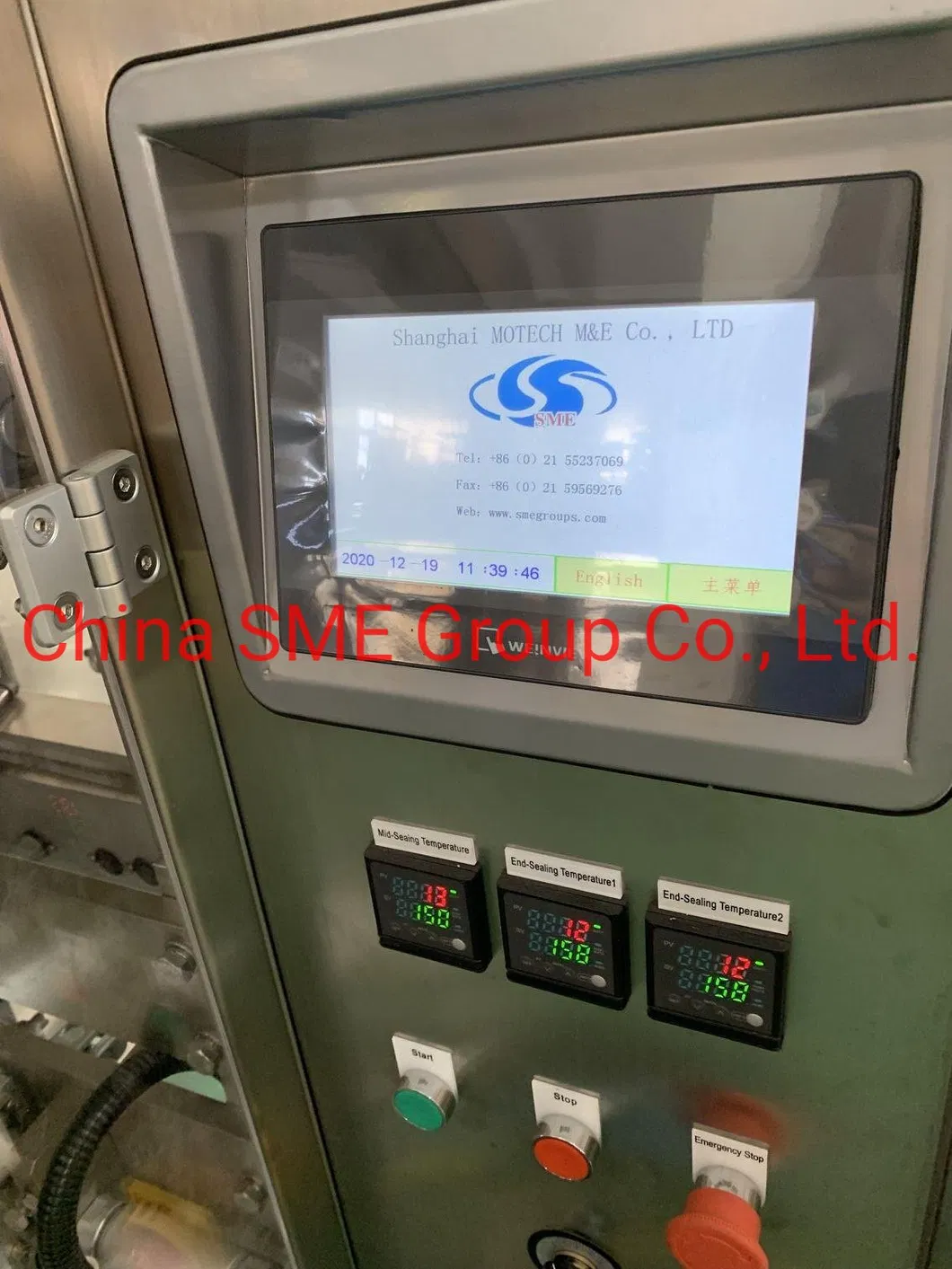

Machine Details & Components

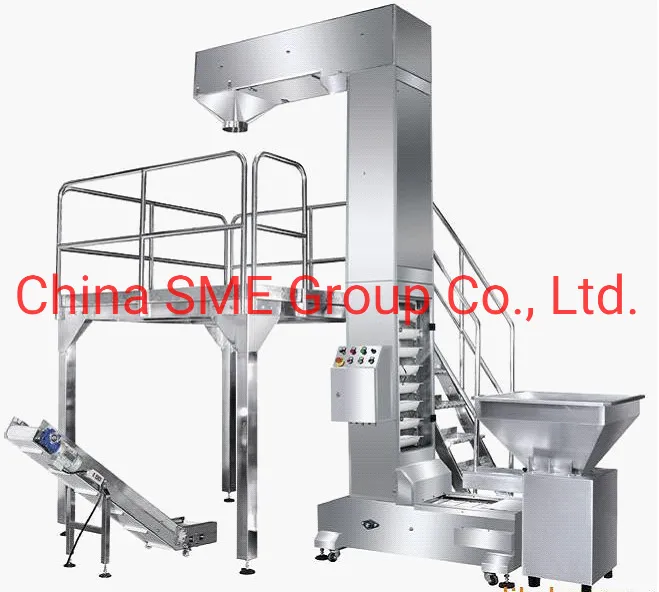

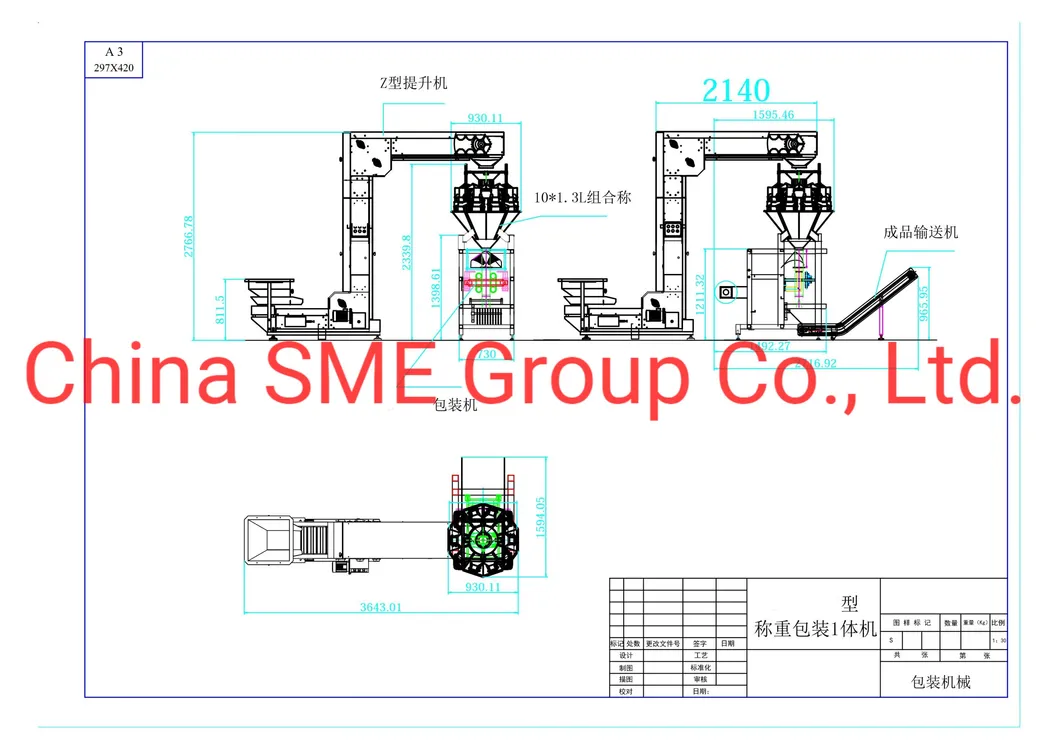

Dimension Drawings & Equipment

🏢

Manufacturing Excellence

The manufacturer is a leader in front-of-line packaging devices since 2012. Over the years, the focus has been on technology development, precise manufacturing, and professional technical support. We offer Flow Packing Machines, Vertical Packing Machines, Metal Detectors, and Weight Checkers to fit the needs of different industries.

Our machinery has obtained CE and ISO 9001 certifications, emphasizing safety and quality, with successful operations across Asia, America, and Africa. We aim to provide quality machines, competitive pricing, and satisfied service globally.

Frequently Asked Questions

1. What types of products can this machine pack?
The VFFS machine is versatile and suitable for granules, snacks, rice, coffee beans, nuts, and even small hardware or metal accessories.
2. What is the maximum packing speed of the MD-K series?
Depending on the specific model and material, the packing speed ranges from 5 to 70 bags per minute.
3. Is the machine compliant with food safety standards?
Yes, the machine is constructed using SUS304 stainless steel, making it ideal for food-grade packaging and ensuring a long service life.
4. Does the machine support automatic film adjustment?
Yes, it features an automatic film rectifying deviation function to ensure consistent bag alignment and reduce waste.
5. What bag sizes can the MD-K420 model handle?
The MD-K420 model supports a bag length of 50-300mm and a bag width of 50-200mm.
6. What power supply is required for operation?
The machine is compatible with both 220V and 380V power voltages to suit different industrial electricity standards.
