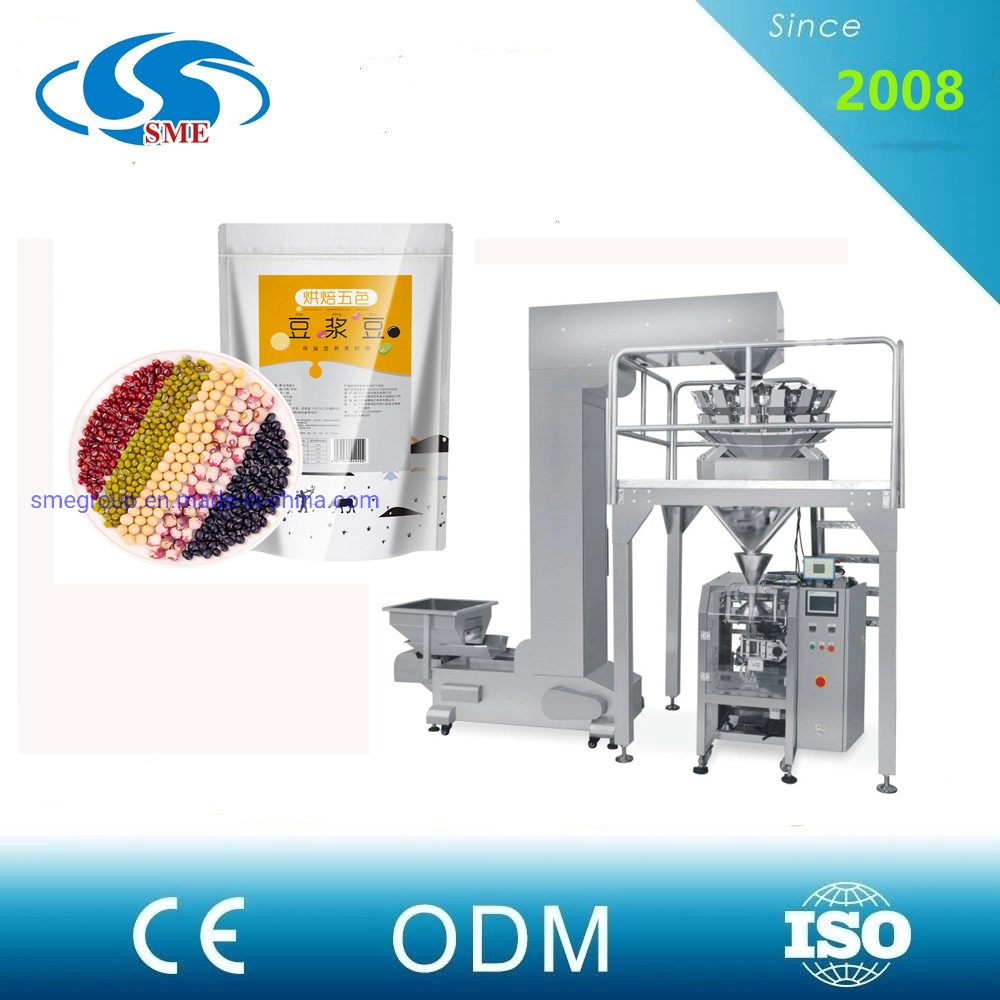

Multi Head Weigher Standard Vertical Weighing and Packaging System for Food
Multi Head Weigher Standard Vertical Weighing and Packaging System for Food
Multi Head Weigher Standard Vertical Weighing and Packaging System for Food
Multi Head Weigher Standard Vertical Weighing and Packaging System for Food
Multi Head Weigher Standard Vertical Weighing and Packaging System for Food
1 / 5
Multi Head Weigher Standard Vertical Weighing and Packaging System for Food
Multi Head Weigher Standard Vertical Weighing and Packaging System for Food
Multi Head Weigher Standard Vertical Weighing and Packaging System for Food
Multi Head Weigher Standard Vertical Weighing and Packaging System for Food
Multi Head Weigher Standard Vertical Weighing and Packaging System for Food

Multi Head Weigher Standard Vertical Weighing and Packaging System for Food

Customization: Available
After-sales Service: Two Years
Warranty: Two Years
Send Inquiry

Product Description

⚙️ Basic Specifications

Model NO.:MD-K420
Automatic Grade:Automatic
Type:Filling and Sealing Machine
Driven Type:Pneumatic
Material Type:Grain
Pouch Length:50~250mm
Pouch Width:35~85mm
Packing Speed:50~120times/min
Filling Capacity:2~70ml
Max Film Width:350mm
Total Power:5.5 Kw
Package Size:1400X1000X1700 mm

📦 Automatic VFFS Vertical Packing Machine

High-efficiency automatic packaging system designed for Peanut, Coffee Beans, Rice, Tea, Candy, Potato Chips, and various Snacks.

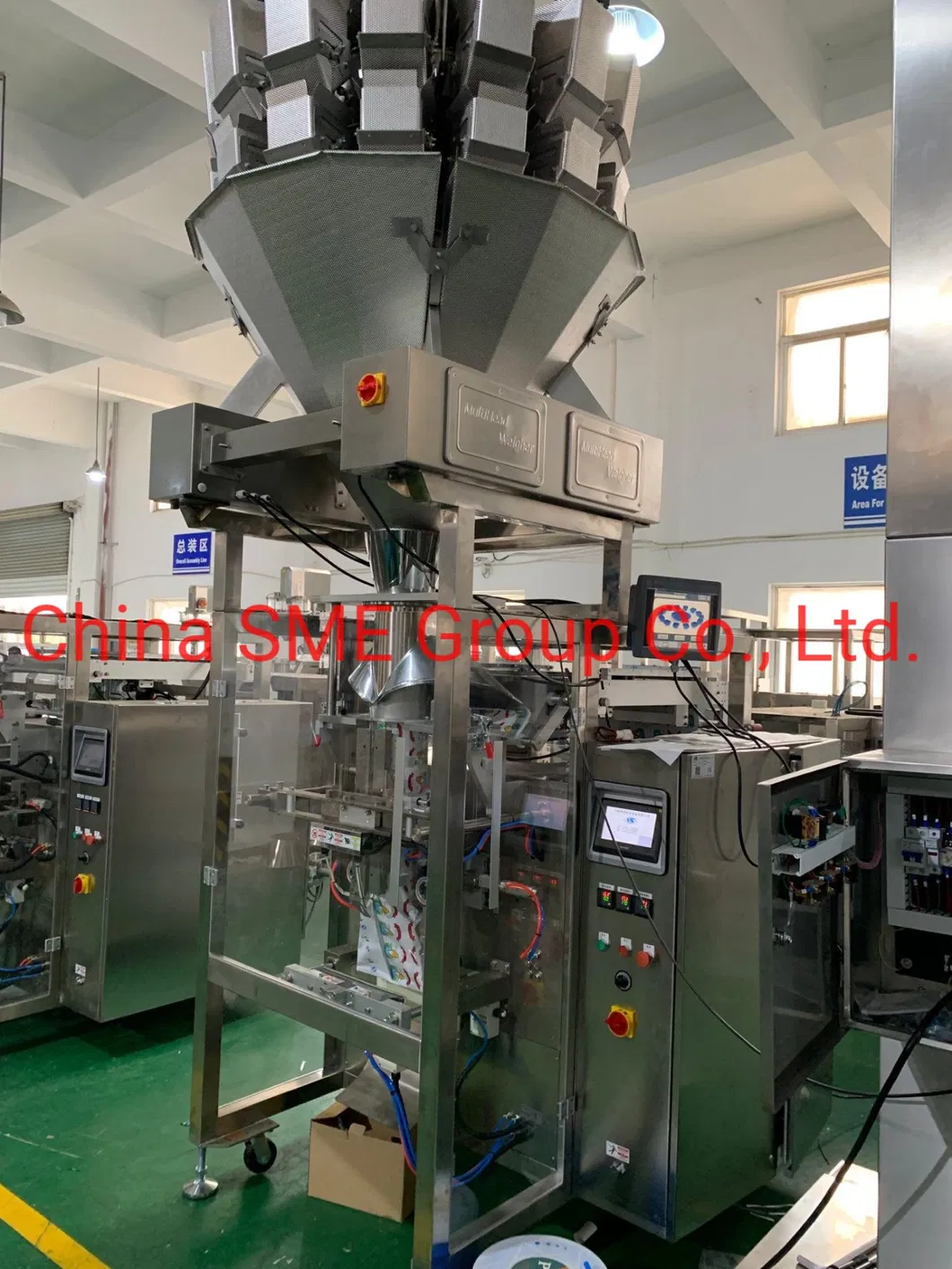

Vertical Packaging System

Key Features:

1
Full process automation: feeding, dosing, filling, sealing, date printing, and conveying.
2
Automatic film rectifying deviation function for precise alignment.
3
Equipped with premium electronic components (Yaskawa, SMC, Schneider, Carlo Gavazzi).
4
PLC Pneumatic system for reliable vertical and horizontal sealing.
5
Constructed with SUS304 stainless steel for long-term durability.

📊 Technical Parameters

Type MD-K420 MD-K520 MD-K720 MD-K820
Bag length50-300mm80-400mm120-500mm100-500mm
Bag width50-200mm80-250mm120-350mm250-400mm
Max Film width420mm520mm720mm820mm
Packing speed5-70bags/min5-70bags/min5-50bags/min5-60bags/min
Measuring range100-1200ml3000ml(Max)5000ml(Max)15L (Max)
Air consumption0.65mpa0.65Mpa0.65Mpa0.65Mpa
Power voltage220V/380V220V/380V220V/380V220V/380V

🔍 Application & Samples

Suitable for solid nuts, grain, potato chips, vegetable, salad, sea food, and metal accessories.

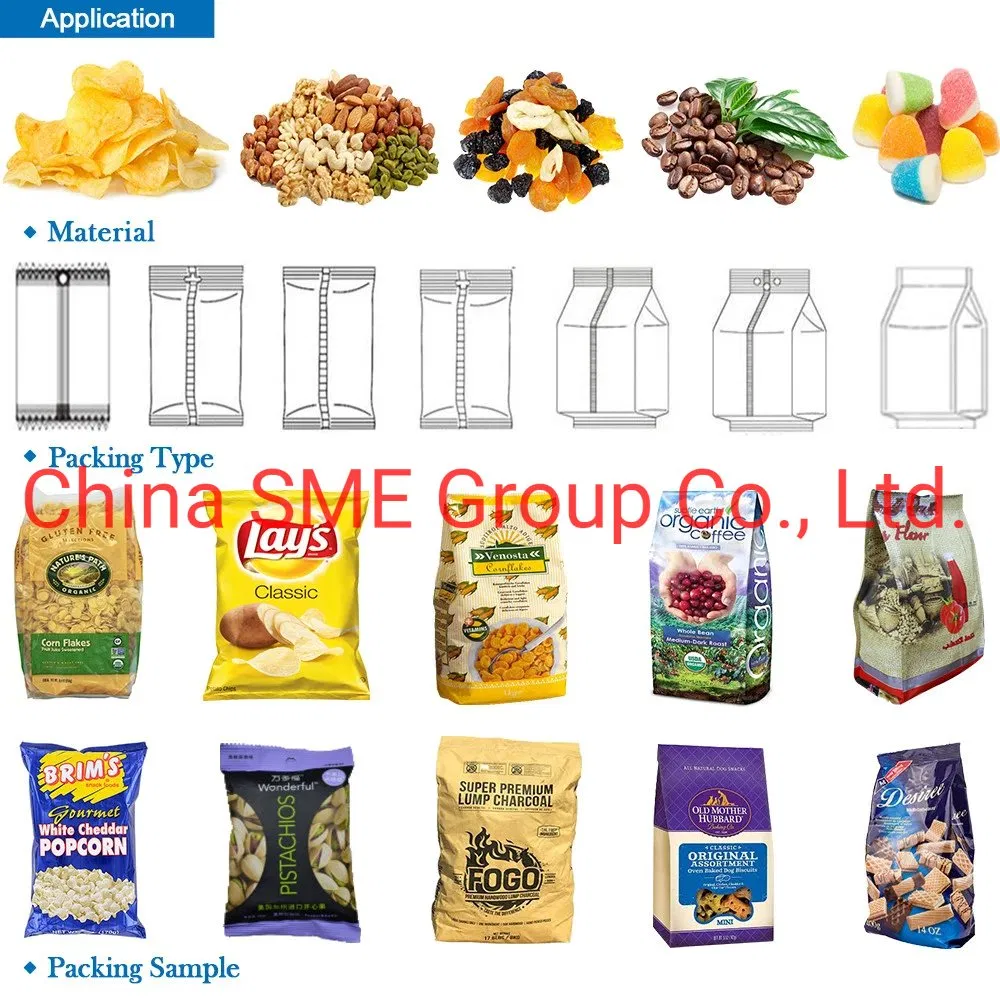

Packing Samples

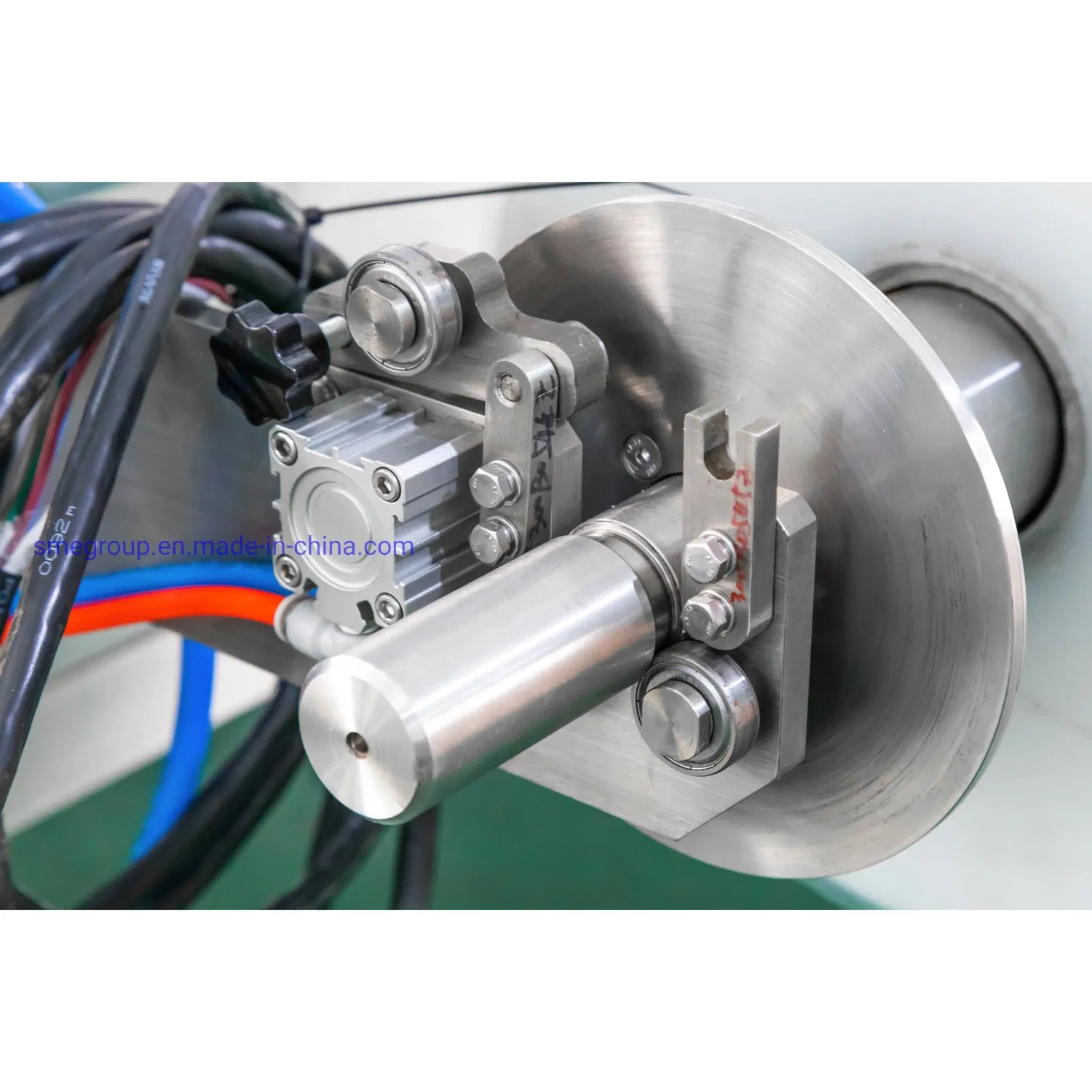

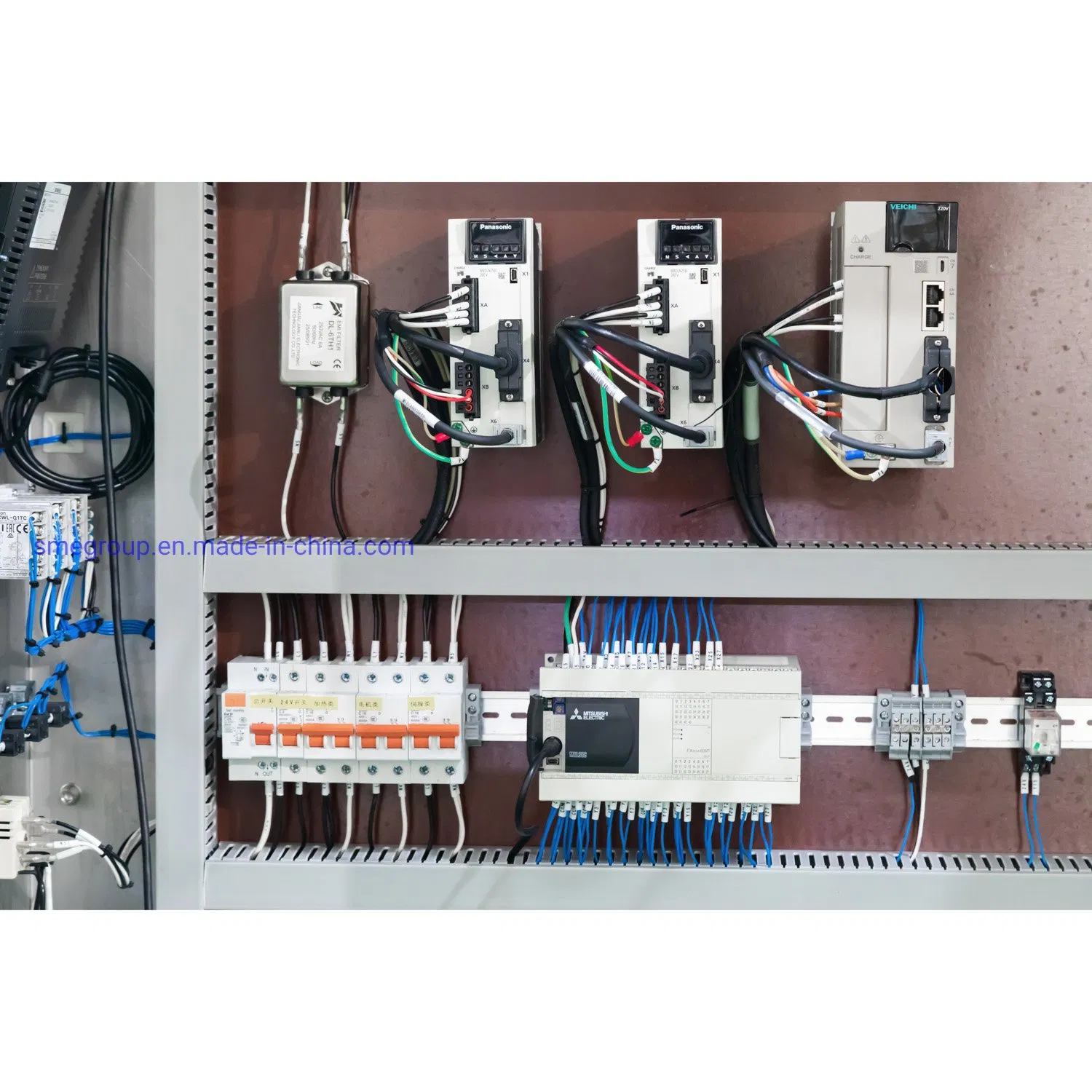

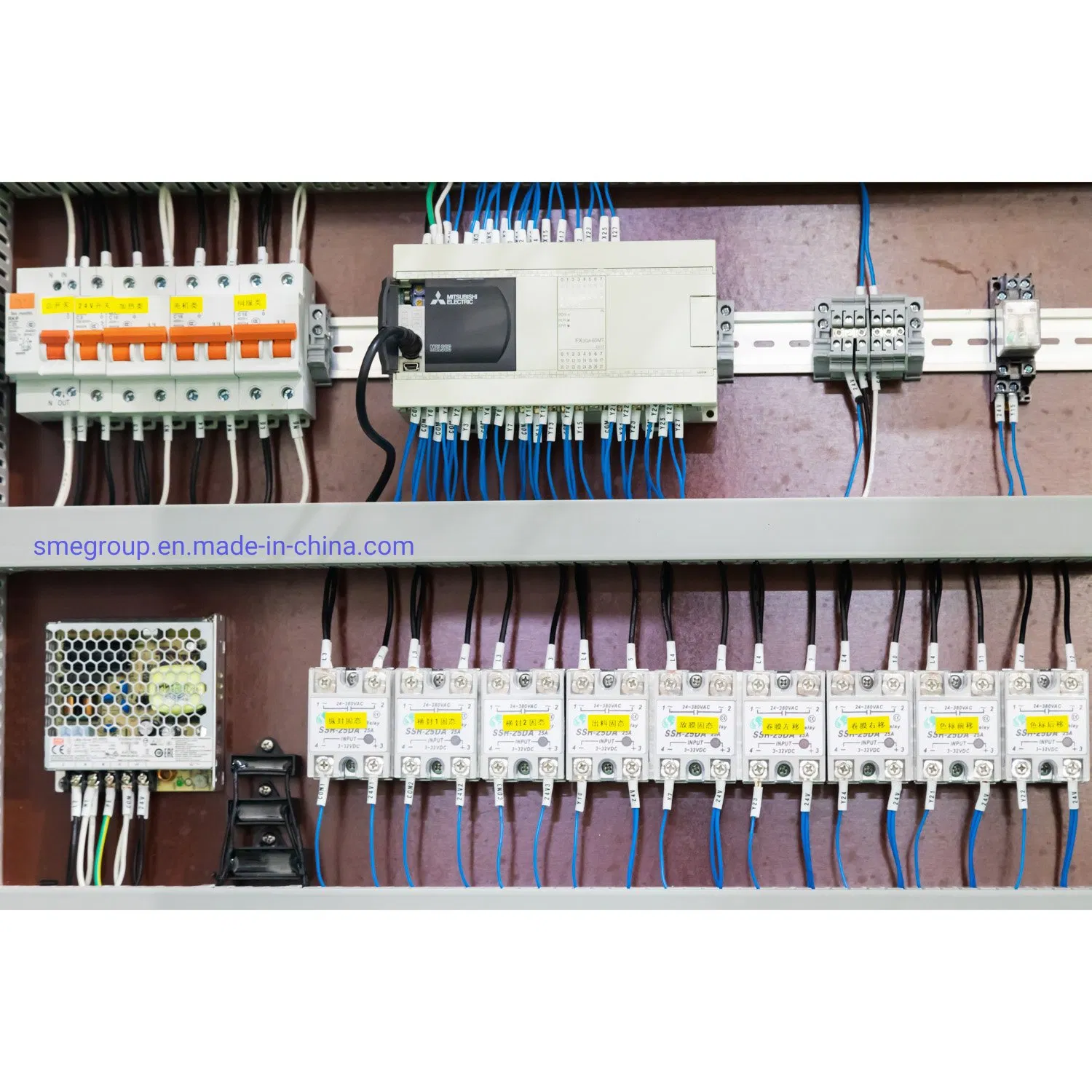

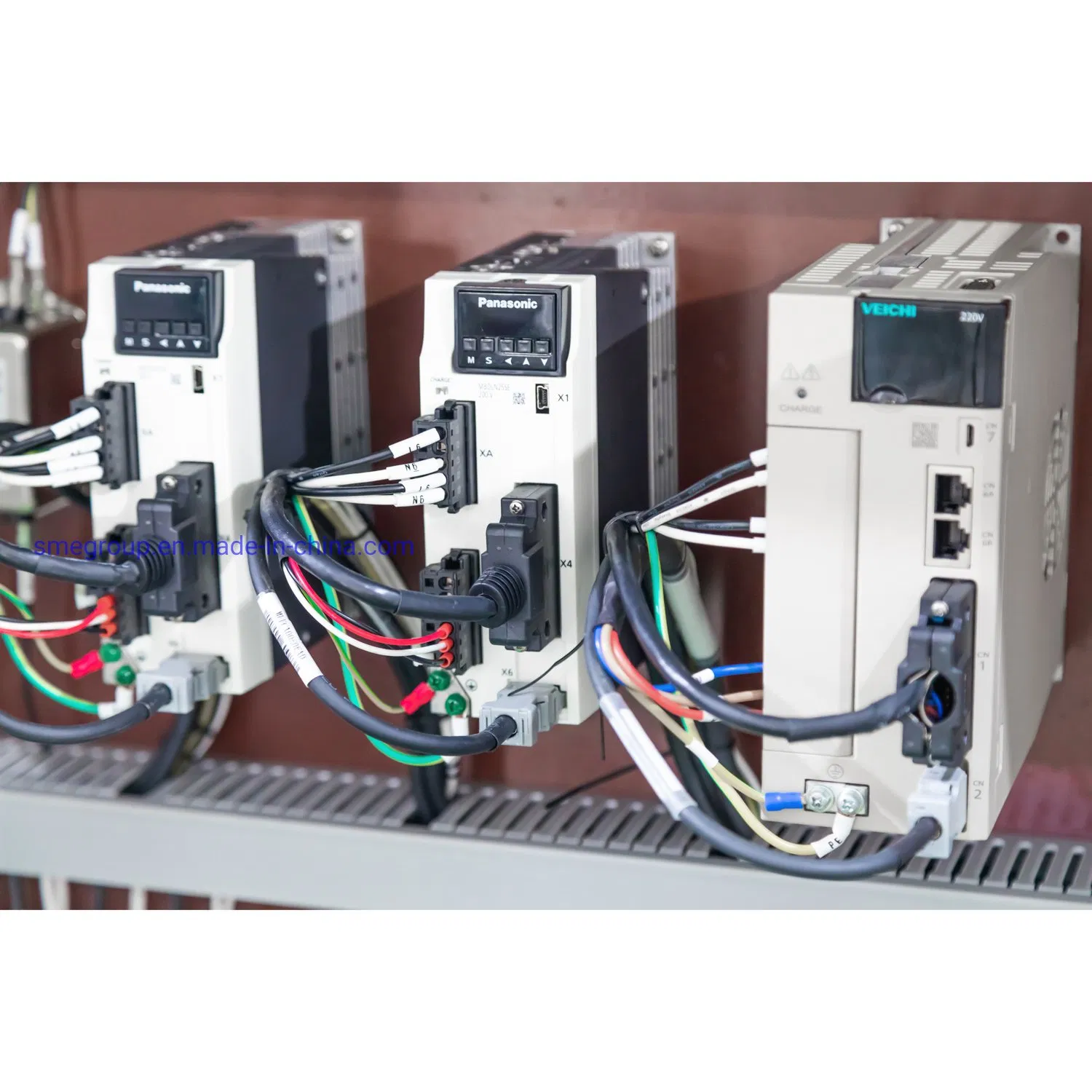

📷 Machine Details

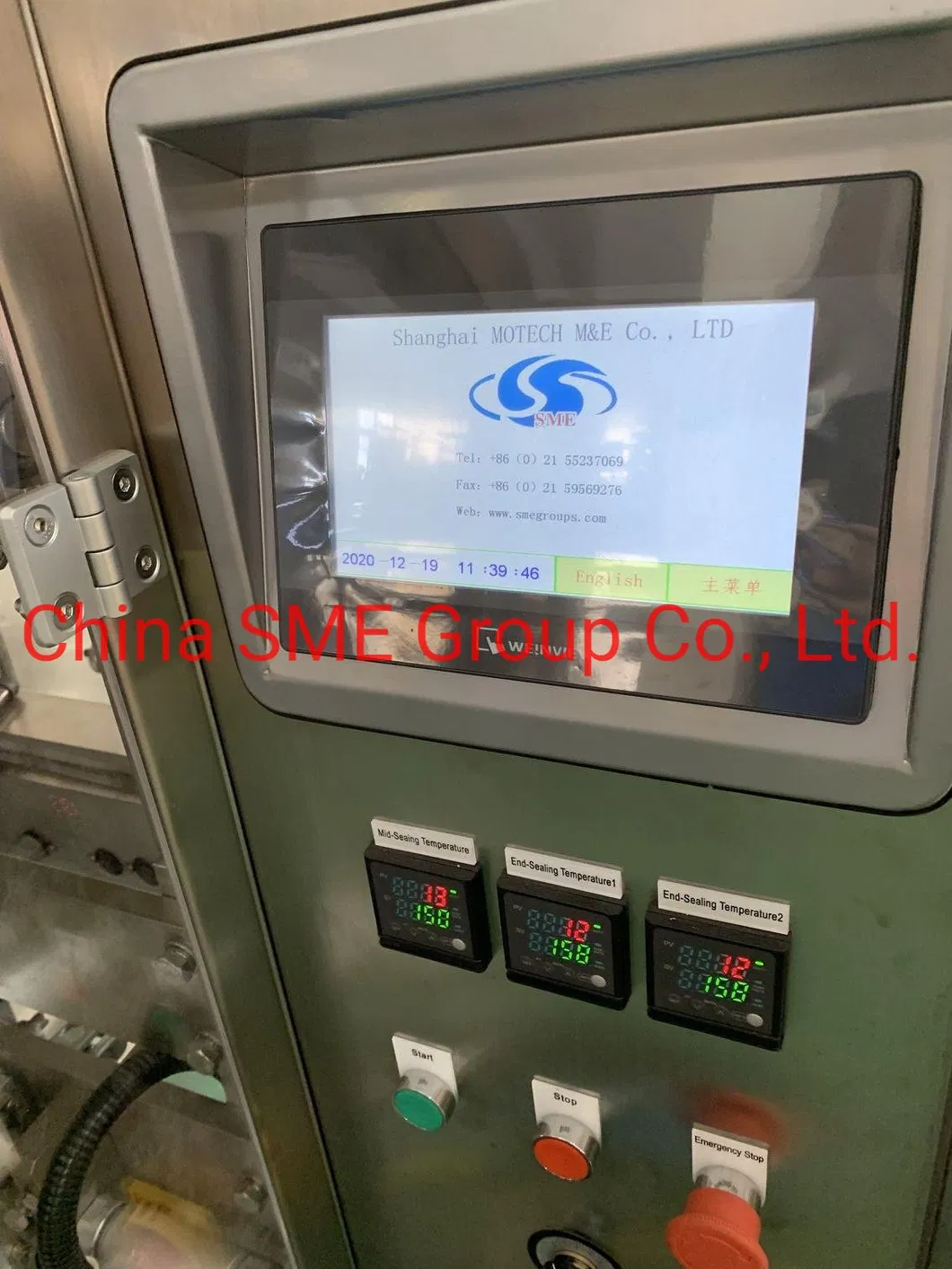

Machine Detail 1

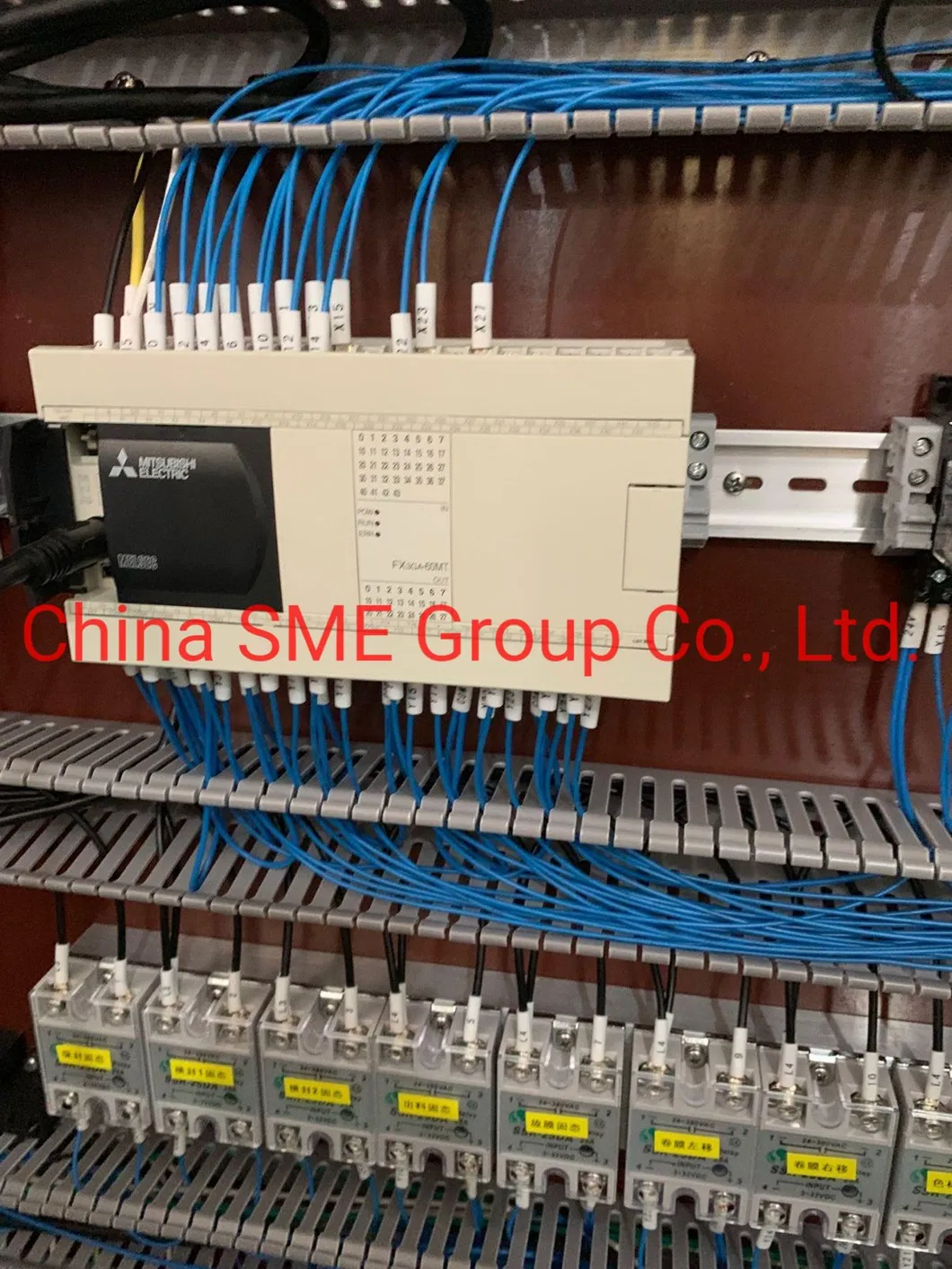

Machine Detail 2

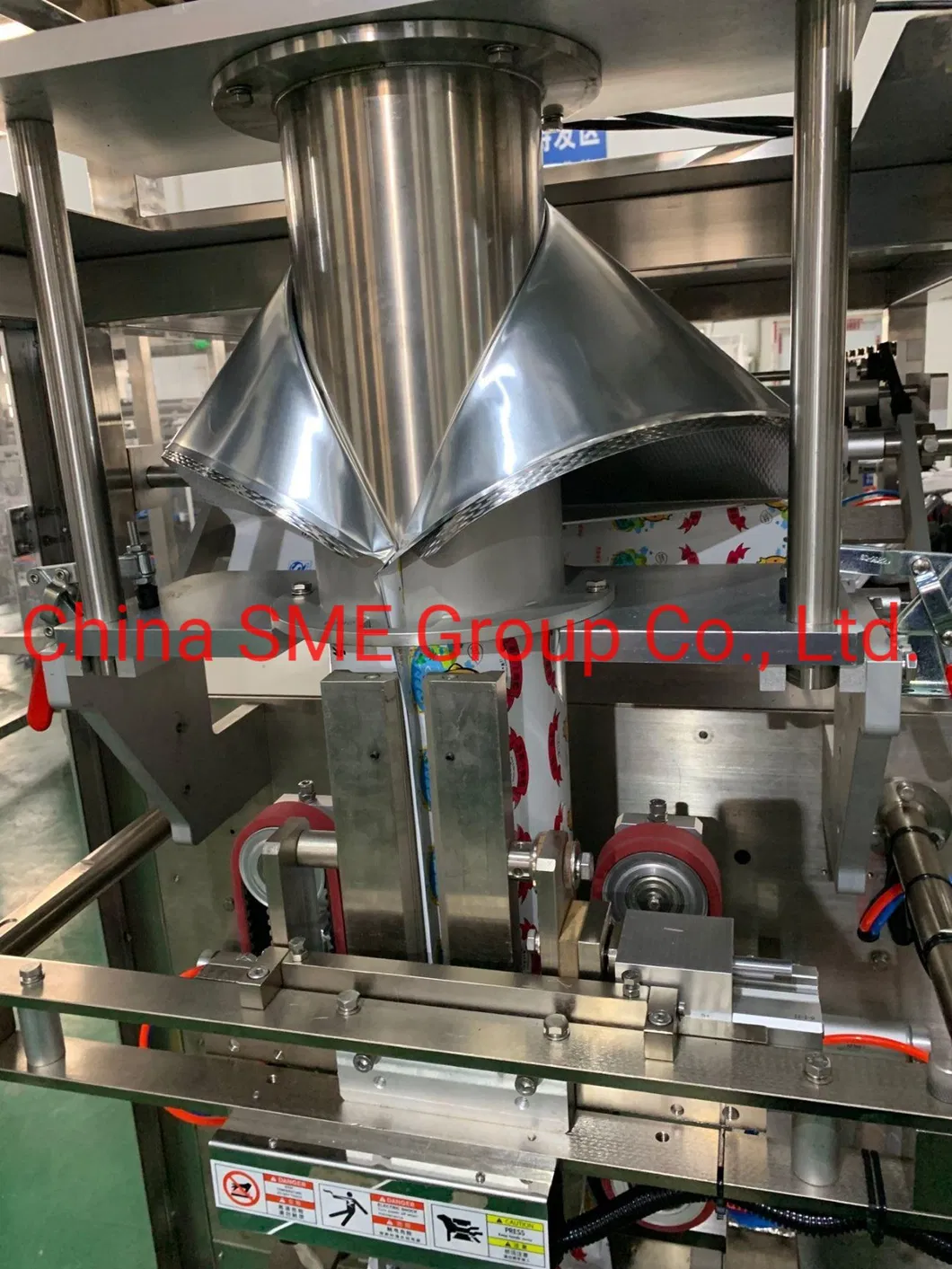

Machine Detail 3

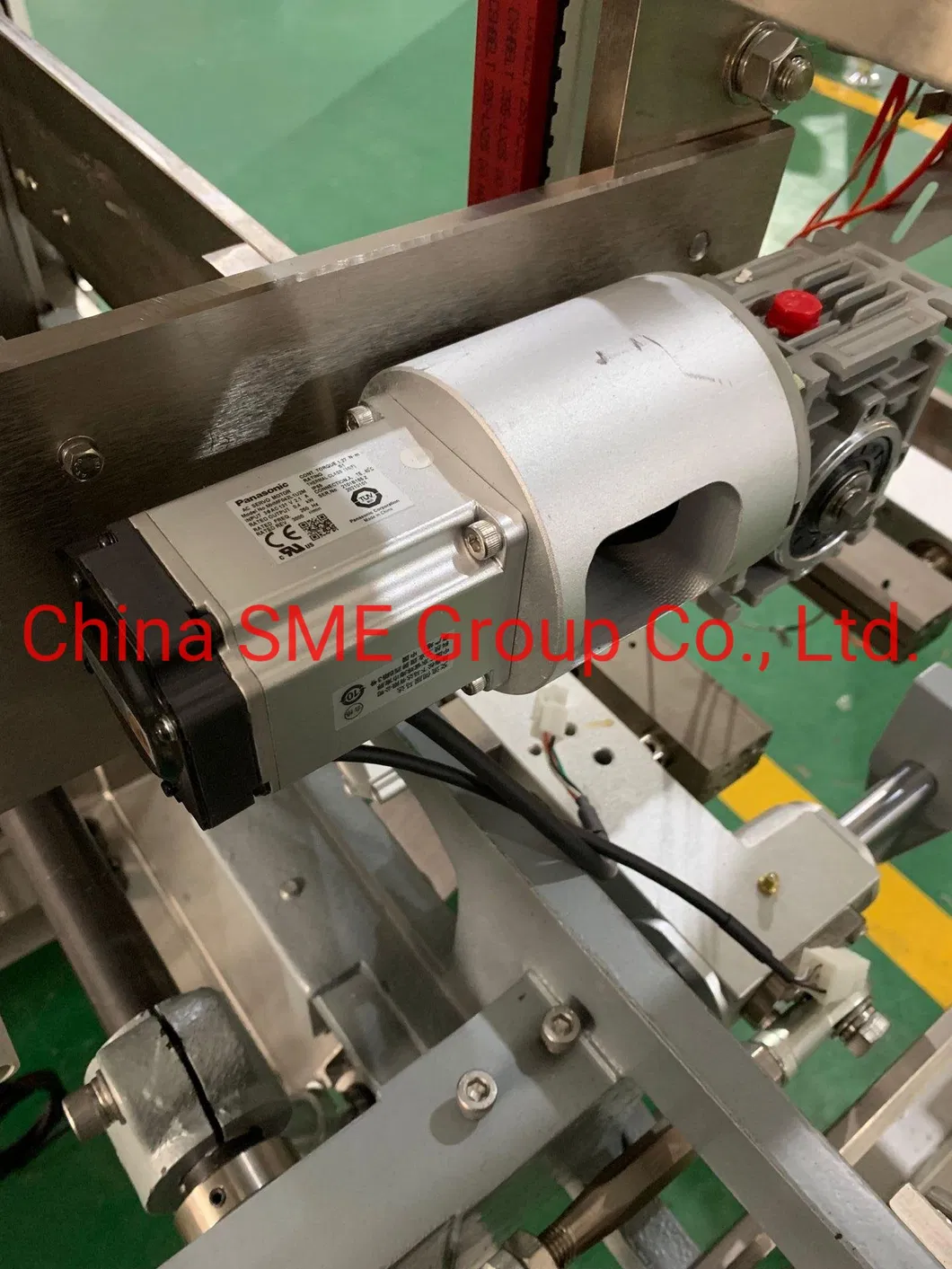

Machine Detail 4

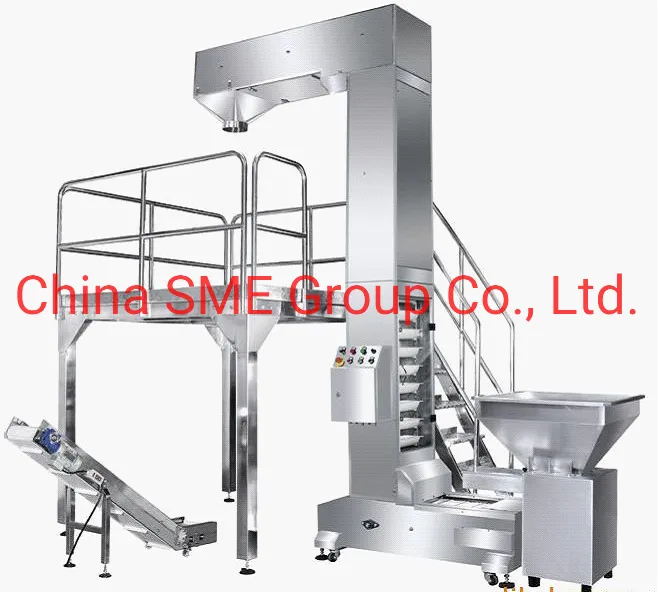

Auxiliary Equipment
Bag Former

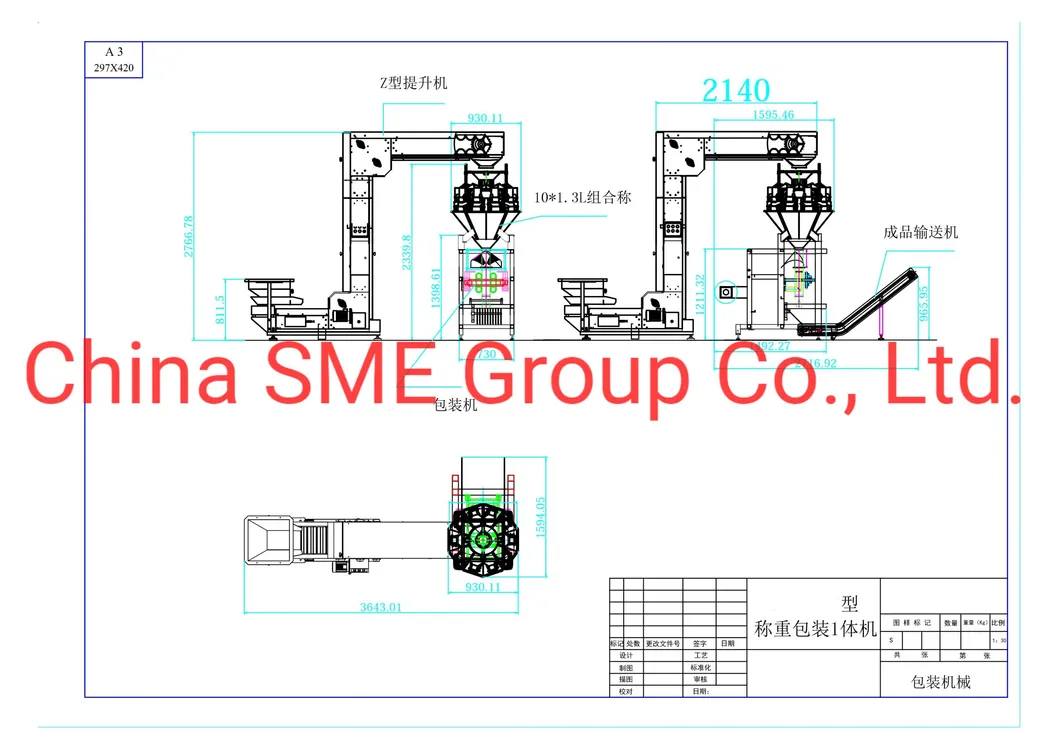

Dimension Drawings:

Dimension Drawing

💡 Frequently Asked Questions

What types of products can this machine pack?
The machine is versatile and can pack granules, solids, and grains such as coffee beans, rice, candies, snacks, and even small metal accessories.
Is the bag length adjustable?
Yes, depending on the model (MD-K420 to MD-K820), the bag length can be adjusted within a range of 50mm up to 500mm via the PLC control system.
What materials are used in the construction of the machine?
The machine is primarily built with high-quality SUS304 stainless steel, ensuring food safety standards and a long service life.
Does the machine require a manual operator for sealing?
No, this is a fully automatic VFFS (Vertical Form Fill Seal) machine that handles feeding, filling, and sealing without manual intervention.
What is the maximum packing speed?
The packing speed varies by model and material, ranging from 5 to 120 bags per minute, offering high efficiency for production lines.
What power supply is required?
The machine supports standard industrial power voltages of 220V or 380V, making it compatible with most factory power grids.
