Qm-100+ 2026 Portable Diode Laser Hair Removal Machine 808nm Triple Quadruple Wavelength Optional 1000W1200W1600W Laser Power Supply Device

Customization: Available
Type: Laser Beauty Equipment
Theory: Laser

Product Description

Basic Specifications
Model
QM-100+
Application
Salon, Medical Aesthetic Clinic
Laser Type
Diode Laser
Wavelength
808nm / 755nm+808nm+1064nm
Laser Stacks Power
800-16000W
Energy Density
1-120j/cm²
Spot Size
13*16mm; 13*22mm; 13*30mm
Repetition Rate
1-10Hz
Pulse Duration
10-400ms
Display
12 Inch True Color Touch Screen
Net Weight
45kgs
Production Capacity
1000 Sets/Month
Product Description & Features

Model: QM-100+ Diode Laser Hair Removal Triple Waves 755nm 808nm 1064nm. This professional laser system offers a comprehensive solution for effective hair removal across all skin tones and hair types.

  • 1 New design appearance with ergonomic handling.
  • 2 American coherent laser bars - the most stable in the industry, capable of reaching 400 million pulses.
  • 3 TEC Cooling system allows for 24-hour continuous operation, even in high summer temperatures.
  • 4 High-grade Sapphire crystal head with over 95% light transmission for superior treatment effects.
  • 5 Triple wavelength technology ensures effective results for all skin types and hair colors.

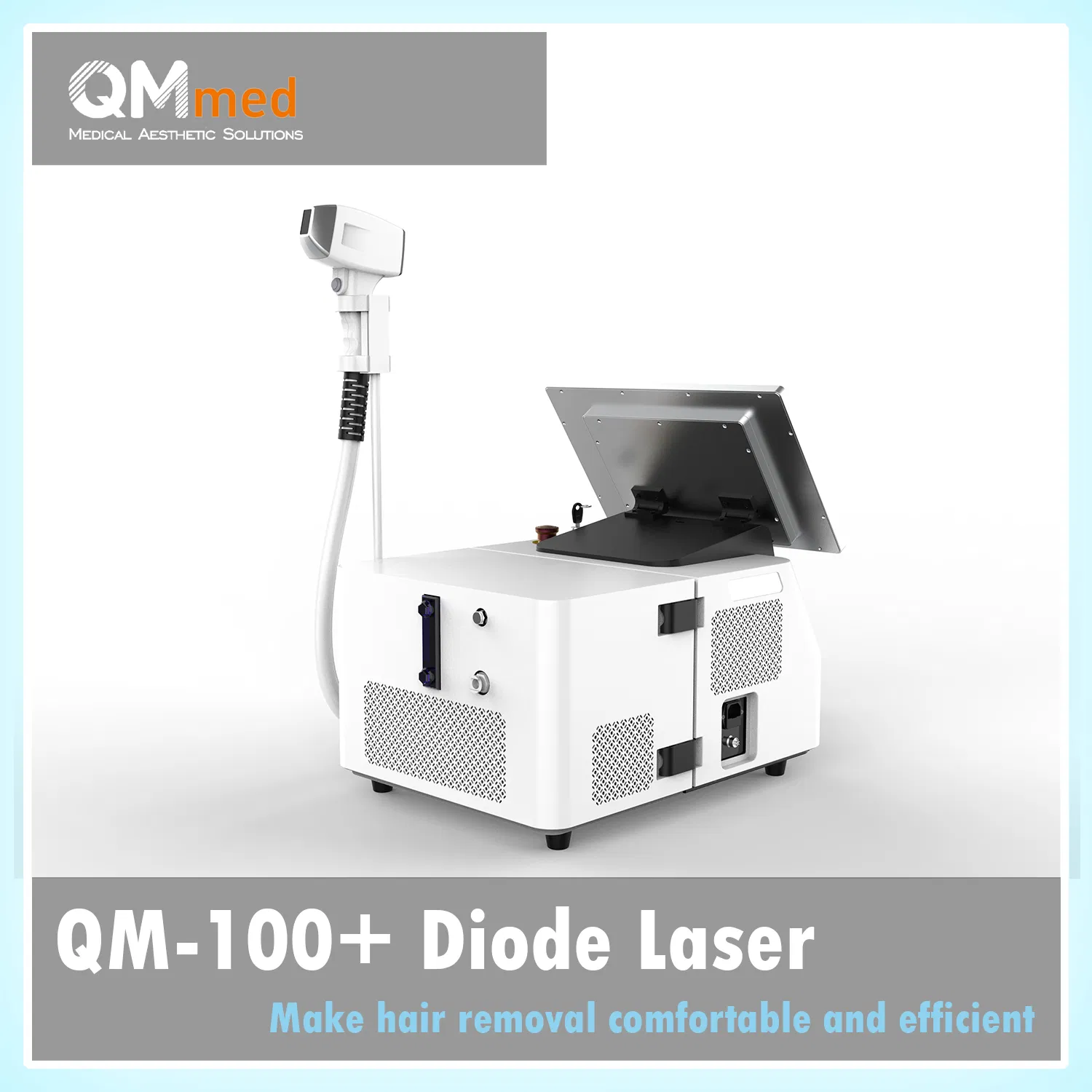

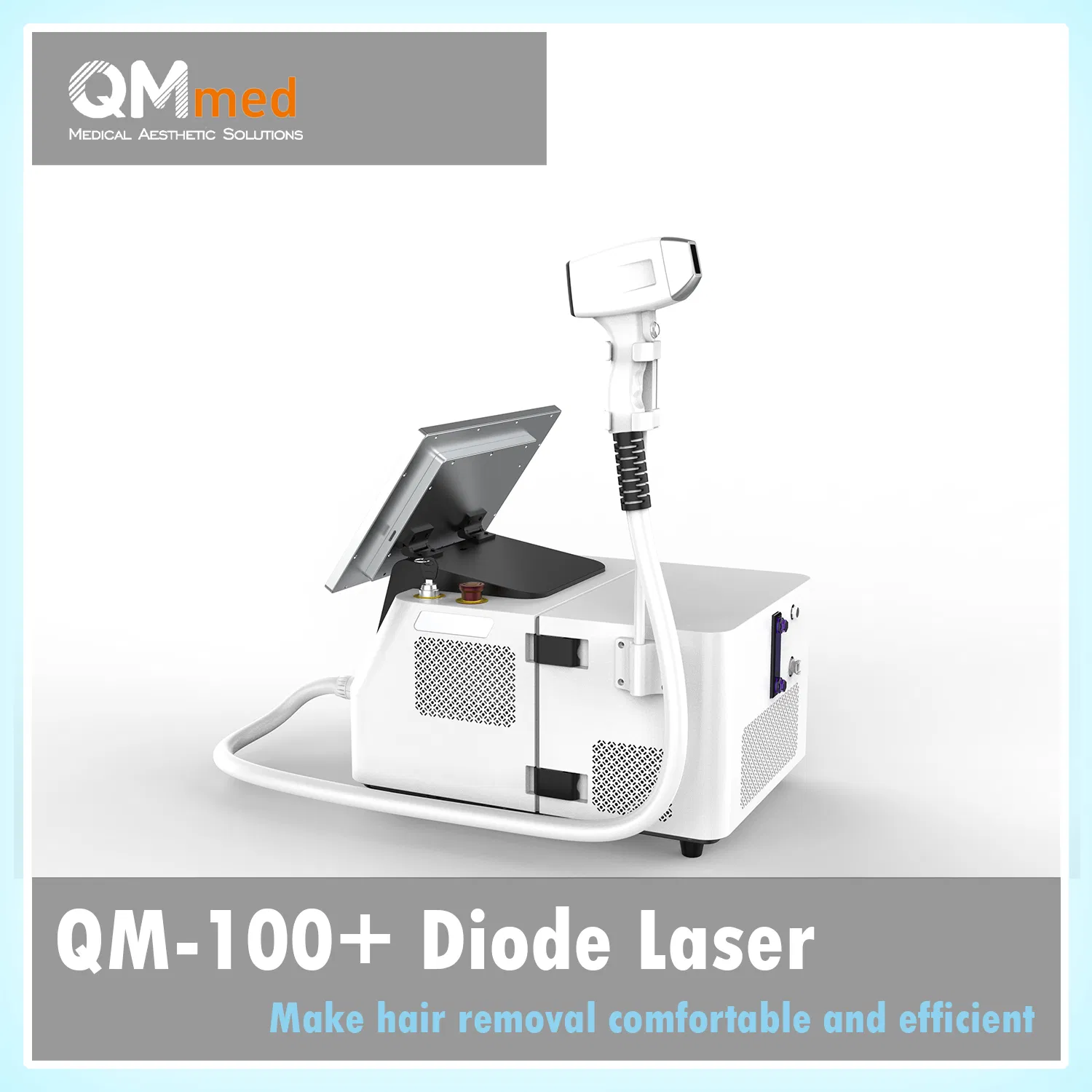

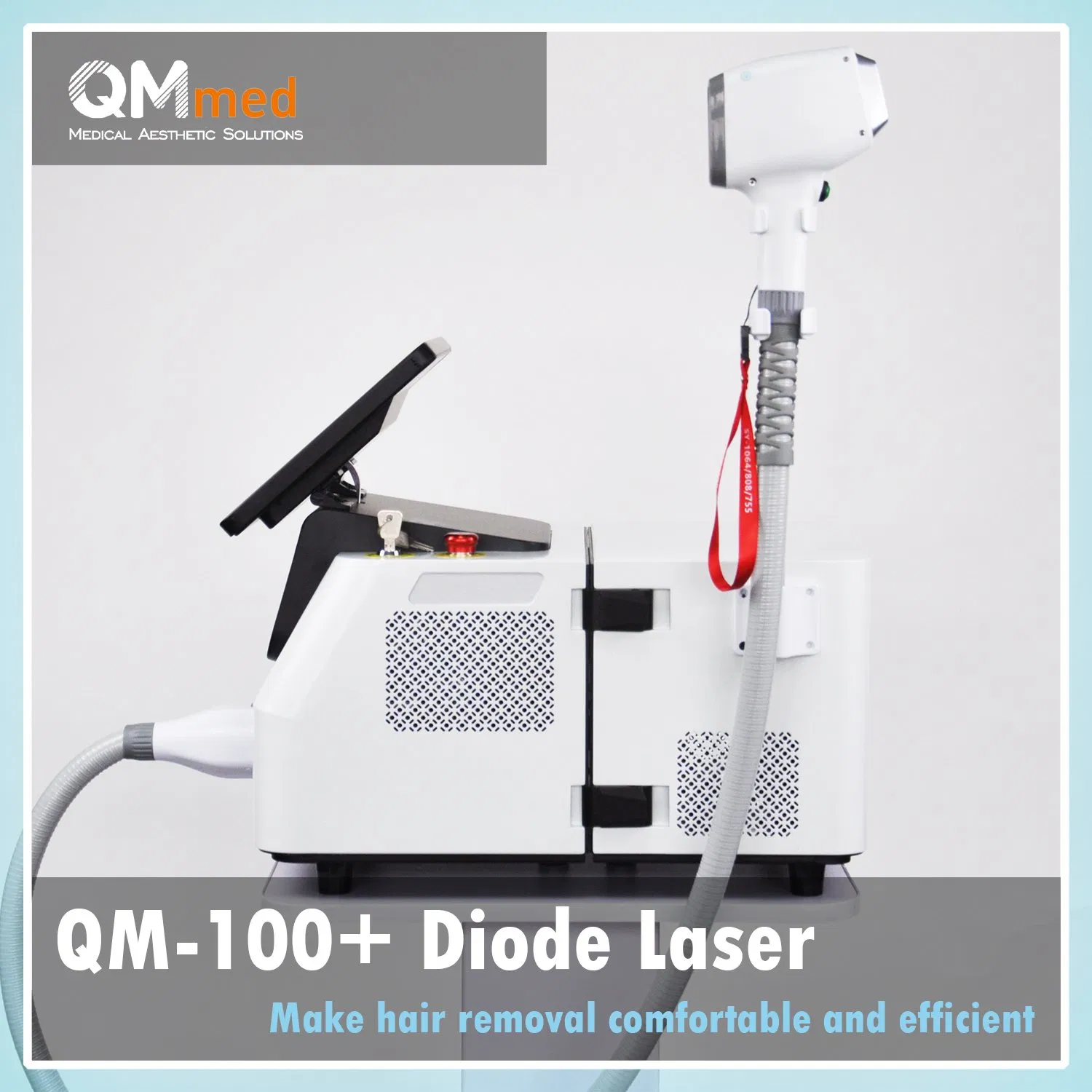

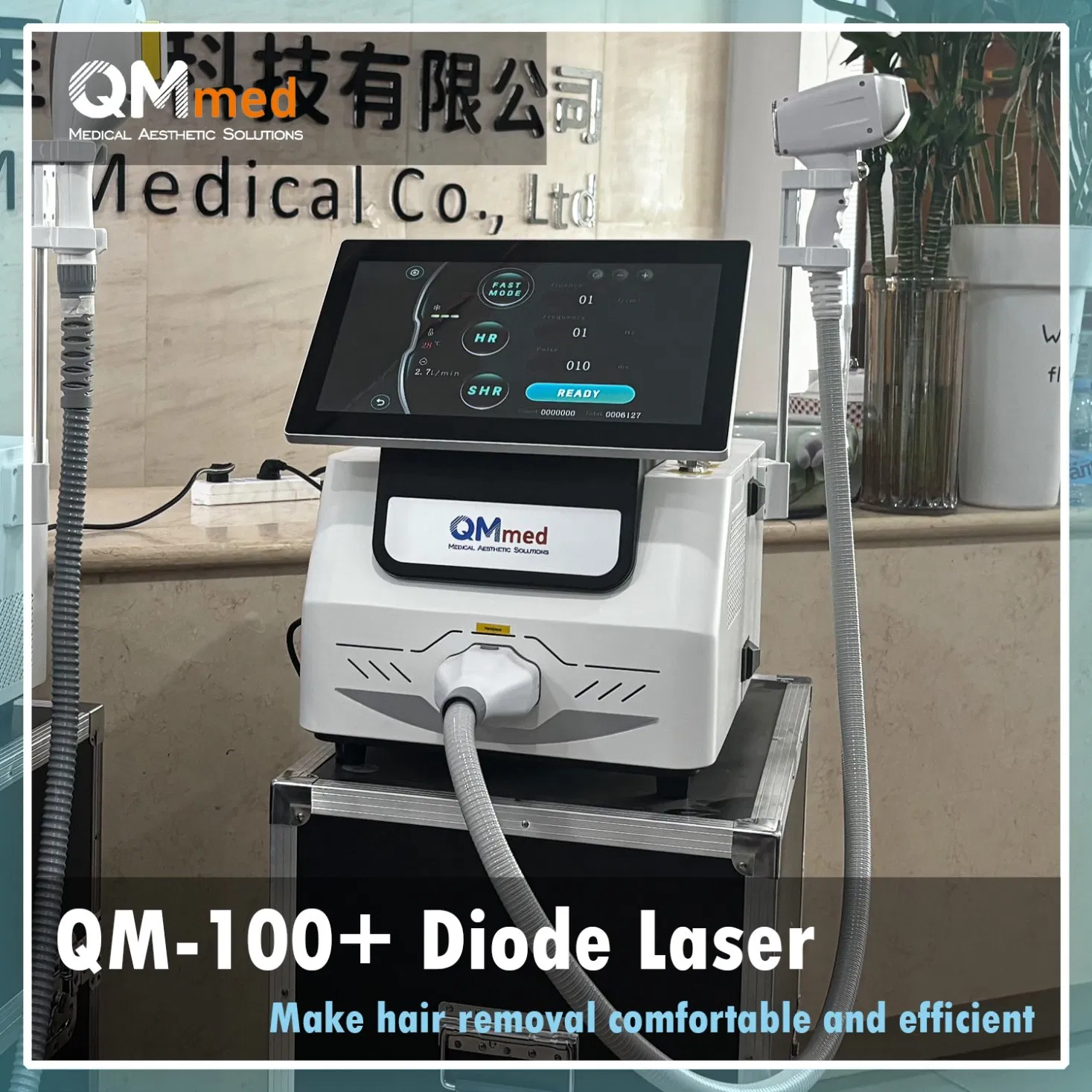

Laser Machine Appearance

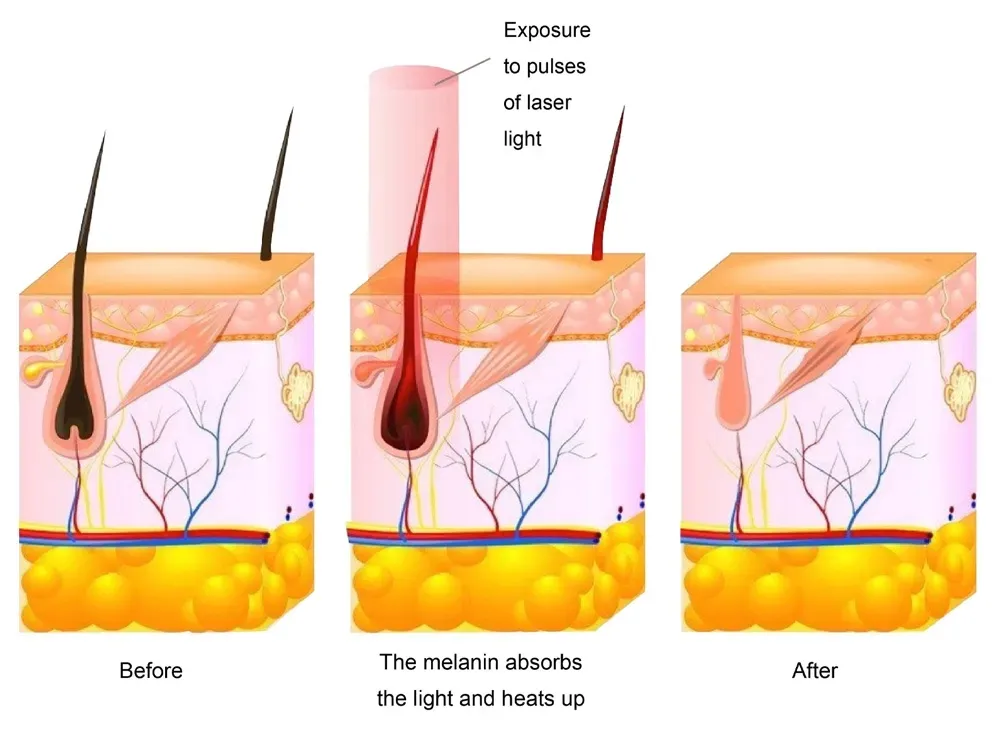

Treatment Principle
The principle of diode laser hair removal is based on selective photothermal decomposition. Melanosomes in the hair follicle selectively absorb laser energy. This energy is converted into heat, increasing the follicle temperature to a level where it is irreversibly damaged, preventing future hair growth without harming surrounding tissue.
Laser Principle Diagram

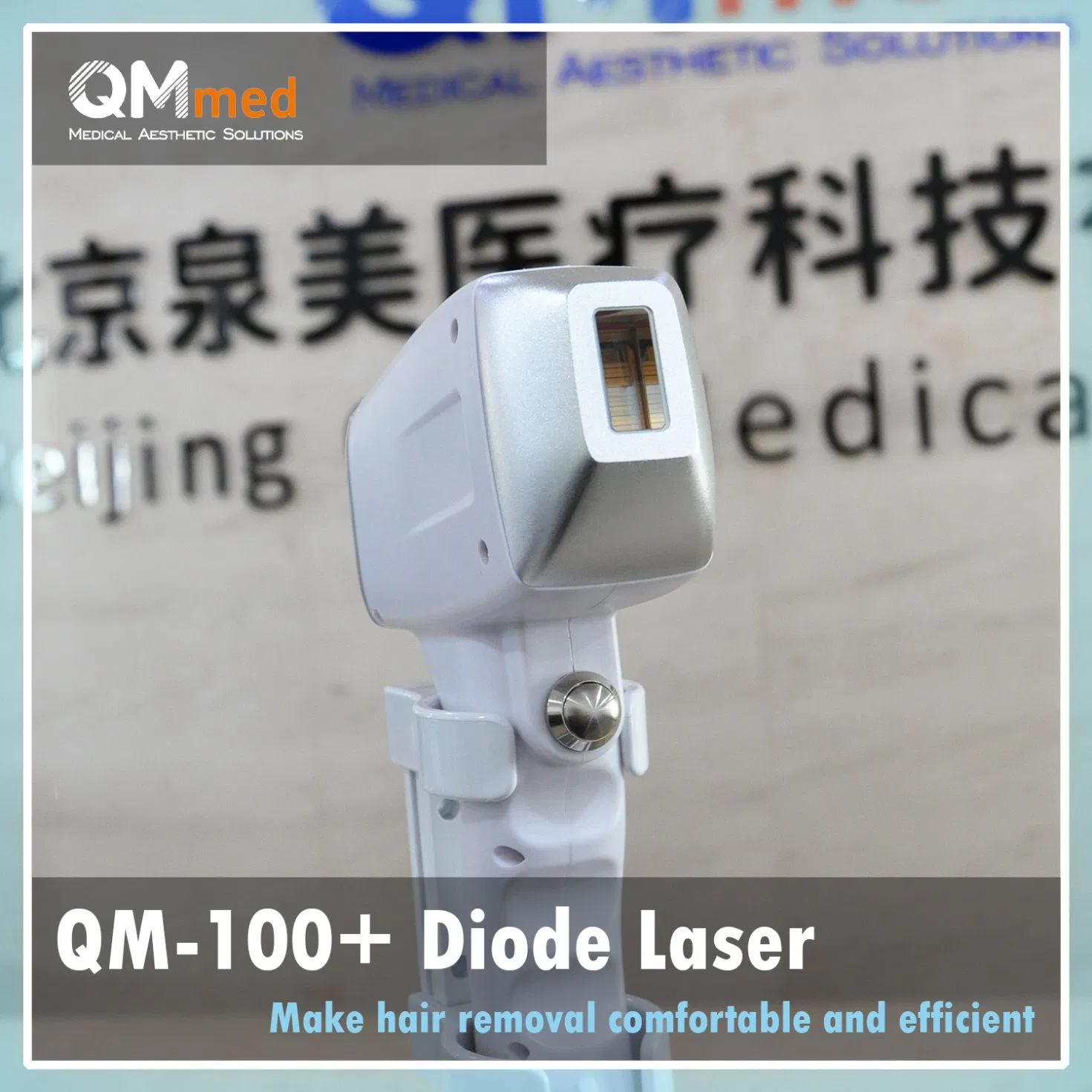

Advanced Handle Technology
Adjustable Spot Size

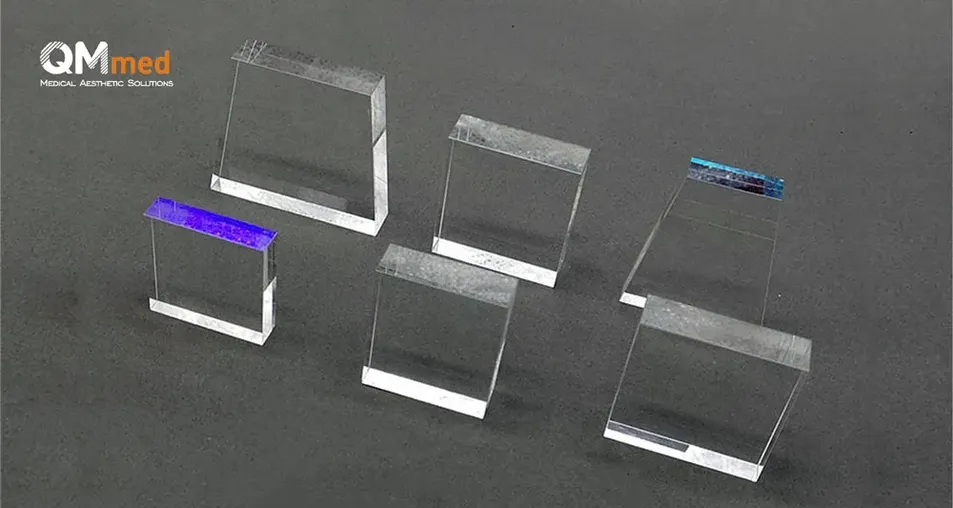

Sapphire Crystal
Cooling System

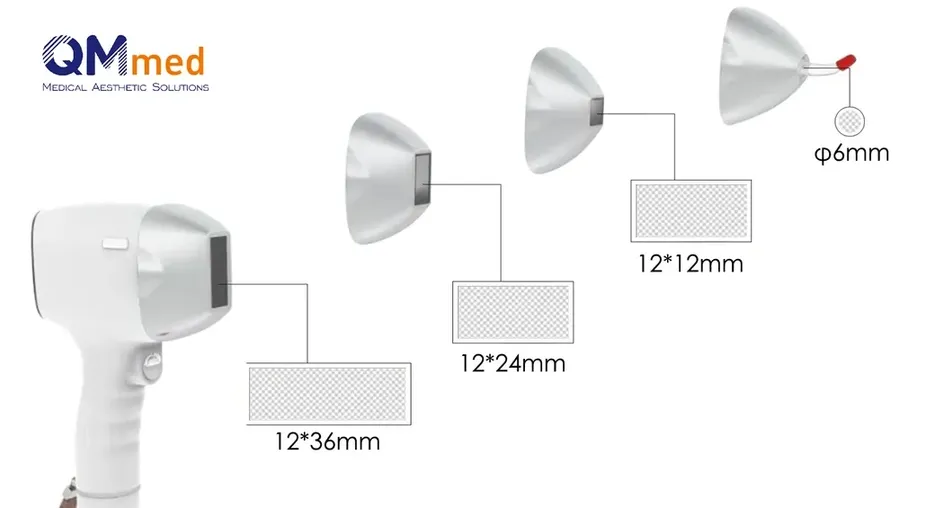

Adjustable Spot Size: Provides 3 different spot sizes (φ6mm, 12*12mm, 12*24mm, 12*36mm) for flexible treatment areas.
Super Refrigeration: 108W super cooling power, surface temperature can reach -30°C for maximum comfort.
Detailed Technical Specifications
FeatureSpecification
Handle Power500w / 600w / 800w / 1000W / 1200W / 1600W
Wavelength808nm / 755nm + 808nm + 1064nm
Spot Size13*16mm; 13*22mm; 13*30mm
Pulse Width10-400ms
Cooling Level1-5 Levels (-10°C to 5°C)
Cooling SystemSemiconductor + Water Circulation + Air Radiator with Condenser
Working TimeContinuous 24 hours
Dimensions640*620*1230mm
Clinical Results & Production
Before and After Results

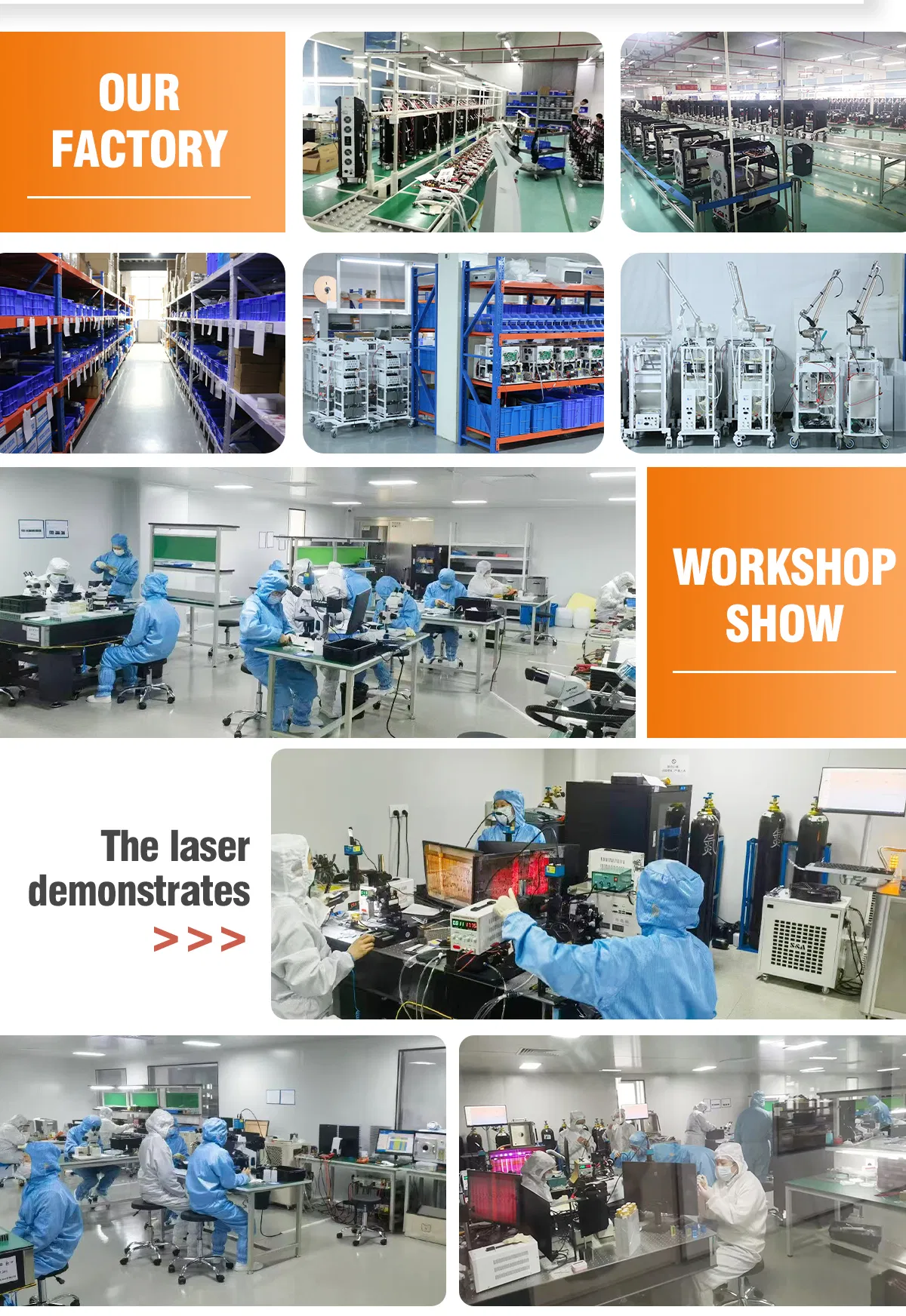

Production Facility
Quality Control
Certification
Packaging & Shipping
Secure Packaging
Frequently Asked Questions
What makes the triple wavelength laser more effective?
The combination of 755nm, 808nm, and 1064nm allows the laser to target different depths of the hair follicle. This makes it highly effective for all skin types (I-VI) and all hair colors, including light and thin hair.
Is the treatment painful?
Thanks to the advanced Sapphire crystal cooling and TEC system, the surface temperature can be maintained at a very low level (-30°C to 5°C), providing a "painless" and comfortable experience for the patient.
Can the machine work continuously?
Yes, our professional refrigeration system, which includes semiconductor cooling, water circulation, and an air radiator, allows the machine to operate 24 hours a day without stopping.
How many sessions are typically required?
While results can be seen after the first session, most patients require 3 to 6 sessions for complete and permanent hair reduction, depending on the hair type and treatment area.
What is the lifespan of the laser handle?
The handle uses high-quality American coherent laser bars, which are rated for up to 400 million pulses, ensuring long-term reliability and high return on investment.
Is it easy for a beginner to operate?
Yes, the machine features an intelligent mode where the operator simply selects the skin color and treatment area. The system then automatically generates the recommended parameters.
