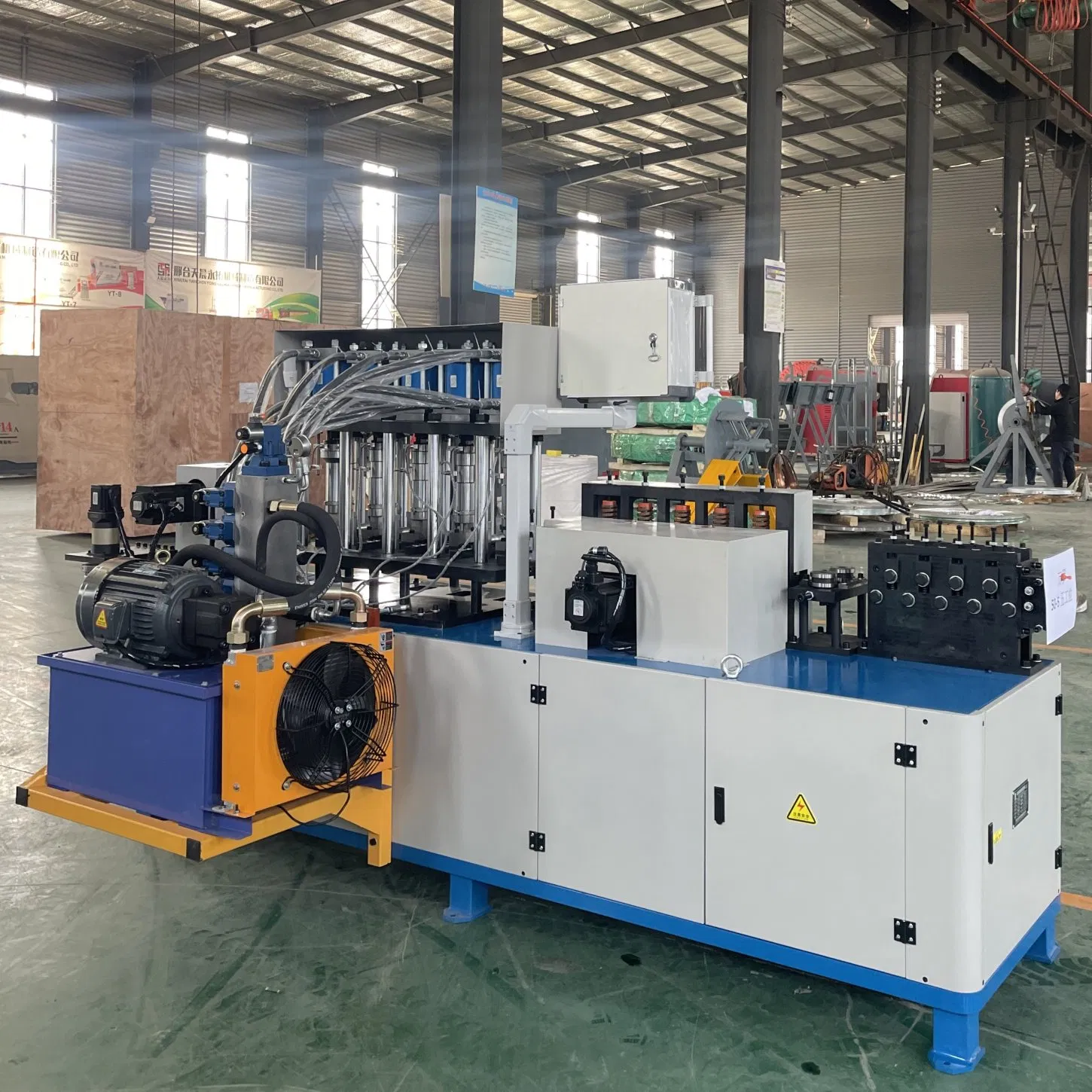

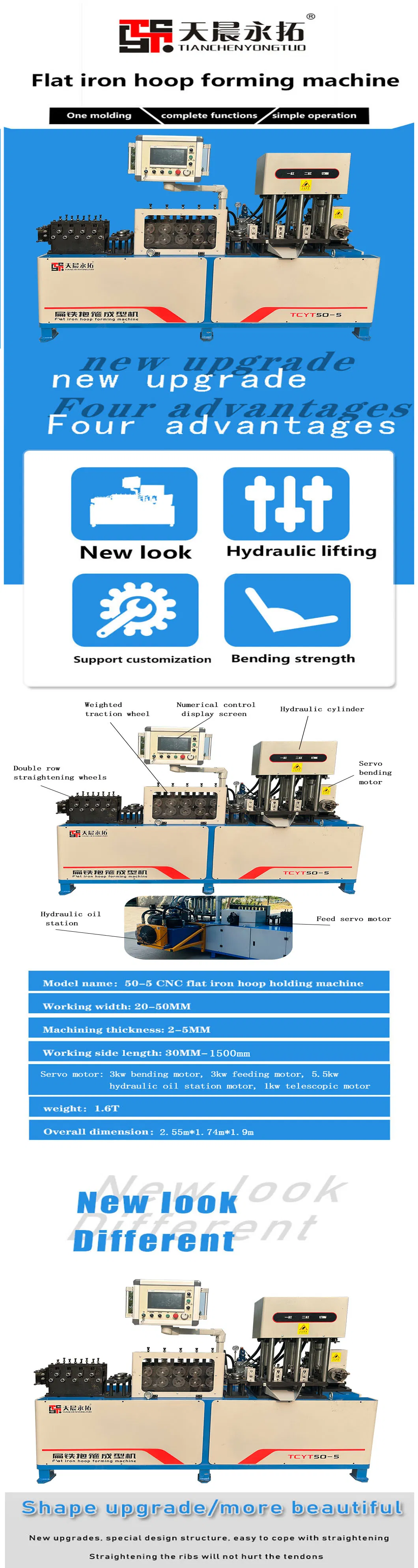

Flat Iron Hoop Forming Machine / Pipe Clamps Making Machine
Discover the unparalleled efficiency of the Automatic High-Speed CNC Flat Iron Hoop Forming Machine, where cutting-edge design meets technological brilliance. Built with solid materials and a precise mechanical structure, it promises unmatched durability and performance. The advanced servo motor electrical system ensures smooth and stable operations, revolutionizing the production process.

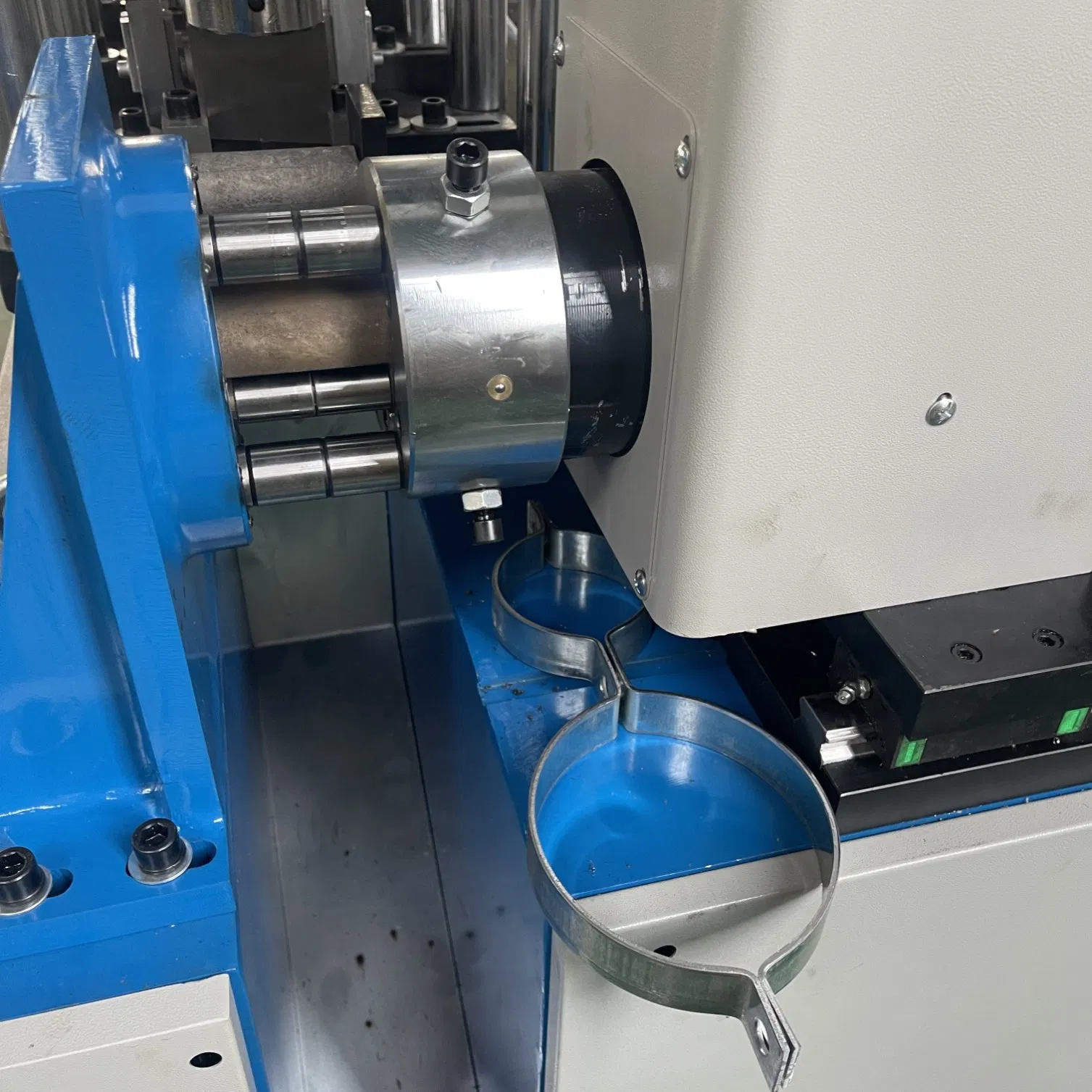

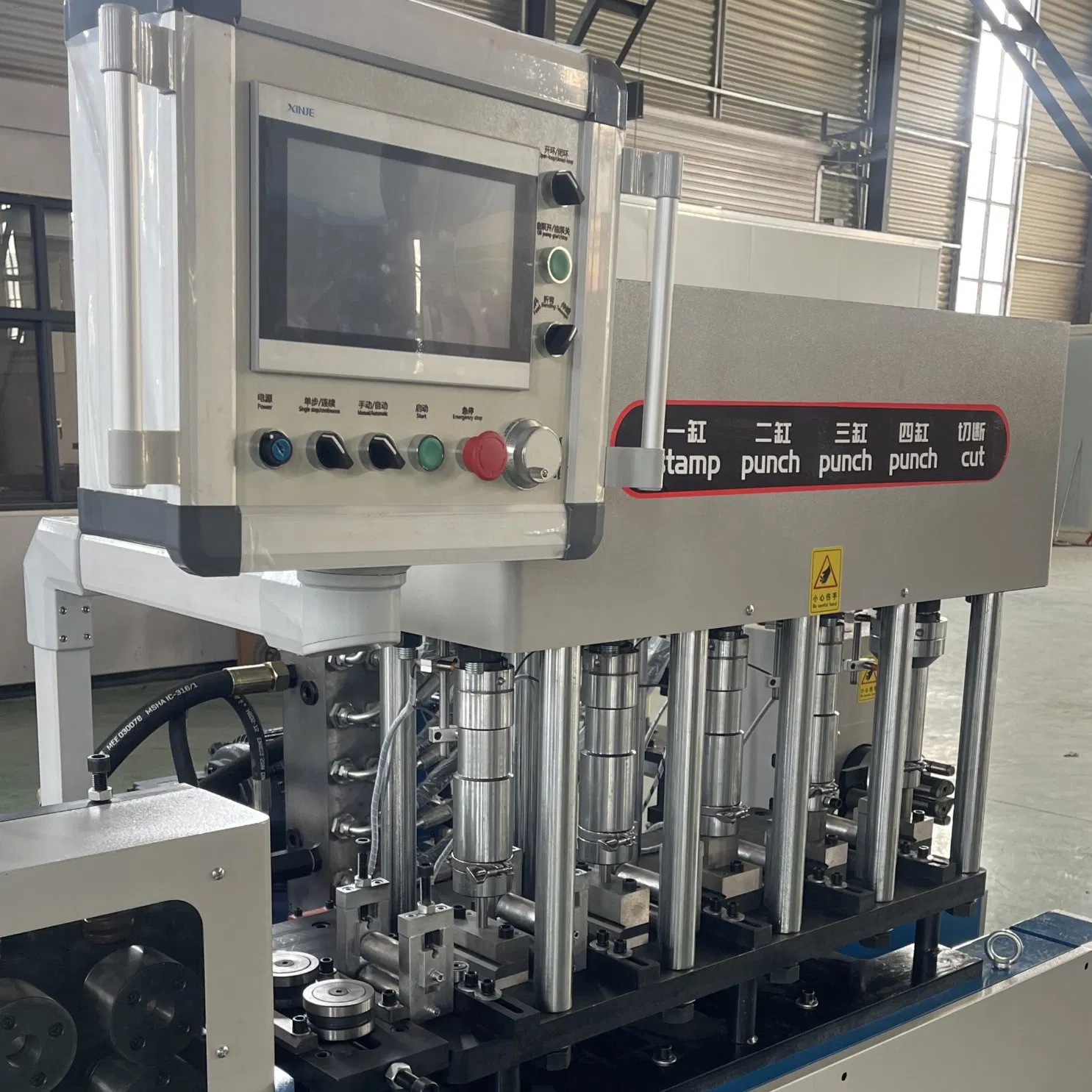

Feeding, Straightening, Stamping, Punching, Cutting, and Bending
Cuts traditional processing time and labor costs significantly
Hoops in various specifications to meet unique demands

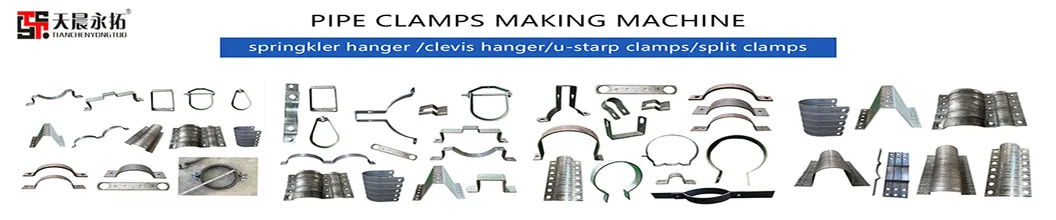

As a leading expert in the production of automatic CNC flat iron hoop forming machinery, we provide a vast array of mechanical solutions. Our machinery is adeptly suited for diverse applications, including new energy power photovoltaic bracket hoops, traffic power equipment bracket hoops, building seismic bracket hoops, and fire pipeline corridor bracket hoops.

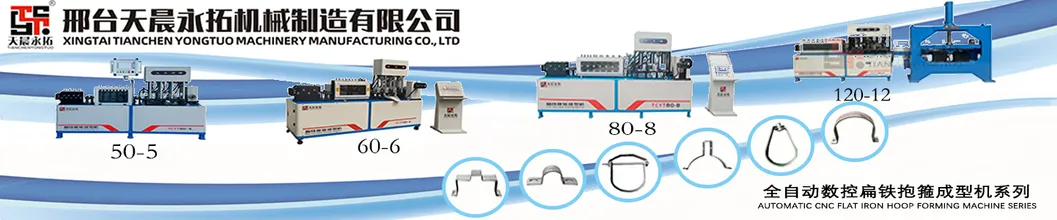

| MODEL | TCYT50-5 | TCYT60-6 | TCYT80-8 | TCYT120-12 |
|---|---|---|---|---|
| Processing range (mm) | Wide 20-50mm Thickness 2-5mm |
Wide 20-60mm Thickness 2-6mm |
Wide 40-80mm Thickness 4-8mm |
Wide 40-120mm Thickness 4-12mm |

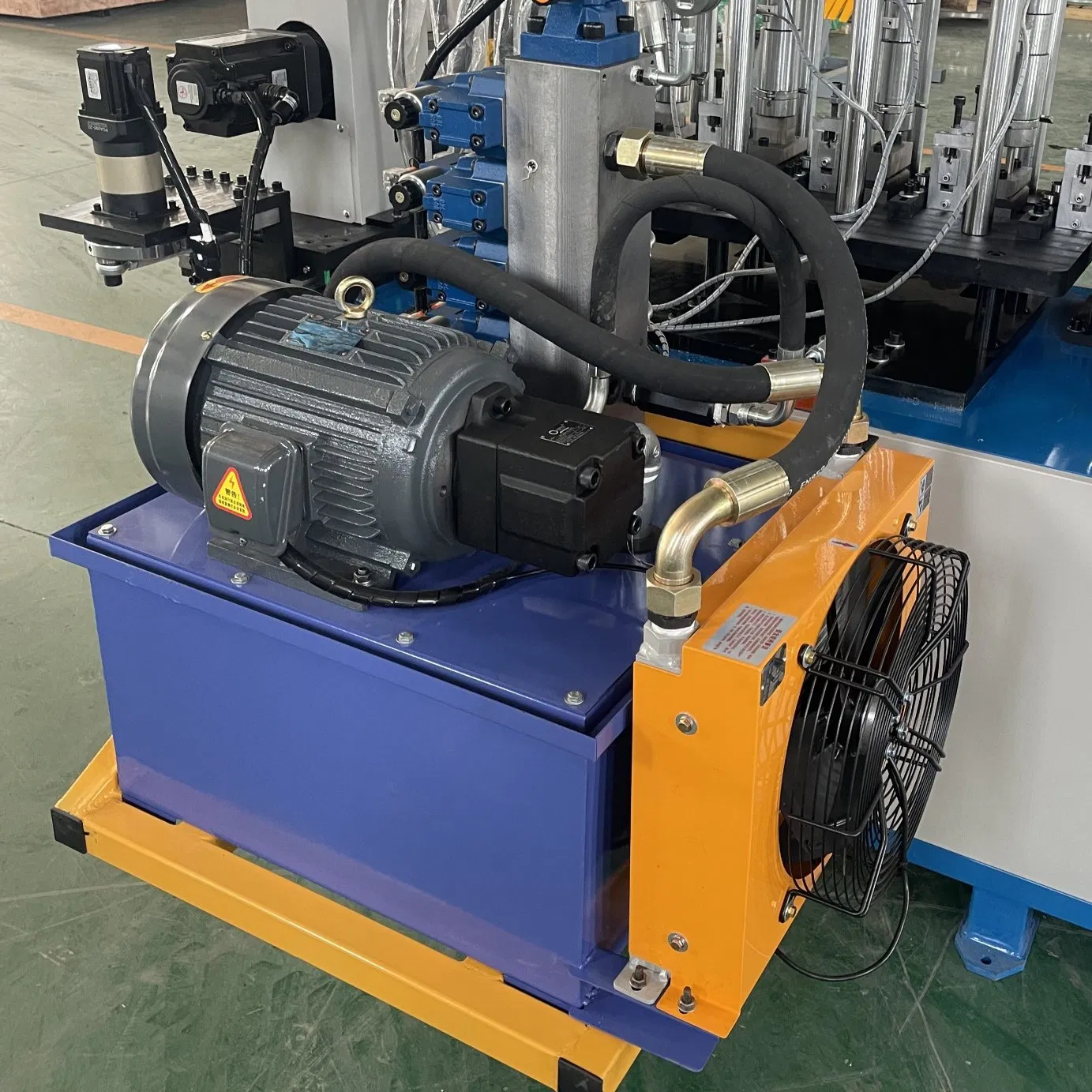

| Motor (kw) | Feeding 3kw, Bending 3kw, Oil Station 5.5kw |
Feeding 5.5kw, Bending 3kw/2sets, Oil Station 7.5kw |
Feeding 7.5kw, Bending 5.5kw/2sets, Oil Station 15kw |
Feeding 7.5kw, Oil Station 22kw |
| Hoop speed / Feeding | 800°/sec | 55m/min | 800°/sec | 55m/min | 800°/sec | 55m/min | 800°/sec | 55m/min |
| Size Range (mm) | Min 30mm - Max 1500mm | Min 30mm - Max 1500mm | Min 30mm - Max 1500mm | Min 30mm - Max 1500mm |
| Weight (T) | 1.7T | 1.8T | 2.6T | 2.8T |
