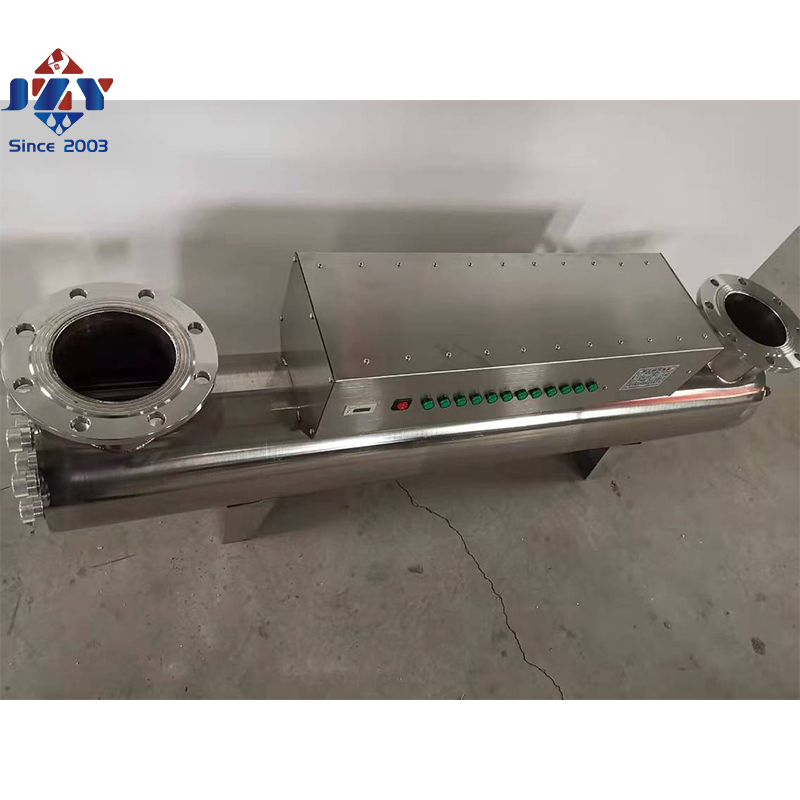

Water Purification Machines 304s UV Water Treatment System for Commercial Water Filter System

Customization: Available
Type: UV Water Purification System
Usage: Environmental Protection, Chemical Industry

Product Description

ℹ️ Basic Information
Model NO.
UV-200W
Motive Force
Electric power
Style
Vertical
Performance
Sophisticated Filters
Certification
CE, GS, RoHS, CB, LFGB, UR, EMF, EMC, SASO
Scope of Application
Domestic Water, Sewage, Aquaculture
Lamp Tube Lifespan
9000h+
Algae Control Rate
99.9%
Sterilization Rate
99.9%
Working Mode
Flow Cytometry
Equipment Type
Pipeline Type
Cleaning Method
Automatic / Manual
Interface Form
Flange / Threaded / Quick Coupling / Clamp
UV Light Sterilizer
High-Quality UVC Lamp Tube
Drivepipe
High-Quality Quartz Tube
Equipment Material
304/316 stainless Steel
Package Size
800.00cm * 135.00cm * 120.00cm
Package Gross Weight
50.000kg
📋 Product Description

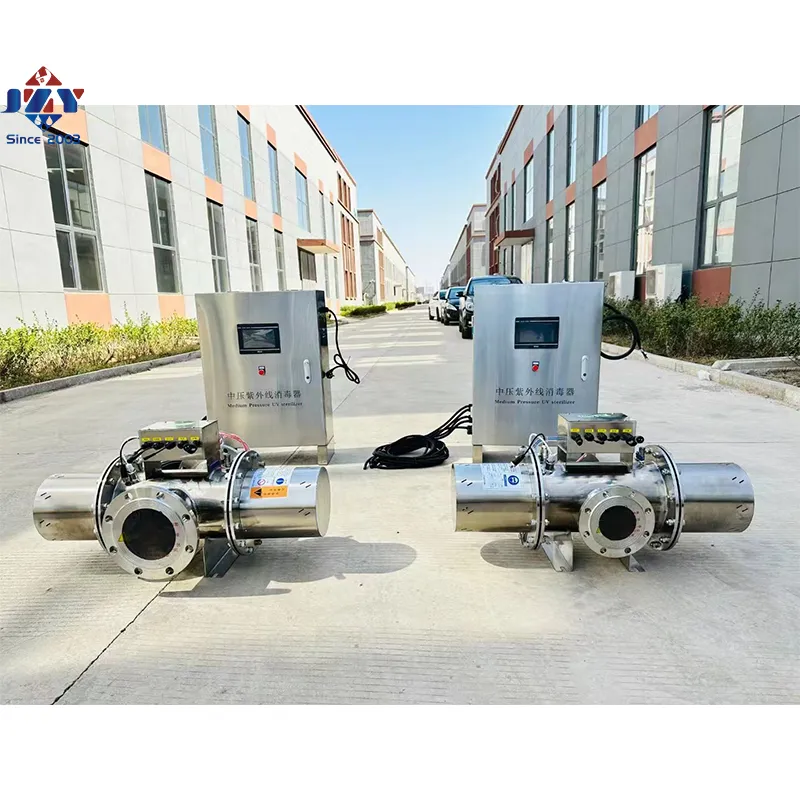

UV Water Treatment System
Commercial Water Filter System

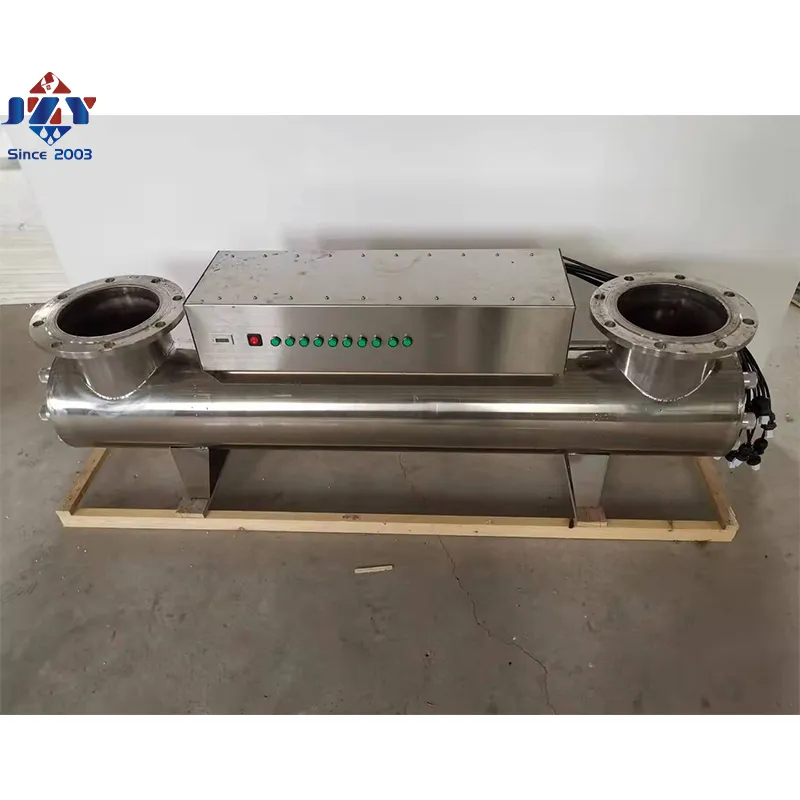

Water Purification Machines
UV Disinfection System Details

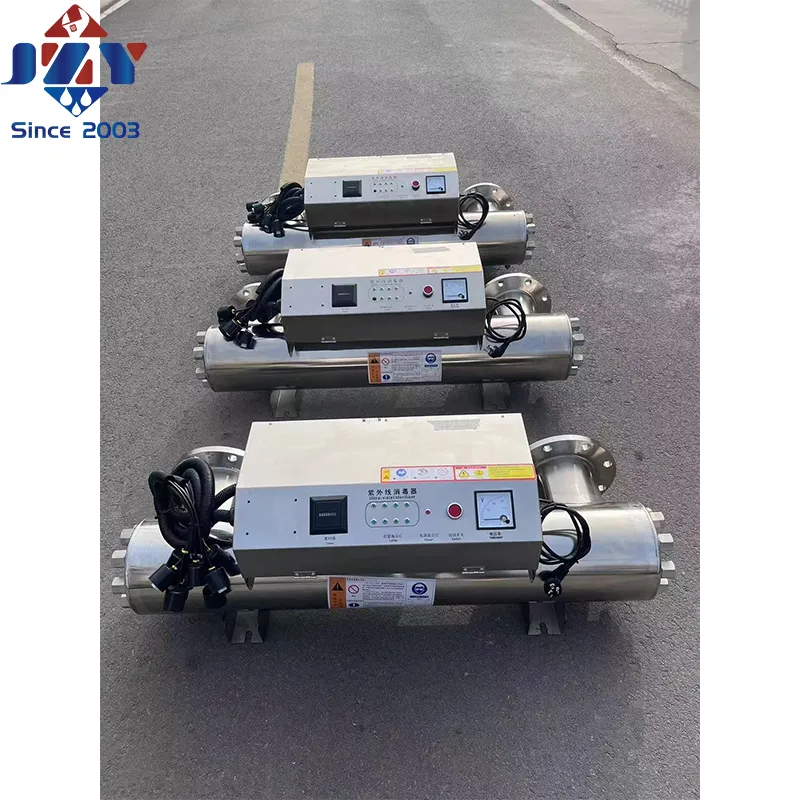

Water Treatment Component

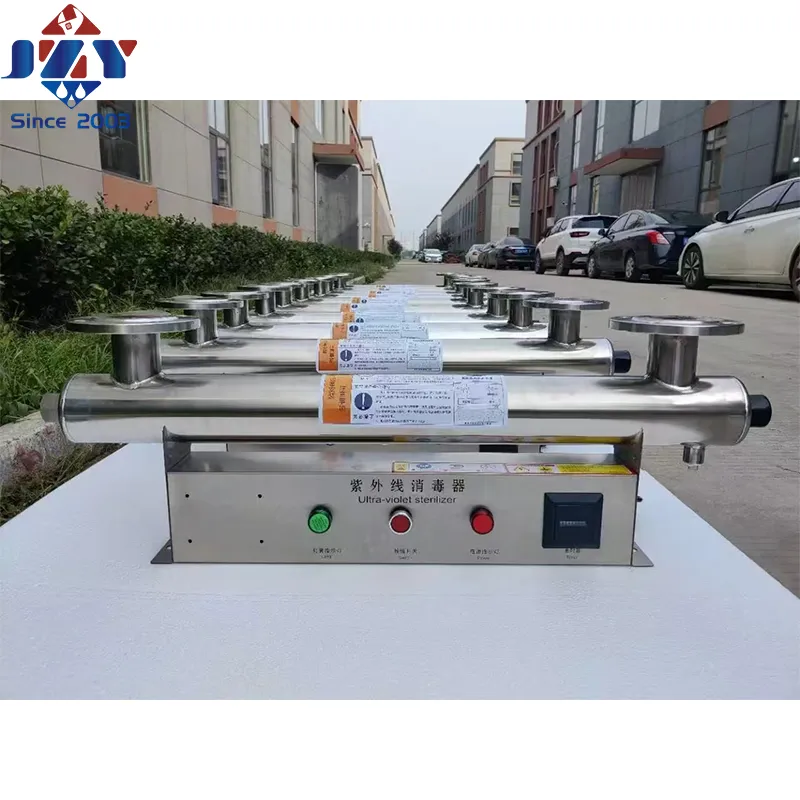

UV Sterilizer Interface
Working Principle

UV disinfection is a broad-spectrum, non-chemical disinfection technology used in commercial, industrial, and healthcare settings for the inactivation of microorganism. UV disinfection is generated in special UV lamps. A watertight quartz tube surrounds each lamp. The liquid to be disinfected is passed through the quartz tubing where gas plasma generated in the lamp emits intensive UV light. When microorganisms are exposed to the germicidal wavelength of UV light, their cellular DNA and RNA absorbs the wavelengths, thereby damaging their nucleic acid. This modifies the DNA of the microorganisms to be unable to divide and reproduce, thus rendering it inactive. UV provides rapid inactivation of bacteria, viruses, yeasts, and molds.

🚀 Application Areas
  • Extensively applied in drinking water machine, home water purifier, drink equipment disinfection, waste treatment and other fields.
  • Suitable for Schools, Hospitals, Homes, Hotels and various industrial environments.
Note: UV radiation can cause harm to human skin and eyes. Please pay attention to protection when using.
Application Overview

Ultraviolet disinfection lamps: These devices use ultraviolet light (especially the UVC band) to destroy the DNA of microorganisms so that they cannot reproduce, thus achieving the purpose of disinfection. UV disinfection lamps are widely used in water treatment, air purification and surface disinfection. providing 99.9% bacteria and virus killing rate.

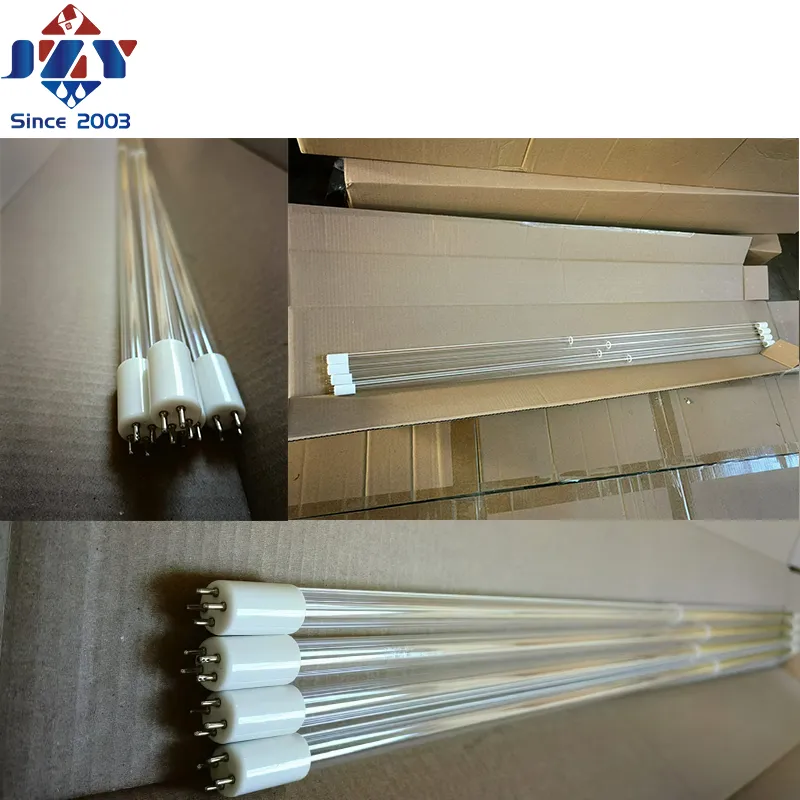

UV Lamp Detail

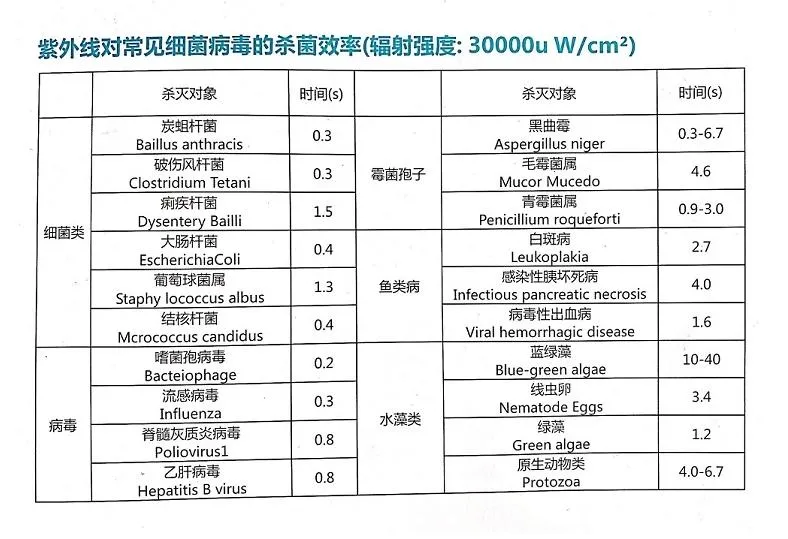

Product Specification View

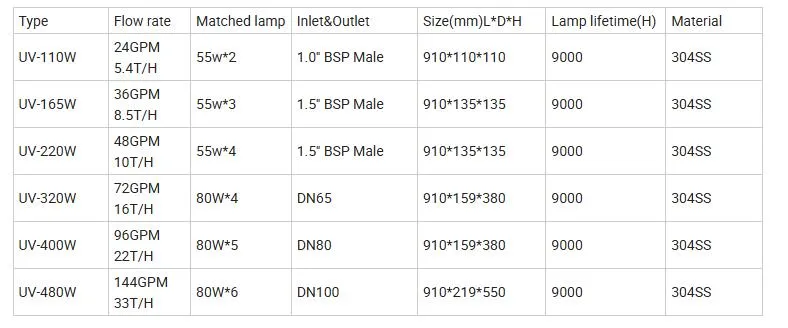

Technical Drawing
Frequently Asked Questions
1. What is the sterilization rate of this UV equipment?
The system provides a 99.9% killing rate for bacteria and viruses, using high-quality UVC lamp tubes to destroy microbial DNA.
2. How long is the typical delivery time?
For ordinary standards, it is 5-8 days. For non-standard or customized water filters based on specific requirements, it ranges from 15 to 30 days.
3. Do you provide installation guidance?
Yes, we provide comprehensive installation guides, including videos and assistance from our engineers if necessary.
4. Can you undertake EPC projects?
Absolutely. We provide one-stop services for EPC projects to ensure streamlined implementation without intermediate links.
5. Can you manufacture customized products?
Yes. If you provide detailed specifications or drawings, we can create solutions that satisfy your specific project needs.
6. Is customized packaging available?
Yes, the size, color, logo, and overall packaging style can all be customized according to your requirements.
