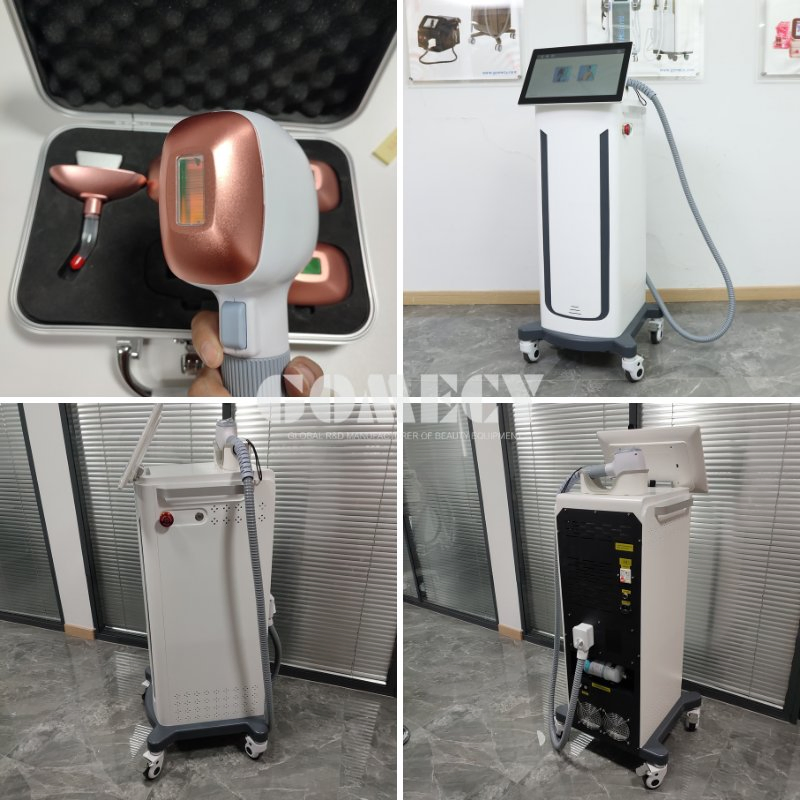

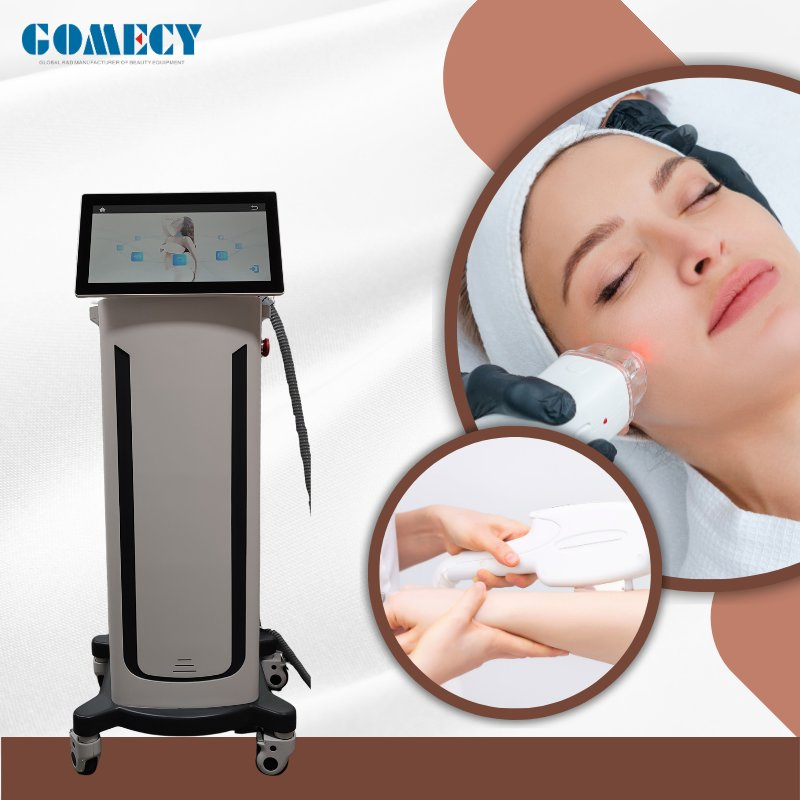

Multi Functional Diode Laser Hair Removal System with Touch Screen and Sapphire Cooling

Customization:	Available
Type:	Hair Removal Instrument
Theory:	Laser

Basic Specifications

ModelGMS-K16 PRO

ApplicationSalon, Home

PortableNon Portable

TechnologyAi Diode Laser System

Laser TypeDiode Laser

Wavelengths755nm + 808nm + 940nm + 1064nm

Output Power1200W / 1600W / 2000W

Spot Sizes12×16mm / 12×20mm / 12×24mm / 12×28mm

Cooling SystemWater+Air+Semiconductor+Tec

Display15.6" 4K Android Touch Screen

What Is Laser Hair Removal

Laser hair removal is a professional technology that uses specific wavelengths of laser energy to achieve long-term hair reduction or permanent hair removal. Unlike traditional methods such as shaving, waxing, or depilatory creams, laser hair removal targets the root of the hair follicle, significantly slowing down or stopping regrowth.

Principle of Operation

The system works on the theory of Selective Photothermolysis:

Target Selection: Melanin in hair follicles absorbs specific laser wavelengths.
Energy Conversion: Absorbed light energy turns into heat.
Follicle Destruction: Heat destroys the hair papilla and stem cells, stopping regrowth.
Skin Protection: Advanced cooling protects the epidermis during the process.

Technical Parameters

Parameter	Details
Laser Type	Diode Laser
Wavelengths	755nm + 808nm + 940nm + 1064nm
Laser Output Power	1200W / 1600W / 2000W
Input Power	3000W
Energy Density	1-200J/cm²
Pulse Width	5ms-400ms
Repetition Frequency	1-10Hz
Cooling System	Water + Air + Semiconductor + TEC + Automotive Blanket
Contact Cooling	Sapphire Tip, -5°C to +5°C

4 Wavelength Combination Benefits

This system combines 755nm, 808nm, 940nm, and 1064nm for comprehensive treatment across all skin types (Fitzpatrick I-VI).

755nm: Ideal for light-colored, thin hair and superficial follicles.
808nm: The classic wavelength for most skin and hair types.
940nm: Enhances vascular heating and follicle destruction efficiency.
1064nm: Safest for dark skin types and deep-rooted hair.

Advanced AI & 5-Layer Cooling

Exclusive 5-Layer Cooling System

Our proprietary intelligent cooling includes: Water, Air, Semiconductor, TEC Module, and an Automotive-Grade Cooling Blanket. This ensures stable operation for long working hours without overheating.

AI Smart Control: The integrated system features skin type recognition, power output matching, and real-time safety temperature monitoring.

Hair Removal Procedure

1

Preparation: Clean area and shave hair. Ensure skin is dry.

2

Parameter Setting: Select wavelength and energy based on skin type.

3

Cooling Protection: Activate sapphire contact cooling system.

4

Laser Application: Deliver shots evenly with slight overlapping.

5

Post-Treatment: Apply cold compress and avoid sun exposure.

Frequently Asked Questions

Q: Is the treatment painful?

A: Thanks to the sapphire contact cooling (-5°C to +5°C) and the 5-layer TEC cooling system, the treatment is virtually pain-free and comfortable for patients.

Q: Can this machine be used on dark skin tones?

A: Yes. The 1064nm wavelength is specifically designed for safer and more effective treatment on darker skin tones (Fitzpatrick IV-VI).

Q: How many wavelengths does the system use?

A: It combines four wavelengths (755nm, 808nm, 940nm, and 1064nm) into a single handpiece to target various hair depths and colors.

Q: How long can the machine operate continuously?

A: The automotive-grade cooling blanket and TEC modules allow the system to run for long working hours in busy clinic environments without overheating.

Q: Is it suitable for facial hair removal?

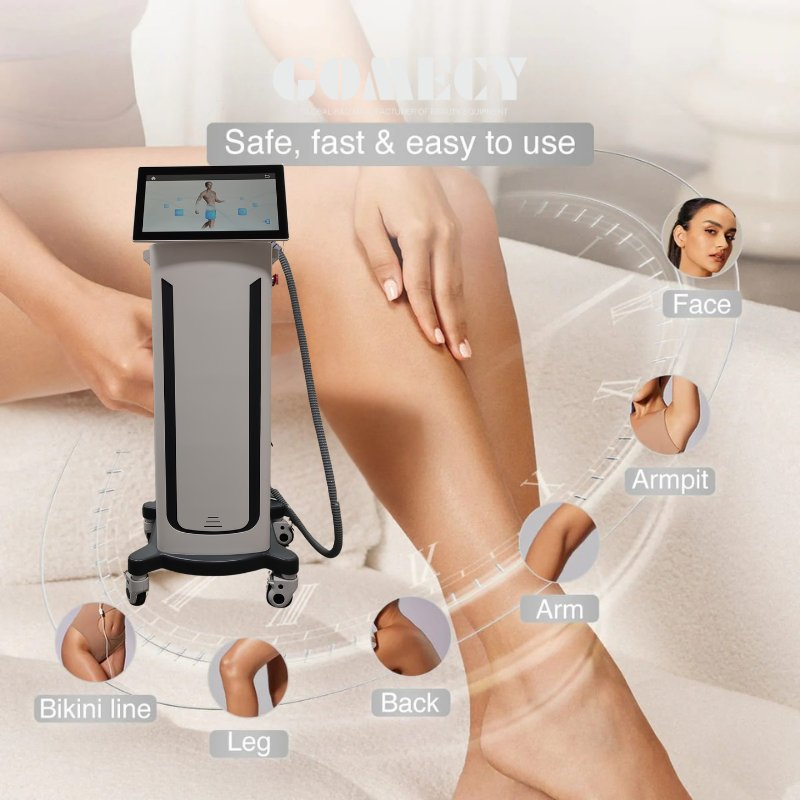

A: Yes, it is effective for various body areas including the face, underarms, legs, back, and delicate bikini lines.

Q: What is the benefit of the AI system?

A: The AI system provides smart treatment presets, monitors temperature for safety, and helps match the correct power output for different skin types automatically.
