| Model NO. | EN100 |
|---|---|
| Application | Salon, Home |
| Portable | Portable |

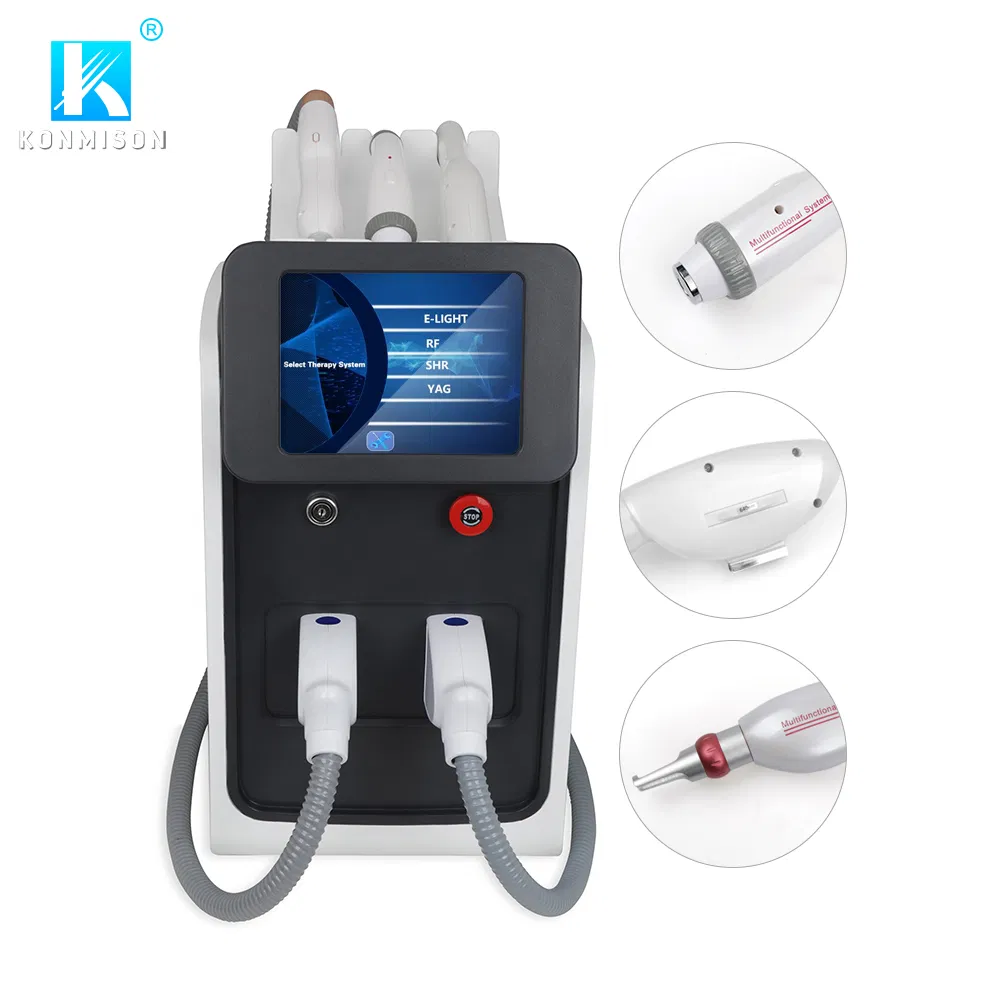

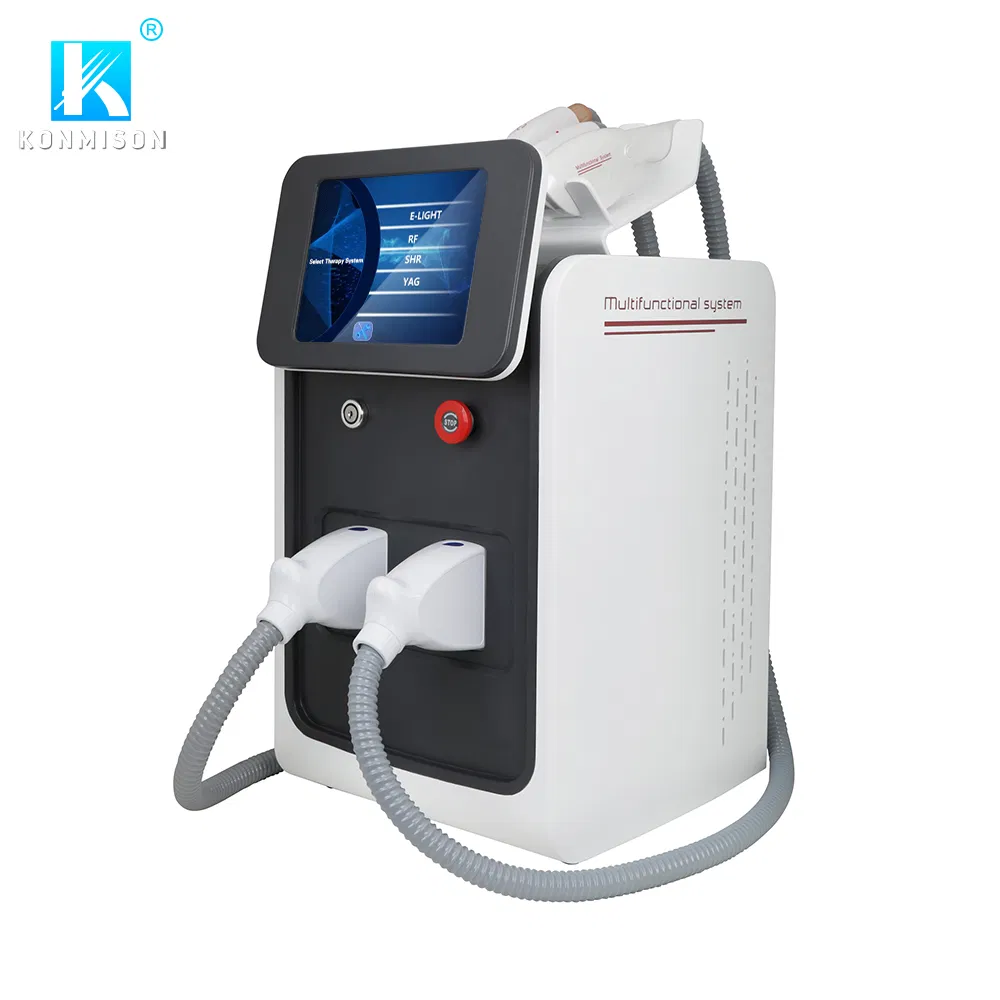

| Product Name | Multifunctional 3 in 1 IPL RF Laser Machine |
| Screen | 10.4-Inch Touch Screen |
| Cooling System | Water Cooling + Air Cooling + Semiconductor Cooling |
| Safety Detection | Water Flow, Water Temp, High Pressure Detection (Yes) |
| Total Power | 2600W |
| Dimensions & Weight | 63*55*76cm | 50kg |
| HS Code | 8543709990 |
| Production Capacity | 3000 pieces/Month |
IPL Parameters
| Handle/Filter | 1pc Handle / 3pcs Filters (480nm, 530nm, 640nm) |
|---|---|
| Spot Size | 10*40mm |
| Spectral Range | 480-1200nm, 530-1200nm, 640-1200nm |
| Energy Output | 1-50J/cm2 |
| Frequency | 1-10HZ |
Laser Parameters
| Treatment Tips | 3pcs (532nm, 1064nm, Carbon Tip) |
|---|---|
| Wavelength | 532nm, 1064nm, 1320nm |
| Pulse Width | 10ns |
| Energy Output | 100-1200mJ |
| Aiming Light | Far infrared aiming light (Yes) |
RF Parameters
| Probe Quantity | 3pcs (22mm, 30mm, 36mm) |
|---|---|
| Frequency | 5Mhz |
| Energy Level | 1-20 |

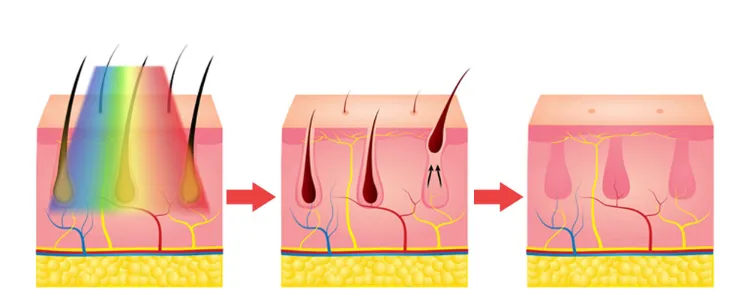

◆IPL Technology: Penetrates and heats hair follicles to destroy hair roots without damaging surrounding tissues. Sapphire cooling ensures a painless experience. It also stimulates collagen regeneration for skin rejuvenation.

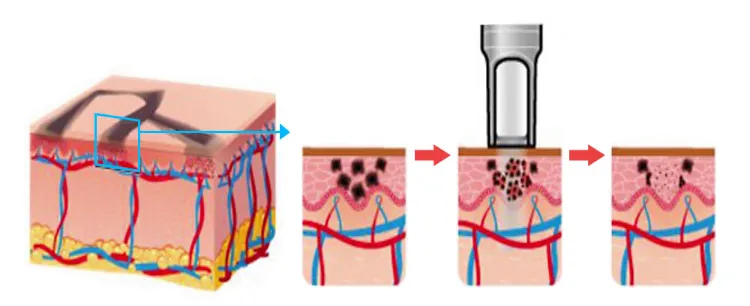

◆Nd:YAG Laser: 532nm for red/brown pigments; 1064nm for black/blue tattoos; 1320nm (Carbon peeling) for whitening and pore shrinking.

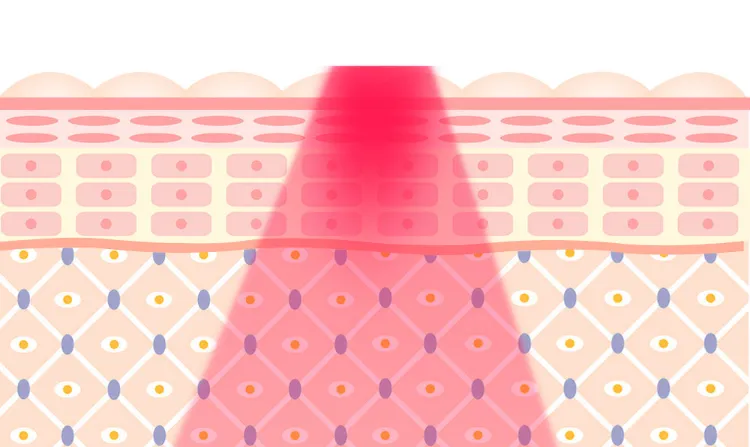

◆RF (Radio Frequency): Penetrates deep skin layers (45-60ºC) to promote blood circulation, metabolism, and collagen contraction for skin tightening and wrinkle reduction.
The machine integrates IPL (Intense Pulsed Light), Nd:YAG Laser, and RF (Radio Frequency) technologies to provide a comprehensive range of beauty treatments.
No. The machine is equipped with a triple cooling system (Water + Air + Semiconductor), including sapphire dynamic cooling, which ensures the epidermis stays protected and the treatment remains comfortable.
It provides three wavelengths: 532nm for colored tattoos, 1064nm for dark tattoos, and 1320nm for the "Black Doll" carbon peeling skin treatment.

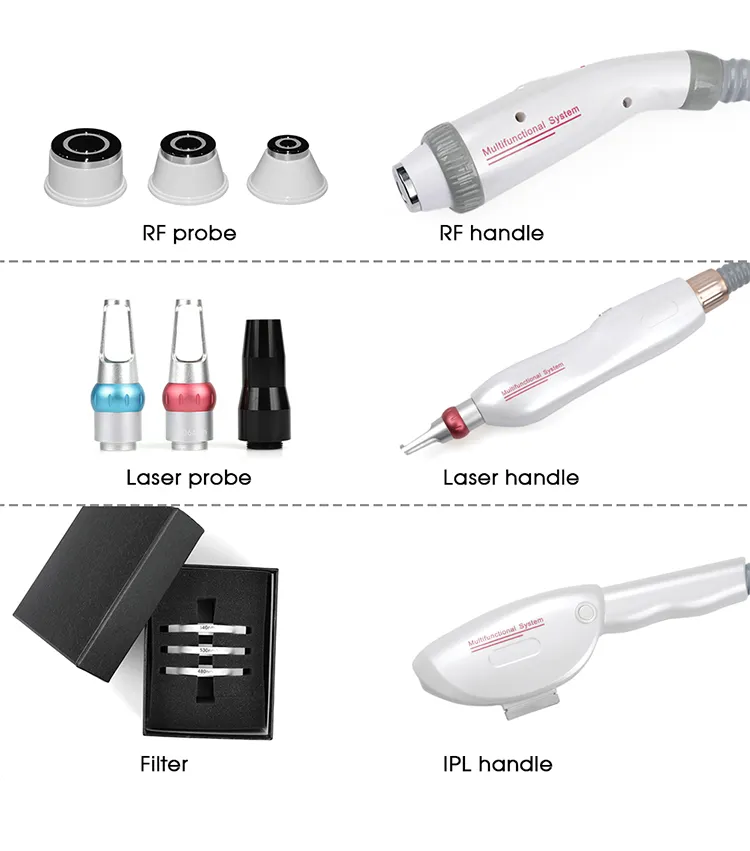

The RF handle comes with three different probe sizes (22mm, 30mm, 36mm) specifically designed for lifting and tightening the skin on the eyes, face, and neck.
Yes, with a 2600W high power output and multifunctional handles, it is perfectly suited for professional beauty salons and skin clinics.
The laser handle features a far-infrared aiming light, which allows operators to target the treatment site with high precision.
